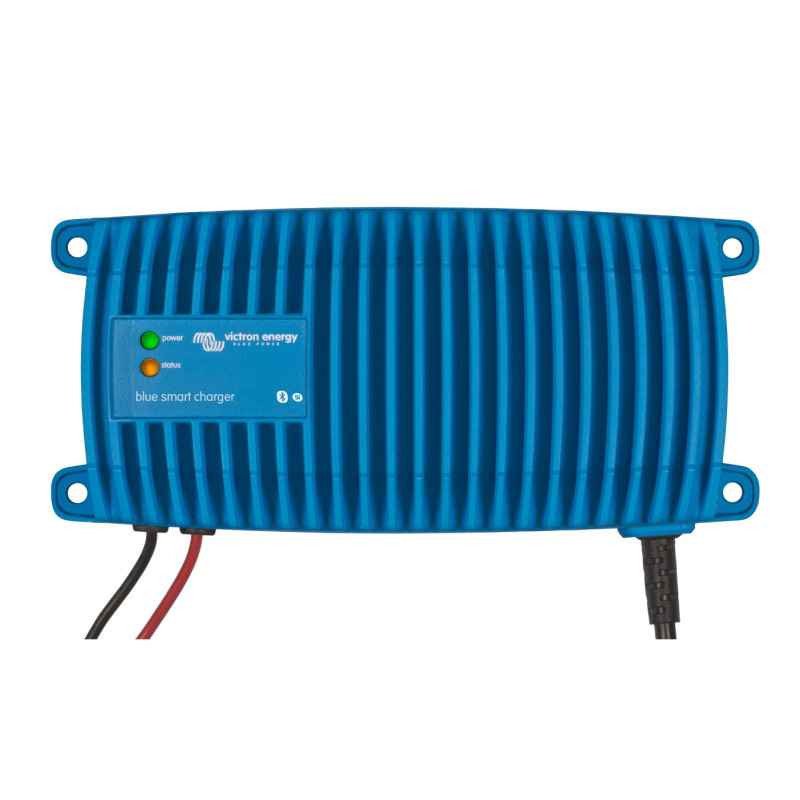

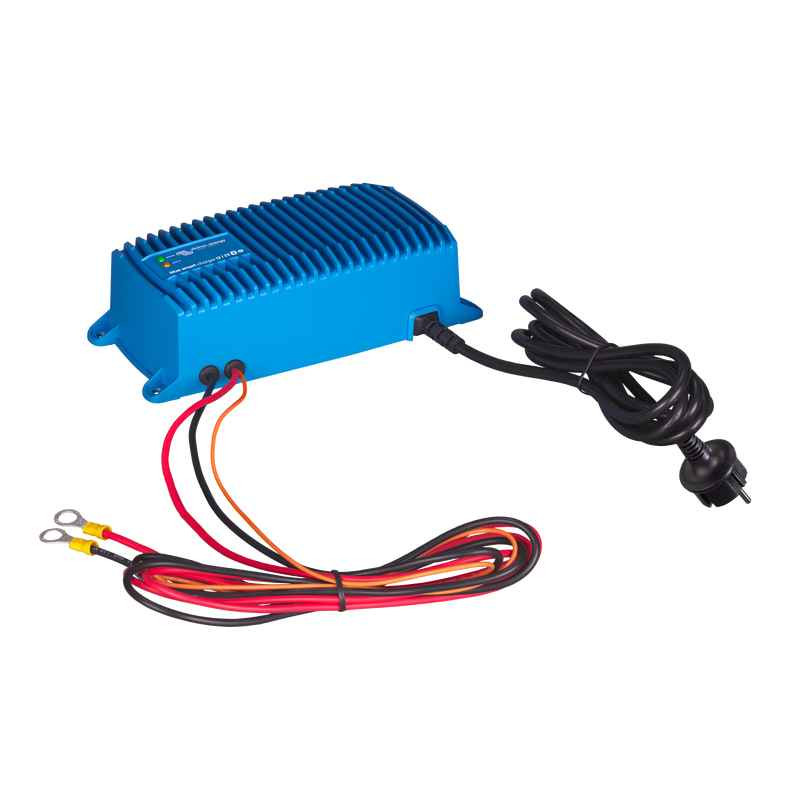

Blue Smart IP67 charger for 12V batteries - choice of charging current - VICTRON ENERGY

Blue Smart IP67 12V Lithium LiFePO4, AGM or GEL charger

This robust, connected charger has been designed to recharge your 12V battery efficiently, even in a demanding environment. Fully encapsulated, compatible with a variety of batteries and equipped with a Bluetooth system for remote control, it promises optimum performance and long life for your auxiliary battery.

The Blue Smart IP67 Victron Energy is more than just a charger, it's an advanced battery protection device that can withstand the most extreme conditions. Thanks to its IP67 protection rating, it is totally sealed against dust and oil and can withstand temporary immersion in water (on a boat, for example). It is also shock and fire resistant. Its case is made of cast aluminium and the electronics are moulded with resin.

The built-in charging modes (which can be selected directly from the Victron Connect application) and adaptive charging logic are suitable for most types of battery: Lead-acid, AGM, GEL and Lithium.

Four charging modes are available: NORMAL (14.4V); HIGH (14.7V); RESET; LI-ION (this one is for Lithium-ion batteries only).

As previously mentioned, this charger features a 5-stage adaptive charging algorithm: bulk, absorption, recovery, float, storage. It is controlled by a microprocessor to automatically optimise each charging cycle (depending on how the 12V battery is used) and maintain the charge over long periods.

Please note that if you have a Lithium-ion battery (not Lithium LiFePO4), the Blue Smart IP67 charger has a simple algorithm: Bulk, Absorption, Float.

A Blue Smart IP67 is equipped with overheating protection: the output current will be reduced if the temperature rises to 60°C, but the charger will not fail.

Blue Smart IP67 charger and 12V auxiliary battery compatibility

IP67 Bluetooth battery charger for remote control

First of all, on your smartphone or tablet, you'll need to download the VICTRON CONNECT app:

For Android : https://play.google.com/store/apps/details?id=com.victronenergy.victronconnect&hl=fr&pli=1

For IOS (Iphone or Ipad): https://apps.apple.com/fr/app/victronconnect/id943840744

Once the app is installed, you'll be able to monitor voltage and current; change settings and update the charger when new features become available.

What does the Blue Smart IP67 charger do when the battery is not in use?

Quite simply, storage mode is activated when your battery has not been used for 24 hours. In storage mode, the float voltage is reduced to 2.2 V/cell (13.2 V for a 12 V auxiliary battery) to minimise gassing and corrosion of the positive plates. Once a week, the voltage is raised to the absorption level to equalise the battery. This prevents electrolyte stratification and sulphation, which are major causes of premature battery ageing.

Advantages of the Blue Smart IP67 charger for 12V batteries

• 5-stage adaptive charging technology for safe, efficient charging.
• Bluetooth connectivity: Remote control only via the Victron Connect application to monitor battery status and change settings.
• Deeply discharged to zero volt battery recovery for reuse
• Robustness and Durability: Encapsulated to withstand water (IP67 certified), oil, dust, shock and high temperatures. Can be used outdoors or on a boat.
• Automatic charge adjustment according to temperature to protect your battery
• Automatic storage mode when you don't use your battery for 24 hours to prevent premature ageing of your battery

Technical specifications

• Input voltage and frequency range: 180 - 265 VAC | 45 - 65 Hz
• Max output current - Normal mode: 7A; 17A or 25A (depending on the charger you need and choose)

• 5-stage adaptive charging algorithm: bulk, absorption, float, storage.
• AC connection: 1.5 m cable with CEE 7/7 socket, BS 1363 socket or AS/NZS 3112 socket
• Battery connection: 1.5 m black and red cable with M8 circular terminals
• Degree of protection: IP67 (resistant to temporary immersion in water)
• Operating temperature range: -20 to +60°C (maximum rated power up to 40°C)
• Bluetooth frequency: 2402 - 2480 MHz
• Bluetooth power: -4 dBm

Charger Blue Smart IP67 12V / 7A

• Dimensions: 211 x 85 x 60 mm
• Weight: 1.8 kg

Blue Smart IP67 12V / 17A charger

• Dimensions: 219 x 99 x 65 mm
• Weight: 2.4 kg

Blue Smart IP67 charger 12V / 25A

• Dimensions: 219 x 99 x 65 mm
• Weight: 2.4 kg
