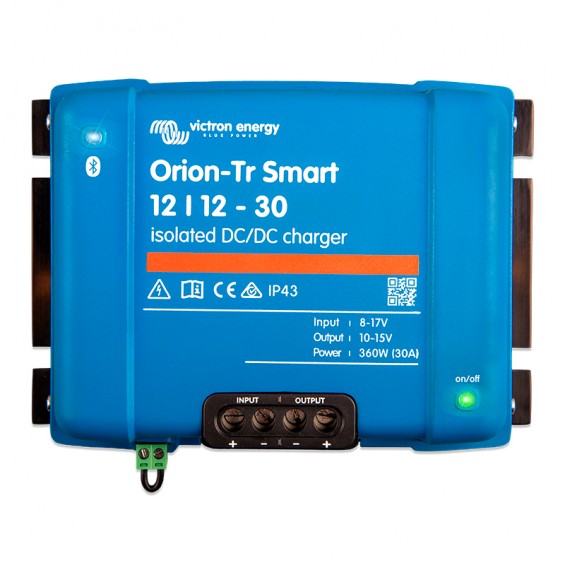

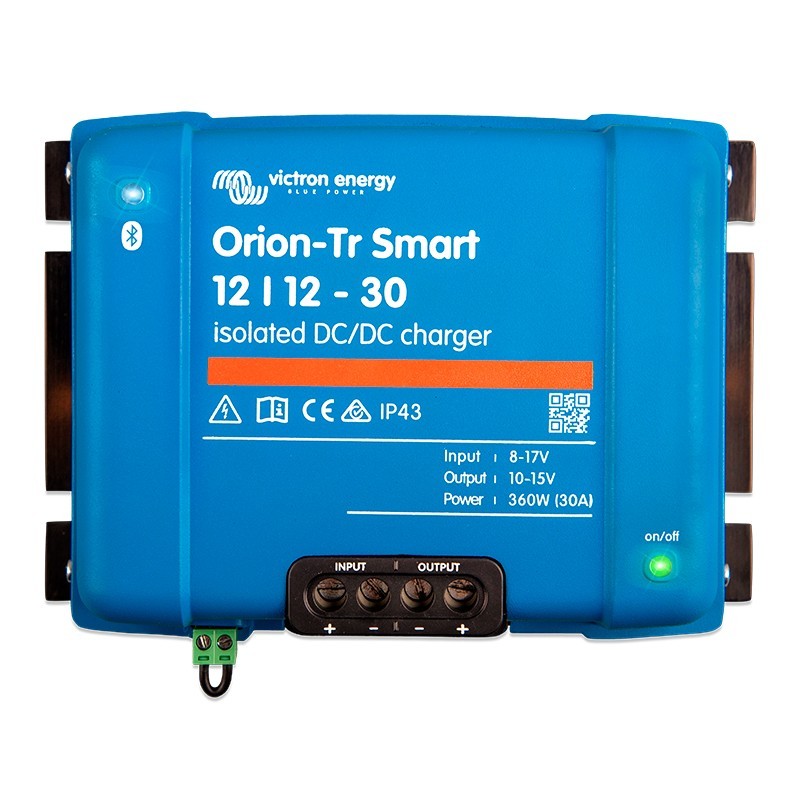

Isolated charger 12/12-30A VICTRON ENERGY Orion-Tr Smart 360W

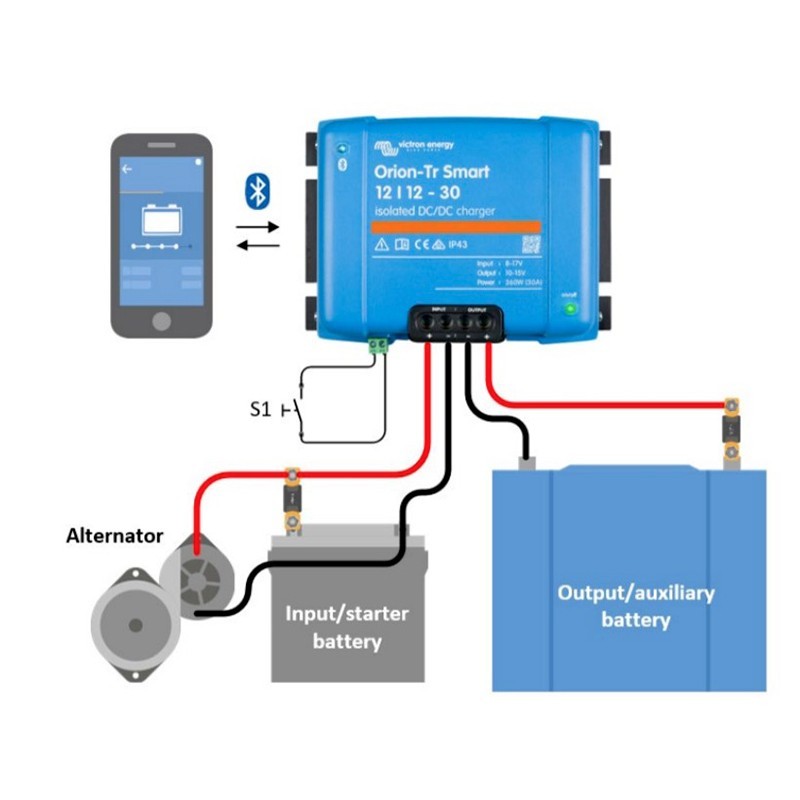

Recharge your auxiliary batteries while driving via your vehicle's alternator.

Offering a current of 30A, this DC/DC charger will enable you to recharge one or more 12V batteries using your vehicle's starter battery and the intelligent alternator of Euro 5 and Euro 6 engines (since 2009). The Orion-Tr Smart offers intelligent "Bulk-Absoprtion-Floating" recharging, preserving the longevity of the auxiliary battery. Compatible with AGM, GEL and Lithium batteries.

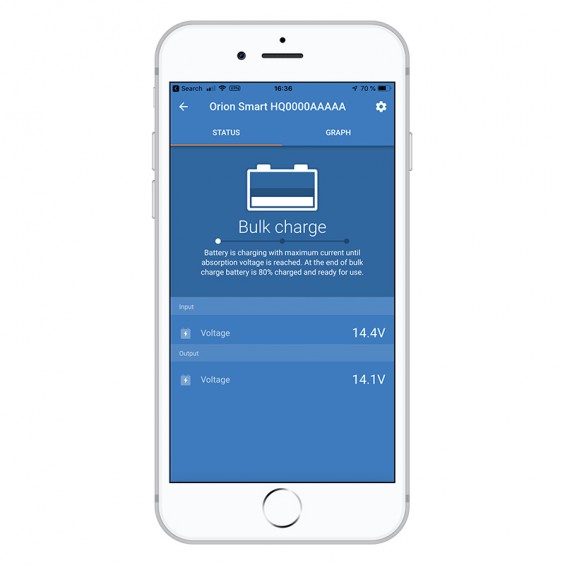

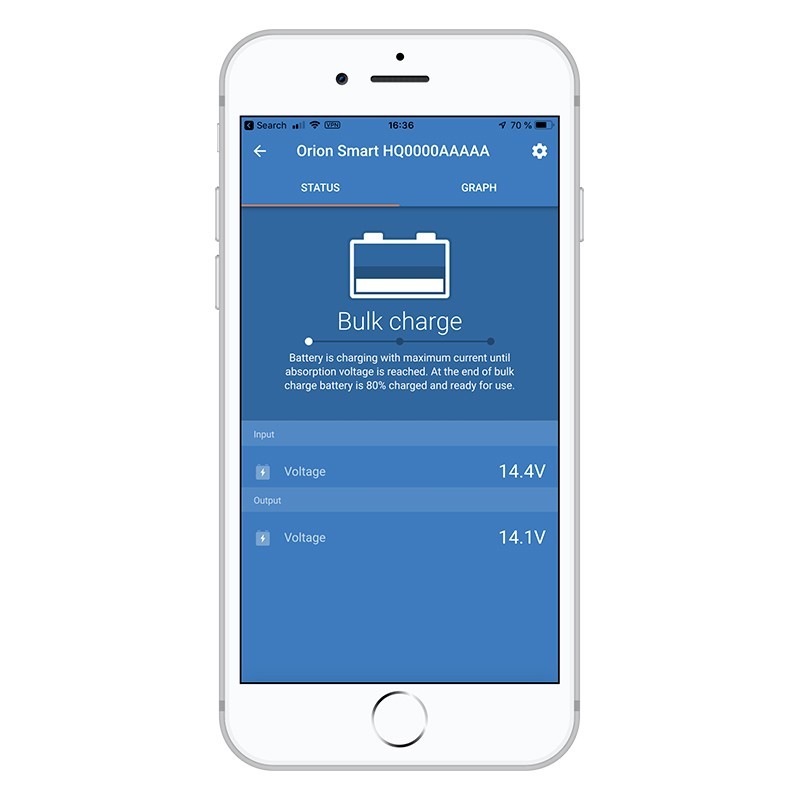

With 360W of power, this model is one of the most powerful in the Victron Energy range. However, to increase the power of your installation, several Orion Tr-Smart charger-boosters can be connected in parallel. You can also use it as a direct, continuous power source for your electronic devices. To do this, set the Power Supply mode on the Victron Connect application. This isolated booster charger has built-in Bluetooth® functionality, so you can control it remotely from your smartphone or tablet!

Ideal for AGM or GEL batteries from 150 to 300 A, or Lithium batteries from 50 to 150 A.

Technical specifications:

• Supply voltage: 10 to 17 V
• Nominal output voltage: 12.2V
• Output power: 360W
• Efficiency: 87

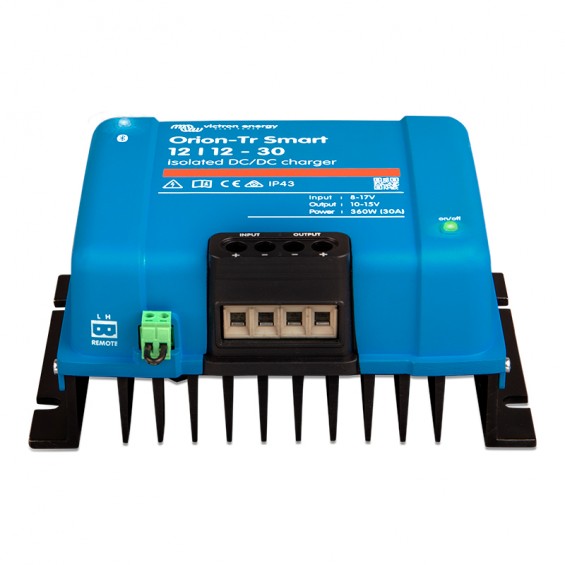

• DC connection: screw terminals
• Maximum cable cross-section: 16mm² / AWG6
• Dimensions: 130 x 186 x 70mm
• Weight: 1.8kg
• IP43 standard (electronic components)
• IP22 standard (connection area)
• 5-year warranty
