END OF SERIES - BlueSolar PWM LCD-USB 12/24V-10A - Controller Victron Energy

Safety first and foremost

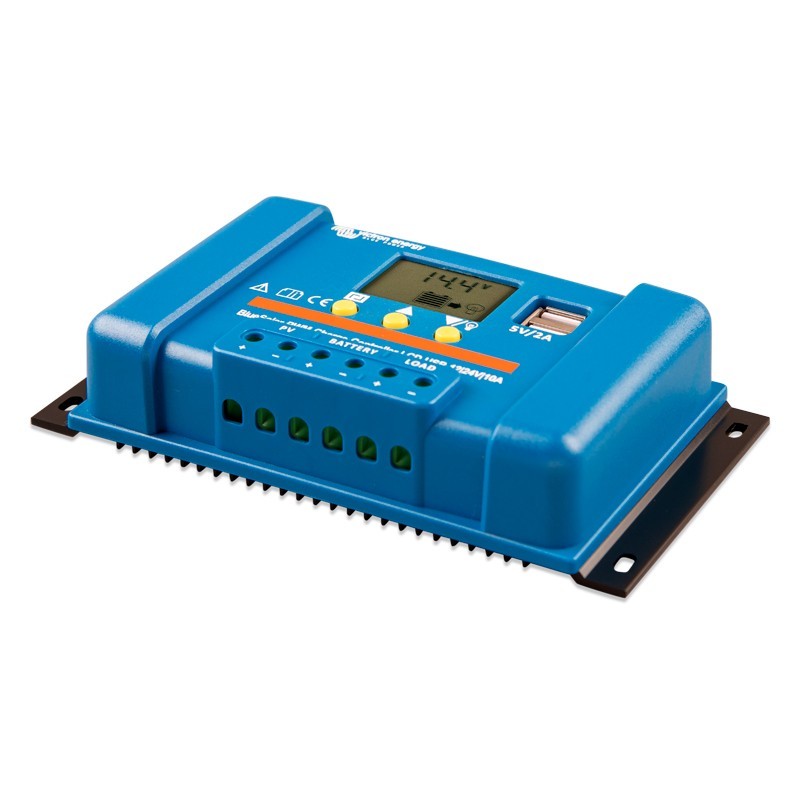

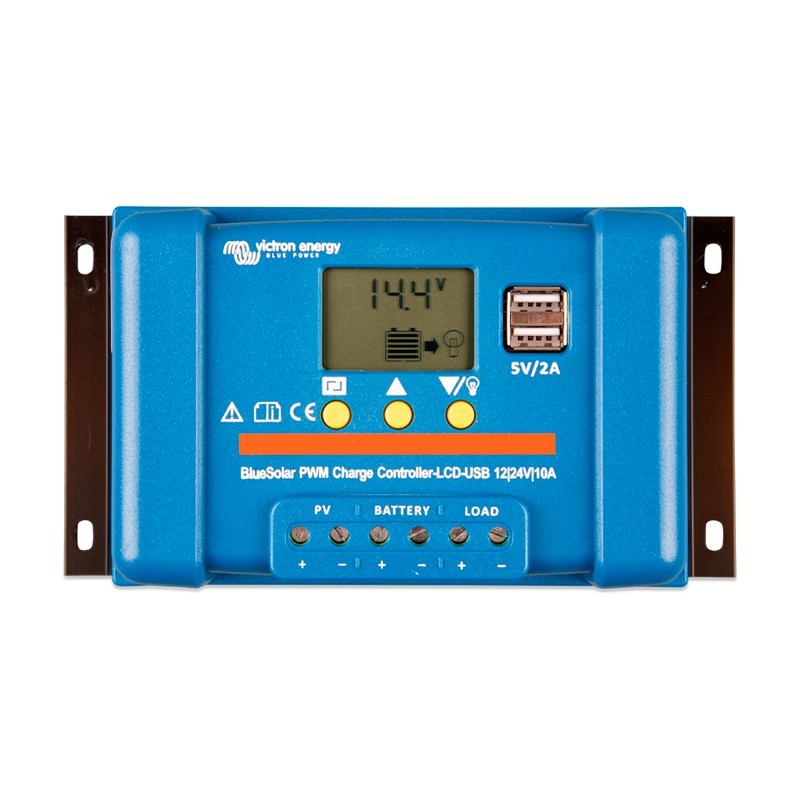

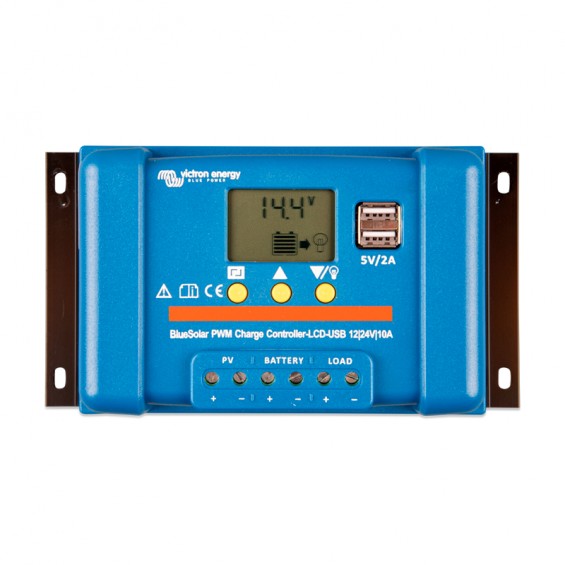

Compatible with 12V or 24V batteries, this BlueSolar PWM LCD-USB 10A regulator from Victron Energy converts the energy produced by solar panels. So you can avoid overcharging your battery.

And even more productivity

Easy to install, the BlueSolar PWM 10A automatically detects the input voltage of your solar panels (12v or 24v). Set the parameters on the LCD screen and that's it! The "Bulk, Absorption, Float" charging process will then intelligently manage the recharging of your secondary battery, making it more cost-effective and prolonging its life.

Two integrated USB sockets will also allow you to recharge your electronic devices on a daily basis. Ideal for a solar kit installed in your converted van!

Technical specifications

• Voltage: 5V
• 12V capacity: 120W of solar panels
• 24V capacity: 240W of solar panels
• Compatible with GEL, AGM, liquid electrolyte or LiFePO4 batteries (with integrated BMS only)
• Overload protection
• LCD control screen
• USB outputs x2
• Day/night charging output option
• Operating temperature: -35°C to +60°C
• Terminal size: 6mm² (1/8")
• Weight: 150g
• Dimensions (h x w x d): 96 x 169 x 36 mm
