Cushioned semi-mounted hinge for 102° twin doors

The perfect hinge for discreet, elegant fittings

Tired of cupboards rattling? The silent closing of this hydraulic hinge will change your everyday life! Designed for overlay doors, it optimises space and comfort in your converted vehicle by securing the contents of your cupboards, even on winding roads.

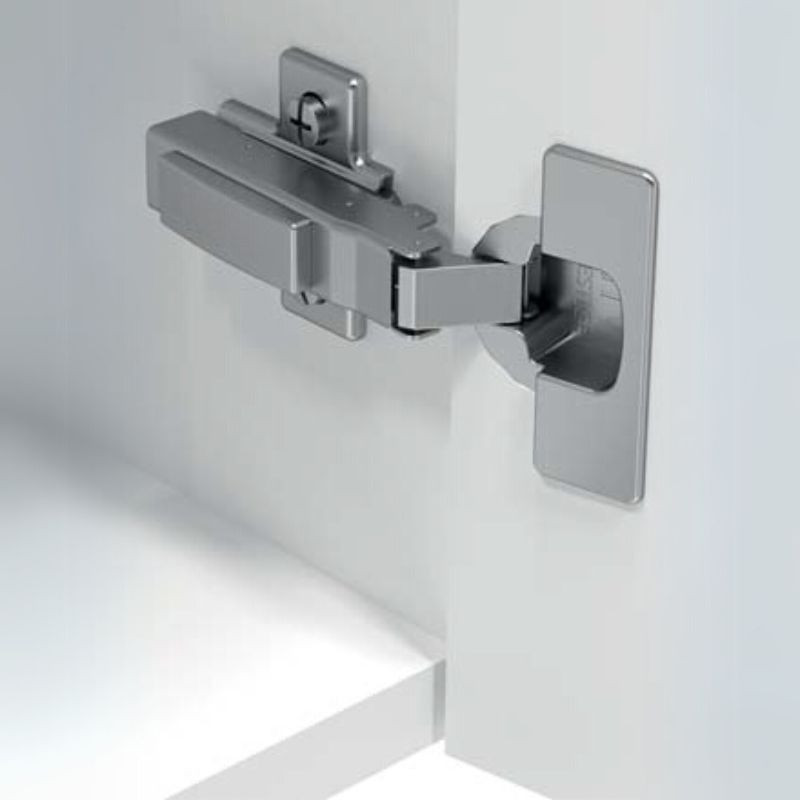

Its discreet design and cushioned mechanism ensure that it's easy to use and blends in perfectly with your furniture. Ideal for twin overlay doors, it ensures remarkable stability and efficiency, while helping to save space and make your furniture lighter.

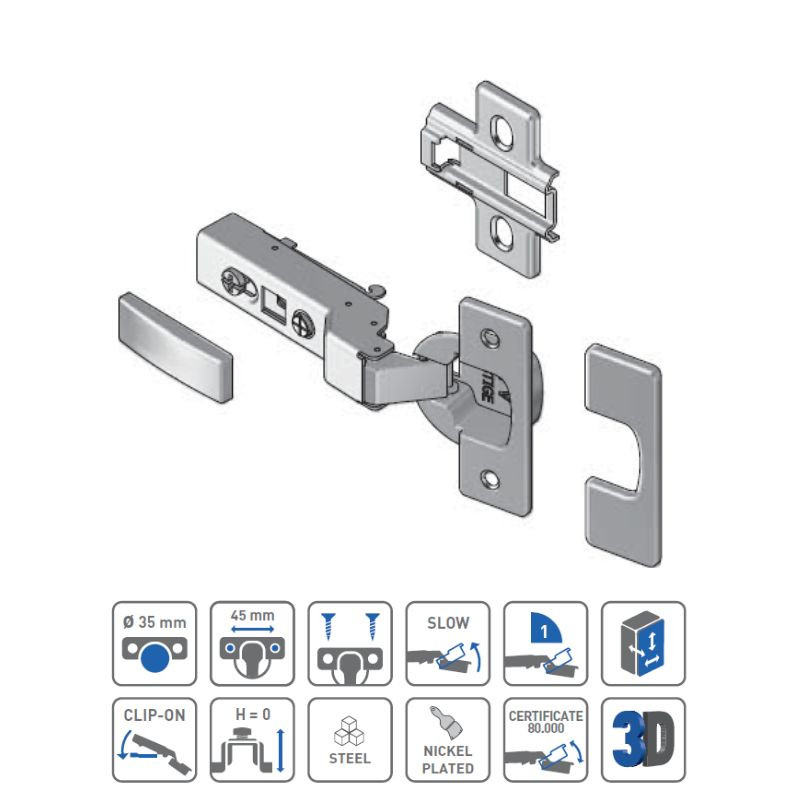

This hinge is particularly well suited to tall units and storage compartments where aesthetics and functionality are paramount. Its nickel-plated steel construction makes it exceptionally robust and resistant to corrosion. The integrated cushioning system ensures smooth, controlled closing, protecting your furniture and its contents. Installation is simplified thanks to the CLIP-ON system and 3D adjustments, enabling precise alignment and perfect adaptation to different configurations.

Technical characteristics of the hydraulic hinge

• Hinge type: Hydraulic hinge for double overlapping doors
• Opening angle: 102
• Material: Steel
• Colour: Nickel-plated
• Dimensions (LxWxD)
  • Cup diameter: 35 mm.
  • Distance from cup to edge: 3 mm, 4 mm or 5 mm (depending on setting).
  • Distance from mounting plate to cabinet edge: 37 mm (for H=0).
• Installation: Screwed (plate mounted in body, cup mounted in front panel), CLIP-ON system.
• Mechanism: Integrated damping, hydraulic.
• Spring force: Standard (hydraulic mechanism with damping).
• Adjustments: 3D adjustment (±2mm on three axes: horizontal, vertical, depth).

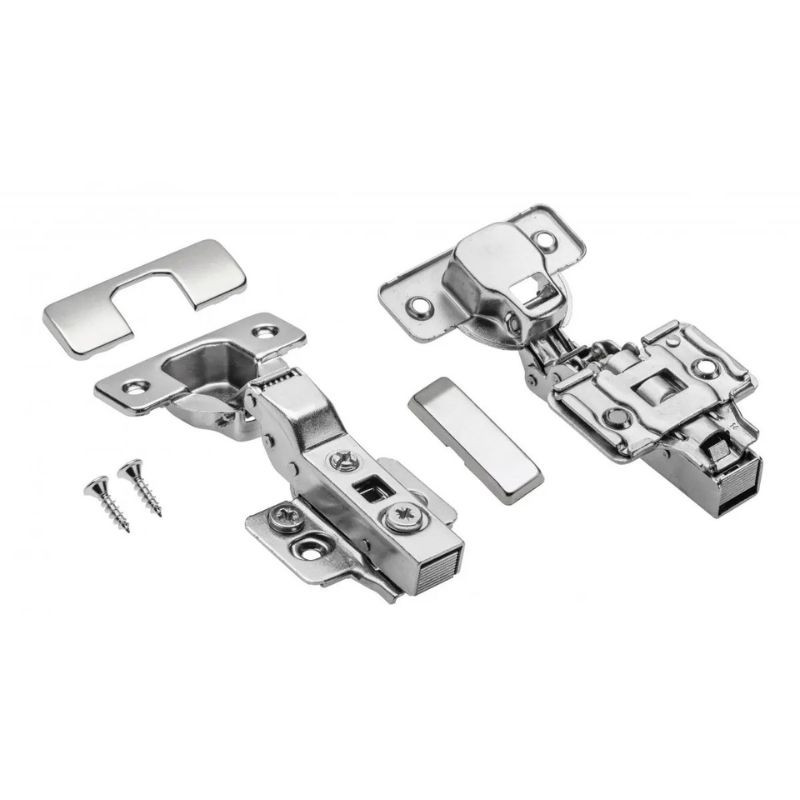

• Accessories included: Base and 4 screws for installation.
• NF: 16 mm front overlay.
• CE: Certified for 80,000 cycles (durability test).

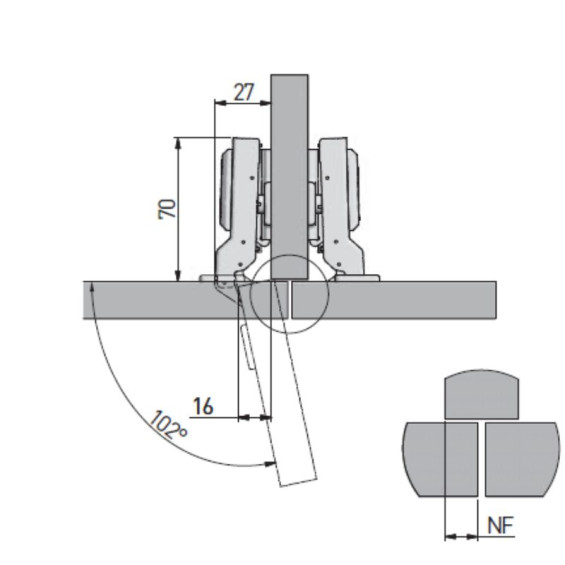

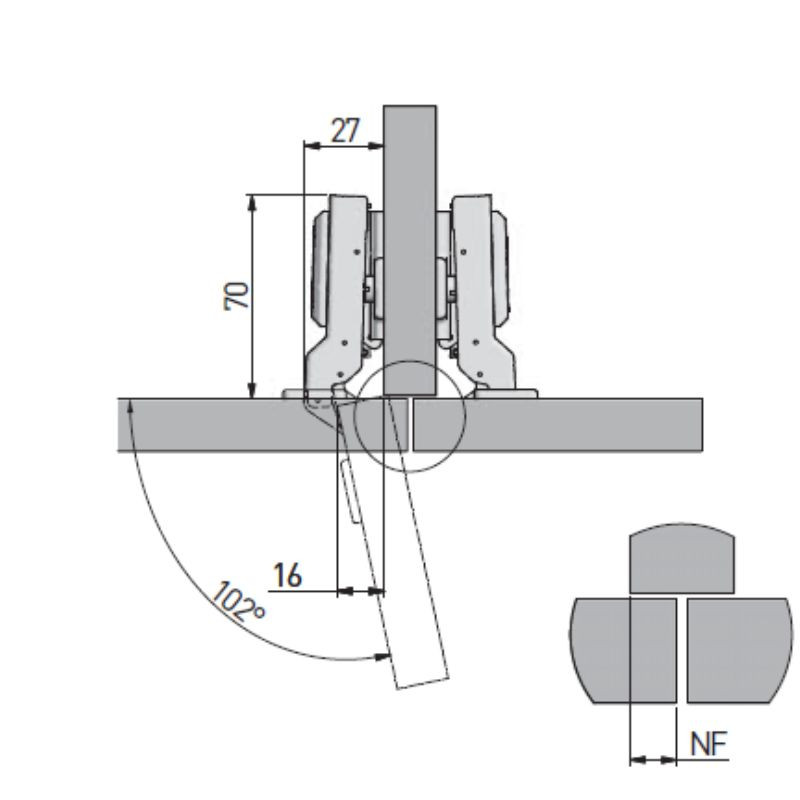

Fitting the hydraulic hinge for twin doors
