Surface-mounted hydraulic hinge - 102° opening

A hinge that brings fluidity and discretion to your layouts

Discover an innovative hinge to optimise the layout and comfort of your van or panel van. Say goodbye to doors that slam on bends!

Thanks to its sleek design and integrated damping mechanism, this hinge guarantees a pleasant user experience and harmonious integration with your furniture.

Perfectly suited to doors that completely cover the edge of the body, it ensures remarkable stability and efficiency, while helping to optimise space and reduce the weight of your vehicle.

This hinge is particularly well suited to overhead storage and compartments where good looks are a priority. Its nickel-plated steel construction makes it exceptionally robust and highly resistant to corrosion, which are essential when you're on the road.

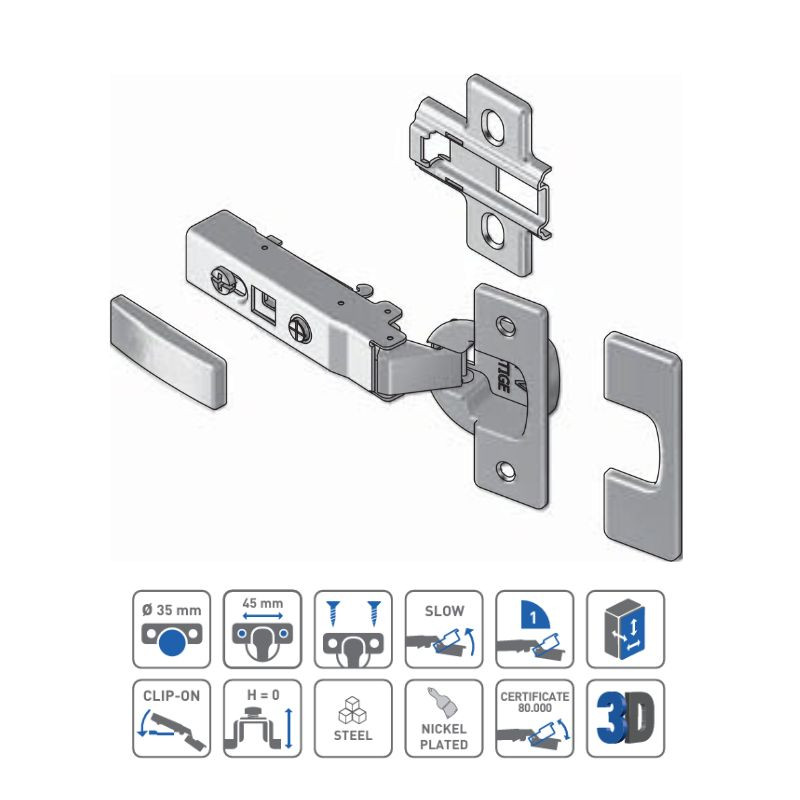

Installation is made easy by CLIP-ON technology and three-axis adjustments, enabling precise positioning and perfect adaptation to different configurations. Caps for the cup and arm are included, providing a neat and attractive finish once the hinge is fitted.

Technical characteristics of the hydraulic hinge

• Hinge type: Semi-recessed hydraulic hinge for doors that completely cover the cabinet edge
• Load capacity: Designed for standard, long-lasting use
• Openingangle: 102
• Material: Steel
• Colour: Nickel-plated

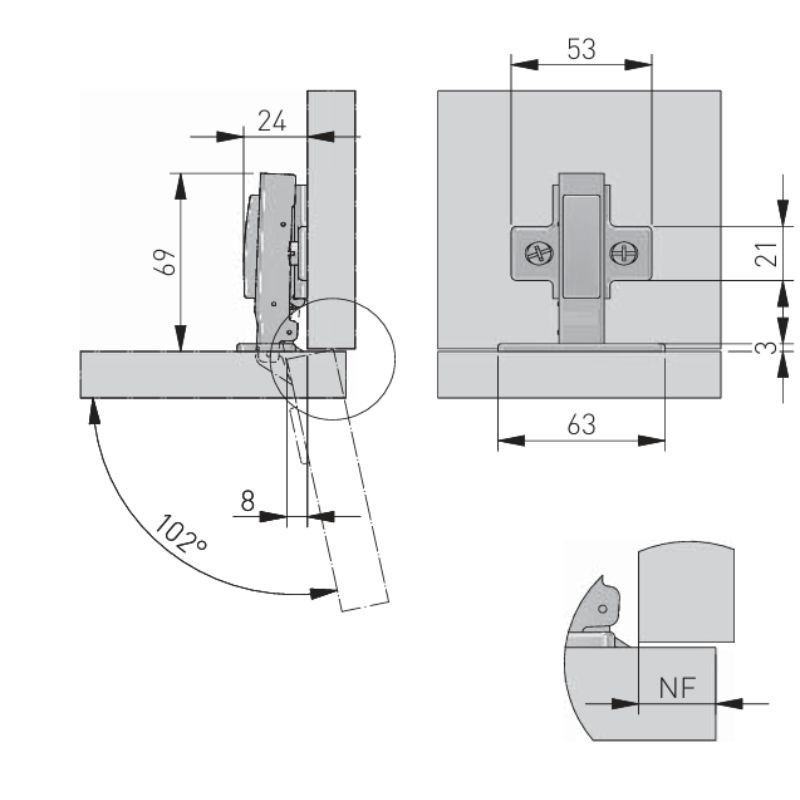

• Dimensions (LxWxD)
  • Cup diameter: 35 mm
  • Distance from cup to edge: 45 mm
  • Overall dimensions: 53 mm (width) x 63 mm (length) x 24 mm (height of main body)
• Installation: Screw-fastening, CLIP-ON technology (for easy assembly and disassembly)
• Mechanism: Integrated damping (quiet, soft closing), hydraulic
• Spring force: Standard (integrated into hydraulic mechanism)
• Adjustments: 3D adjustment (in three planes)

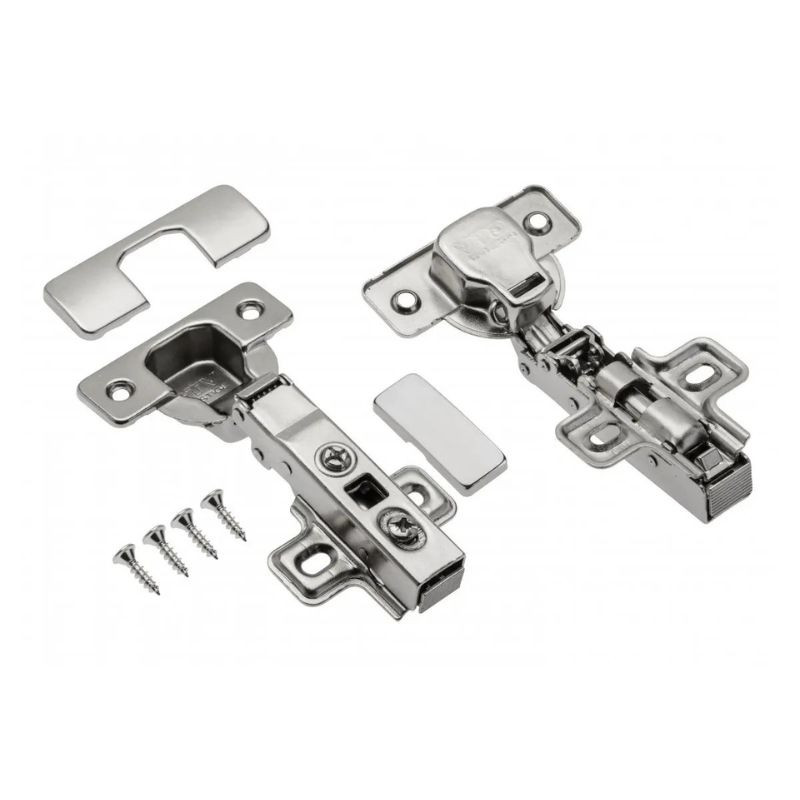

• Accessories included: Screws and bases
• NF: 18 mm front cover (NF).
• CE: Complies with standards PN-EN 15570:2010 / EN 15570:2008 (certified durability 80,000 cycles).

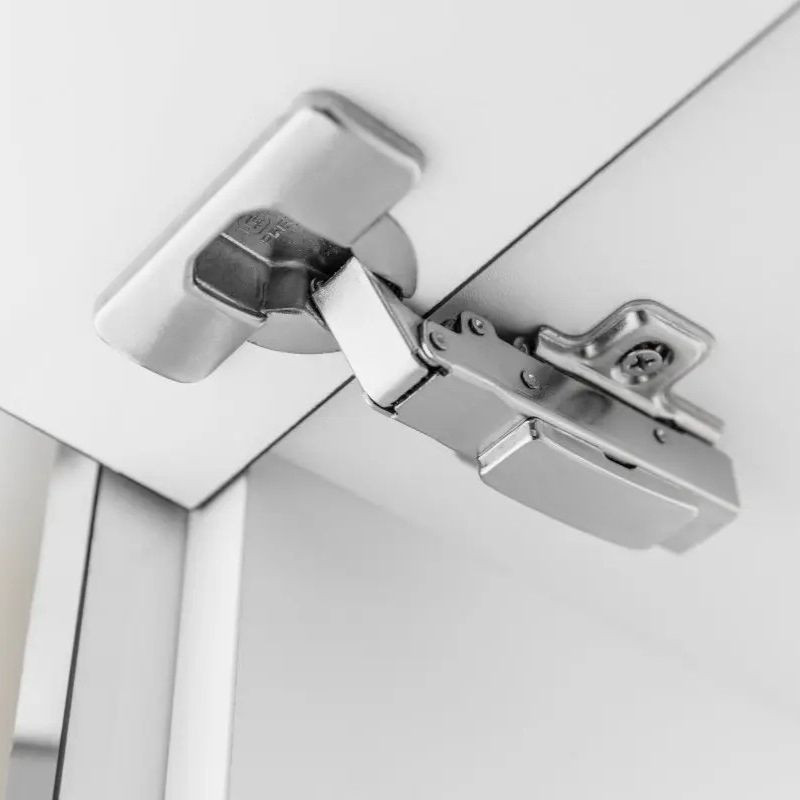

Hydraulic hinge installation
