Fuse holder with a choice of channels

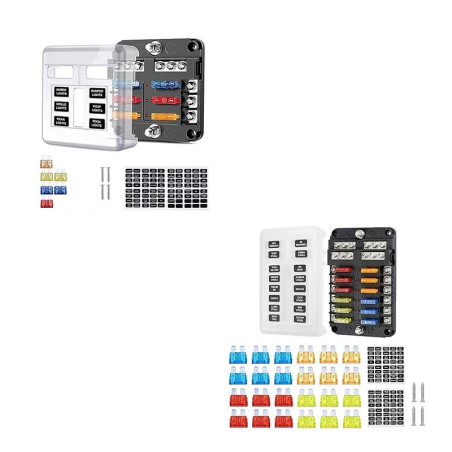

6-way or 12-way fuse holders: protect yourself from short circuits in your van!

Every electrical installation in a van has its own fuse holder. This fuse box has 2 inputs: one positive and one negative. Each of these inputs can be connected directly via an H07-VK cable to another piece of equipment, depending on your wiring diagram. For each positive terminal screw on the fuse holder, there is a negative terminal screw.

Manufactured from flame-retardant yet high temperature resistant PBT (Polybutylene Terephthalate) materials, the 6-fuse holder will allow you to feed 6 separate circuits to protect 6 of your live equipment. The 12-fuse holder, on the other hand, will allow you to power 12 different circuits and protect 12 of your live devices.

This multi-fuse holder has been specially designed for DC circuits carrying voltages up to 32V. Ideal for connecting to 12V or 24V electrical circuits in a converted vehicle!

Terminal block fuse holder for ATC/ATO type automotive fuses

With the terminal block fuse holder, each circuit in your electrical installation will be protected by an automotive blade fuse from 5A minimum to 20A maximum.

How do you recognise a blown fuse following a short circuit?

Each fuse location has a warning LED. If one of your fuses has blown as a result of a short circuit or other fault, the LED will light up red.

This bright LED makes it easy to identify which fuse needs changing. This 6 or 12 way fuse holder provides real protection for you and your electrical installation when you travel in your converted van!

How do I install a 6 or 12 way fuse holder in my vehicle?

Both the 6-way and 12-way fuse holders have 4 pre-drilled holes in each corner for easy screwing in.

Technical specifications

• 6- or 12-way fuse holder (depending on your requirements)
• Rated voltage: 32V DC
• Maximum current: 20A per circuit and 100A per panel.
• Housing material: PBT (polybutylene terephthalate)
• Terminals are screw-fitted to the positive and negative inputs.
• Compatibility with H07-VK electrical cable, choice of nominal cross-section in mm²
• Ø 6mm (M6) pre-insulated eye terminal compatibility
• Compatible with : ATC/ATO

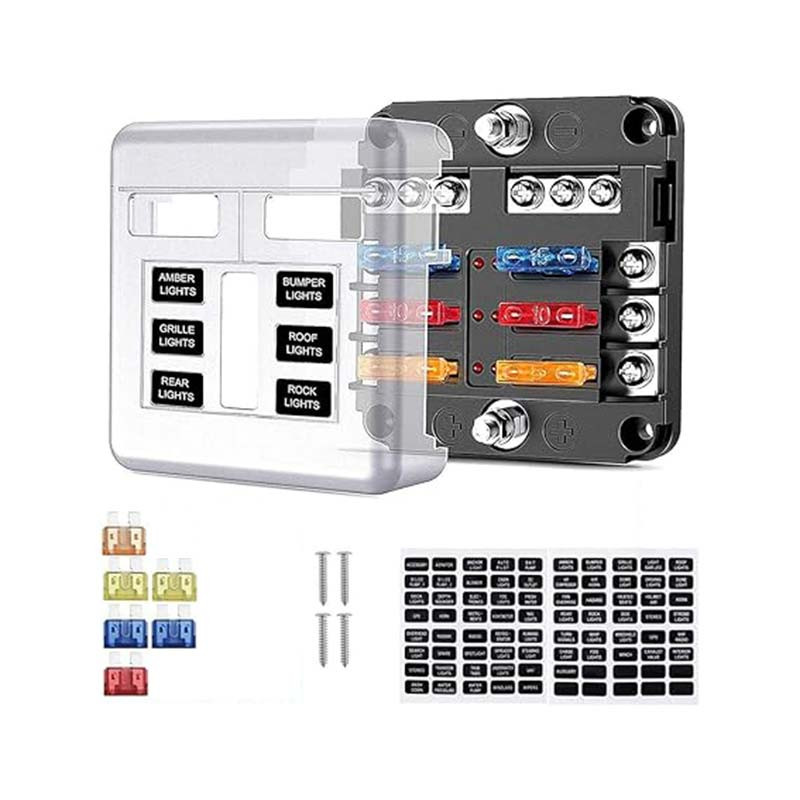

Included with the 6-way fuse holder :

• A box with 6 blade fuse slots with transparent cover (i.e. the fuse holder), 2 x 20A fuses, 2 x 15A fuses, 1 x 10A fuse, 1 x 5A fuse, 4 fixing screws, self-adhesive sticker sheet with English text.

Included with the 12-way fuse holder:

• A box with 12 blade fuse slots with transparent cover (i.e. the fuse holder), 6 x 20A fuses, 6 x 15A fuses, 6 x 10A fuses, 6 x 5A fuses, 4 fixing screws, self-adhesive sticker sheet with English lettering.
