Pre-cut floor for Ford Custom from 2012 to 2023

Choose a quality floor covering for the floor of your converted van!

To make the most of the birch plywood floor in your interior living space, Heode has selected a high-quality pre-cut PVC floor!

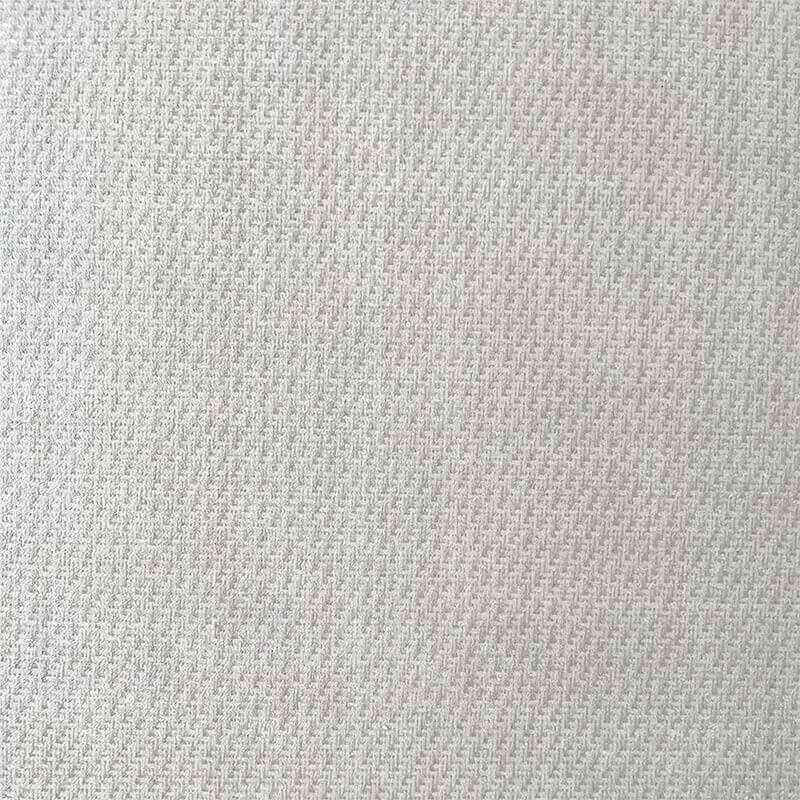

With the decor of your choice: Beige Braided Effect, Waxed Concrete Effect or Grey Parquet Effect for all interior design styles and tastes!

To simplify installation, this floor covering already conforms to the shape of your floor covering sold on our site. Packaged in rolls, in just 1 minute, if you don't glue it down, your pre-cut floor can be installed.

However, our team advises you to glue it down for the best possible finish in your interior space. Allow 10 to 15 minutes' work. Don't hesitate to follow the installation steps below.

Adding a floor is good; solid and attractive is even better!

Made from PVC, this top-of-the-range pre-cut floor is the most suitable for a floor in a living space in a converted van. Thanks to its composition, it can withstand heavy traffic, foot traffic and even the knocks and bumps of everyday life. No marks or damage will appear on your floor, should you drop something.

Made up of several innovative layers, this 2.15 mm thick floor covering offers you comfort and durability! Not to mention the warmth it brings to your interior! To confirm your choice, you should know that it is used in hospitals, sports complexes, lobbies and staircases in new buildings, etc.

How do you lay flooring in a van?

First of all, you need to have laid a birch plywood floor covering with a 220g/m² anti-slip film in a thickness of 9 or 12 mm (your choice) for Ford Custom (from 2012 to 2023).

Once your floor covering has been installed, take a 500 ml high-performance contact adhesive spray (sold separately on our website) and your pre-cut Custom floor.

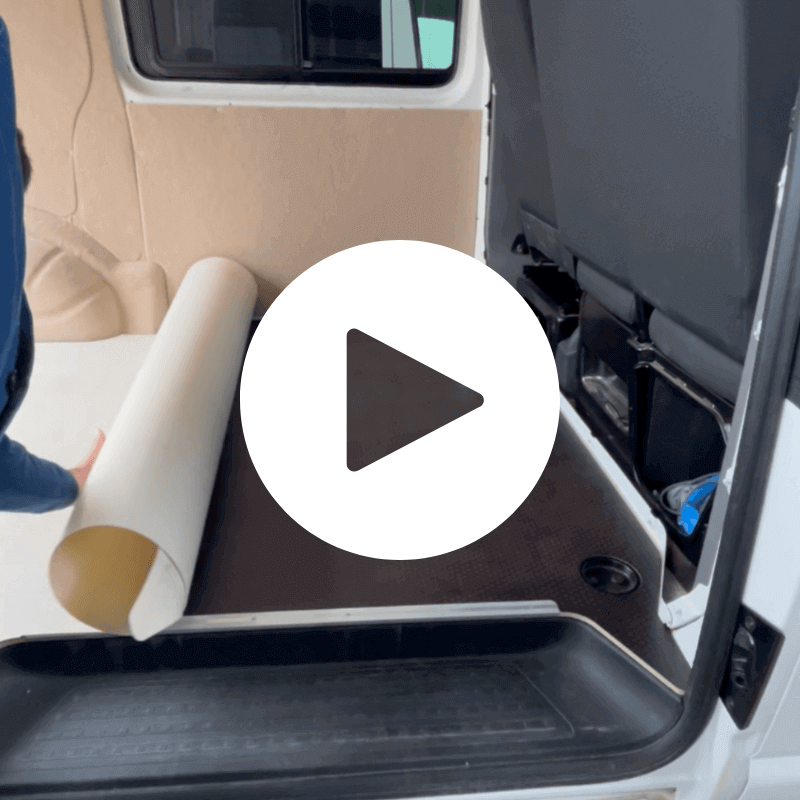

To lay your PVC flooring :

Step 1: Before unrolling the floor and applying the high performance contact adhesive. Unscrew the metal threshold bars on the birch plywood floor to remove them. Once removed, place them in a corner.

Step 2: Unroll the pre-cut flooring on the floor inside your van.

Step 3: Fold the back of the floor over the front.

Step 4: Apply the professional contact adhesive at a distance of around 10 cm on the rear part of the floor and then on the folded back part of the pre-cut floor.

Step 5: Carefully lay the glued back of the floor over the glued back of the floor.

Step 6: Fold the front part of the floor over the rear part (now glued).

Step 7: Take up the glue. Apply it to the front part of the floor and then to the folded front part of the pre-cut floor.

Step 8: Carefully lay the glued front part of the floor over the glued front part of the floor.

Step 9: Leave to dry. You'll be able to drive around in your vehicle in a few minutes.

Step 10: Screw each of the metal sill bars back into place.

Final step: Admire the result! A top-quality floor with the decor of your choice that will follow you on all your van adventures!

Birch plywood floor and other trims (sold separately)

• Anti-slip floor for Ford Custom from 2012 to 2023
• Sidewall trim for Ford Custom from 2012 to 2023
• Ceiling trim for Ford Custom from 2012 to 2023
• Thermoformed wheel arches for Ford Custom from 2012 to 2023

Technical characteristics of the Custom pre-cut floor from 2012 to 2023

• Top-of-the-range pre-cut flooring.
• Type of coating : PVC.
• Total thickness: 2.15 mm.
• Pre-cut to the size of the Ford Custom floor from 2012 to 2023 offered on our site.
• Resistant to heavy traffic.
• Impact resistant.
• Provides a beautiful finish to your interior.
• Easy to clean in the event of soiling.
• Packaging : Roll.
• Delivered ready to install.
• Time required to lay the floor: 1 min (if not glued) 10/15 min (if glued to your floor).
• Please note that the metal threshold bars shown in the photos are not supplied with the pre-cut floor. However, they are present on the Custom birch plywood floor.

For optimum adhesion of your Ford Custom pre-cut flooring to your floor, choose the professional spray adhesive Harber available on our website.
