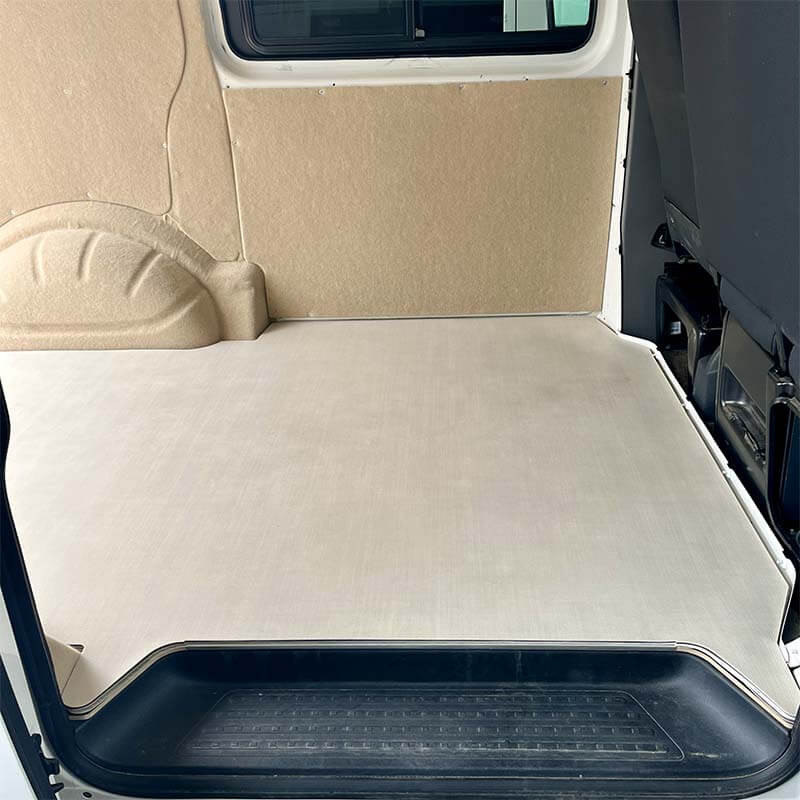

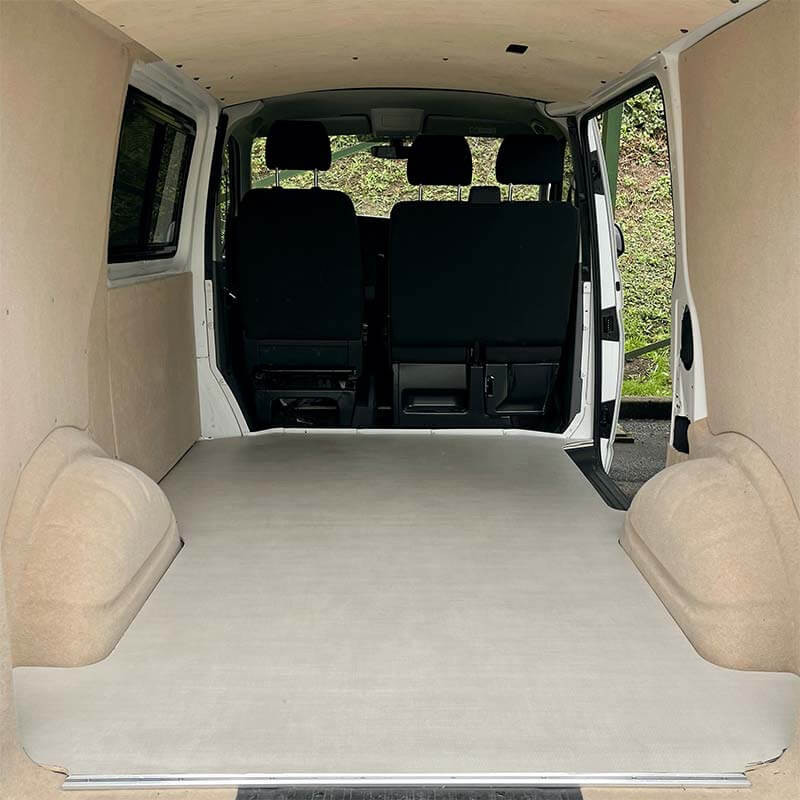

Pre-cut floor for Volkswagen Transporter T5 from 2003 to 2015

Flooring designed for your converted van!

Install a pre-cut PVC floor, selected and tested by Heode to give you the best possible interior finish in your van living space.

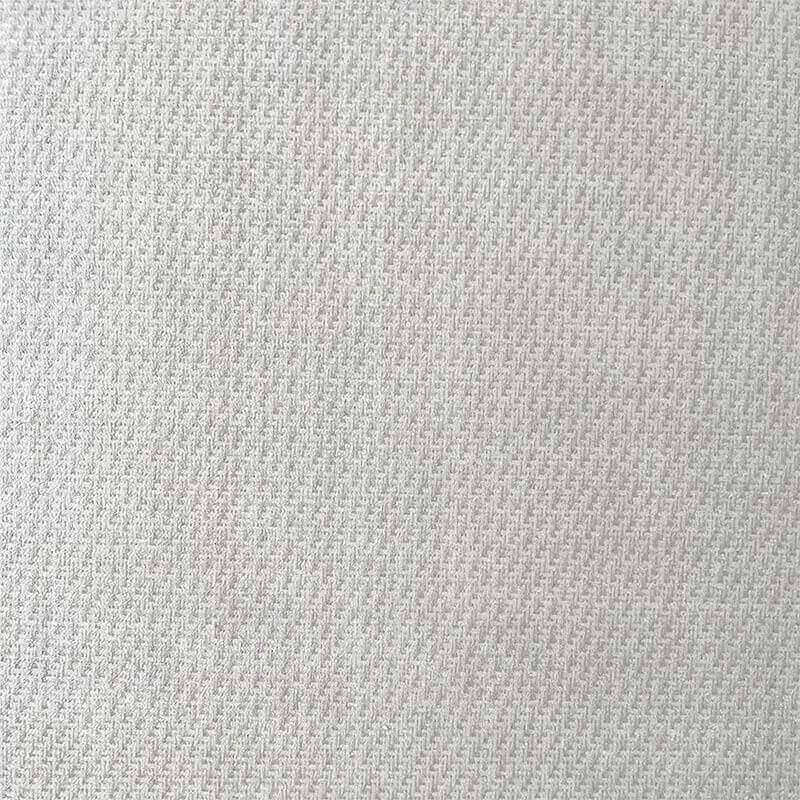

You can choose the decor: Beige Braided Effect, Waxed Concrete Effect or Grey Parquet Effect to match your interior colour scheme perfectly!

Laying a floor covering on a wooden floor inside a converted van can be tricky. But Heode has found THE solution: a top-quality floor that's ready to use!

Pre-cut to the size of your Volkswagen T5 floor covering and packaged in rolls for easy transport and installation. Without gluing, it can be installed in just 1 minute.

Our team invites you to stick it neatly onto your floor to get the finish you want and give it the longevity it deserves!

Resistance and durability guaranteed!

Made up of several layers with innovative properties, this top-of-the-range pre-cut floor withstands heavy traffic, footfall and knocks. For example, if you drop one of your accessories or equipment in your indoor space, your floor won't show any marks or damage.

With a thickness of 2.15 mm, this robust floor covering is the perfect compromise for your interior. You'll be living more comfortably! It can be found in sports arenas, schools, doctors' surgeries and museums.

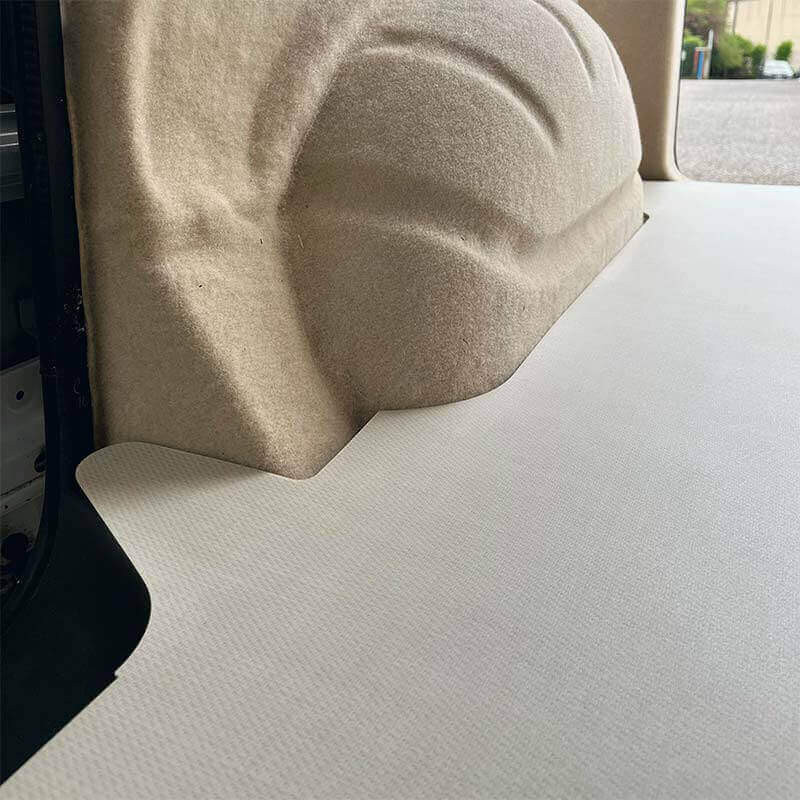

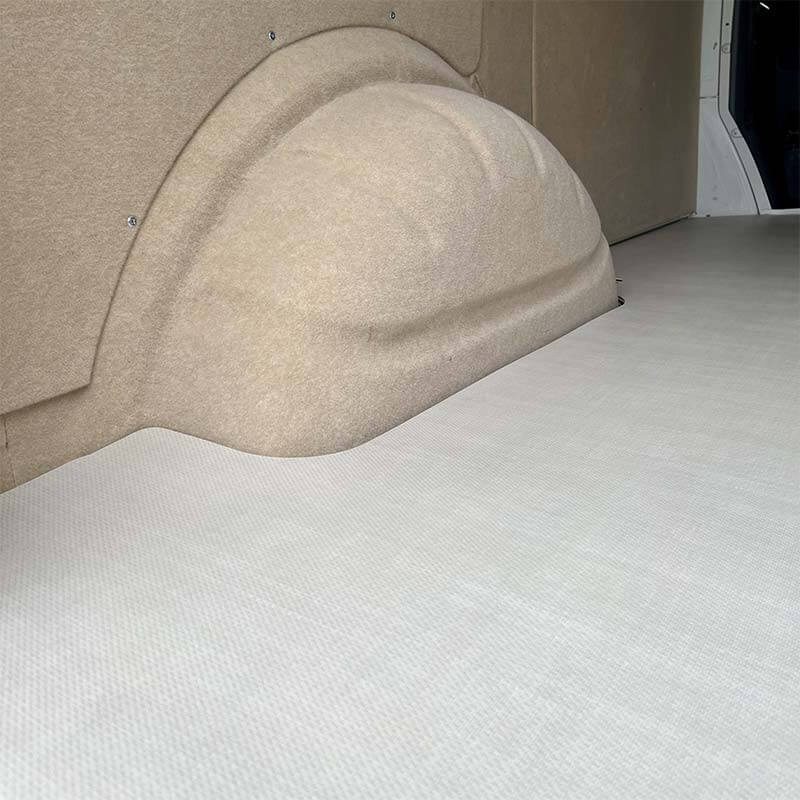

Pre-cut floor installation for Volkswagen Transporter T5

It's important to know that a pre-cut floor cannot be installed unless a birch plywood floor with 220g/m² anti-slip film in 9 or 12 mm thickness (your choice) for Volkswagen T5 (from 2003 to 2015) has been installed beforehand.

Once your floor covering has been installed, take a 500 ml high-performance contact adhesive spray (sold separately on our site) and your pre-cut T5 floor.

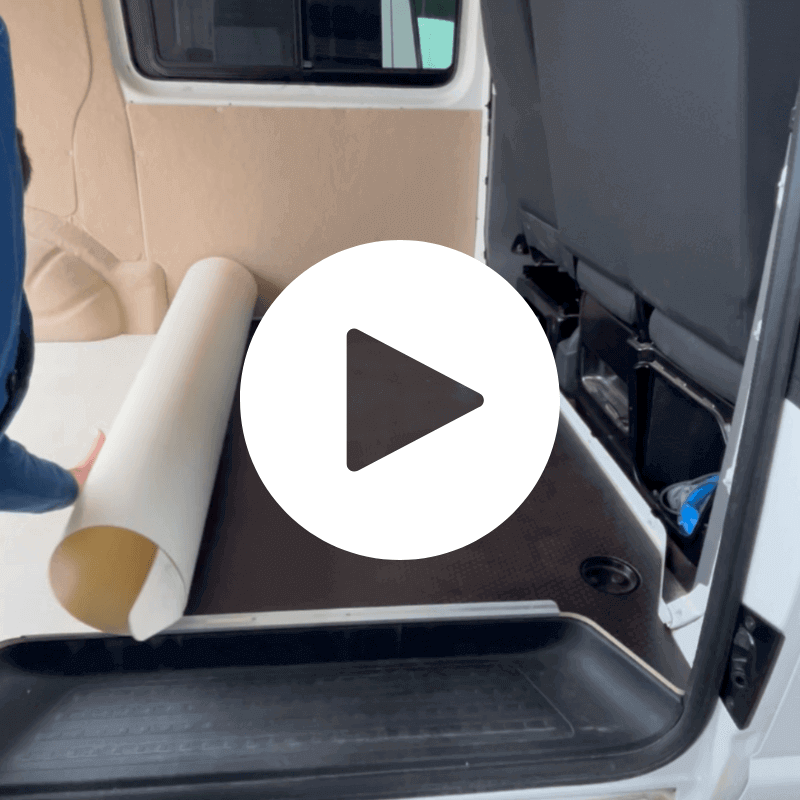

To lay the PVC floor:

Step 1: Before unrolling the floor and applying the high-performance contact adhesive. Unscrew the metal threshold bars on the birch plywood floor to remove them. Once removed, place them in a corner.

Step 2: Unroll the pre-cut flooring on the floor inside your van.

Step 3: Fold the back of the floor over the front.

Step 4: Apply the professional contact adhesive at a distance of around 10 cm on the rear part of the floor and then on the folded back part of the pre-cut floor.

Step 5: Carefully lay the glued back of the floor over the glued back of the floor.

Step 6: Fold the front part of the floor over the rear part (now glued).

Step 7: Take up the glue. Apply it to the front part of the floor and then to the folded front part of the pre-cut floor.

Step 8: Carefully lay the glued front part of the floor over the glued front part of the floor.

Step 9: Leave to dry. You'll be able to drive around in your vehicle in a few minutes.

Step 10: Screw each of the metal sill bars back into place.

Final step: Admire the result! A top-quality floor with the decor of your choice that will follow you on all your van adventures!

Birch plywood floor and other trims (sold separately)

• Floor Panelling for VW Transporter T5 - From 2003 to 2015
• Side panels for VW Transporter T5 - From 2003 to 2015
• Thermoformed wheel arches for VW Transporter T5 - From 2003 to 2015

Technical characteristics of the T5 pre-cut floor from 2003 to 2015

• Top of the range pre-cut flooring.
• Type of coating : PVC.
• Total thickness: 2.15 mm.
• Pre-cut to the format of the Volkswagen Transporter T5 floor from 2003 to 2015 offered on our site.
• Resistant to heavy traffic.
• Impact-resistant.
• Provides a beautiful finish to your interior.
• Easy to maintain in the event of soiling.
• Packaging: Roll.
• Delivered ready to install.
• Time required to lay the floor: 1 min (if not glued) 10/15 min (if glued to your floor).
• Please note that the metal threshold bars shown in the photos are not supplied with the pre-cut floor. However, they are present on the T5 birch plywood floor.

For optimum adhesion of your Volkswagen T5 pre-cut flooring to your floor, choose the high-performance Harber adhesive available on our site.
