Floor mounting bracket for Autoterm Air 4D - AUTOTERM

How do you attach your Autoterm Air 4D heater to a floor-mounting bracket?

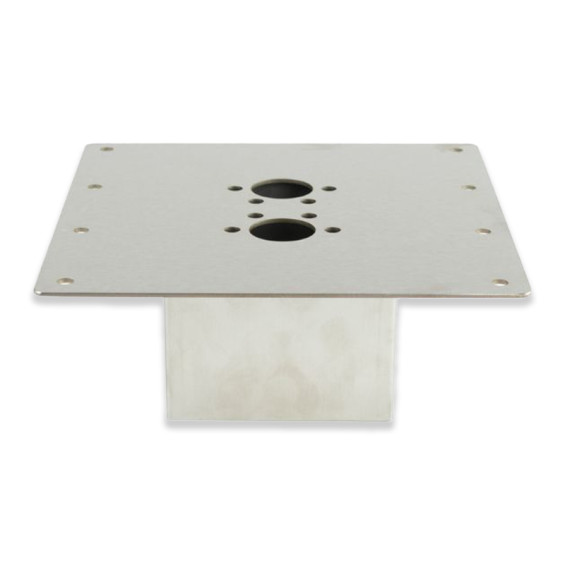

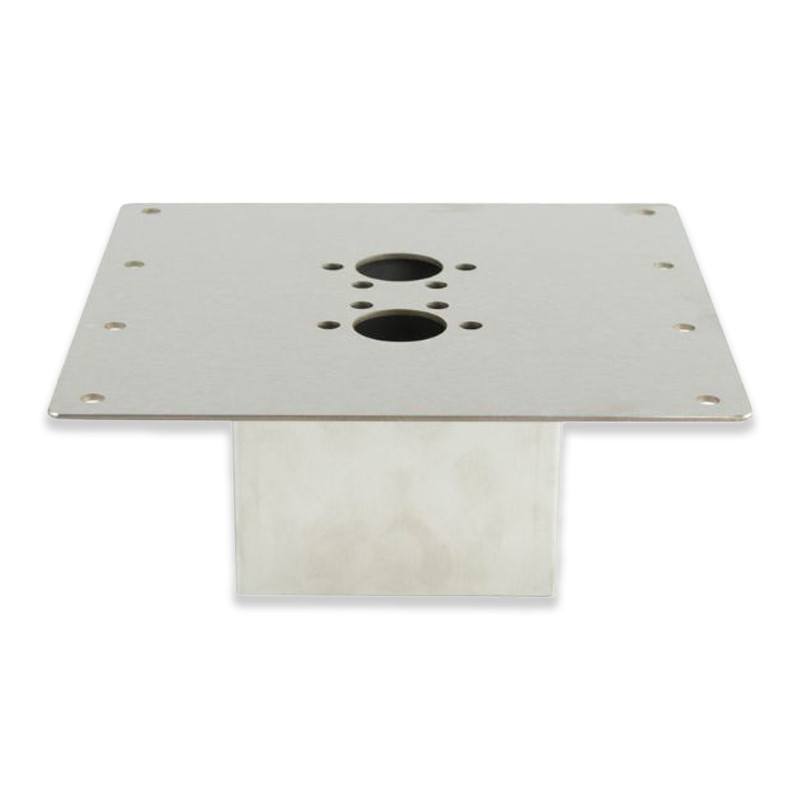

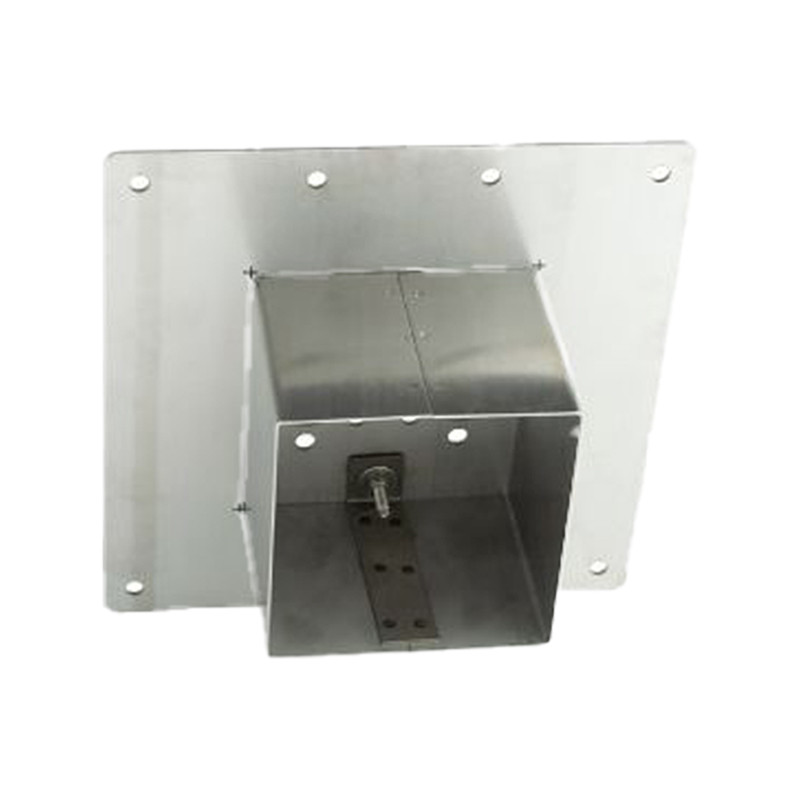

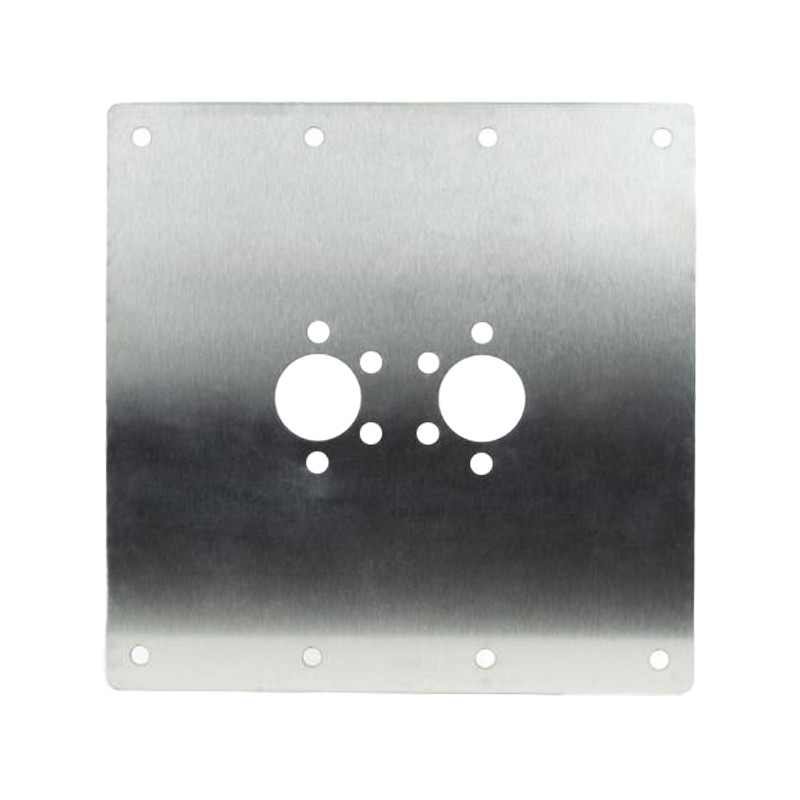

Use this steel bracket (80 mm high) to effectively fix your Autoterm Air 4D stationary heater to the floor of your converted van and connect it to the outside air supply. The two recesses in the centre of the bracket allow the air intake and exhaust pipes to pass through. You can also cut your floor to the dimensions of the support for an even more secure system!

It creates a buffer between the exhaust pipes and the walls of your floor, protecting it from the heat.

Please note: maximum floor thickness (including sheet metal) 8 cm.

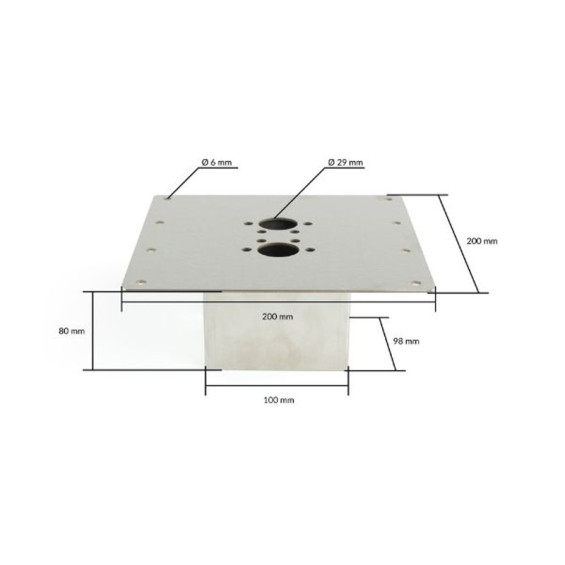

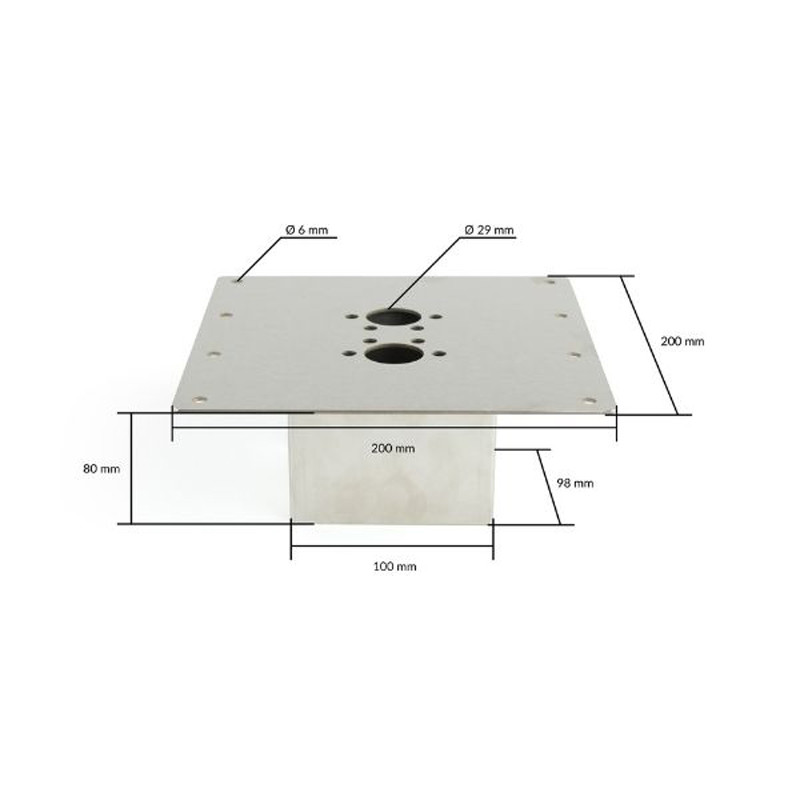

Technical specifications

Mounting bracket height 8 cm :

• Dimensions (top): 200 x 200 x 2 mm
• Dimensions (bottom): 104 x 104 x 80 mm
• Exhaust / air intake: Ø 30 mm
• Screws: Ø 6 mm
• 316 stainless steel

Compatibility

• Autoterm Air 4D
• This mounting bracket is also compatible with a Autoterm Air 2D heater.
