Ready-to-fit RW Rear universal bay kit Carbest

More light, less draughts

Transform the rear of your converted van or motorhome into a light, airy and perfectly insulated space with this complete pack. No more compromises between light, privacy and protection! This kit brings together all the essential elements for a professional installation and optimum comfort.

At the heart of this pack is the RW Rear projectable window from Carbest, a real source of natural light for your vehicle. Its black-tinted acrylic double glazing is not just aesthetically pleasing; it also provides exceptional thermal and acoustic insulation, protecting your interior from temperature variations and external noise, while preserving your privacy. Its sleek design blends harmoniously with the bodywork of your van, giving it a modern, discreet look.

With a 60° opening angle and three positions thanks to its telescopic aluminium compasses, this window provides optimum ventilation, essential for combating condensation and maintaining healthy air on board.

Perfect finish and optimised comfort

For unrivalled comfort and an impeccable finish, the bay is completed by its inner frame. This ingenious system incorporates an opaque pleated blind that lets you create darkness in seconds, ideal for peaceful nights or impromptu siestas. It also features a fine mosquito net for effective protection against insects, while guaranteeing undisturbed ventilation. The package: an elegantly designed white frame with blind + mosquito net, easily fitted into the RW Rear bay from inside the vehicle. The blackout blind and mosquito screen can be lowered and raised with one hand. Note that only the fly screen can be lowered during the day.

Everything you need to fit your RW Rear universal window

This pack also includes the accessories you need for long-lasting installation and a perfect seal: a 25 mm pre-moulded rubber seal. Specially designed for vehicle windows, it provides effective protection against water infiltration, draughts and heat loss, enhancing the insulation of your passenger compartment.

Finally, the 23 mm wide staple cover finishing profile completes the installation. Made from semi-rigid grey PVC, it elegantly hides the gasket clips, giving a clean, professional finish, while protecting the fasteners for longer life.

With this pack, you get a complete solution that combines practicality, aesthetics, insulation and protection, for ever more comfortable, stress-free travel!

Technical characteristics of the RW Rear Universal Bay Kit Carbest

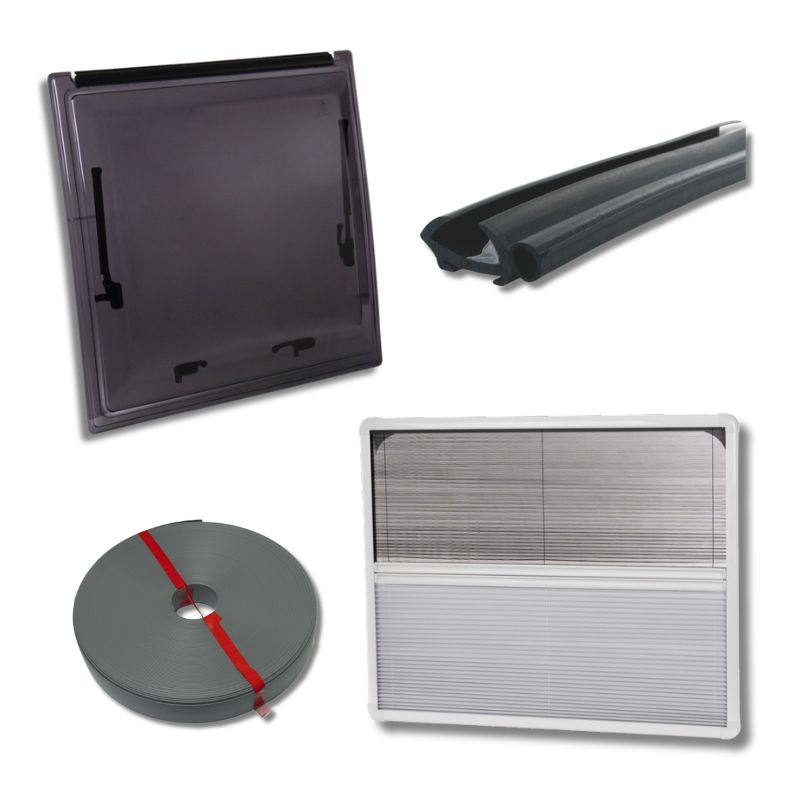

Kit components : Universal bay RW Rear 700x653mm Carbest, Interior frame 700x653mm, 3m of 25mm sealing gasket, 10m of finishing profile.

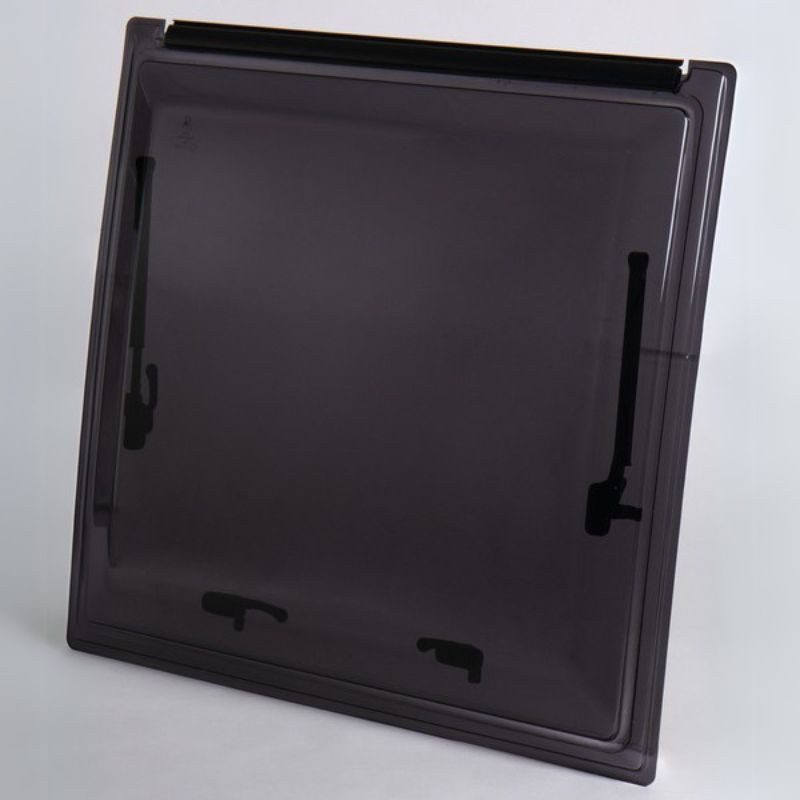

Universal RW Rear window

• Glazing material: Black-tinted double-glazed acrylic.
• Opening angle: 60°, with 3 positions(telescopic aluminium compasses).
• Cut-out dimensions: 620 x 560 mm.
• Overall dimensions: 700 x 653 mm.
• Glazing weight: 4.1 kg.
• Colour of window: Black/smoked glass.
• Fixing of the unit: Screwed using a metal strip located on the top of the unit.

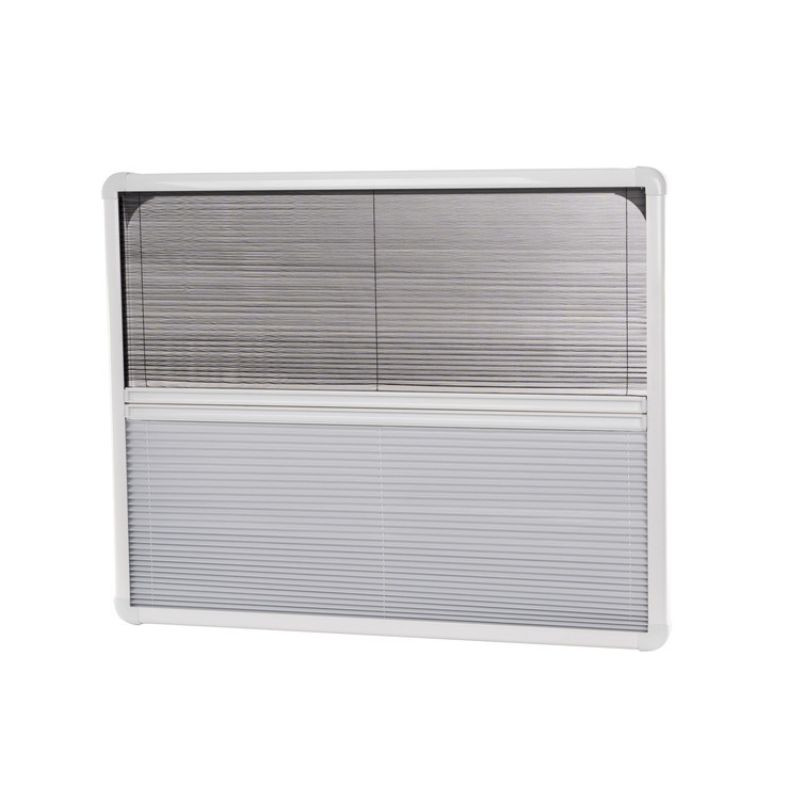

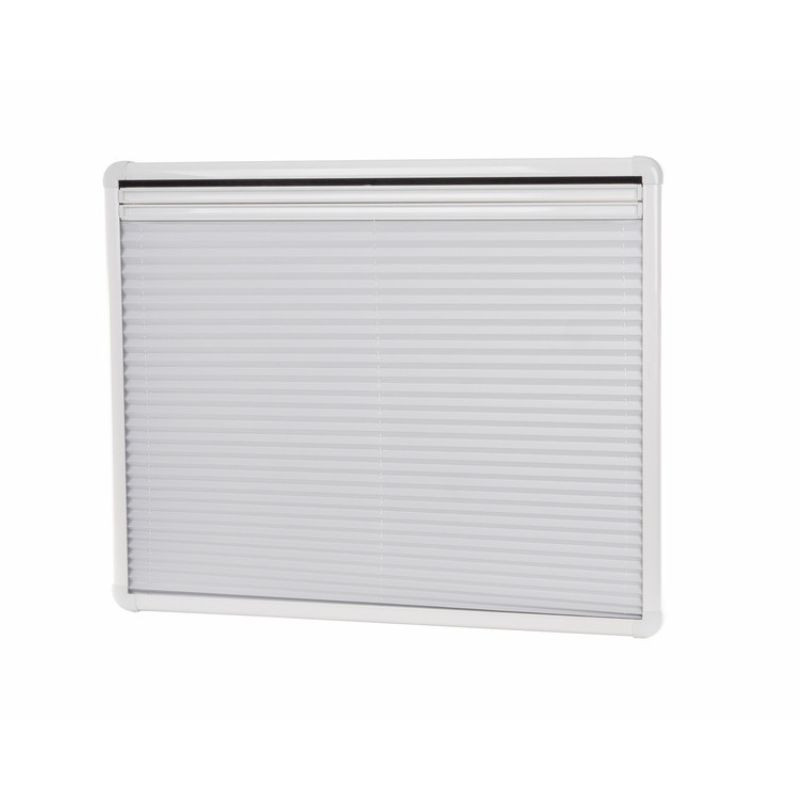

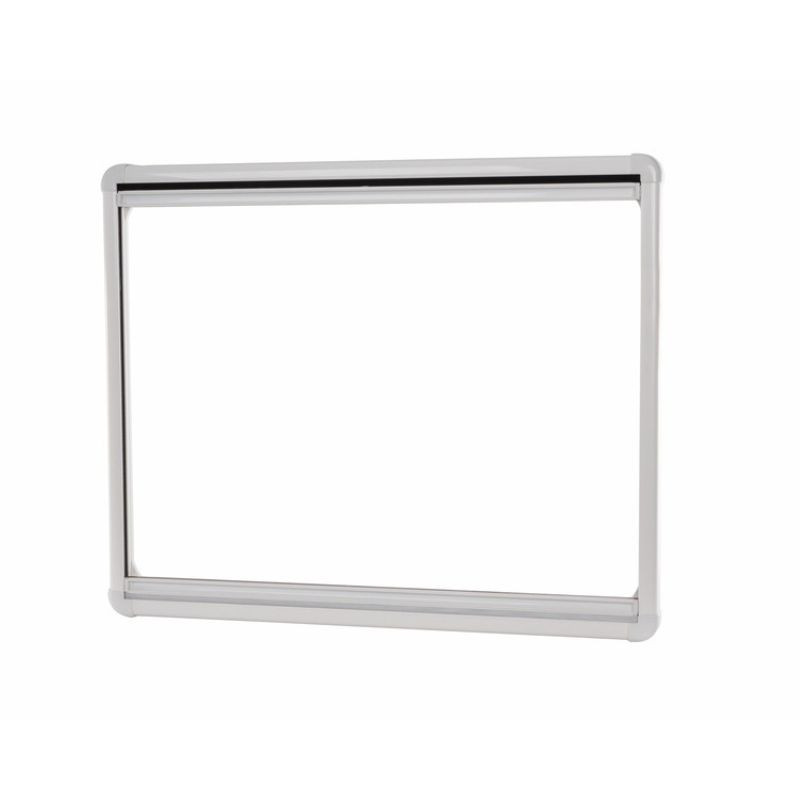

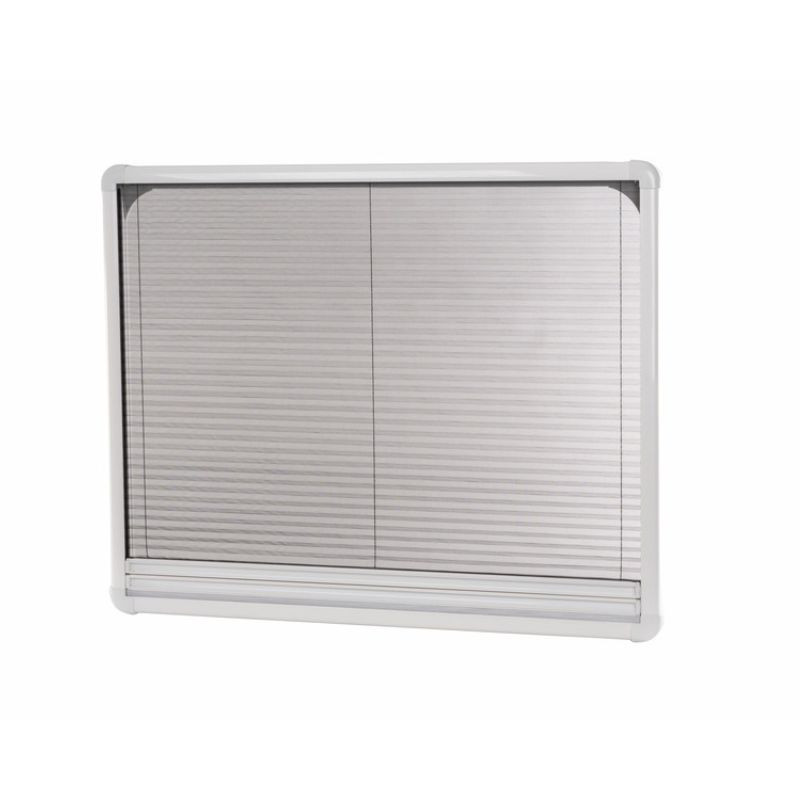

RW Rear inner frame

• Features included with the RW Rear inner frame Carbest : pleated blackout blind + insect screen.
• Position of inner frame: mounted on the inner opening.
• Dimensions: 700 x 653 mm.
• Inside frame colour: White.
• Fixing the inner frame: Screws in the four corners.

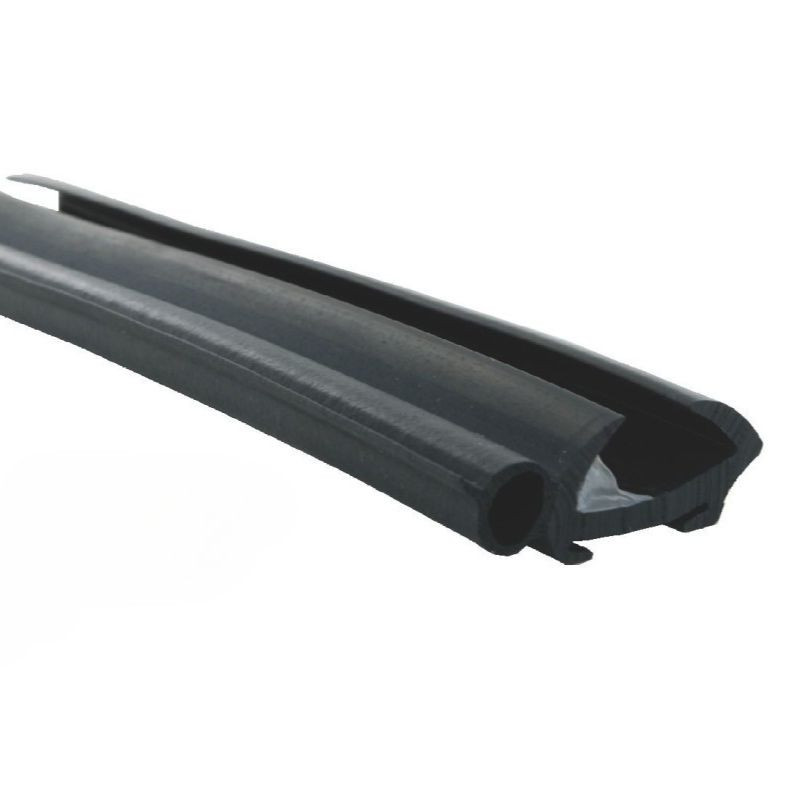

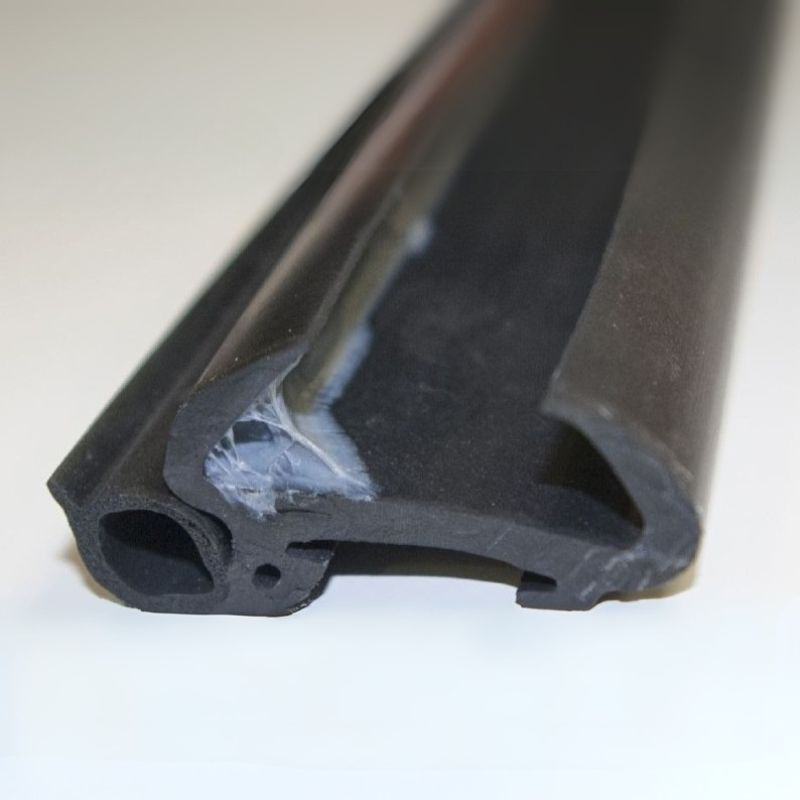

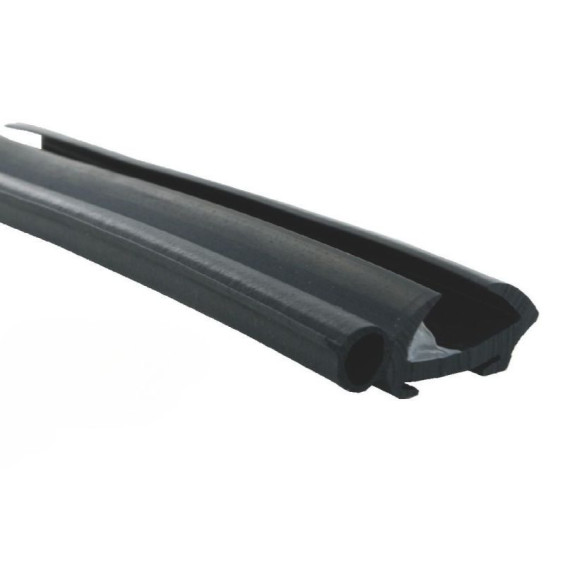

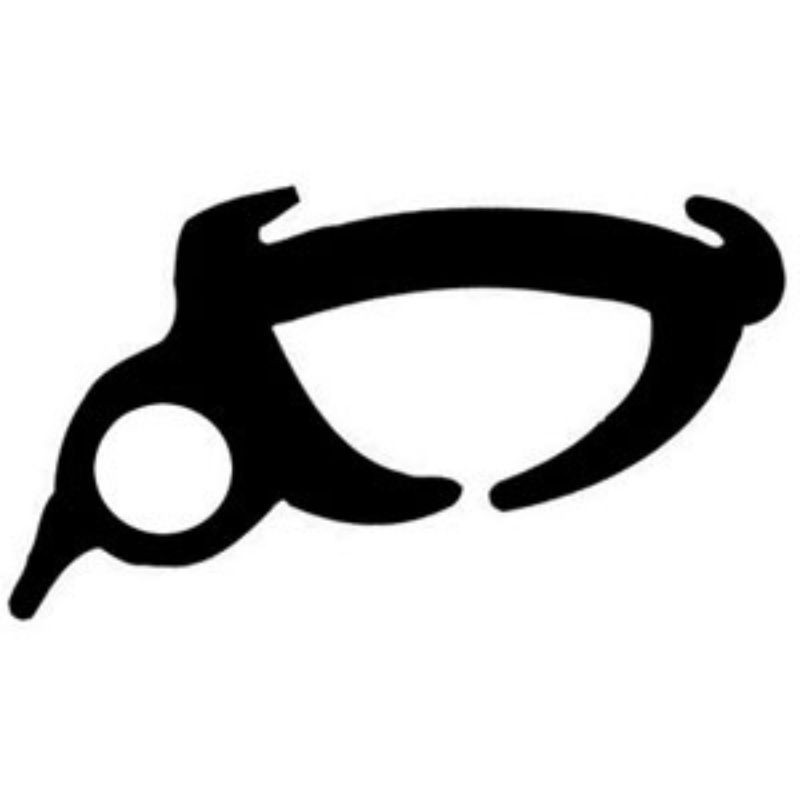

Pre-masticated rubber seal 25 mm

• Seal material: Rubber.
• Length of seal included in pack: 3 m (2.36 m + margin of error).
• Joint fixing: On 3 cm spacers(not included), pre-glued joint.

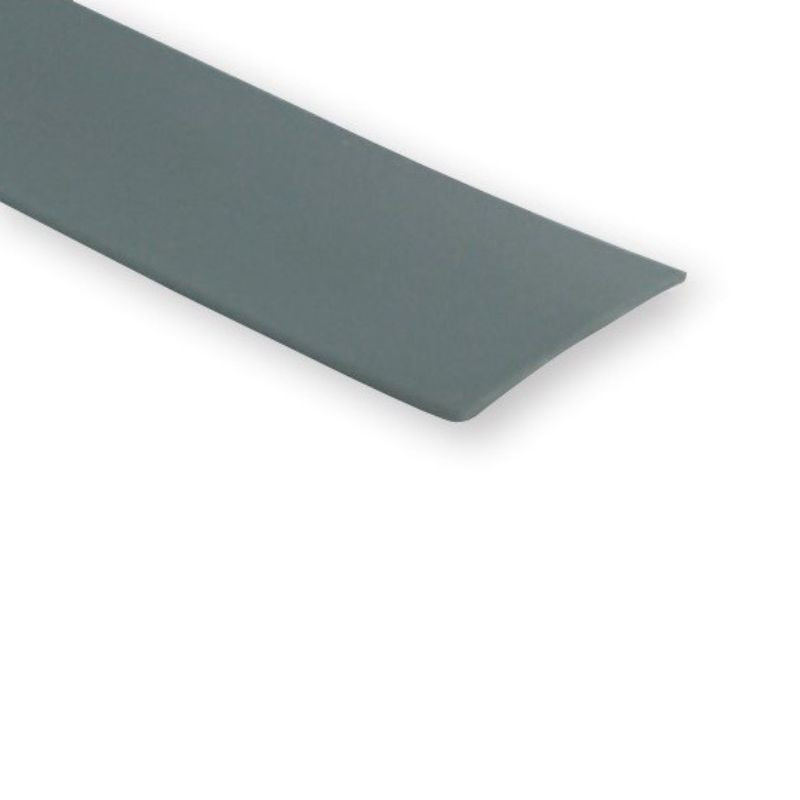

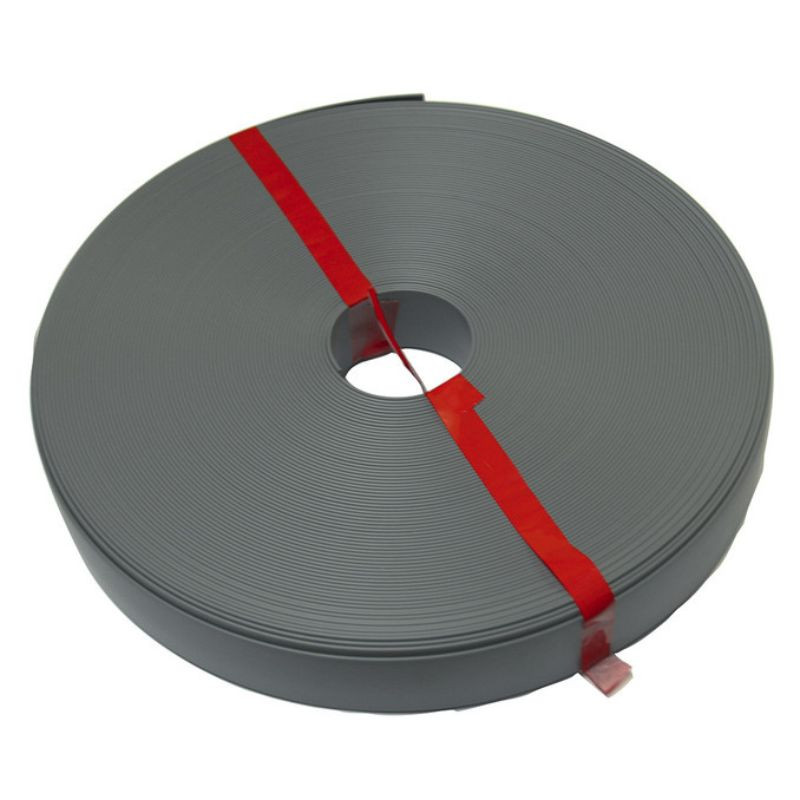

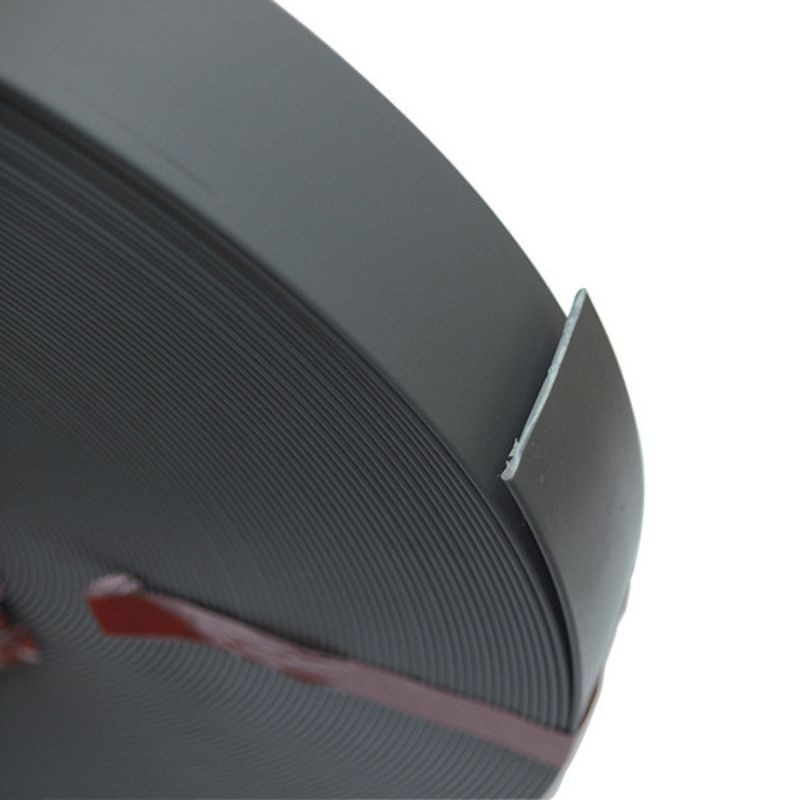

23 mm wide finishing profile for rubber seal

• Finishing profile material: Semi-rigid PVC.
• Length of finishing profile included in pack: 10 m roll.
• Fixing the finishing profile: easy insertion into the joint.
