UNO 6 - Base unit for built-in refrigerator | Universal and Removable - LONGBOARD

Is it possible to build a fridge into a van?

Of course, on 2 conditions: there must be enough space between the side wall of the vehicle and the rear of the fridge, and there must be sufficient ventilation.

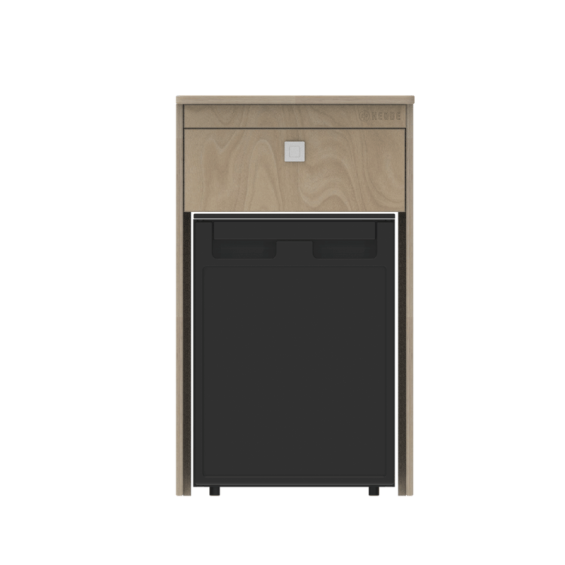

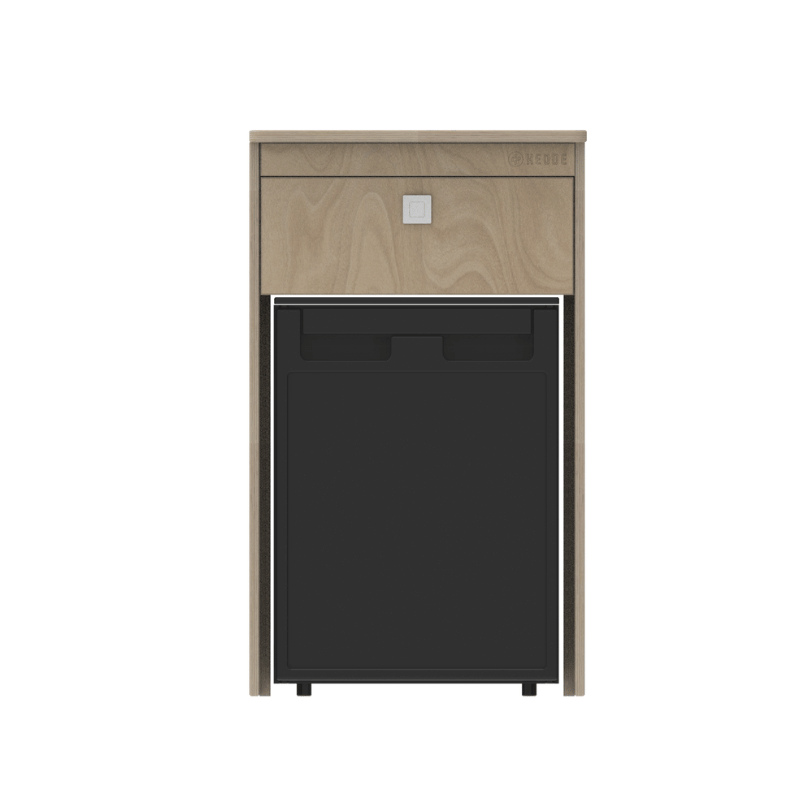

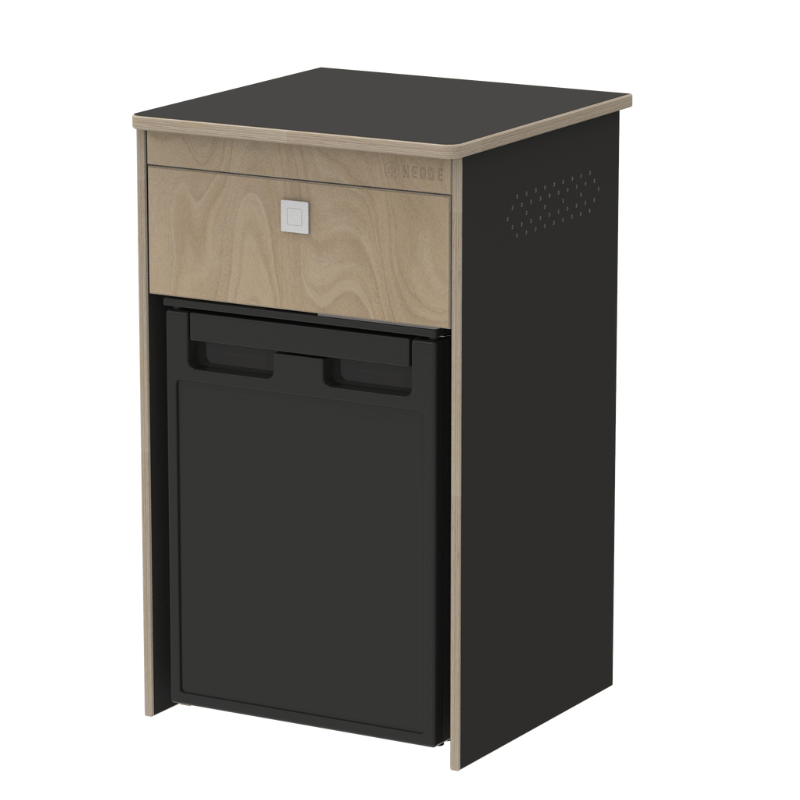

The UNO 6 is formed by the LB104 low cabinet and 2 finishing panels (CF740) with a perforated area to ensure optimum ventilation of the fridge. The fridge will not malfunction or overheat. For proper installation in UNO 6, we recommend that you read your appliance's instructions carefully.

A small door (P7) at the top of this module allows you to slide a chopping board, tea towel or any small object onto the top of your 12V fridge.

The work surface of the UNO 6 can be used to store the personal items you need for your daily road trip. You can even put a removable gas stove on top to cook your meals.

Modular and complementary to other elements LONGBOARD

Heode has designed the LONGBOARD range so that every traveller can design the accommodation of their dreams now or as they go along!

The UNO 6 can be modified to combine with other LONGBOARD low and/or high unit elements. Take a look at our complete LONGBOARD packs for installation in your van.

Plan your trips, Heode takes care of the equipment!

Materials

For this UNO 6 LONGBOARD pack:

The structure box (LB104) is made of untreated birch plywood, 15mm thick. The outer panels (1 small door, 2 side panels, 1 skirting board, 1 worktop) are covered with a laminate in a choice of colours: Cream White/Birch; Agave Green/Birch; Graphite Grey/Birch; etc. This finish gives the elements a high level of elegance.

This finish makes LONGBOARD surface elements highly resistant to stains and unintentional scratches. In the event of minor damage, clean your furniture easily with a clean cloth.

The wood we've chosen to make the LONGBOARD range is none other than birch. Renowned for its solidity and unfailing reliability, Heode has been using it since the very beginning for its kit furniture collections for vans that are about to be fitted out.

By adding a high-pressure laminate, we give our furniture a touch of colour and modernity, while enhancing quality!

Advantages of the UNO 6 LONGBOARD pack

• Complementary: The UNO 6 can be combined with other LONGBOARD base and/or wall units available on our site. With it, several combinations are possible.
• Clever: it can be transformed into a mini kitchen using a mobile gas stove! What's more, all your food is within easy reach. The small recess above the fridge can hold a few accessories or kitchen equipment.
• Safety +++: The UNO 6 ensures maximum ventilation at all times, so there's no risk of the 12V compression fridge overheating.
• Appearance: The small door (P7), worktop, side panels and single plinth of the UNO 6 are made of laminate in a choice of colours.
• Easy assembly: screws and installation instructions included.

Technical specifications of the UNO 6 LONGBOARD pack

• Overall dimensions of the UNO 6 (WxHxD): 450x755x450 mm.
• Structure: 15mm-thick birch plywood.
• Surface elements: High-pressure laminated (HPL) birch plywood.
• The small door (P7) is reversible.
• Not compatible with wheel arch.
• Compatible with compression refrigerators: CARBEST LR40L; CARBEST LR50L; CARBEST CV50L(products sold separately on our site).
• Screws and bolts supplied.
• Assembly instructions supplied.
• Compatibility: 100% of commercial vehicles.
