Probe + water level panel of your choice - OSCULATI

The ready-to-use measurement kit!

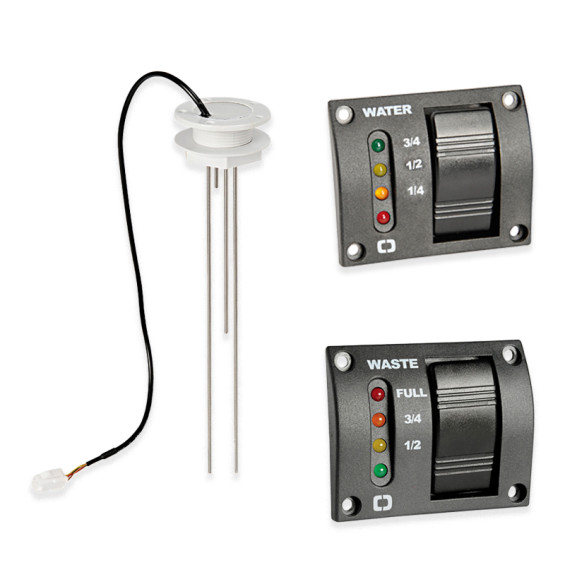

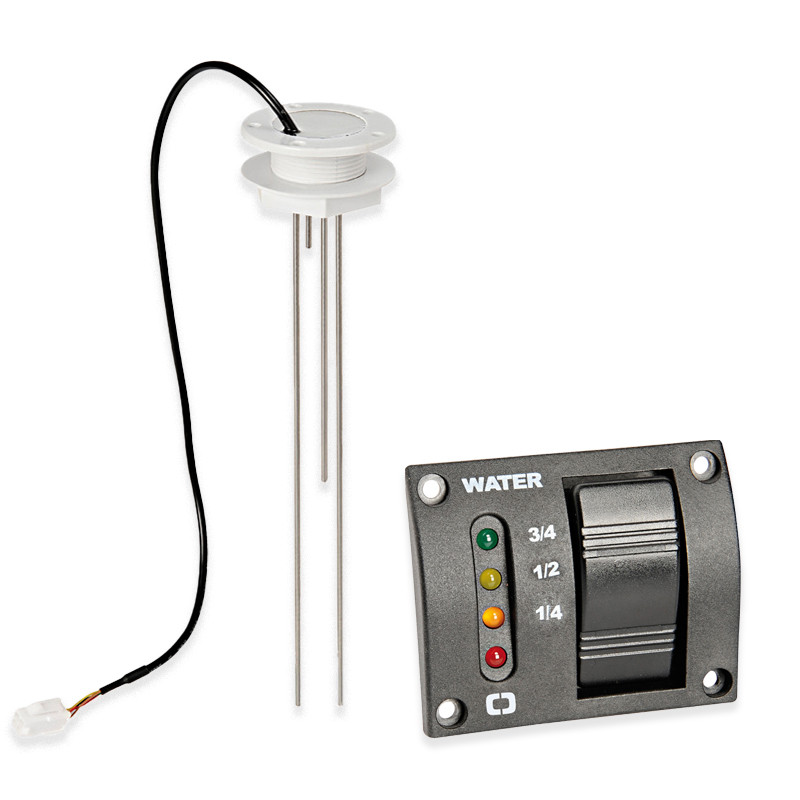

Simplify your life with this probe + level indicator kit! Dip the probe into your waste or clean water tank, connect it to the indicator panel and you'll easily know how much waste or clean water is left in your tank thanks to the 4 LEDs on the indicator. Totally "Plug and Play"!

Pack contents

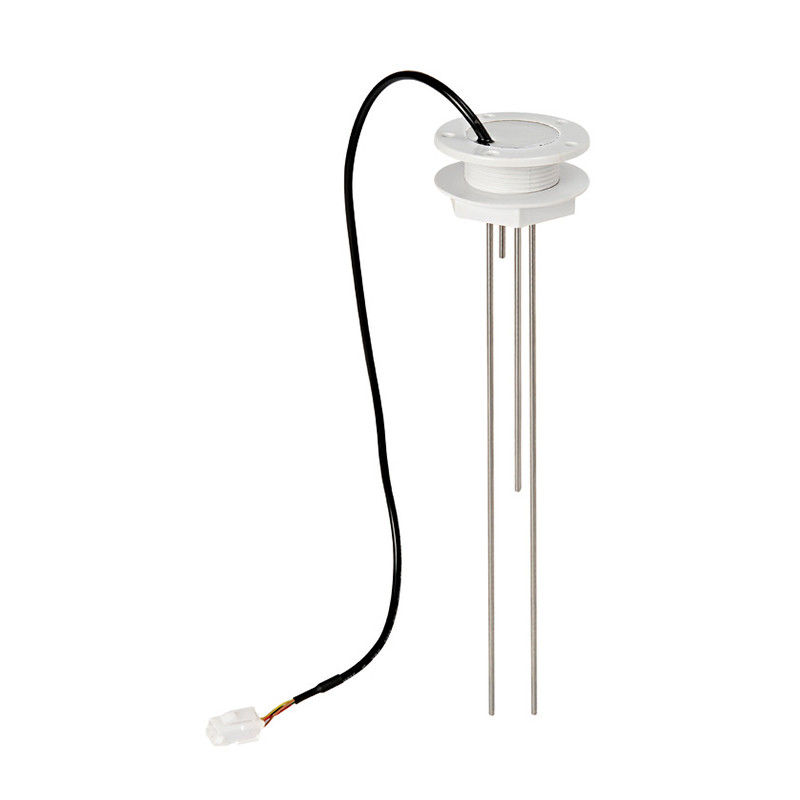

• Sensor for drinking water or grey water tanks (compatible with all types of tank)

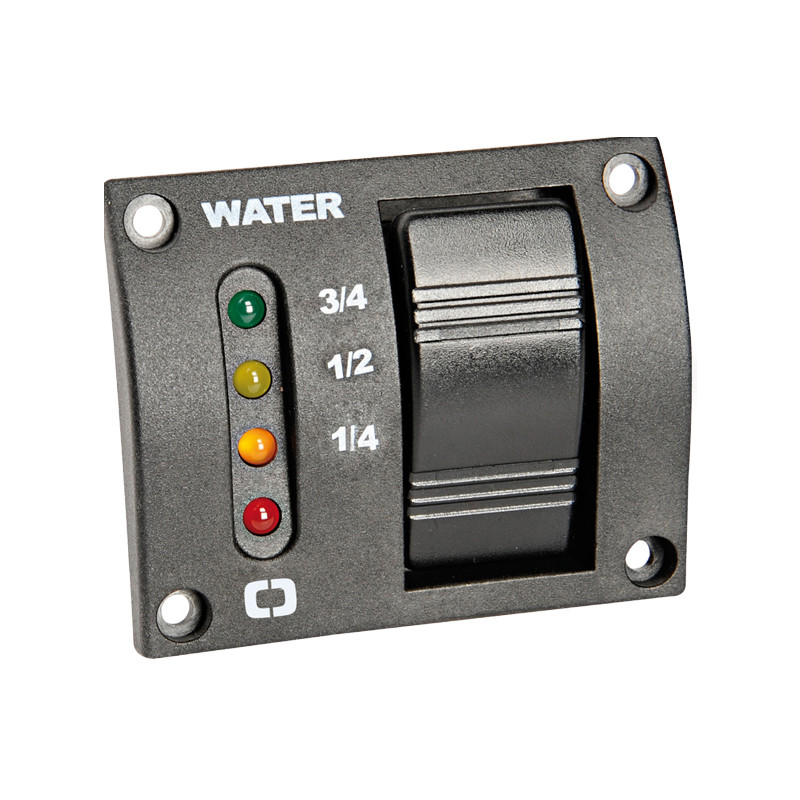

• Control panel with 4 LEDs and 1 OFF/Momentary button
• 4 m connection cable
• Sensor - panel wiring
• Installation instructions

The team's advice Heode

The probe in the waste water kit is ideal for a 54cm high tank, while the probe in the clean water kit is ideal for a 45cm high tank. However, the 2 longest rods can be neatly cut to adapt the probe to the height of your clean or waste water tank. It's quick and easy!

Technical specifications

Probe + waste water level indicator panel :

• Power supply: 12/24 V
• Panel dimensions (LxW): 75.20 x 62.5 mm
• Panel mounting depth: 33 mm
• Probe rod length: 260 mm
• Probe rod material: stainless steel
• Probe mounting diameter: 42 mm
• Overall probe diameter: 285 mm
• 1 gasket included

Probe + clean water level indicator panel :

• Power supply: 12/24 V
• Panel dimensions (LxW): 75.20 x 62.5 mm
• Panel mounting depth: 33 mm
• Length of probe rods: 300 mm
• Probe rod material: stainless steel
• Probe mounting diameter: 42 mm
• Overall probe diameter: 330 mm
