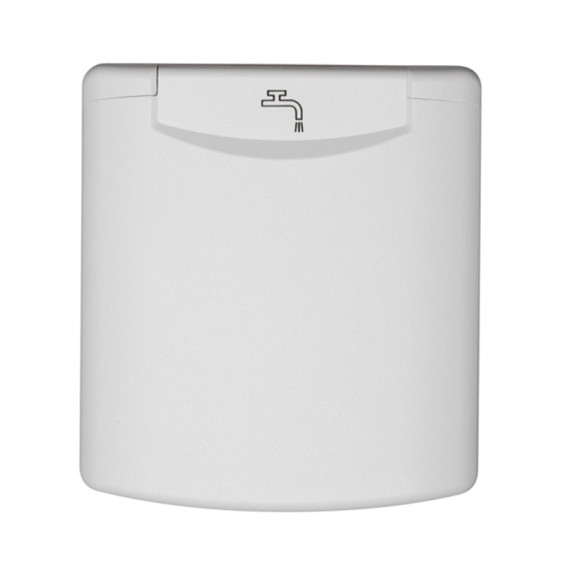

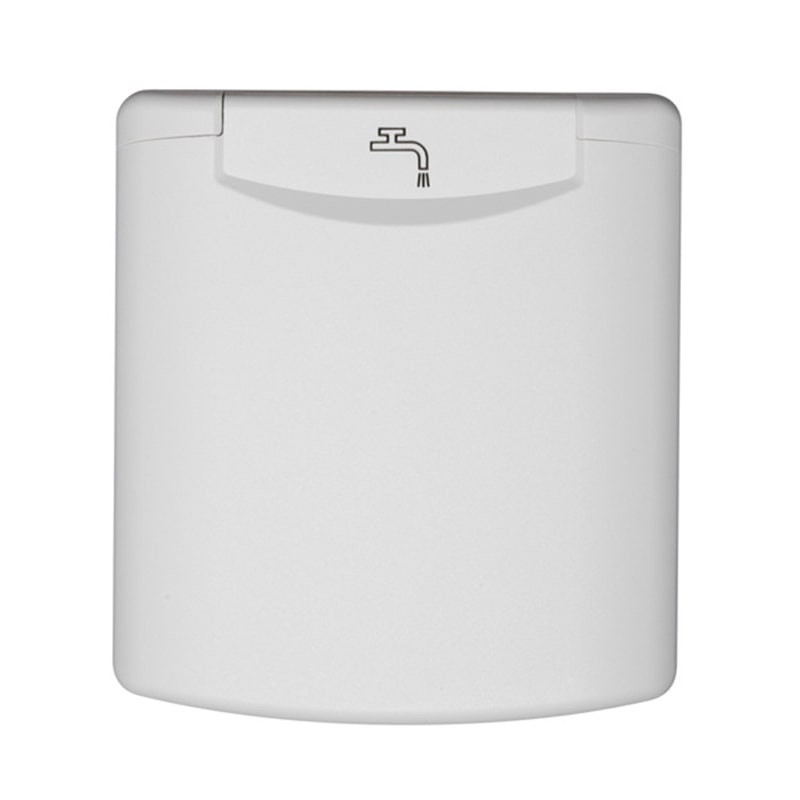

Filler cup with magnetic flap - Colour of your choice

How can I easily fill my water tank in a converted vehicle?

Installing a filling cup (filling funnel) is ideal for filling tanks or reservoirs that are difficult to access on a converted vehicle. The filler cup minimises accidental water spillage.

Designed for use with a 38mm inner diameter hose. Think of the 10mm hose to connect to the tank and the cup for the air intake.

Designed in a conical shape in a robust material to ensure continuous, precise pouring and a long service life. The filling funnel is therefore the practical solution for quickly filling your clean water tank or reservoir during your roadtrips!

To prevent loss of fresh water and preserve its nutritional qualities, it's essential to secure the opening with a filler cap.

See also :

• HSC locking cylinder for filler cup stopper (sold separately on our site)
• Keys for HSC locking cylinder on filling cup stopper (sold separately on our site)

You can find the bent through-hull fitting for 38mm hoses here

Technical specifications

• Dimensions (LxW): 145 x 130 mm
• Ø 38 mm hose for filling
• Ø 10 mm hose for air intake
• Material: Robust plastic

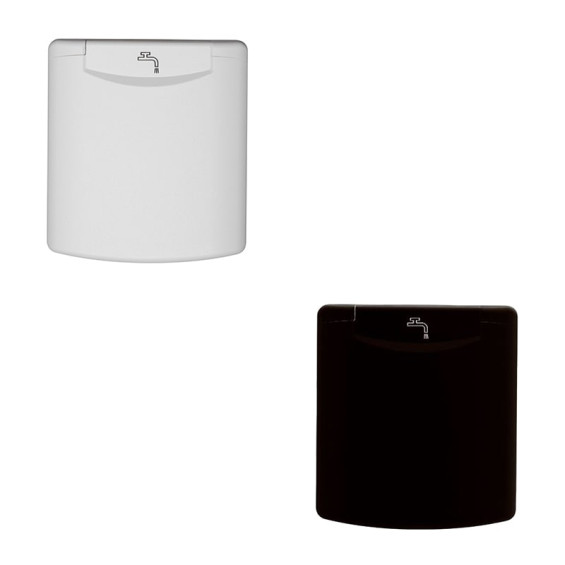

• Colour: White or Black

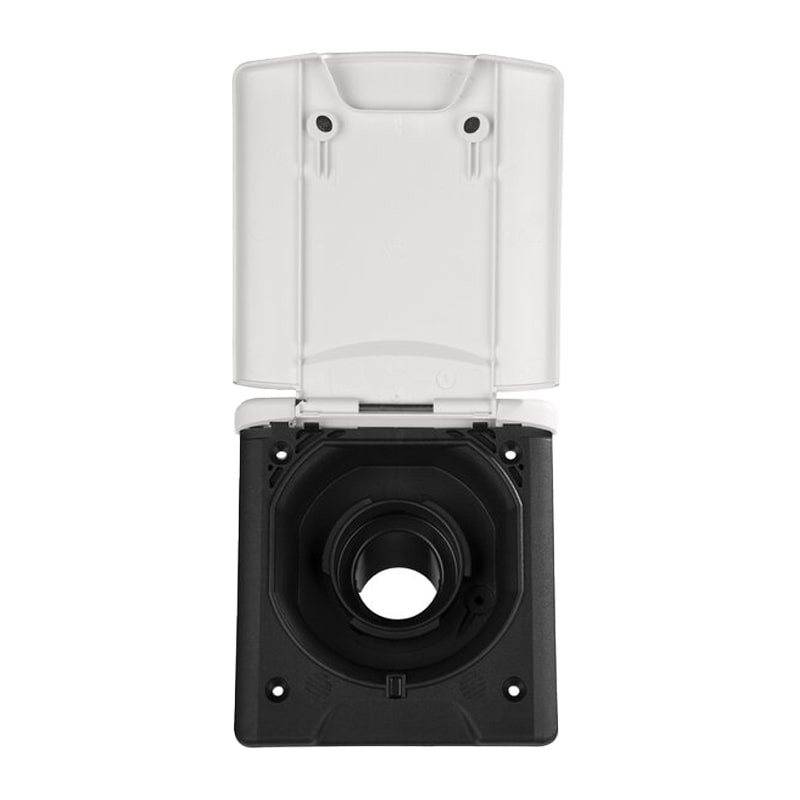

• Magnetic flap
• Compatible with a filler cap (not included and sold separately on our site)
• For connection to a rigid drinking water tank (choice of capacity)
