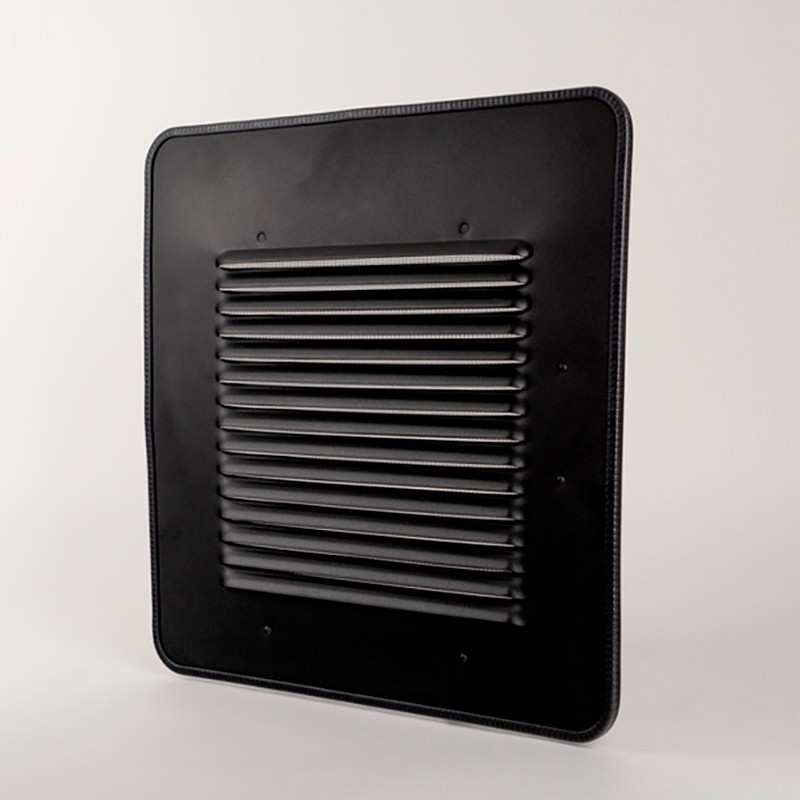

Ventilation grille for VW T5/T6 CARBEST sliding window

Ventilator, mosquito screen and privacy screen - it's all here!

With this black aluminium ventilation grille designed for sliding windows (Volkswagen T5/T6), you can safely give your converted van a bit of fresh air!

• Keep out insects with the built-in mosquito net.
• Keep the rain out thanks to the downward-facing gills.
• And don't worry, the grille is as effective and hard-wearing as a window.

Compatibility ventilation grille Carbest / Sliding window T5/T6 Heode

Please note that this CARBEST ventilation grille is not compatible with an original T5/T6 flush sliding window (i.e. the glazing present on the vehicle when it leaves the dealership).

If your Transporter has original glazing, then opt for the HKG side ventilation grille for VW T5/T6.

Advice from the team Heode

When you first install this CARBEST ventilation grille (right or left), you'll need to carefully stretch the 2 flaps that don't have screws (i.e. 1 vertical and 1 horizontal) so that you can then easily snap the grille onto the edges of your sliding window opening.

Next, you'll need :

• At least 2 people to make installation easier.
• Completely unscrew the 2 screws on the horizontal top flap, then remove it.
• Fit the vertical flap onto the edge of your window opening.
• Gently slide the grille down to fit the horizontal bottom flap over the bottom edge of your window opening.

Once these 2 flaps are in place, replace the top horizontal flap and tighten the 2 screws. Don't worry, by following our advice and in just a few minutes, your ventilation grille can be fitted neatly!

Technical characteristics of the CARBEST VW T5/T6 ventilation grille

• Vehicle compatibility: Volkswagen Transporter 5/Transporter 6.
• Window compatibility : See table above.
• Not compatible with the T5/T6 flush or integrated insect screen glazing on our site.
• Installation: Position on the opening of a sliding window (row 2).
• Integrated, secure fixing system.
• Integrated insect screen.
• Material: High-quality aluminium.
• Resistance: Weathering, Corrosion.
• Weight: Lightweight for easy handling.
• Colour: Black.
