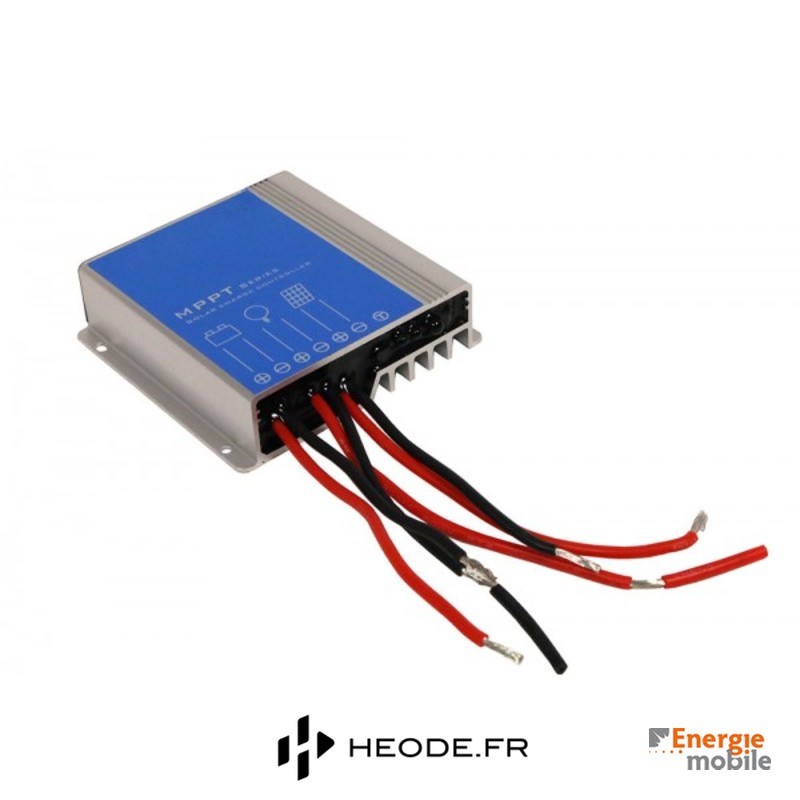

Solar controller MPPT1212 Energie Mobile

5.312
€36.75 TTC

This MPPT 1212 waterproof solar charge regulator from French brand Energie Mobile is designed to charge your auxiliary battery with increased charging speed and efficiency from your solar panels.

Description
Shipped within 24 hours

Specially designed for delivery vans, this easy-to-use solar charge controller is ideal for slow-discharge lead-acid, AGM or GEL batteries.

The MPPT 1212 technology continuously monitors the voltage and current output of the solar panels, guaranteeing maximum recovery of the energy produced for storage in the 12V batteries. Where conventional regulators simply lower the solar panel voltage to keep the charging current constant, the MPPT regulator transforms this voltage loss into a higher charging current!

Please note: this MPPT1212 regulator is incompatible with 24V batteries. For these, choose the MPPT201224 regulator.

Technical specifications

  • DC system voltage (V): 12V
  • Max panel voltage (V): 25V
  • Charging mode: MPPT
  • Max charge current: 12A
  • Max charge current for battery no. 2 (motor): 1A
  • Max panel power: 160W
  • Adjustable boost voltage: 14.5V
  • Adjustable floating voltage: 13.7V
  • Protection: Overload, Short-circuit, Overheating
  • Battery type: Open lead, Gel, AGM, Lithium
  • IP67 standard: dust and water resistant (30min at 1m depth)
