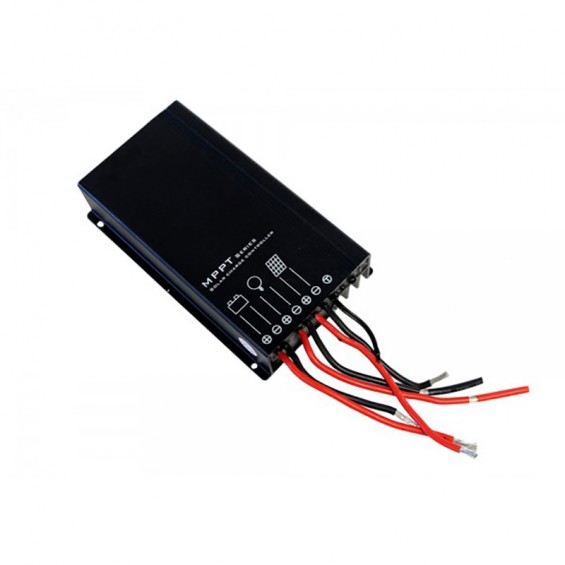

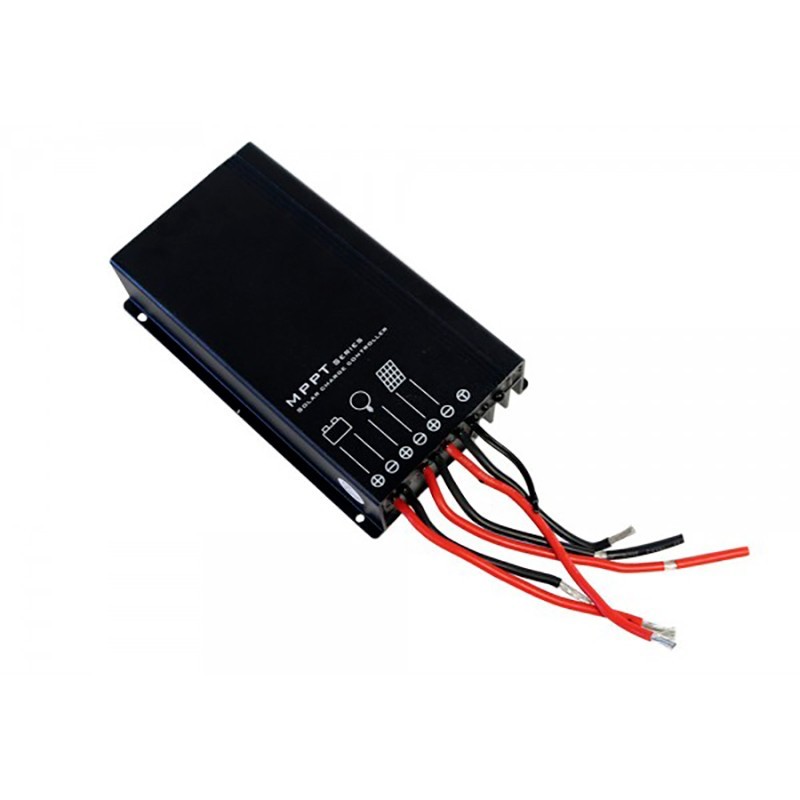

Solar controller MPPT201224 Energie Mobile

5.314
€70.42 TTC

The MPPT 201224 regulator from French brand Energie Mobile increases the efficiency of your solar panels and optimises the recharging of your auxiliary battery.

Description
Shipped within 24 hours

Specially designed for solar panels installed on the roof of your van, this easy-to-install, waterproof solar charge controller is ideal for slow-discharge lead-acid, AGM or GEL batteries.

The 201224 MPPT technology constantly monitors the voltage and current output of the solar panels, guaranteeing maximum recovery of the energy produced for storage in the 12V or 24V batteries. Where conventional regulators simply lower the solar panel voltage to keep the charging current constant, the MPPT regulator transforms this voltage loss into a higher charging current!

Technical specifications

  • DC system voltage (V): 12V/24V (automatic detection)
  • Max panel voltage (V): 60V
  • Charging mode: MPPT
  • Max charge current: 20A
  • Max panel power: 200W/12V - 400W/24V
  • Configurable boost voltage: 29V
  • Adjustable floating voltage: 27.4V
  • Protection: Overload, Short-circuit, Overheating
  • Battery type: Open lead, Gel, AGM, Lithium
  • IP67 standard: dust and water resistant (30min at 1m depth)
