Electrical control panel - Choice of number of switches

Control panel for electrical installation in panel vans

Designed specifically to manage your electrical circuits, but also to protect you inside your converted vehicle!

It's an essential piece of equipment with several functions. It centralises, controls, distributes and secures your entire electrical installation.

Which control panel with switches should I choose?

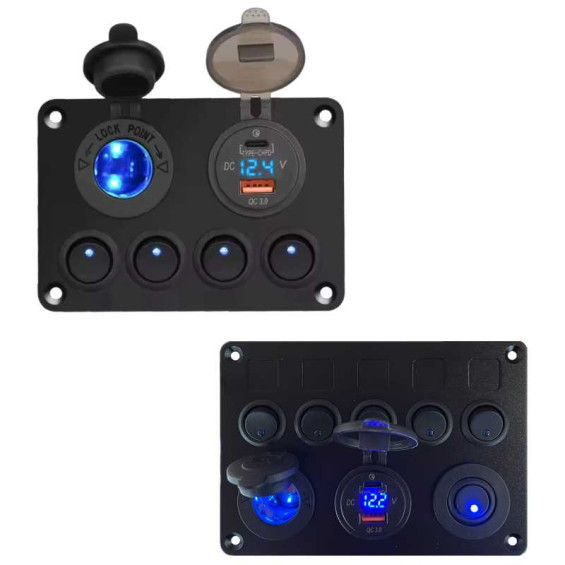

This electrical panel is oriented horizontally and has 4 or 5 illuminated rocker switches. It's up to you to choose the most appropriate switch panel for your wiring diagram.

Each on/off switch is associated with a different electrical circuit and is used to power your equipment (LED spotlight, LED bar, water pump, fridge, etc.). The toggle switches on the electrical panel light up when the circuits are powered. So you can quickly see which circuits are switched on.

It's easy to understand: the more equipment you have to power, the more electrical circuits you have, the more switches you need on an electrical panel!

The control panel also has a :

• cigarette lighter socket
• uSB-C socket + voltmeter + USB Quick Charge 3.0

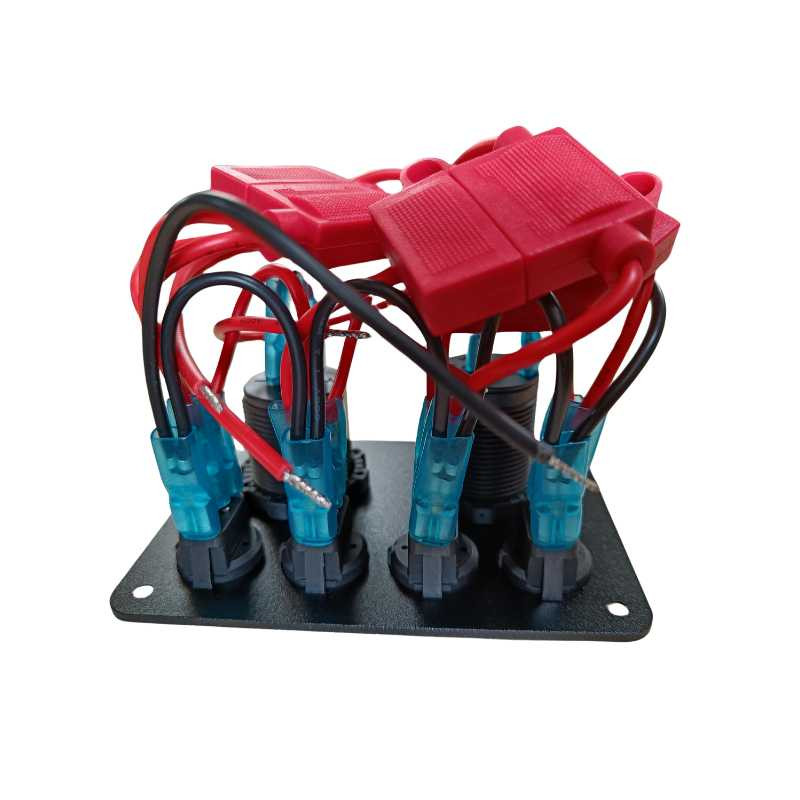

Whatever electrical panel you choose (with 4 or 5 switches), it's pre-wired and includes a 15A fuse per circuit. Each ATC/ATO type automotive blade fuse specifically protects an electrical circuit in the event of a malfunction.

Discover our range of H07 VK flexible multi-strand electrical cable with a choice of nominal cross-sections in mm².

The strength of the 5-switch electrical panel that makes all the difference!

If you choose the 5-switch control panel, you'll benefit from a special switch on the bottom line on the far right (see image) that can only be used to switch off the blue light at the bottom of the panel.

In fact, this switch turns off the light from the cigarette lighter socket as well as the USB-C + voltmeter + USB Quick Charge 3.0 socket, so you can rest or sleep in total darkness!

You'll no longer have to worry about the brightness of your electrical panel on board your converted van thanks to this "magic" switch. And that's something! At Heode, our philosophy is to offer products that combine practicality and comfort to meet your most specific needs at any time of day!

Technical characteristics of electrical control panels

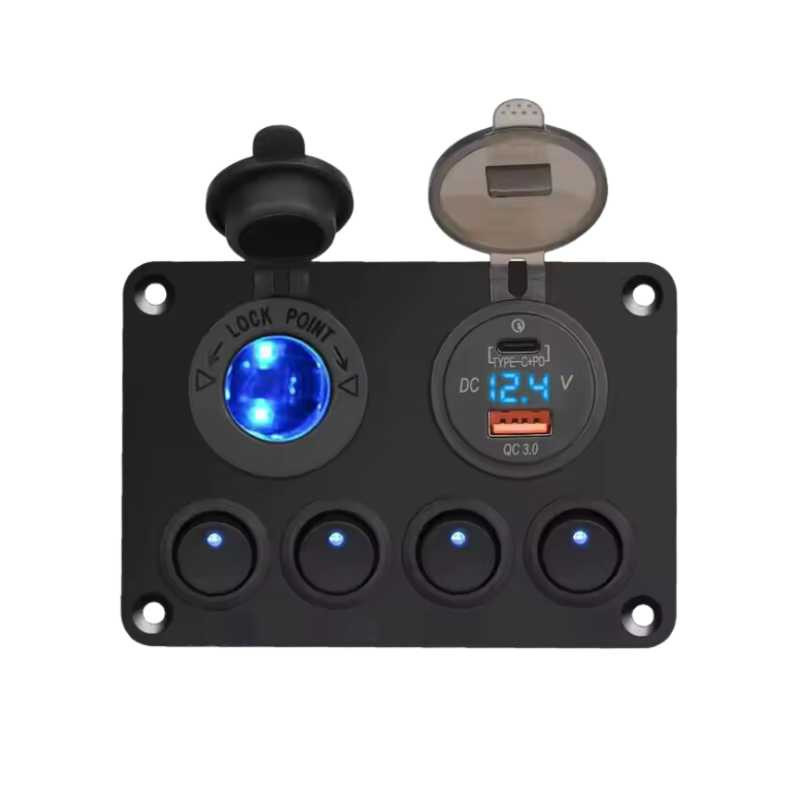

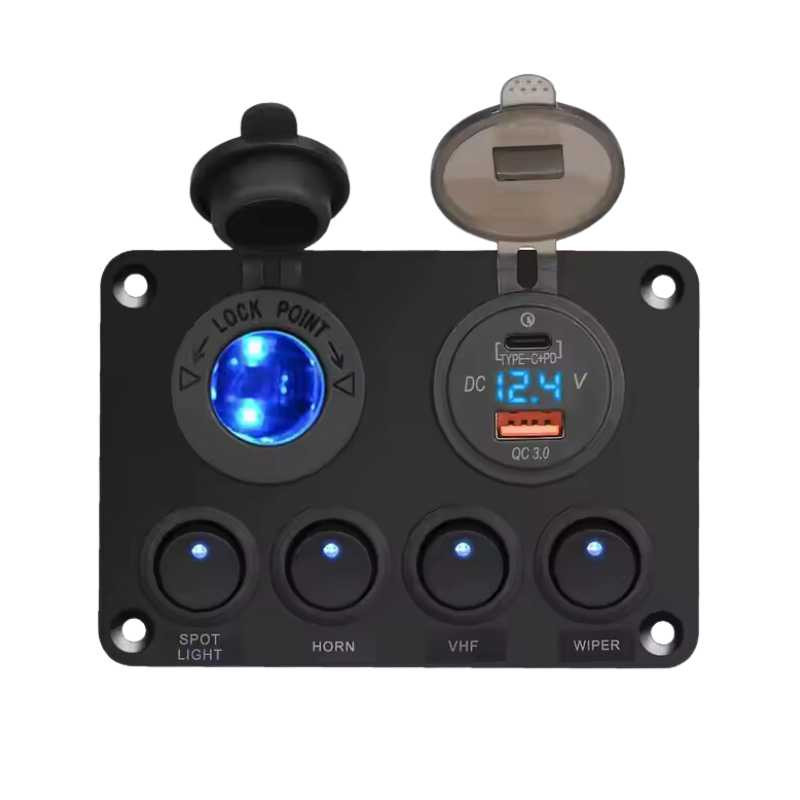

Horizontal electrical panel with 4 switches:

• Panel dimensions: 115 x 80 mm
• Number of switches: 4
• Number of circuits to connect: 4
• Maximum current per circuit : 10A
• 1 cigarette-lighter socket
• 1 USB-C socket + voltmeter + USB Quick Charge 3.0
• ATC/ATO type automotive blade fuses included: 4 x 15A
• 1 self-adhesive sheet of stickers with English lettering
• 4 fixing screws included

Horizontal electrical panel with 5 switches:

• Panel dimensions: 150 x 105 mm
• Number of switches: 5
• Number of circuits to be connected: 5
• Maximum current per circuit : 10A
• 1 cigarette-lighter socket
• 1 USB-C socket + voltmeter + USB Quick Charge 3.0
• 1 special switch to turn off the blue light at the bottom of the panel for a peaceful night's sleep
• ATC/ATO type automotive blade fuses included: 6 x 15A
• 1 self-adhesive sheet of stickers with English lettering
• 4 fixing screws included
