Fuse box 4 modules HABA - Electrical safety 10A/30mA

A complete solution for securing your electrical installation

Are you looking for a compact, ready-to-use solution to protect the electrical circuits in your van or camper van?

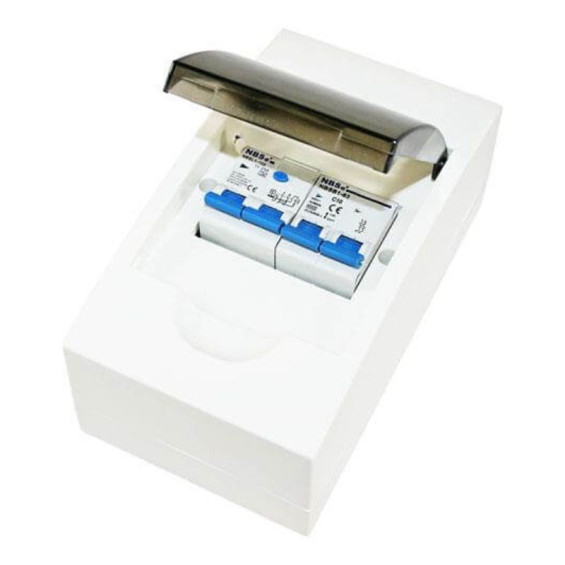

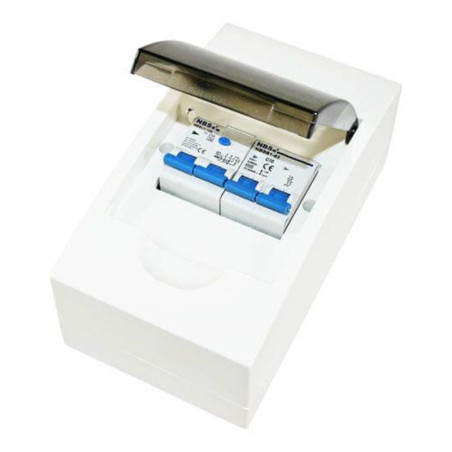

The 4-module fuse box HABA, fitted witha 10A circuit breaker and a 30mA earth leakage switch, is the perfect answer. Pre-assembled, this product guarantees optimum safety against overloads and current leaks.

Designed to be simple to install and immediately functional, it incorporates professional quality components, ensuring durability and compliance with standards. Its compact design makes it easy to integrate, even in confined spaces.

Technical specifications

• Power supply: 230 V AC
• Dimensions : L 200 x W 112 x D 86 mm
• Protection rating: IP40 - protected against solid objects >1mm
• Mounting : Wall, screw
• Weight: 0.52kg
• Conformity: CE standards, complies with low-voltage electrical requirements
• Connection: Flexible cable 3 x 1.5 mm² or 3 x 2.5 mm²

Product FAQ

How do I install this fuse box?

It is screwed to the wall. A pre-drilled entry allows the power cable to be connected quickly. As the modules are pre-assembled, no internal wiring is required.

Is this box suitable for a main switchboard?

No, it is designed as a secondary or complementary solution, ideal for specific circuits or temporary extensions.

Is it waterproof?

It has an IP40 protection rating: it is suitable for indoor use, protected from direct humidity.

Can I change the circuit-breaker to another rating?

Yes, the modules are DIN standard. It is possible to replace the 10A circuit breaker with a compatible model depending on the needs of your installation.
