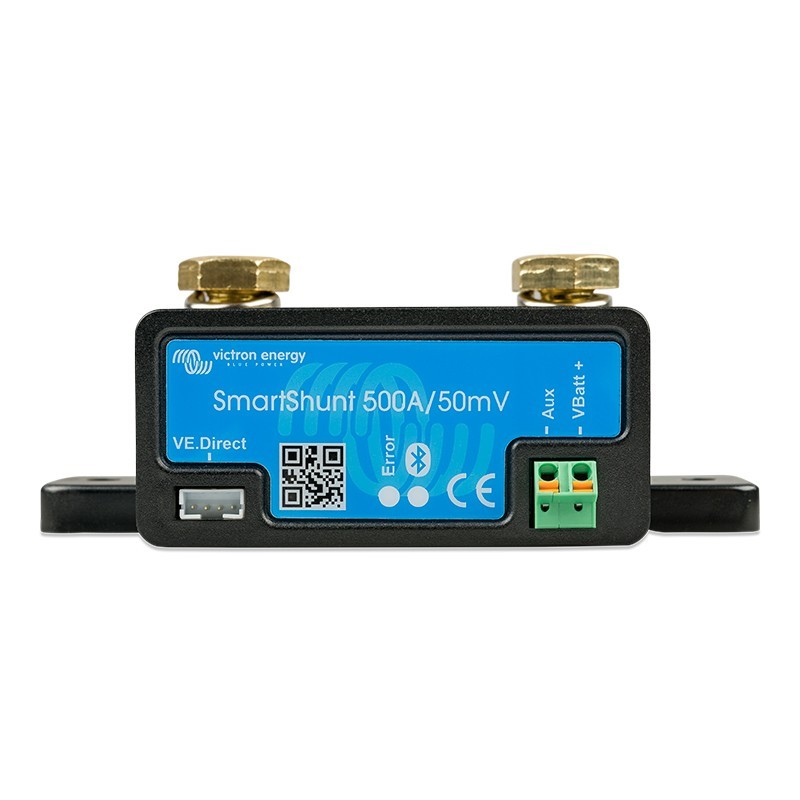

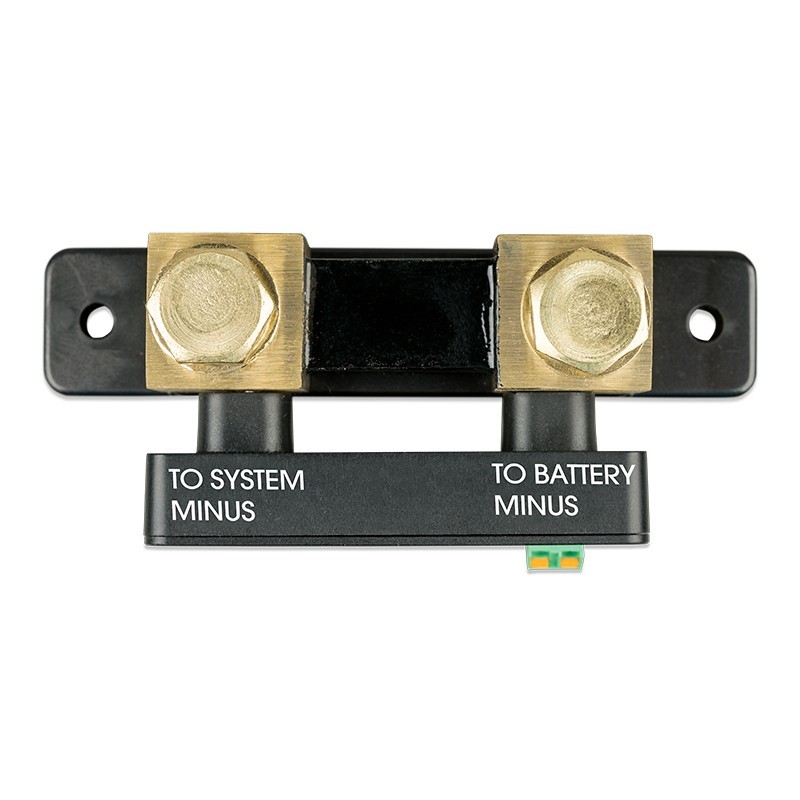

VICTRON ENERGY SmartShunt 500A Bluetooth® Battery Controller

Because no one should ever have to run out of electricity, Victron has developed this high-precision battery monitor, so you can check your battery's consumption and charge level from a single screen.

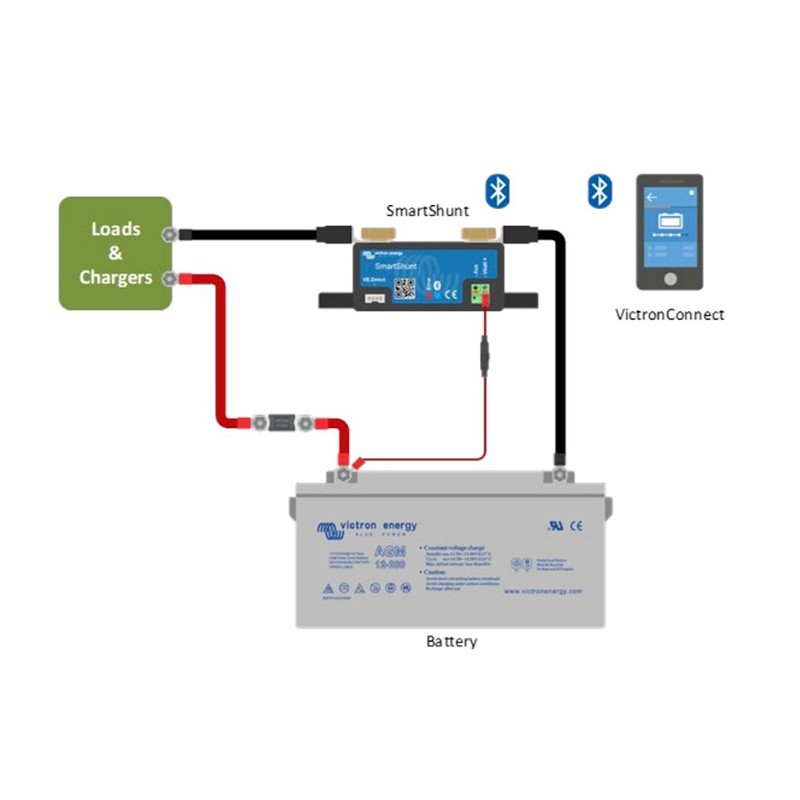

Quick and easy to install, the SmartShunt 500A/50mV measures the electrical input and output of your battery's alternator with flawless accuracy. It then assesses the percentage of battery remaining, based on your battery's ampere-hour consumption.

Thanks to this calculation mode, you'll find a host of other statistics: input voltage, instantaneous consumption, charging power, remaining charging time, etc.

But where conventional monitors require the installation of a control screen, this SmartShunt has the unique feature of being 100% Bluetooth®! Download the VictronConnect application to use all your data on your smartphone, tablet or computer. Connect your entire electrical installation (subject to compatible devices) to your screens to monitor your consumption and recharging statistics in real time!

Supplied in kit form with power cable and fuse.

Technical specifications:

• Supply voltage range: 6.5 - 95V
• Battery capacity (Ah): 1 - 9999 Ah
• Input voltage range (auxiliary battery): 6.5 - 70VDC
• Operating temperature range: -40°C to +50°C
• Temperature measurement range: -20°C to +50°C
• Communication port VE.Direct: Yes
• Bluetooth® technology
• Dimensions : 46 x 120 x 54mm
• IP21 protection
• Power cable and fuse supplied
