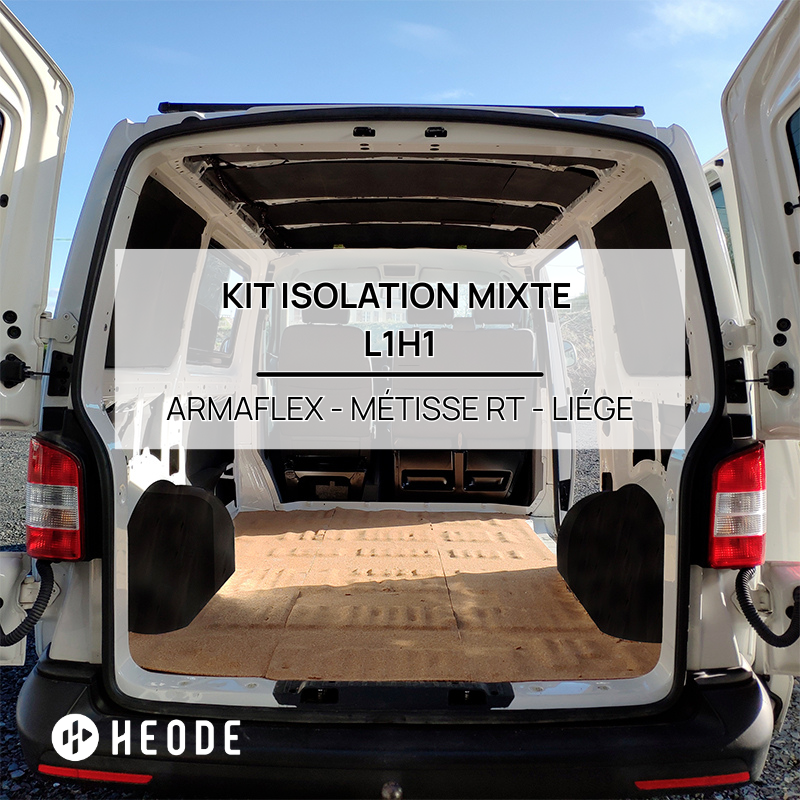

Mixed insulation kit L1H1 Armaflex - Métisse RT - Cork van & panel van

The best compromise between thermo-acoustic performance, ease of installation and ecology for the insulation of your L1H1 vehicles

Are you tearing your hair out over which insulation to choose to reduce the ecological impact of your fittings while maintaining optimum thermo-acoustic performance?

Heode has thought of you! Always keen to make your life easier, our professional fitters have selected the best-performing products on the market in a ready-to-use kit that offers the best of both worlds.

Is this the first time you've insulated a van? Don't worry: the products in this kit have also been selected for their ease of use!

Armaflex AF for insulating the ceilings, walls and wheel arches of your van

The thermal and acoustic performance of Armaflex AF has made it the undisputed leader in the van insulation market.

⏩ Thanks to its self-adhesive surface, Armaflex AF (10 mm) is perfect for wheel arches

⏩ Its integrated vapour barrier also makes it ideal for insulating ceilings (in 19 mm), the area most prone to dew point

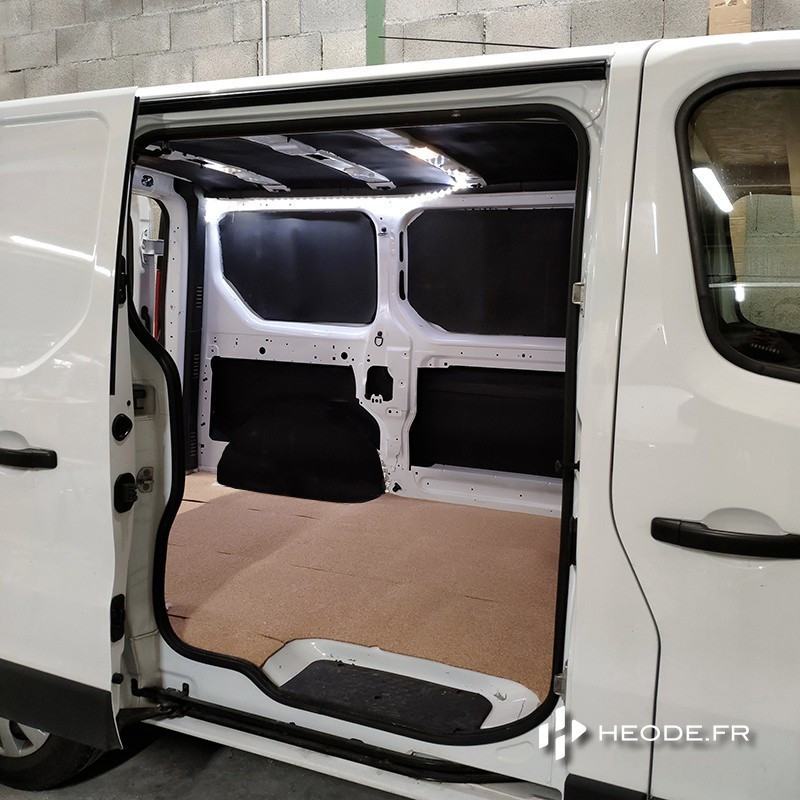

4 mm roll cork for floor insulation

Cork on a roll is ideal for insulating the floors of vans, thanks to its excellent thermal and acoustic insulation properties. Its natural resistance to moisture and mould ensures exceptional durability. Thin and easy to lay, it adapts perfectly to space constraints, providing a stable, healthy and durable floor without weighing down the vehicle.

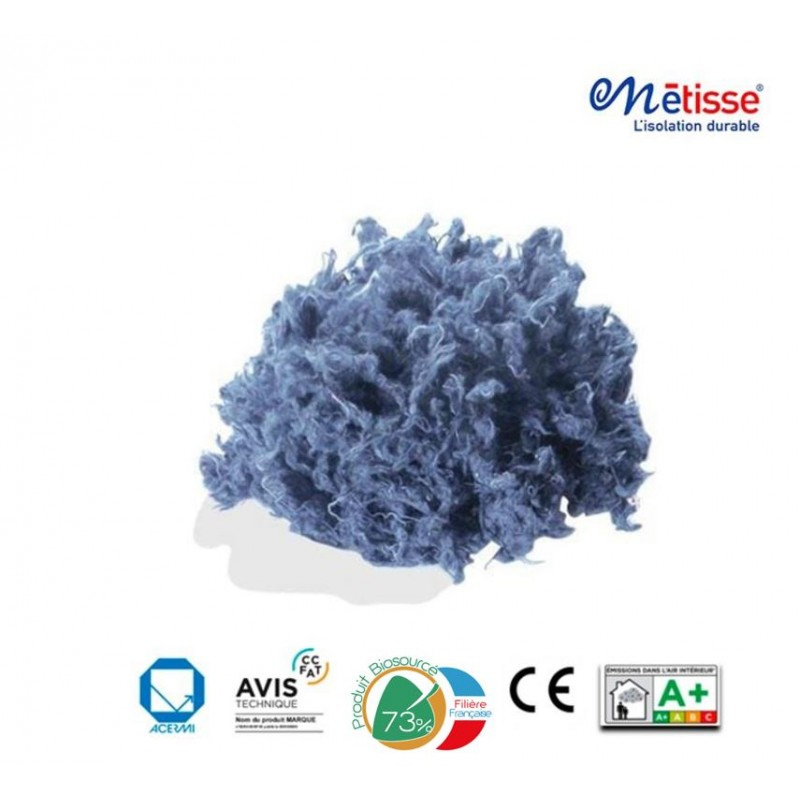

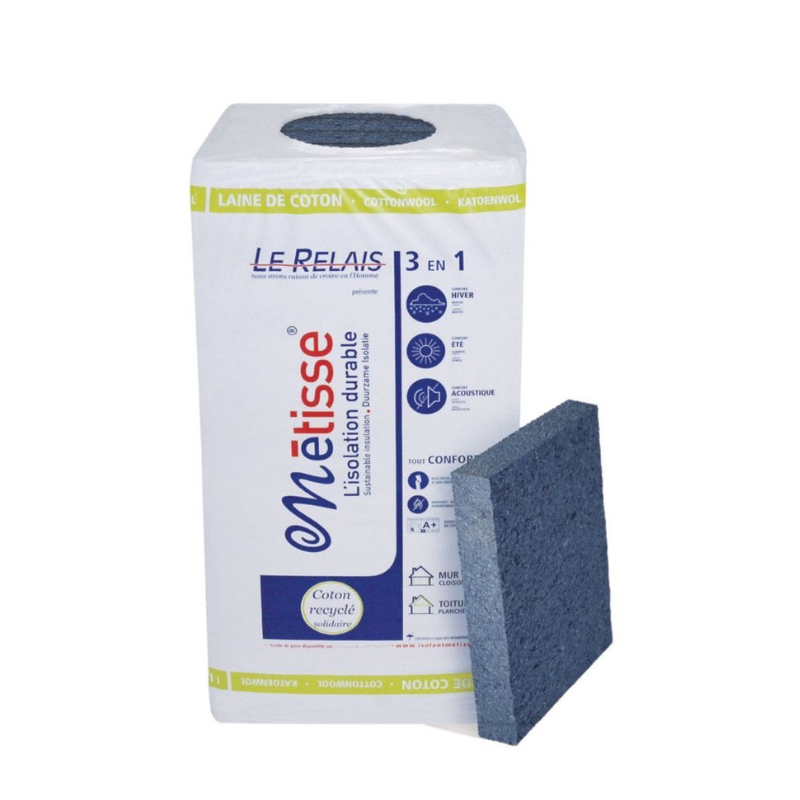

Métisse RT for door insulation

Ecological, local and socially responsible, Métisse RT is perfect for insulating doors and reinforcements that are difficult to access with traditional insulation materials such as Armaflex or less flexible materials such as cork.

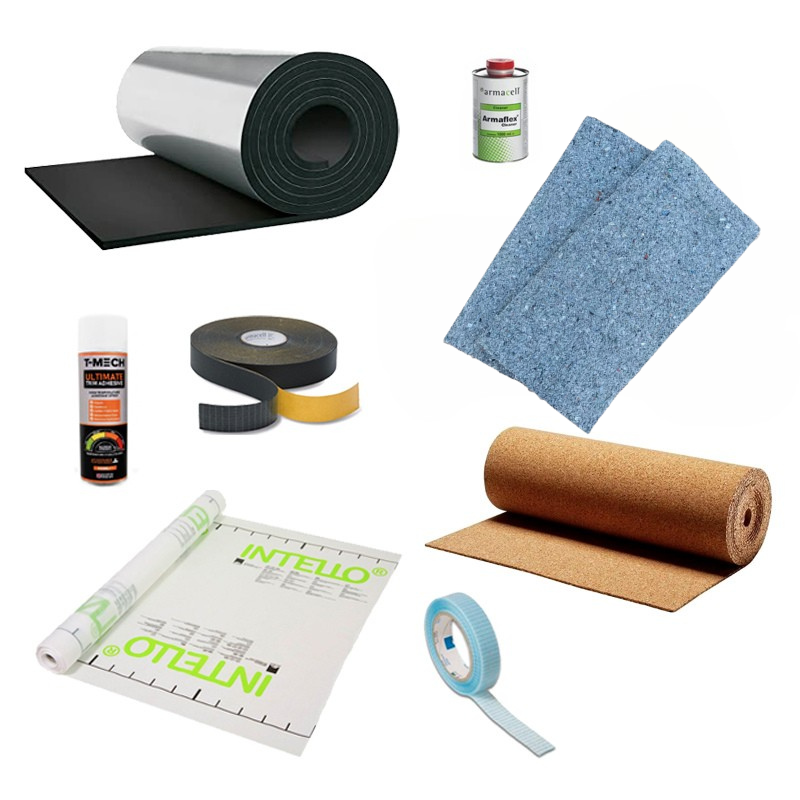

Of course, this kit also includes all the supplies you'll need to prepare, fix and ensure that your insulation lasts!

Métisse RT: good insulation in every sense of the word!

Does the pretty blue colour of Métisse RT ring a bell? Well, it should, because it's exactly the same colour as your favourite pair of blue jeans!

And the Métisse RT doesn't just look like your favourite blue jean: it's made fromclothes collected at Le Relais points. Yes, you do know, these are clothing containers set up by the Emmaüs network to give a second life to out-of-use clothes!

Métisse RT is an environmentally-friendly insulator in more ways than one:

• Made from recycled cotton (min. 70%) and polyester binder (15%), which holds the fabric fibres together
• It is also recyclable
• Made locally in France, in one of the 33 collection, sorting and processing centres in the Le Relais network
• It emits no toxic fumes: classified A+ for VOC emissions*. As healthy for the planet as it is for you!

And to top it all off, this insulation contributes to thesocial economy by creating new jobs within the Le Relai network!

Métisse RT 45 mm: as effective at protecting you from the cold as it is from the heat!

Thanks to its low thermal conductivity (λ = 0.039 W/m-K)*, Métisse RT offers excellent thermal performance in both winter and summer!

In winter, this natural fibre-based insulation effectively retains heat inside, reducing the need for heating and providing a cosy atmosphere.

In summer, thanks to its remarkable thermal phase shift, it slows the penetration of outside heat, keeping your interior pleasantly cool.

Métisse RT is the ideal insulation to transform your vehicle into a real cocoon, as it also offers excellent acoustic insulation performance. Its density and composition help to absorb and reduce outside noise by up to 68 dB*(depending on configuration). Whether it's traffic, wind or driving rain, nothing will disturb your nights or your moments of relaxation during your van escapades!

Finally, a fireproof, anti-fungal and anti-bacterial treatment applied directly to the heart of the textile fibre guarantees the durability and safety of the Métisse RT.

How do I use the different elements in this kit?

1. Walls, ceiling, reinforcements

• Armaflex Cleaner: a cleaner specifically designed to prepare the surfaces of your van before applying Armaflex insulation.

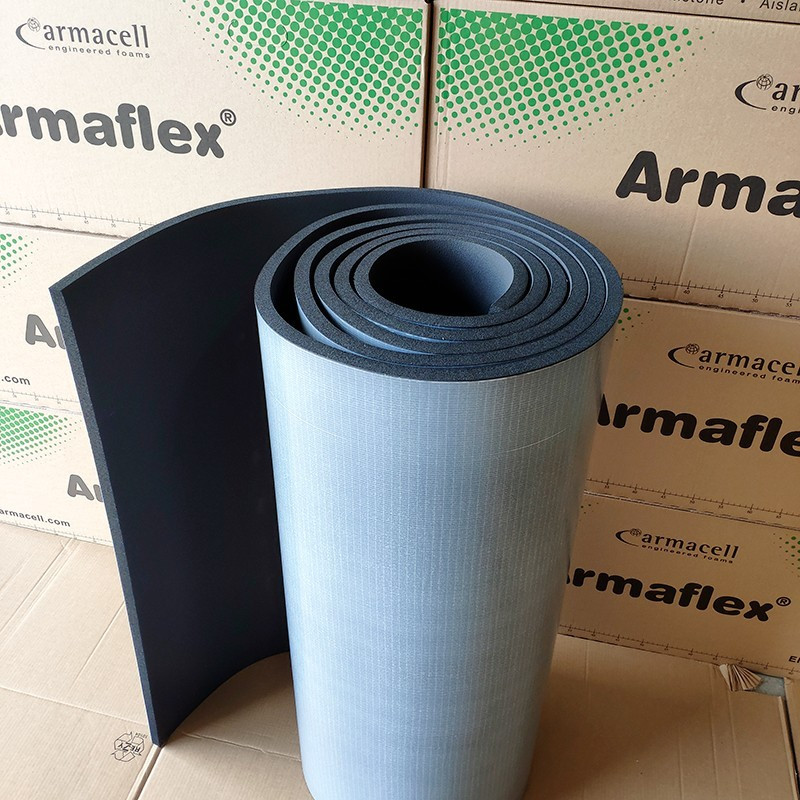

• Armaflex AF 19 mm: high-performance insulation, offering stable thermal conductivity and including a vapour barrier to effectively control condensation and the risk of corrosion. Packaged in 19 mm rolls, this material is flexible, easy to cut and self-adhesive. It is quick and easy to install.
• Armaflex AF 10 mm: self-adhesive, to be applied to reinforcements and sleepers whose interiors cannot be filled.

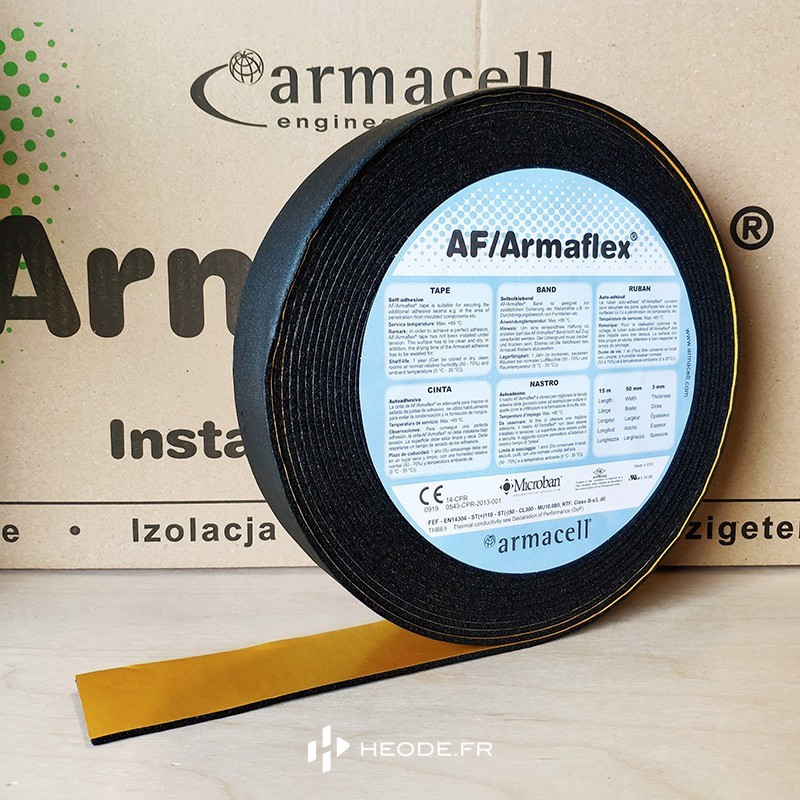

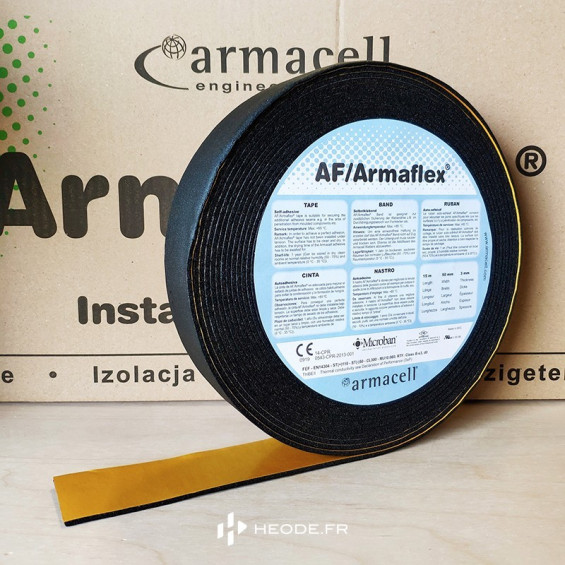

• Armaflex AF Tape for making joints. In rolls of 15m.

2. Doors

Doors are often tricky to insulate because of their limited accessibility. Métisse RT is a malleable material, ideal for application in these areas.

• Métisse RT 45 mm, which you now know like the back of your hand
• Proclima Intello vapour barrier: its function is to prevent the migration of water vapour inside a wall by eliminating the risk of condensation, while allowing water vapour to pass to the outside. Packaged in 1.5 m wide rolls.
• Special double-sided vapour barrier. In rolls of 50m.

3. Wheel arches

Armaflex AF 10 mm self-adhesive.

4. Floor

• 4 mm cork in rolls.
• High-performancespray adhesive for fixing the cork to the vehicle's sheet metal or under the wooden floor.

FAQ - L1H1 insulation kit

Which vehicles are compatible with this insulation kit?

This insulation kit is specifically designed for L1H1 vans. It is compatible with most popular models such as the Renault Kangoo, Peugeot Partner, Citroën Berlingo, Ford Transit Connect, Opel Combo Cargo, and Fiat Doblò Cargo in their L1H1 versions. Quantities are adjusted for these compact dimensions.

Is a vapour barrier essential for installing Métisse RT in my van?

Yes, a vapour brake is strongly recommended, indeed essential, when installing Métisse RT (or any fibrous insulation) in a van. It regulates the transfer of water vapour between the inside and outside of the vehicle, preventing condensation in the walls and protecting the insulation from damp, which ensures its durability and performance.

Can I lay this insulation kit over sprayed cork?

It is generally recommended not to lay Armaflex directly over sprayed cork if the latter is not perfectly smooth and adherent, as this could compromise the long-term hold of the Armaflex self-adhesive glue. On the other hand, sprayed cork can be used as a first layer before another type of insulation if the surface remains suitable for subsequent installation. For Métisse RT, installation over sprayed cork is possible if the cork is dry and stable, but the vapour brake will have to be installed between the Métisse RT and the interior cladding.

What is the lifespan of this insulation kit?

The lifespan of this insulation kit is designed to be very long, generally estimated at over 10 years, or even much longer if the installation is carried out correctly and the vehicle is maintained in healthy conditions (good ventilation, no water infiltration). Materials such as Armaflex and cork are renowned for their robustness and resistance to ageing, while Métisse RT is treated to be fireproof, antifungal and antibacterial, guaranteeing excellent durability over time.

Is this kit easy to install for beginners?

Yes, absolutely! The kit has been designed to make installation as easy as possible. Each material is lightweight and easy to cut and handle.
