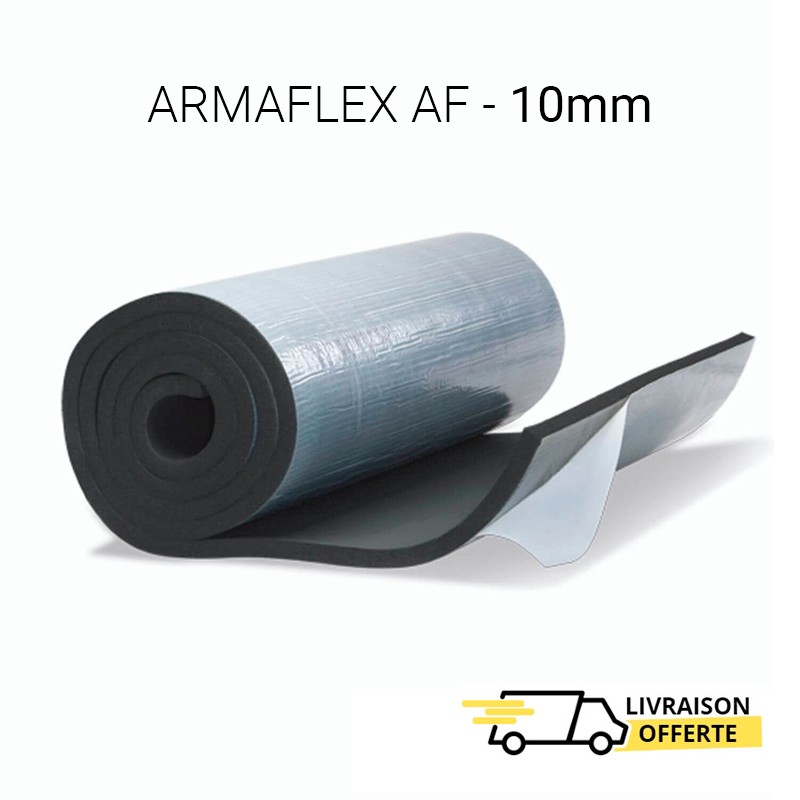

Self-adhesive armaflex af in a roll — the ideal solution for insulating your van!

When fitting out a van, one of the first steps is insulation. A conversion without insulation is like a flower without petals — what a shame! For you, Heode has efficiently installed and assessed armaflex af (known as Armaflex ChezMoi since 2026) 10mm roll in 10m² before recommending it to you.

For our Heode team, armaflex 10mm is the most comprehensive, simplest and safest solution to guarantee high-performance insulation in the interior of your converted vehicle.

Armaflex insulation has been designed to very effectively prevent thermal bridges. This means that during the summer months you will be able to retain coolness for longer, while during the winter months you will not easily lose interior heat.

Armaflex ChezMoi, the premium range from Armacell!

The professional flexible insulation par excellence is none other than the af armaflex (or Armaflex ChezMoi) self-adhesive roll for effective condensation control. It also perfectly fulfils the role of a vapour barrier! Thanks to this thermal insulation, you will no longer have moisture accumulating on the walls and dripping from the ceiling when you wake up. Enjoy a healthy interior space free from moisture build-up!

This flexible insulation roll has many advantages:

• excellent protection against microbes and mould thanks to Microban® antibacterial technology, preventing their proliferation within the material
• optimal resistance to water vapour diffusion, reducing the risk of corrosion beneath the insulation; the material is rot-proof
• extremely low thermal conductivity
• solid fire resistance (fire-retardant insulating material)

This self-adhesive van insulation is made primarily from Elastomer, a derivative of Rubber which gives it great flexibility. With its highly effective adhesive surface, it will perfectly follow the curves and angles of your van.

The insulating characteristics of the armaflex AF range surpass those of the XG and ACE ranges. It is particularly well suited for use in a habitable van. And it is renowned for maintaining its thermal and acoustic insulation properties, even after several years of use.

Heode gives you access to a premium solution (the AF) at the price of the entry-level (the XG)! And that's worth remembering!

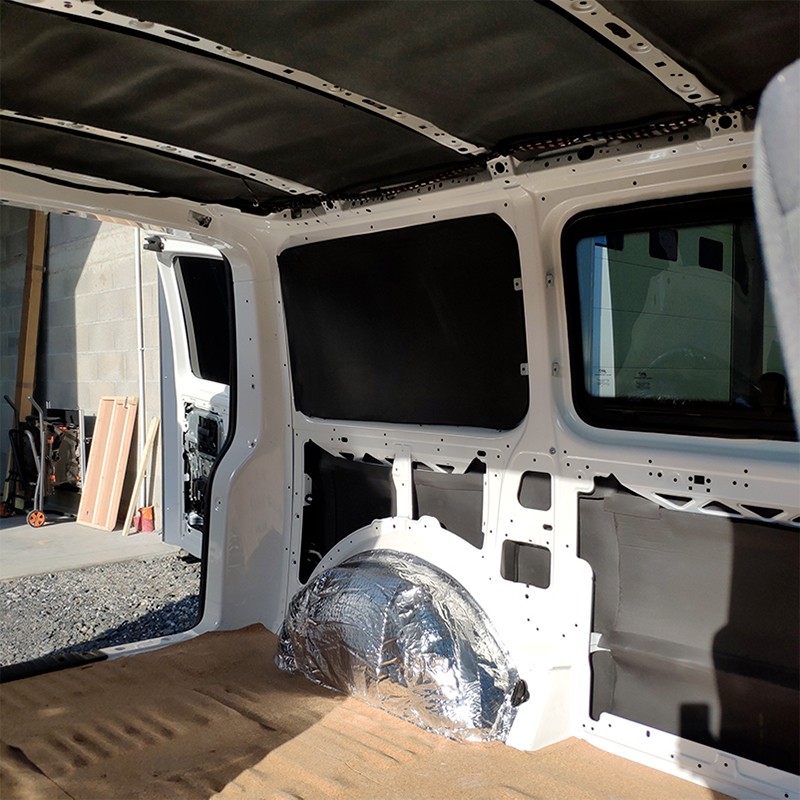

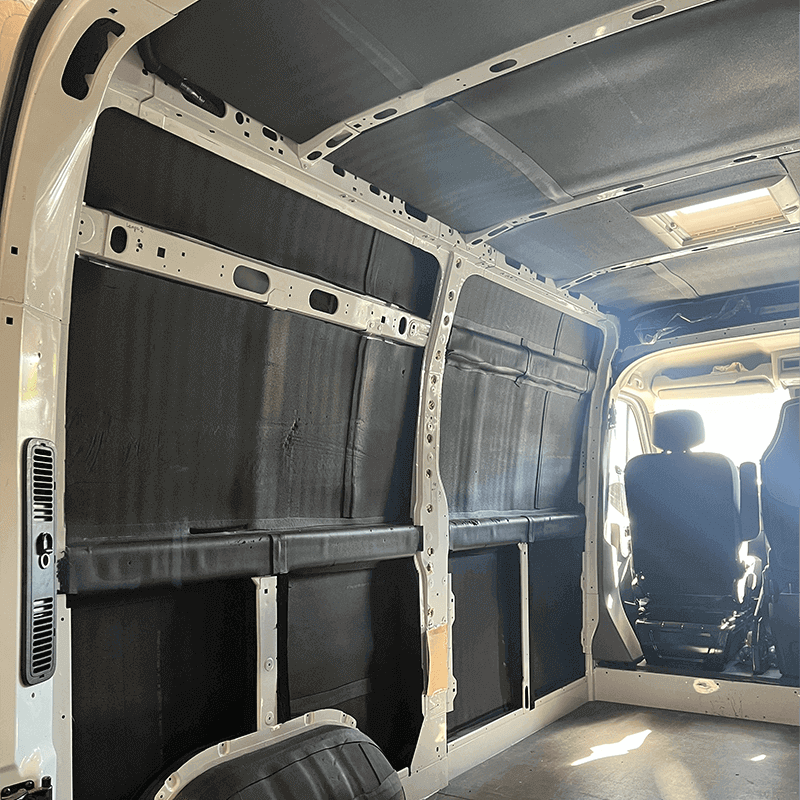

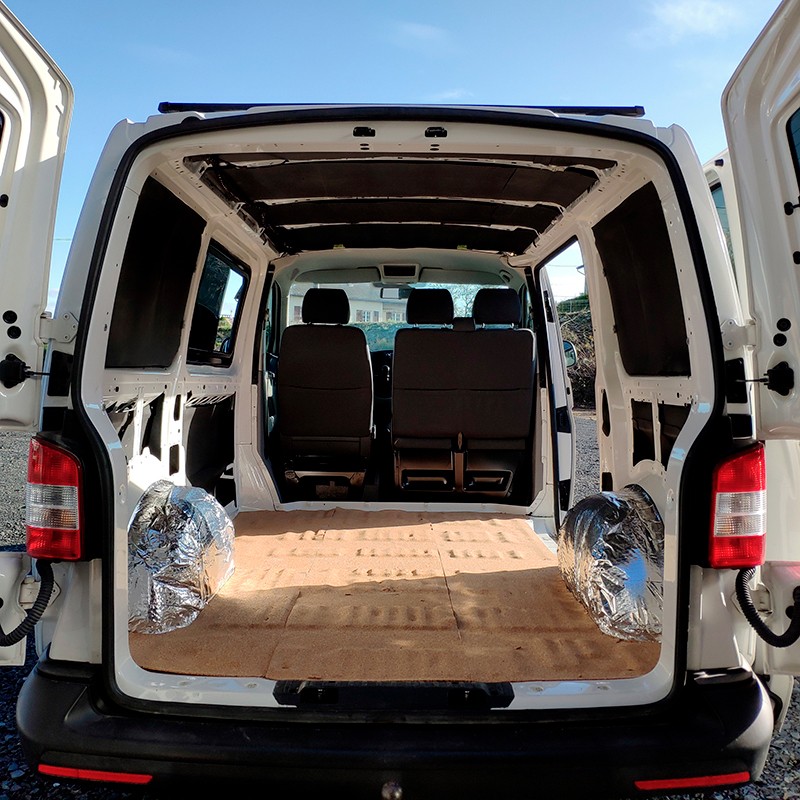

How to install armaflex af 10mm insulation?

Installing Armaflex ChezMoi 10mm insulation independently remains quick and straightforward! The self-adhesive armaflex af 10mm insulation roll has been meticulously designed to simplify your process. Discover with us the essential tools and the steps of the installation process.

Armaflex insulation installation toolkit:

Before starting the installation, our Heode fitting experts invite you to have:

• Work light
• Würth tape measure
• White chalk or permanent white marker (To make it easier to visualise your markings for future cuts.)
• Würth disposable gloves (optional)
• Clean cloth or professional paper towel (Required for applying the armaflex cleaner.)
• Cleaner 1L Armaflex (Remember to wear a mask to avoid inhaling the odours given off by this cleaning product. We strongly advise applying armaflex cleaner to the sheet metal of your van outdoors. It can also be used to clean your tools after use.)
• Würth cutter or Armaflex cutting knife kit
• Armaflex af rolls in the thickness of your choice depending on the surface to be covered: ceiling, side walls, floor
• Adhesive insulation strip(s) 15m armaflex af (This product is also available in 30m. To be used for joints.)

At a glance, fitting an adhesive armaflex roll is child's play!

Step 1:

Using the armaflex cleaner 1L product, thoroughly clean all the interior sheet metal of the van. To ensure the long-term adhesion of the self-adhesive armaflex roll and benefit from high-performance insulation, this important step must not be overlooked.

Step 2:

Get ready to measure, mark, cut, and peel — starting from a corner — the transparent film protecting the powerful adhesive. Then carefully apply pieces of the af armaflex 10mm roll to all the sheet metal parts of your van that you wish to insulate. Most of the reinforcements can be insulated, as the sheet metal is indeed accessible at the back of the reinforcements. We recommend insulating those that are not accessible by filling them with armaflex flakes.

Once the installation is complete, the adhesive armaflex offers a high-performance solution and impressive long-term durability.

Step 3:

To complete all the joints, it will also be necessary to use armaflex af adhesive tape in a 15m or 30m roll. It exists to complement the airtightness of your insulation.

So, what are you waiting for to take the plunge…

Enjoy the comfort of af armaflex thermal insulation in your living space during your travels! Order premium flexible armaflex 10mm to insulate the interior of your converted van quickly and on your own!

For enhanced acoustic insulation, discover the ultra-thin, very high-performance Armacomfort 2mm on our website! Please note that Armacomfort Barrier B 2mm must always be positioned before the af armaflex.

How many m² of armaflex 10mm do I need to buy to insulate my van?

The Heode team recommends for the armaflex 10 insulation of a van:

Please note that these recommendations are the result of a large number of conversions carried out by Heode's expert fitters. As such, depending on your own installation technique, the number of rolls required to insulate your converted vehicle may vary.

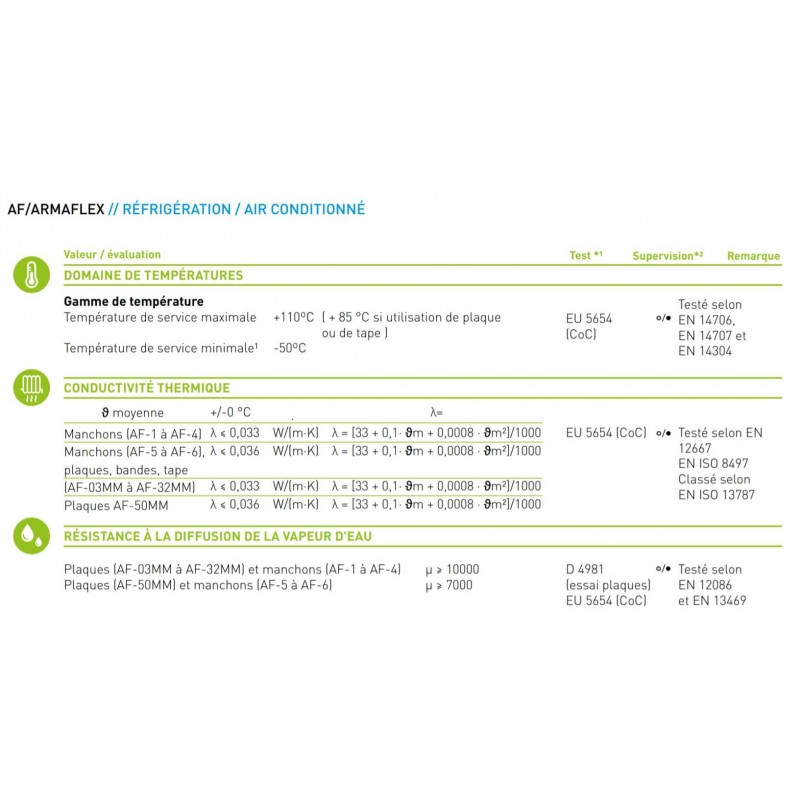

Technical properties of af armaflex 10mm self-adhesive insulation:

• Surface area: 10m²
• Dimensions L x W: 10 x 1 m
• AF ArmaFlex thickness: 10mm
• Material: Elastomer foam, a derivative of Rubber
• Colour: Black
• ArmaFlex AF installation: each roll has a protected active self-adhesive face covered by a transparent film to be removed.

What is the best insulation for a converted van?

Heode provides you with some detailed information on several types of Armaflex and guides you towards the best choice of interior insulation for your van.

Armaflex ACE or Armaflex Accoflex

Armaflex ACE, also known as armaflex Accoflex, is a flexible insulation designed to be applied outdoors. Its material is composed of copolymer and polyolefin. Its primary use is the protection of pipework. It should be noted that armaflex ACE does not reach the technological specifications of armaflex AF, and that it may contain particles potentially harmful to health.

Entry-level Armaflex XG or Armaflex ACE Plus

Armaflex ACE Plus is none other than the entry-level flexible Elastomer foam insulation. In comparison with the premium foam of armaflex af, the latter does not include Microban® protection against bacteria or the cutting-edge technologies of high-performance insulation. Armaflex ACE Plus comprises finer closed cells than those found in armaflex af. It is also important to highlight that armaflex ACE Plus does not hold the EPD (Environmental Product Declarations) certification, unlike its more advanced predecessor, armaflex af.

Armaflex/AF best insulation

The perfect van insulation solution is made from Elastomer foam. It stands out for its remarkable flexibility; its unbeatable insulation with very low thermal conductivity; its featherlight weight; its very high resistance to decomposition (rot-proof material); its infallible protection against all bacteria; and its supreme fire shield. This "premium" foam with an intense self-adhesive face is very easy to install on each sheet metal surface of your van. We are of course talking about the self-adhesive af armaflex roll. It is worth knowing that a polyethylene sheet covers the adhesive face of the armaflex af to protect it before being removed for installation.

The premium armaflex af insulation was studied before being certified EPD (Environmental Product Declarations). This certification supports the fact that its closed-cell material is not harmful to health. Apply armaflex af insulation wherever you wish without having to worry about its composition. Armaflex af insulation is the best insulation for your home on wheels!

Since its launch, the armaflex af range has been continuously improved. This range has seen the properties contained in the closed-cell insulating foam refined. Notably, through an increase in the foam's resistance to water vapour diffusion whilst greatly reducing its thermal conductivity. The more an insulator is protected against all forms of moisture, the more reliable and energy-efficient it is. Armaflex/AF offers perfect protection against condensation and high energy efficiency combined with high fire safety.

On a global scale, Armaflex products are increasingly contributing to improved energy efficiency, standing out intelligently in their own market.
