Fibreglass panel for right-hand rear hinged door of Volkswagen Transporter T5

Fibreglass panel for right-hand rear hinged door on Volkswagen Transporter T5

It's possible to fit your vehicle with an opaque fibreglass panel!

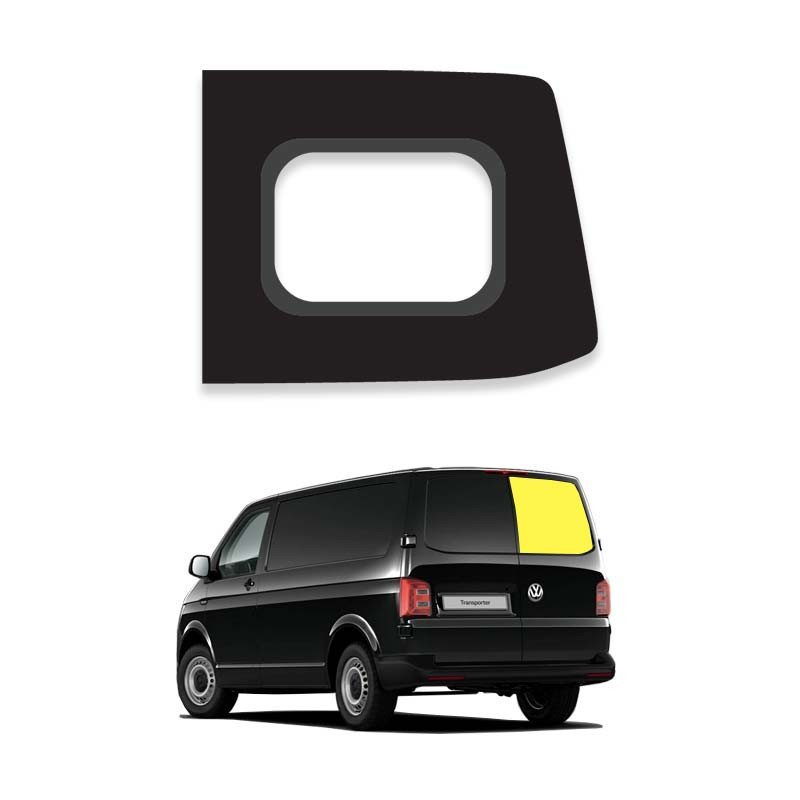

This black fibreglass panel is specifically designed to be fitted to the right-hand rear swing door of your Volkswagen T5. Completely opaque, it includes an opening for a 457 x 382 mm right-hand sliding window with flyscreen(sold separately on our site).

How do you fit a fibreglass panel to your vehicle?

Step 1: Cut the sheet metal of your vehicle to allow for the installation of your fibreglass panel on the right-hand hinged door.

Step 2: ApplyFrameto Anti-Rust to the sheet metal edges of this opening as a preventive treatment. Allow to dry, then install a 6 to 8 mm reinforced gasket for double sheet metal, essential for protecting the edge of the sheet, which can be sharp, and obtaining a professional finish.

Step 3: Cleanly apply a bead of mastic adhesive (shown as a solid yellow line in the image below) around the inside of the fibreglass panel.

Step 4: Place the fibreglass panel directly on the sheet metal of your vehicle in the space provided. Leave to dry for 24 hours in a dry, sheltered place.

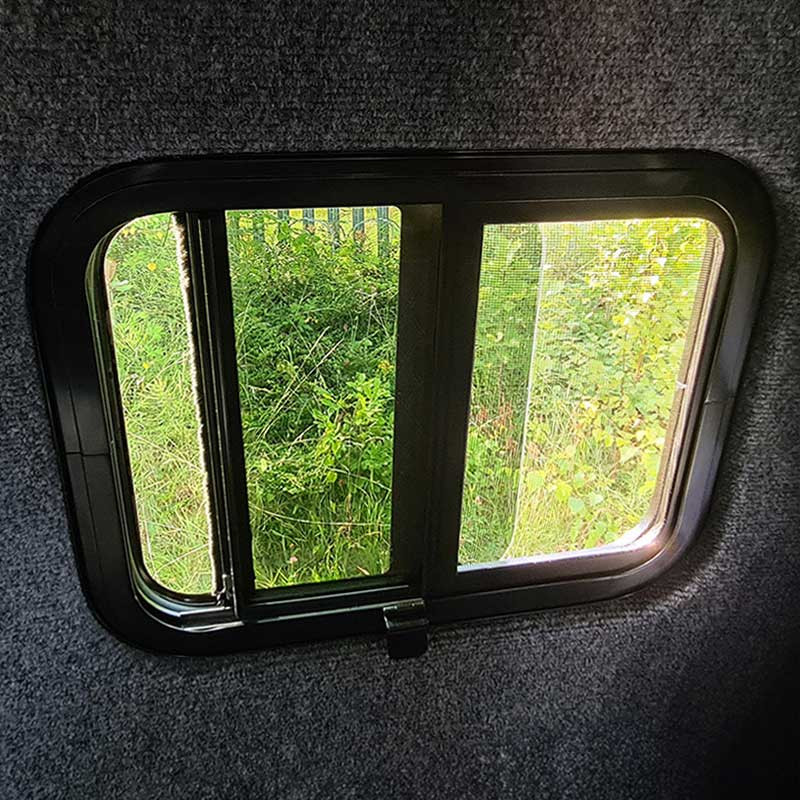

Step 5: Using the professional glue and sealant kit, install the 457 x 382 mm right-hand sliding window with flyscreen in the opening in the centre of the fibreglass panel. Be careful not to apply sealant to the window's rainwater drains. Leave to dry for 24 hours in a sheltered, dry place.

Step 6 (optional): Once everything is in place, create a wooden casing over which felt covering can be laid for an optimum interior finish!

Technical characteristics of the VW T5 right hinged door fibreglass panel

Dimensions (hxw): 58 cm(highest) x 73 cm(widest).
Thickness: approx. 0.5 cm.
Weight: 1.7 kg.
Material: Fibreglass.
Colour: Black.
Inside of panel: Fibreglass finish(does not hurt or irritate).
Outside of panel: Gloss finish.
Vehicle compatibility: Volkswagen Transporter T5 from 2003 to 2015.
Only compatible with the 457 x 382 mm right-hand sliding window with flyscreen.
Warning, not compatible with a vehicle fitted with windscreen wipers.
