Fibreglass panels for Volkswagen Transporter T5 rear swing doors

Double fibreglass panels for Volkswagen Transporter T5 hinged doors

It's possible to fit your van with a pair of opaque fibreglass panels!

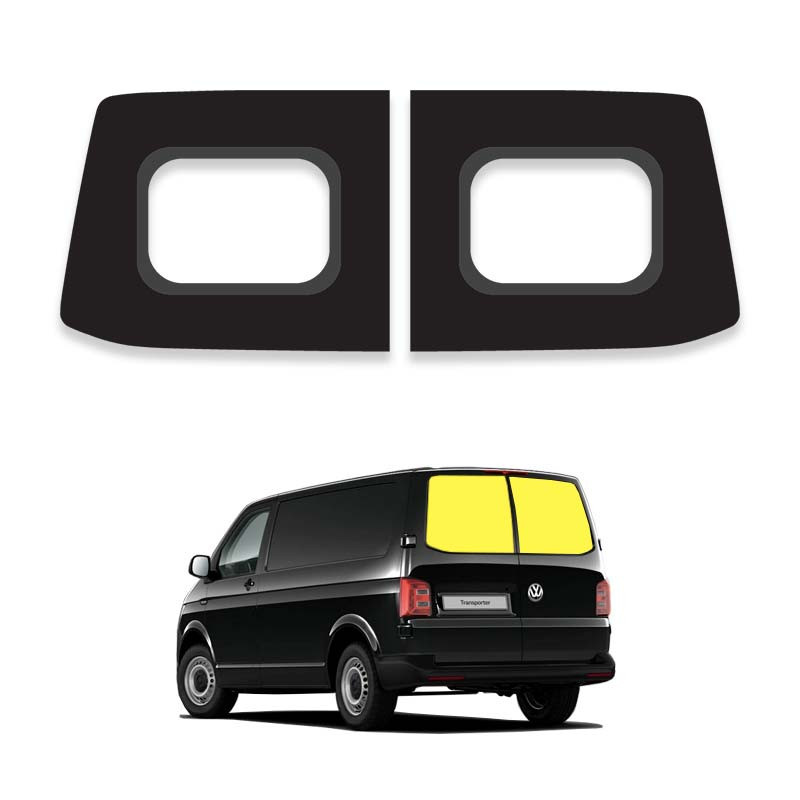

These black fibreglass panels are specifically designed to be fitted to the rear swing doors(left + right) of your T5. Completely opaque, they each have an opening for a 457 x 382 mm sliding window with flyscreen.

Compatibility between VW T5 fibreglass panel and universal sliding window

How do you fit fibreglass panels to your van?

Step 1: Cut the sheet metal of your van to allow for the installation of your fibreglass panels on your hinged doors(left + right).

Step 2: ApplyFrameto Anti-Rust to the perimeter of the 2 openings for preventive treatment. Leave to dry, then install a 6 to 8 mm reinforced gasket for double sheet metal, essential for protecting the edge of the sheet, which can be sharp, and obtaining a professional finish.

Step 3: Cleanly apply a bead of mastic adhesive (represented by a solid yellow line in the image below) around the inside of each fibreglass panel. For information: 1 professional mastic-glue kit is normally enough to make 1 bead on each of the 2 panels.

Step 4: Place the fibreglass panels directly on the sheet metal of your van, each in its respective position. Leave to dry for 24 hours in a dry, sheltered place.

Step 5: Using a professional mastic-glue kit, install a 457 x 382 mm sliding window with mosquito netting in the opening in the centre of each fibreglass panel. You will need 2 professional glue kits, 1 for each window. Be careful not to apply sealant to the window rainwater outlets. Leave to dry for 24 hours in a sheltered, dry place.

Step 6 (optional): Once all the panels have been installed, create 2 wooden trims on which felt lining can be laid for an optimum interior finish!

Technical characteristics of the VW T5 swing door fibreglass panels

Left-hand rear hinged door panel

• Dimensions (hxw): 58 cm(highest) x 73 cm(widest).
• Thickness: approx. 0.5 cm.
• Weight: 1.7 kg.

Rear right hinged door panel

• Dimensions (hxw): 58 cm (highest) x 73 cm(widest).
• Thickness: approx. 0.5 cm.
• Weight: 1.7 kg.

Material: Fibreglass.
Colour: Black.
Inside of each panel: Fibreglass look(does not hurt or irritate).
Outside of each panel: Gloss finish.
Vehicle compatibility: Volkswagen Transporter T5 from 2003 to 2015.
Universal window compatibility(sold separately on our site): Left sliding window 457 x 382 mm with flyscreen; Right sliding window 457 x 382 mm with flyscreen.
Warning, not compatible with a vehicle fitted with windscreen wipers.
