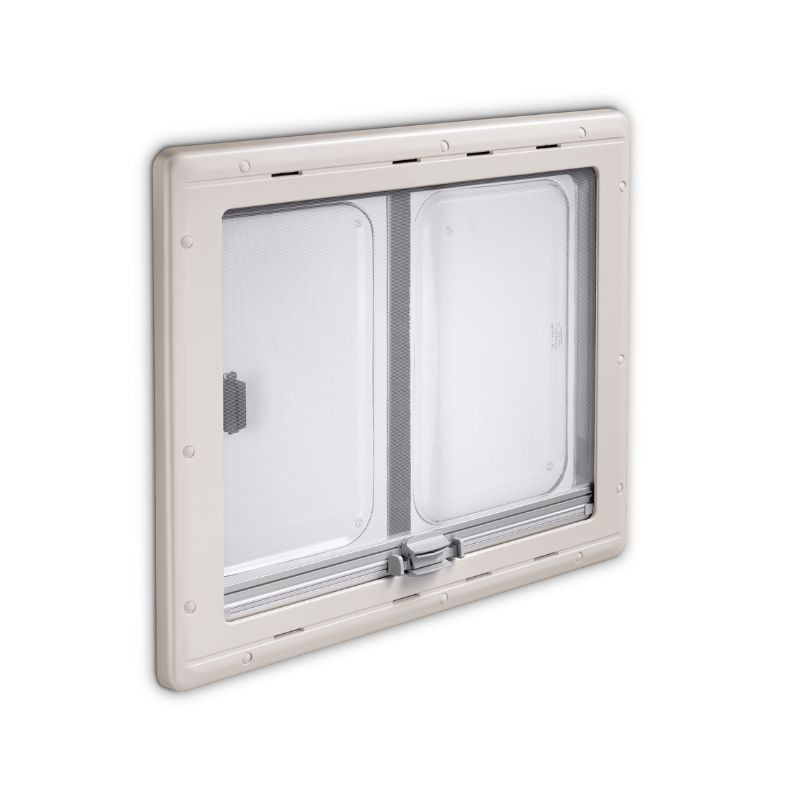

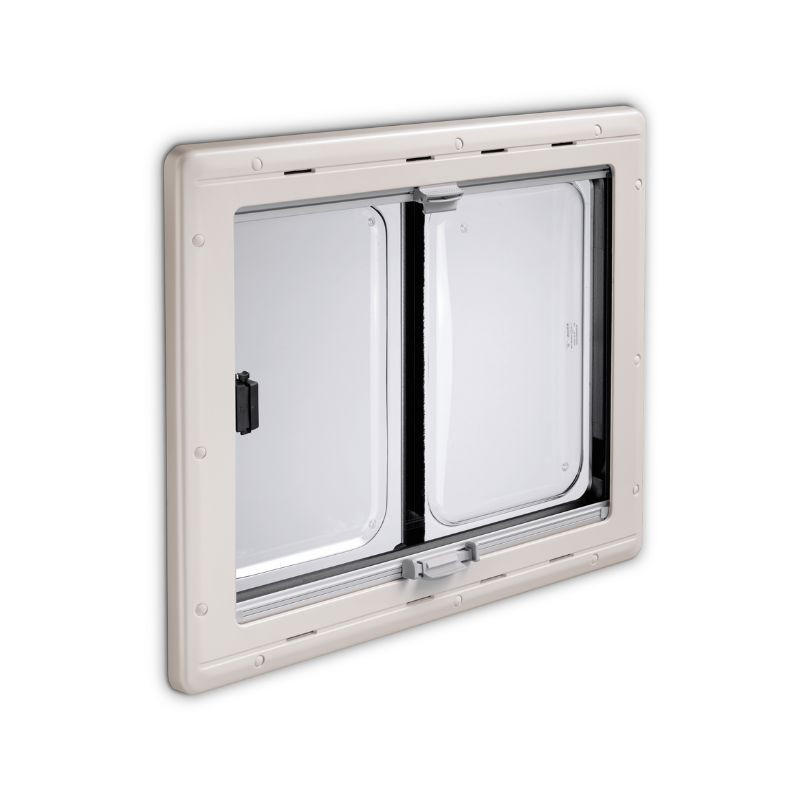

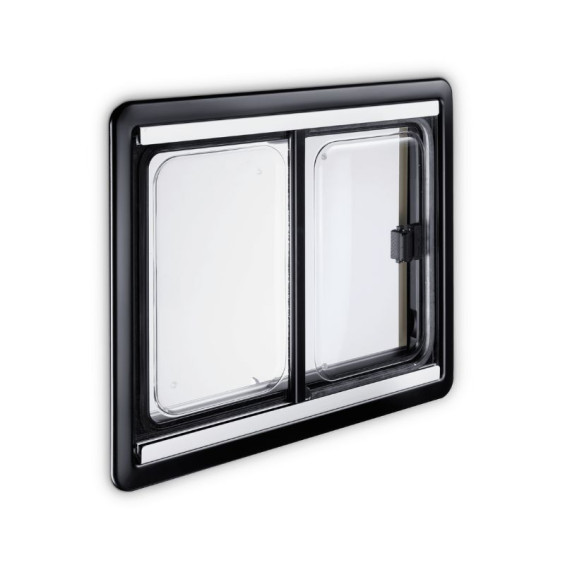

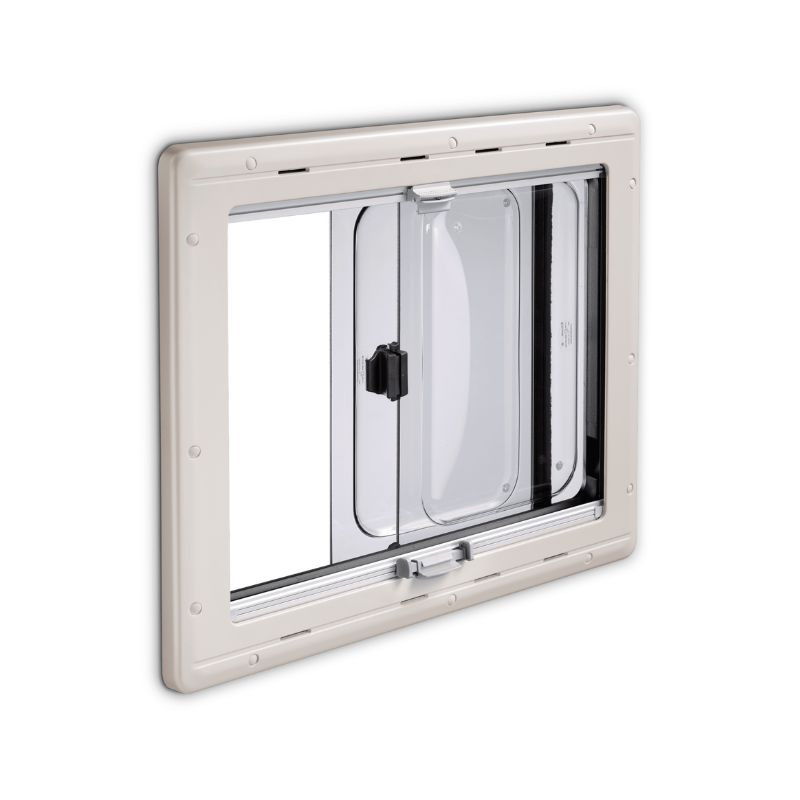

DOMETIC S4 600x600 window - Insulating with blind and insect screen

A projectable window with an internal frame to bring light, insulation and protection to your van

Transform the experience on board your van with the Dometic S4 window (600 x 600 mm). Designed for vans and leisure vehicles, this top-of-the-range window combines natural light, thermal insulation and ventilation comfort. The sliding opening combined with an integrated blackout blind and insect screen make it an all-in-one solution.

The S4 window from Dometic is one of the most popular standards in the world of converted vehicles, thanks to the many advantages of its intelligent, durable design:

• It combines acrylic double glazing with an injected polyurethane frame to provide excellent insulation, while limiting thermal bridges
• The compass opening system allows the passenger compartment to be ventilated without direct exposure to the rain, thanks to several lockable positions

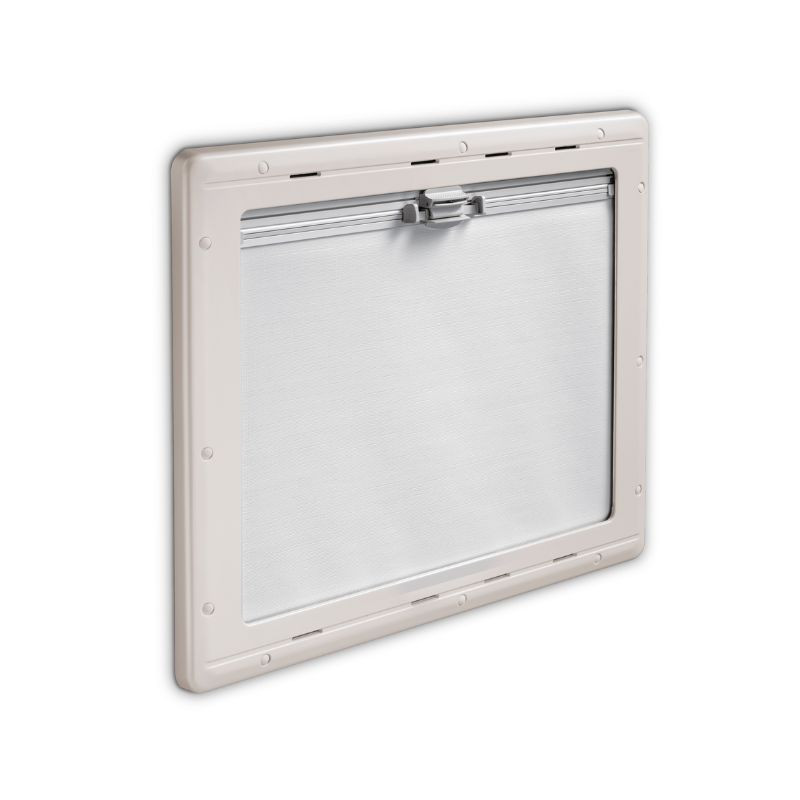

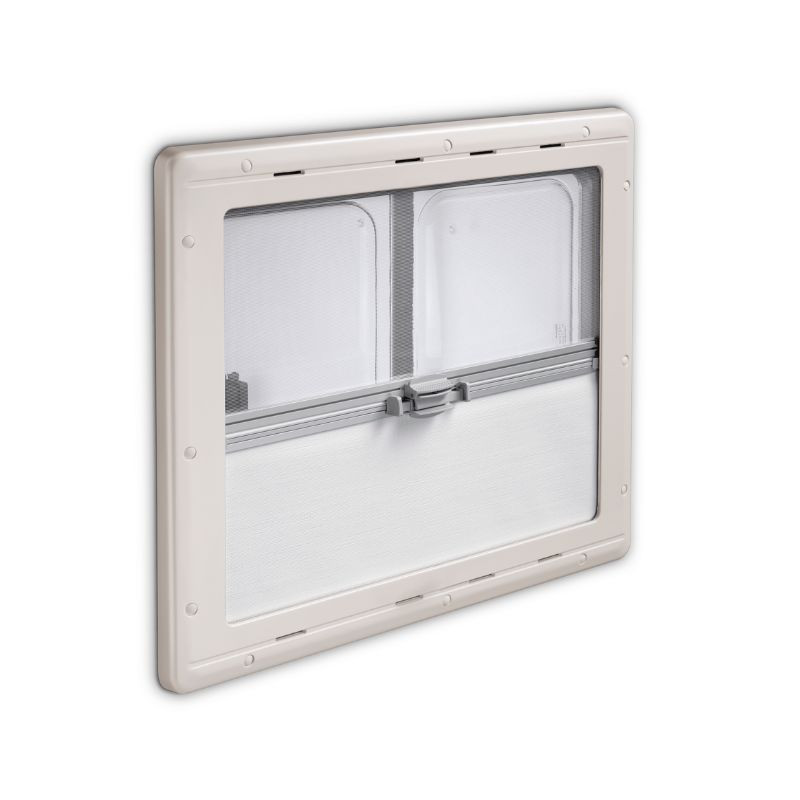

• The pleated blackout blind and mosquito screen slide into an internal frame for total protection, day and night
• The whole system is discreet and blends in perfectly with the aesthetics of the van

A window designed to last and follow you on all your adventures!

Tips for successful installation

• First of all, check that the wall thickness of your van is compatible with this window (from 1 to 53 mm)
• Fit the window on a flat surface, with no wiring or structural reinforcement at the cut-out point
• Use a non-hardening butyl-type sealant (e.g. white SikaLastomer-710 for the inner frame) or our sealant kit (black for the opening) for a professional-quality seal
• Screw tightly, but do not exceed a torque of 3 Nm to avoid distorting the frame
• Take care not to leave the protective film exposed to the sun for too long before fitting

Assembly can be carried out by an experienced DIYer, but professional help is recommended to ensure a perfectly watertight installation.

Technical specifications

• Type: Projectable window with integrated blind + insect screen
• Frame material: Injected polyurethane
• Glazing material: Acrylic double glazing
• Overall dimensions: 631 mm (height) x 644 mm (width)
• Cut-out dimensions: 599 x 599 mm
• Compatible wall thickness: 1 to 53 mm
• Weight: 7 kg
• Opening: Compass, multi-position locking
• Accessories included: Inner frame with blackout blind + sliding insect screen
• Mounting: screwed + butyl sealant recommended
• Standards: ECE R43 (vehicle glazing approval)
