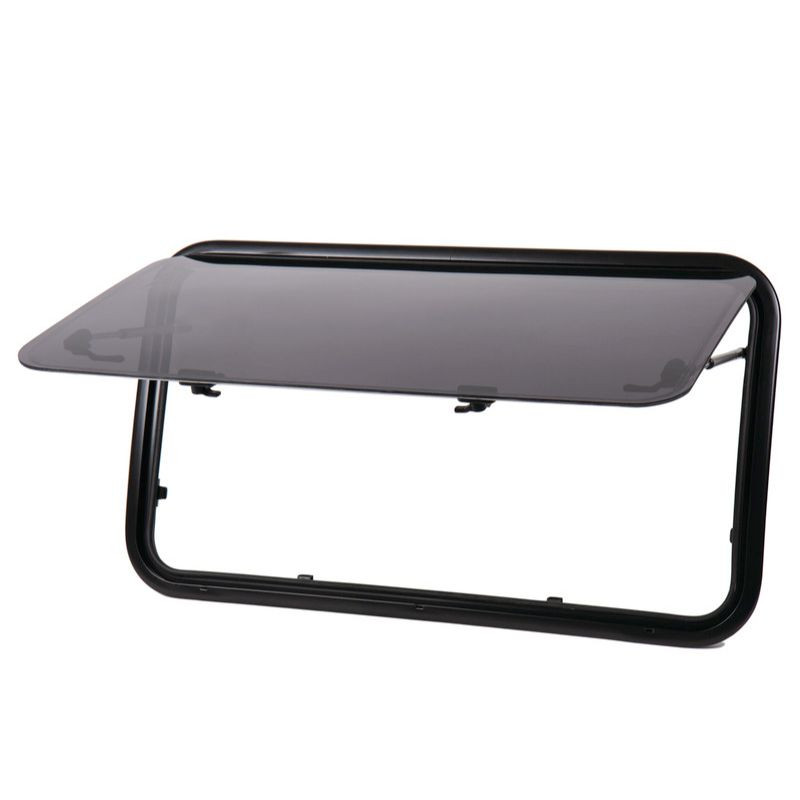

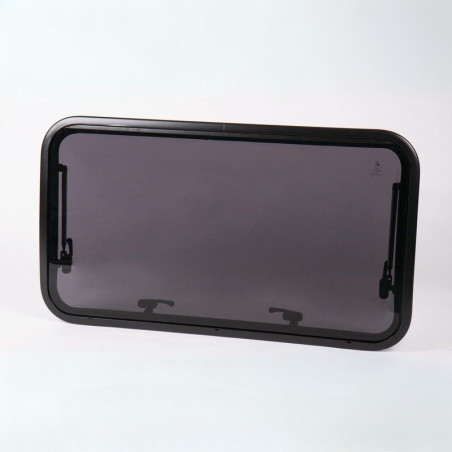

RW Van universal projectable bay - CARBEST

6.745
€189.58 TTC

Maximise privacy and comfort in your van with the Carbest RW Van Series window. Easy to open to 70° and adjustable, it provides ventilation and privacy thanks to its tinted double glazing. Its sleek design fits perfectly with many models, offering reliability and space savings.

Optimise the ventilation and style of your van with a tinted projectable window

Transform the ambience of your van with the RW Van Series acrylic hinged window from Carbest. Designed to blend in with the body of any commercial vehicle, this projectable window combines modern design with essential functionality. It improves ventilation, contributes to insulation and enhances the aesthetics of your mobile living space.

Made from black-tinted acrylic double glazing (approximately 10% light transmission), this window provides excellent thermal and acoustic insulation while preserving your privacy and reducing glare.

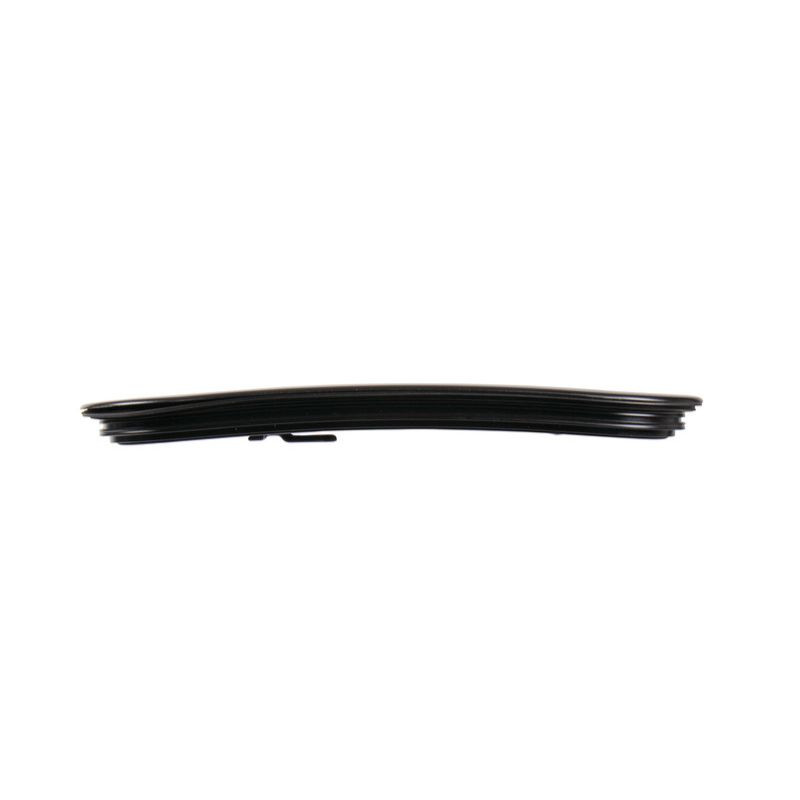

Its frameless design and smooth surface give it a sleek, modern look that blends in perfectly with the lines of your vehicle. The window is pre-curved (radius of curvature 5000 mm) to fit the shape of the walls of many vans. The lightweight aluminium frame guarantees durability and discretion.

It can be opened outwards thanks to its hinges at the top, allowing excellent air circulation. The opening angle is generous (70°) and the telescopic scissors allow infinite adjustment of positions, including a secure ventilation position.

Team installation tips Heode

First check: Before installation, make sure that the cut-out dimensions are suitable for the desired position on your vehicle. Also check the wall thickness (designed for 32-34 mm) and that the curvature of the window is compatible with that of your van.

Recommended tools: For a perfect seal, we recommend you use the Wurth Professional Sealant Kit with primer and applicator for glazed windows.

Technical characteristics of the RW Van window

  • Type: Projectable acrylic window for van / panel van
  • Glazing material: Black-tinted acrylic double glazing (light transmission 10%)
  • Opening angle: 70°, infinitely adjustable with telescopic scissors and ventilation position
  • Cut-out dimensions (W x H): 490 x 500 mm
  • Overall dimensions (W x H): 518 x 527 mm
  • Visible glazing dimensions (W x H): approx. 435 x 445 mm
  • Radius of curvature: 5000 mm
  • Radius: 75mm
  • Vehicle compatibility: Ideal for wall thicknesses of 32 to 34 mm. Suitable for a wide range of vans (e.g. Fiat Ducato X250/X290, VW T5/T6, Renault Trafic)
  • Standards: E-Mark (E7) approval, guaranteeing compliance with European standards for vehicle glazing
