The ventilation grille for a well-ventilated van with elegant décor

Ensuring good air circulation is essential to maintain a healthy and comfortable environment in your converted van. This ventilation grille, designed in robust aluminium, perfectly meets this need by facilitating air exchange and preventing the build-up of moisture or excessive heat.

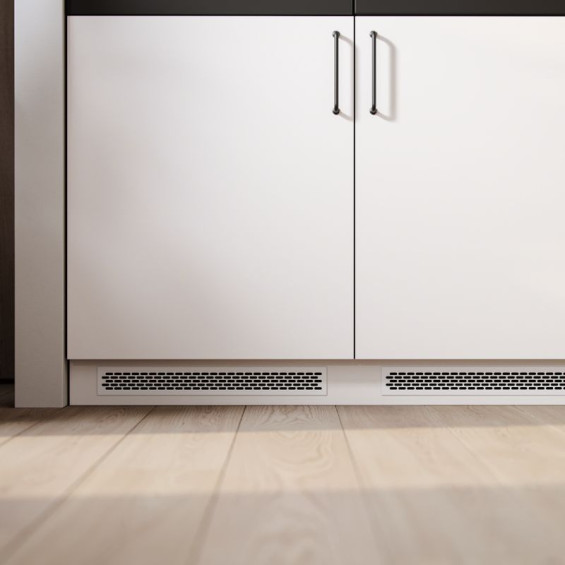

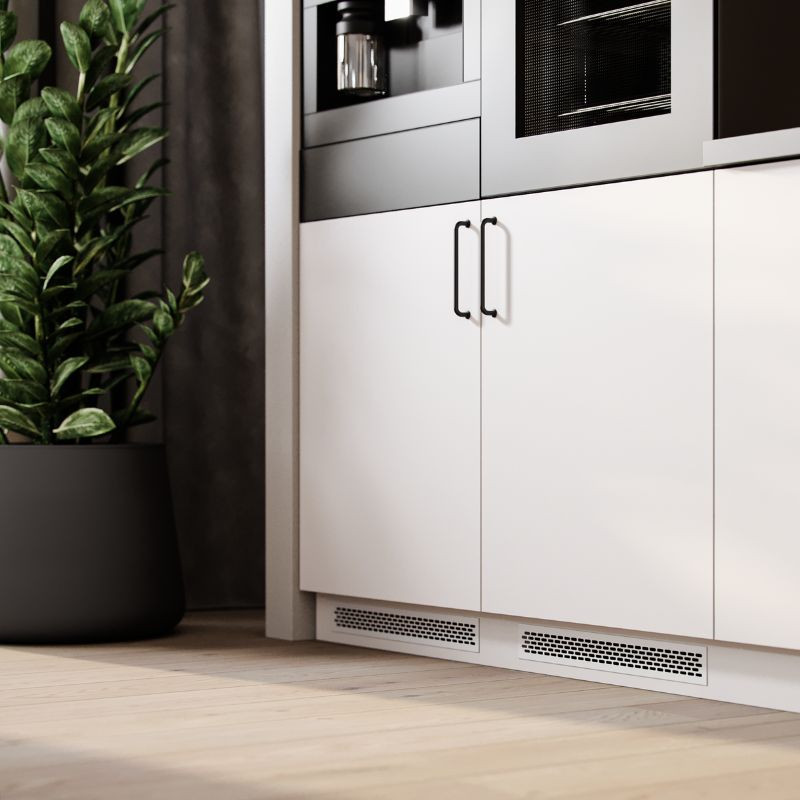

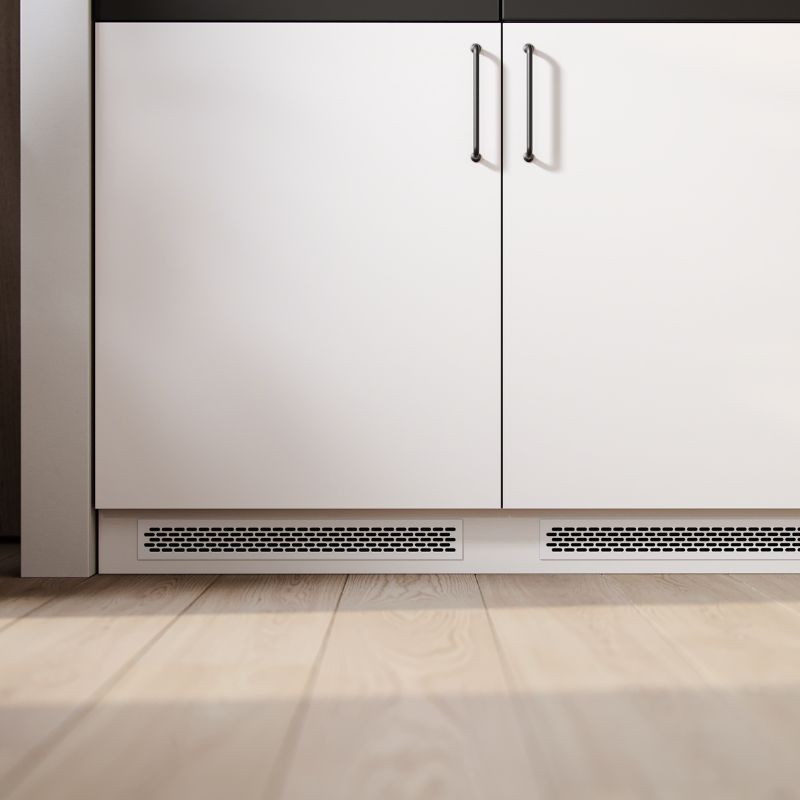

Ideal for integration into various configurations of your conversion, it contributes to efficient ventilation of the cabin, cupboards or technical compartments. You can notably use it for a clean interior finish for your exterior ventilation grilles, to create ventilation in your vehicle's step, or for ventilation of your built-in fridge.

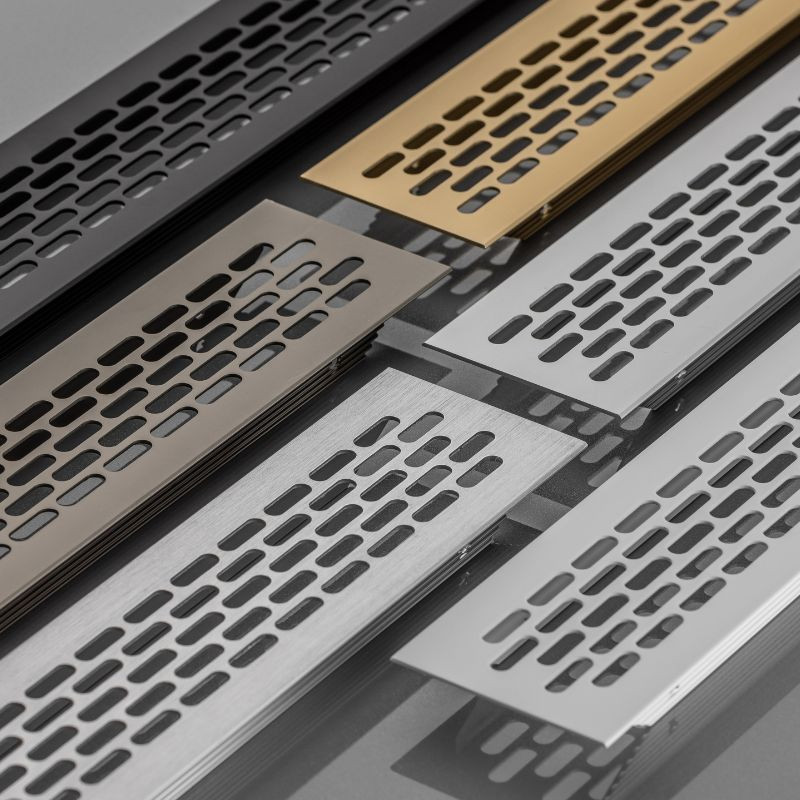

Its carefully designed construction allows for discreet and functional integration, ensuring continuous ventilation without compromising the interior aesthetics of your vehicle. This grille is available in several colours and sizes.

Technical specifications of flush-mounted ventilation grilles

• Airflow: 106.25 cm²
• Body material: Aluminium
• Colour/Finishes (variations): White, Black, Anthracite grey, Brushed steel, Gold, Aluminium
• Small model dimensions (gold, black, grey, white, aluminium) (LxWxH):
  • Total length: 245 mm
  • Total width: 60 mm
  • Internal length (for installation): 219 mm
  • Height (once installed): 15 mm
  • Thickness: 13 mm

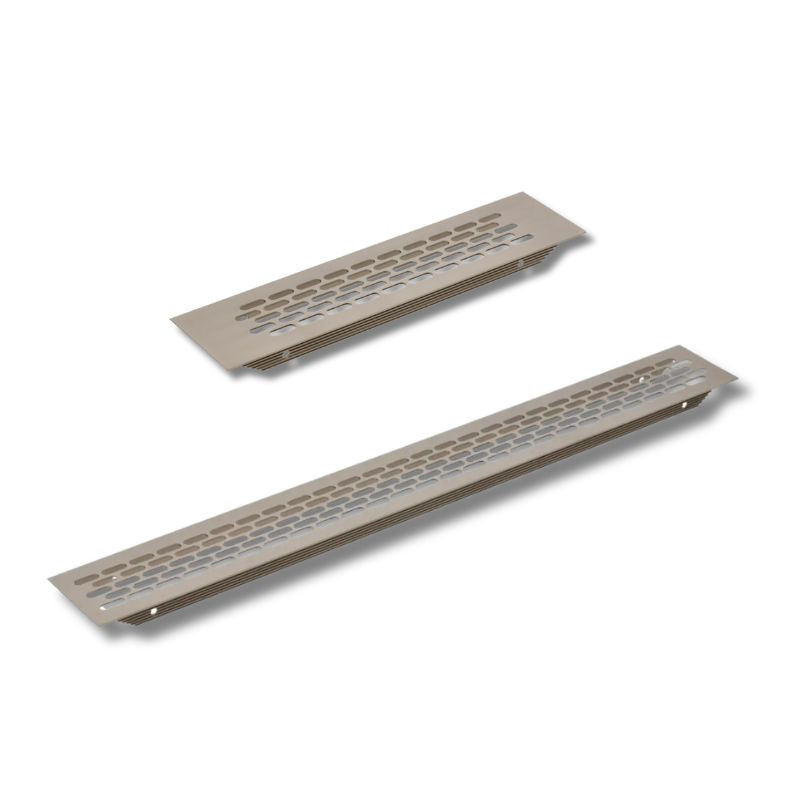

• Large model dimensions (brushed steel) (LxWxH):
  • Total length: 484 mm
  • Total width: 60 mm
  • Internal length (for installation): 464 mm
  • Height (once installed): 15 mm
  • Thickness: 13 mm
• Fixing hole dimensions (per hole): 5.1 x 15.8 mm
