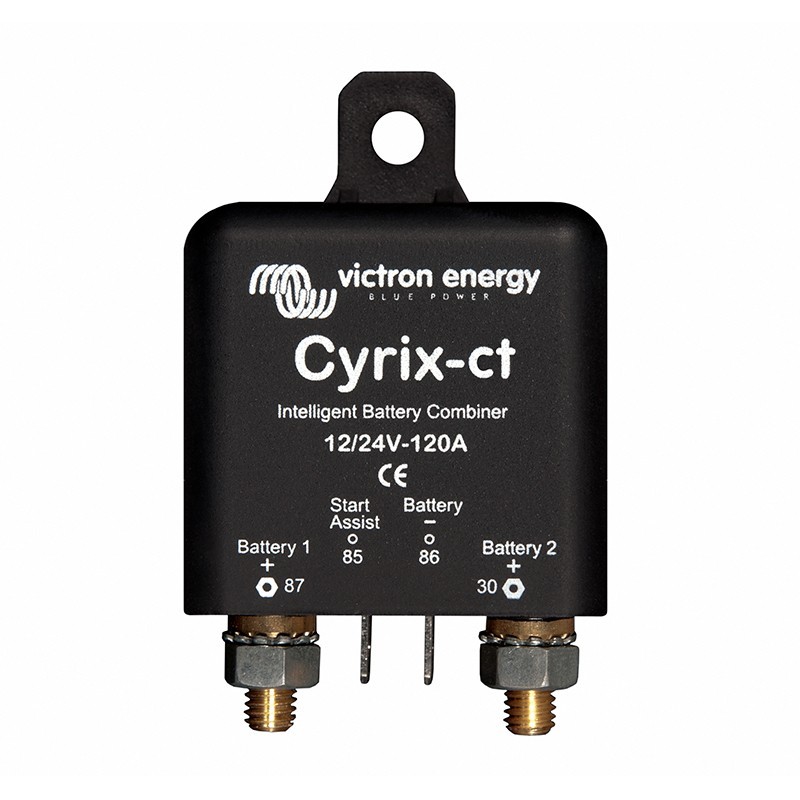

VICTRON ENERGY Cyrix-CT 120A splitter coupler

Coupler Separator Victron Cyrix CT 120A - Your autonomy ally in your converted van

On road-trips or during your escapades, never let your batteries fail you. With the Victron Cyrix CT 120A separator coupler, recharge your secondary battery efficiently while protecting your engine battery. Leave with a clear head and enjoy every moment.

Why choose the Victron Cyrix CT 120A Separator Coupler?

Automatic and intelligent charging

The Cyrix CT 120A continuously monitors the voltage of your batteries. As soon as one battery reaches a predefined voltage, it couples the two batteries to share the charge. Conversely, it decouples them when the voltage drops, protecting your batteries from excessive discharge. All without you having to lift a finger!

Universal compatibility

The Victron Cyrix CT 120A is compatible with all types of batteries (AGM, Gel and Lithium). Whether you're already equipped or planning to change batteries, this coupler will adapt to your installation.

Start Assist function - A helping hand at start-up

Are you setting off in cold weather or is your engine battery showing signs of fatigue? The Start Assist function is there for you. At the touch of a button (which you can easily add), the Cyrix couples the batteries for 30 seconds, helping you to start your vehicle.

Recharge the engine battery with your solar panels

The advantage of the Victron Cyrix CT 120A is its ability to manage excess energy from your solar panels. Once your auxiliary battery is recharged, it redirects the energy to maintain your engine battery, avoiding slow discharge and unpleasant surprises when starting up.

The advantages of the splitter coupler Victron Energy at a glance:

• Automatic charge management: greater peace of mind.
• Motor battery prioritisation: always start first time.
• Overload and overheating protection: protect your installation.
• Compatible with AGM, Gel and Lithium batteries: total flexibility.

Easy installation guide Cyrix-CT 120A

Which cable to choose?

Good installation depends on choosing the right cables. Here are our recommendations based on the power and length of your cables:

And for a 50A installation :

Installing the Cyrix CT 120A safely

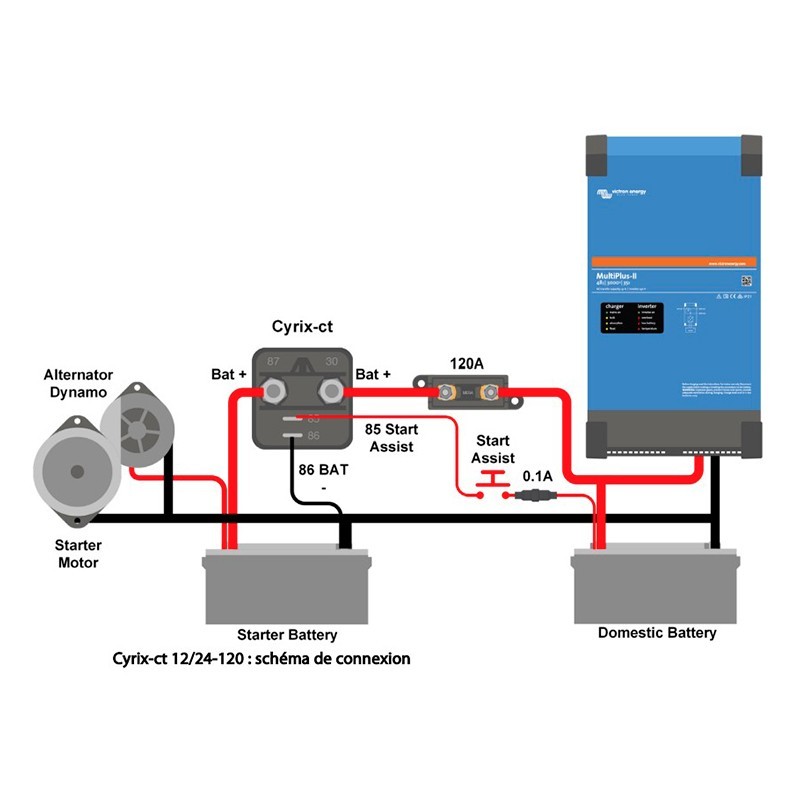

Make sure you install 125A fuses at each end of the cable to protect your installation. For rapid decoupling, we also recommend adding an anti-return diode to the earth connector. Follow our detailed wiring diagram for a successful installation!

Compatibility and technical specifications

• Trigger voltage: 13V for standard batteries, 12.8V for lithium batteries.
• Rated current: 120 A
• Compact dimensions: 46 x 46 x 80 mm
• Lightweight: 0.11 kg
• Alternator compatibility: Ideal for standard alternators up to 150A.
• Continuous current: 120A
• Rated starting power (5 seconds): 180A
• Connection voltage: 13 to 13.8 V and 26 to 27.6 V (with intelligent trend detection)
• Disconnection voltage: 11 to 12.8 V and 22 to 25.7 V (with intelligent trend detection)
• Power consumption ("open" position)
• Consumption ("closed" position): 220mA at 12V / 120mA at 24V
• Start Assist: Yes (Cyrix stays on for 30 seconds)
• Protection standard : IP54
• Weight: 110g

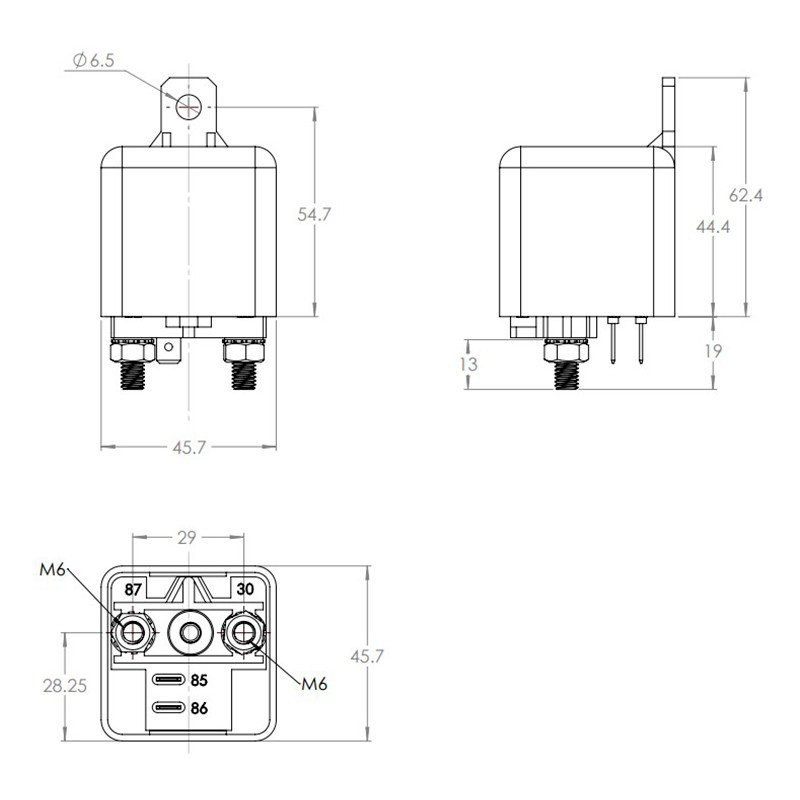

• Dimensions: 45.7 x 45.7 x 81.4 mm
• Control cable not included
• LED status indicator: no

Frequently asked questions

1. How do I know if my alternator is compatible?
   To check, measure the voltage of your engine battery 10 minutes after starting, with no consumers switched on. If the voltage is between 14V and 14.4V, your alternator is standard and the Cyrix CT 120A is compatible.

2. Does the Cyrix 120A work with a Lithium battery?
   Absolutely, the Cyrix CT 120A is compatible with Lithium batteries. It is designed to manage charging safely and efficiently, whatever your battery technology.

3. Can I use the Cyrix 120A in my converted van?
   Yes! The Cyrix 120A is perfectly suited to converted vans, motorhomes and other leisure vehicles. Whether you're on a road-trip or parked up, it ensures optimum recharging of your auxiliary batteries.

Why do our customers love it?

"With the Cyrix CT 120A, there's no more stress on my long road trips. My auxiliary battery always stays topped up and I can rely on my engine battery to start every morning. Easy installation, no headaches, I recommend it!"

A robust relay between batteries connected in parallel, the Cyrix-CT (formerly Cyrix-i), a top-of-the-range splitter coupler from Victron Energy, lets you recharge a 12V auxiliary battery by recovering the energy produced by the engine battery. To be connected to a non-intelligent alternator rated at less than 150 A. It automatically charges your secondary battery as soon as you start your vehicle's engine.

And if you're worried about charging your secondary battery on the engine battery, this separator coupler will put your mind at rest: it keeps the two coupled until the input voltage drops below 12.8V. Below this voltage, recharging of the auxiliary battery is stopped, thus protecting the battery.

And don't worry about your system overheating! Equipped with an intelligent system, the Cyrix will deactivate itself in the event of excessive temperature and will restart automatically once it has cooled down.
