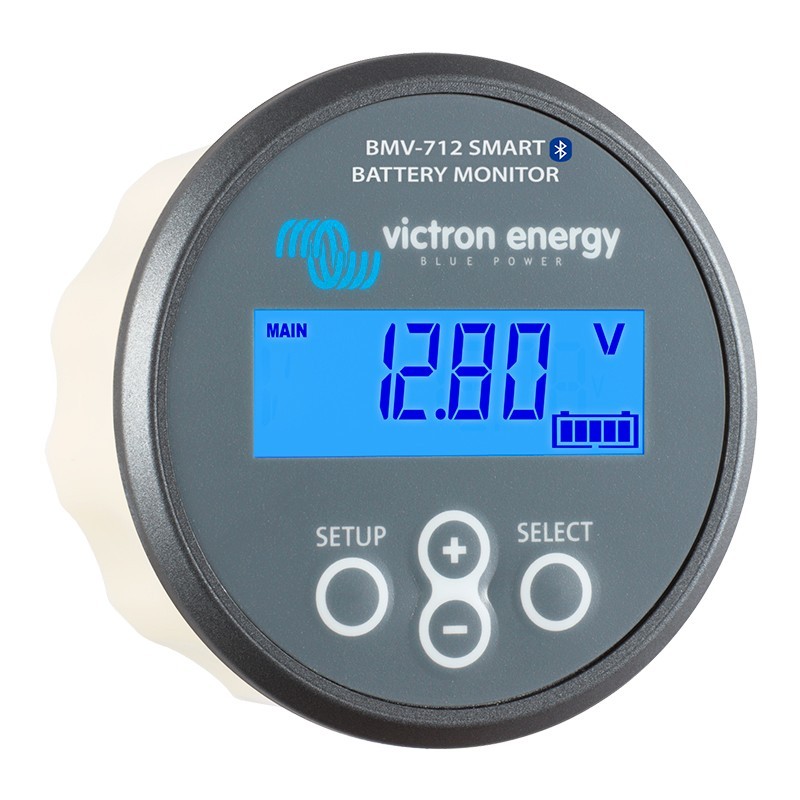

VICTRON ENERGY BMV-712 Smart Bluetooth® battery monitor

Because no one should ever have to run out of electricity, Victron has developed this top-of-the-range monitor to check your power consumption and battery charge level.

Quick and easy to install, the Victron BMV 712 built-in battery monitor measures the electrical input and output of your battery's alternator with flawless precision. It then assesses the percentage of battery remaining, based on your battery's ampere-hour consumption.

Thanks to this calculation mode, you'll find a host of other statistics: input voltage, instantaneous consumption, charging power, remaining charging time, etc.

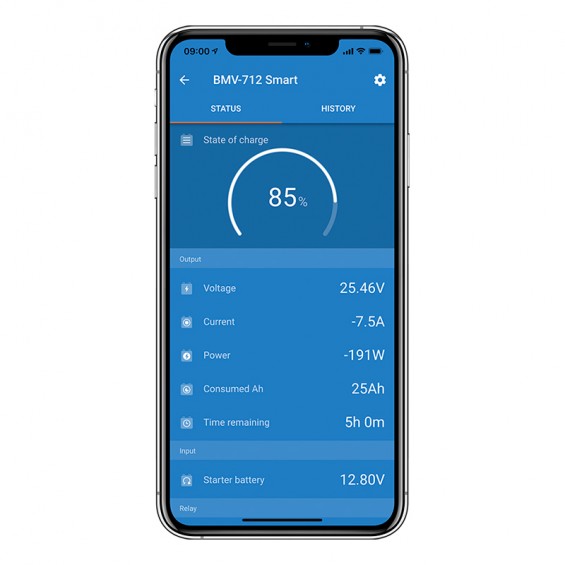

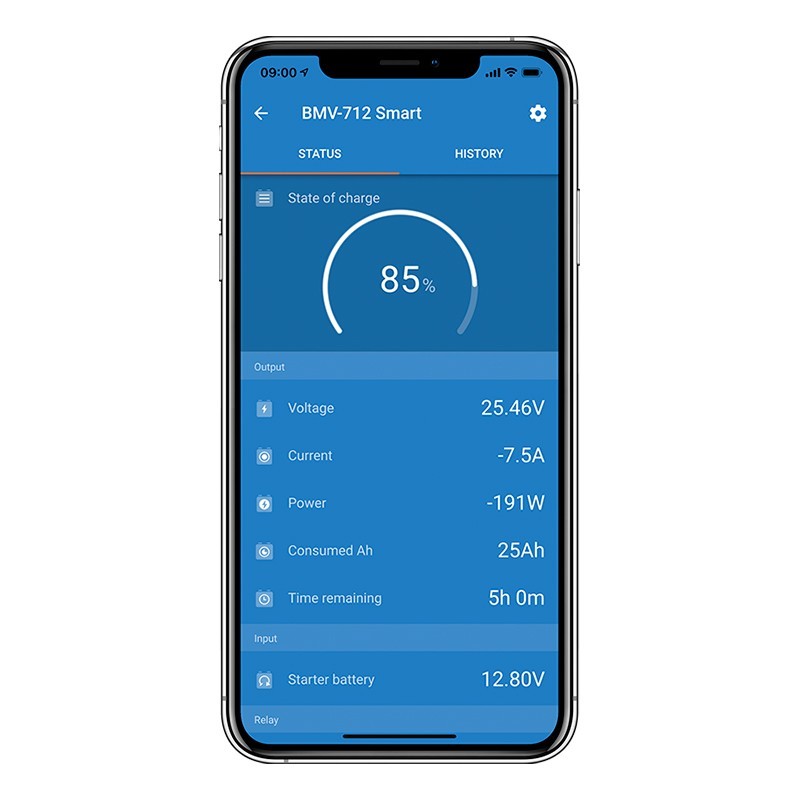

But where conventional monitors stop, Victron innovates! Take advantage of the VictronConnect interface to use all your data, via Bluetooth®, on your smartphone, tablet or computer. Connect your entire electrical installation (subject to compatible devices) to your screens to monitor your consumption and recharging statistics in real time!

Supplied as a kit with cable and shunt.

Don't forget to protect your battery with Smart Battery Protect, a high-performance system developed by Victron Energy!

Technical specifications:

• Voltage range: 6.5 - 95V
• Battery capacity (Ah): 1 - 9999 Ah
• Operating temperature range: -40°C to +50°C
• Temperature measurement range: -20°C to +50°C
• Communication port VE.Direct: Yes
• Relay: 60V/1A
• Front frame: 69 x 69 mm (2.7 x 2.7 inches)
• Shunt connections: M10

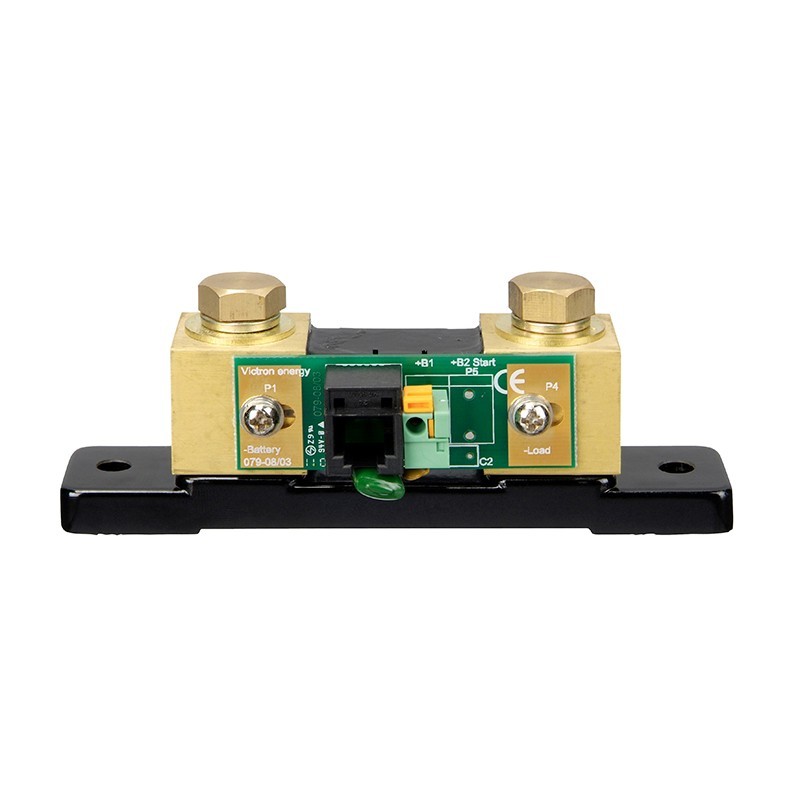

• Shunt supplied: 500A / 50 mV
• Connection cable supplied: 10m long
• Power cable supplied
