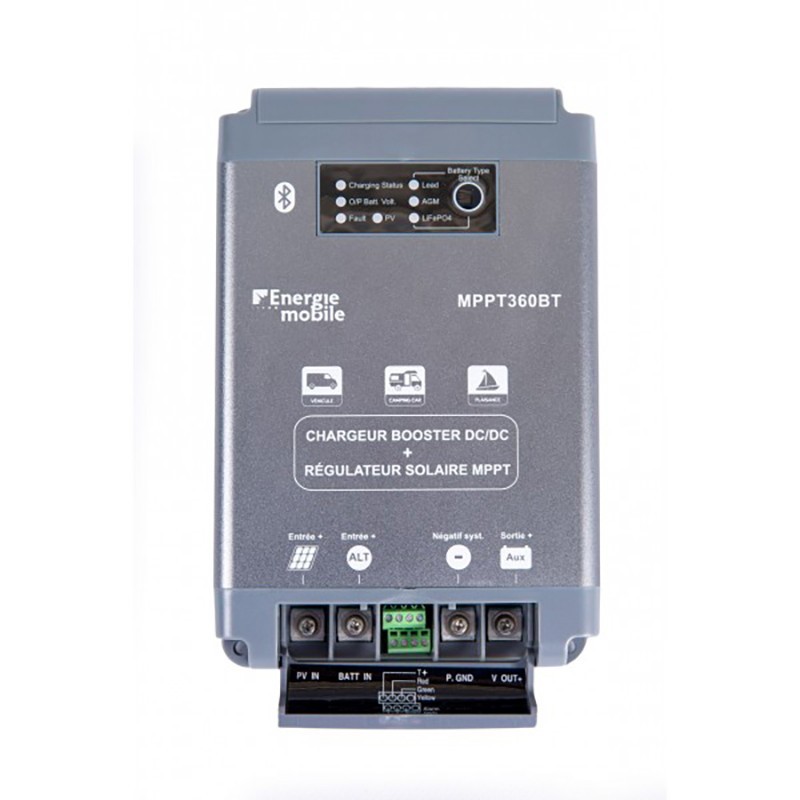

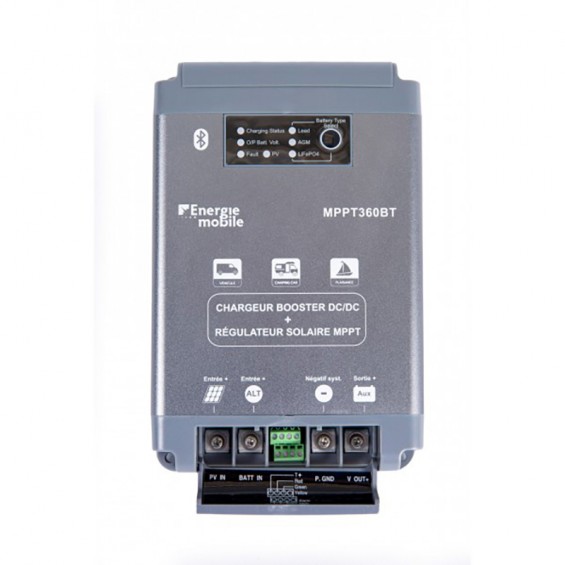

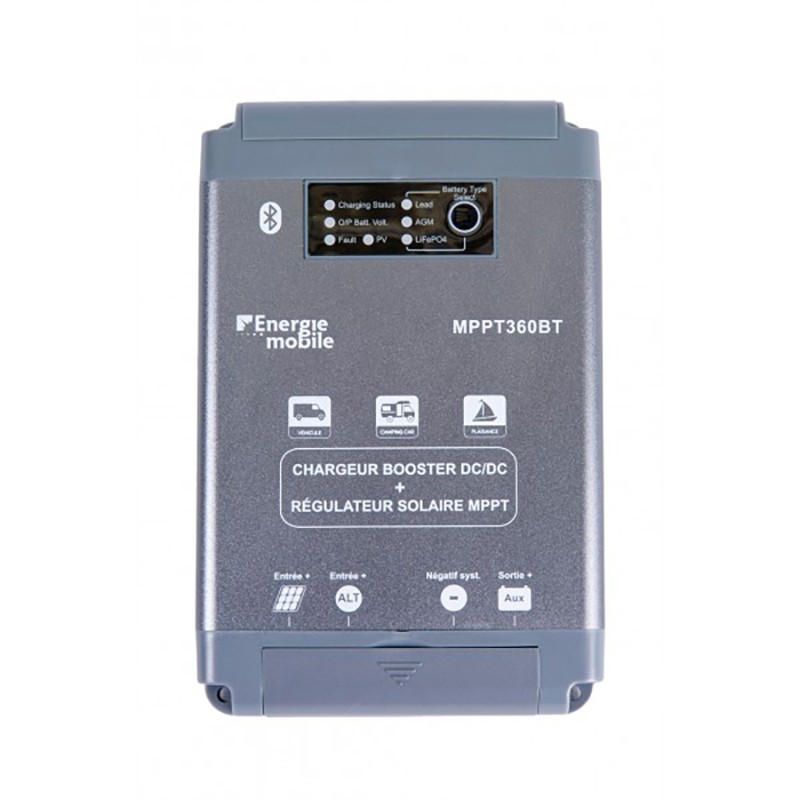

This leisure battery booster and solar charge controller is highly innovative!

This all-in-one device allows you to charge your leisure battery using two energy sources: your vehicle's alternator when driving and the electricity produced by the solar panel on your converted van. This booster (new generation split charge relay) is compatible with Euro5 and Euro6 standards.

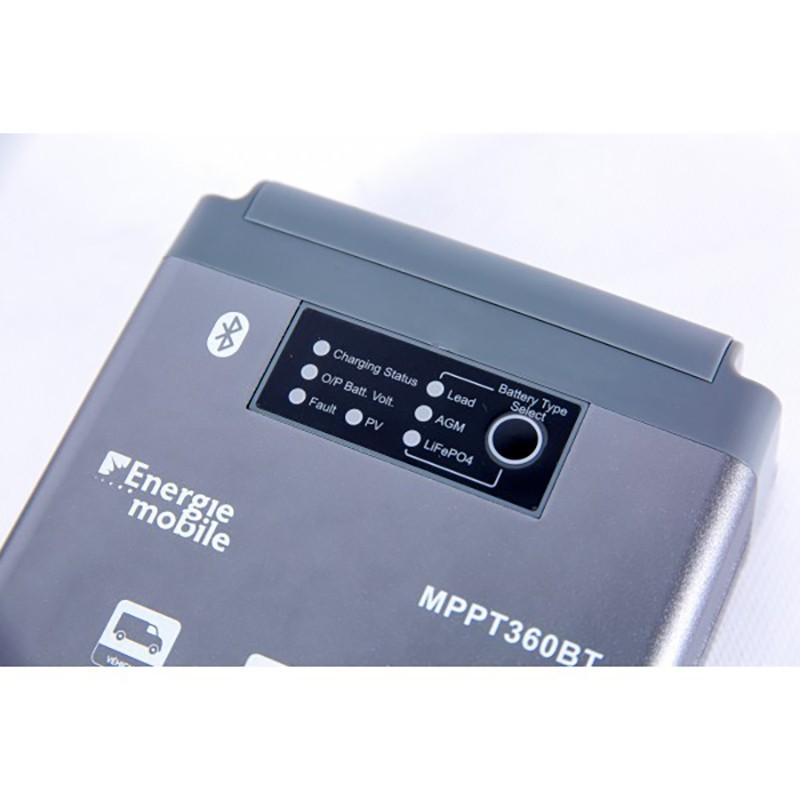

The MPPT360 booster is an easy-to-install device that requires no manipulation once connected. It automatically prioritises available energy sources and intelligently manages the leisure battery charging cycle. Thanks to the integrated LCD display, the user can monitor the proper operation of their installation at any time.

Technical specifications:

• Input voltage (V): 12 or 24
• Alternator/starter battery input voltage (V): 12V (9 to 16 V) or 24 V (18 to 32 V)
• Solar panel input voltage: 12 V (max 30Voc)
• Max solar panel power (W): 400
• Continuous power / Max (W): 360 / 430
• Leisure battery voltage: 12 V
• Charging voltage:
  - Open lead (Vdc): absorption 14.4 V / floating 13.5V
  - AGM (Vdc): absorption 14.7V / floating 13.6 V
  - Lithium (Vdc): absorption 14.2 V / floating: STOP
• Continuous charging current: 25 A
• Efficiency: 90%
• Configurable battery types: Gel, AGM, Open Pb, Lithium
• No-load consumption (mA): <150
• Protection against undervoltage, overvoltage, overheating and reverse polarity input/output
• Supplied with cable lugs
