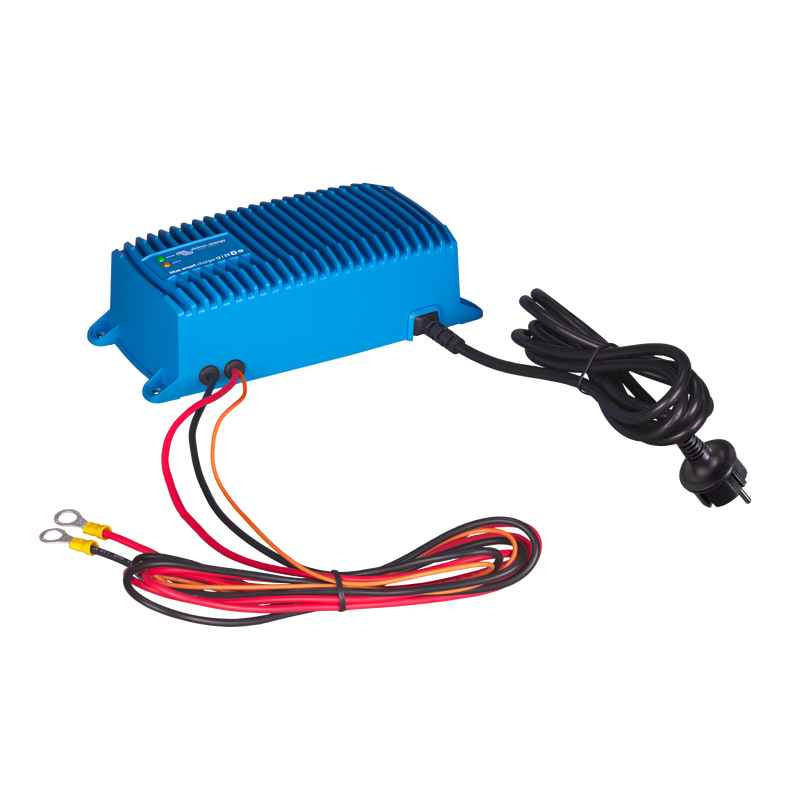

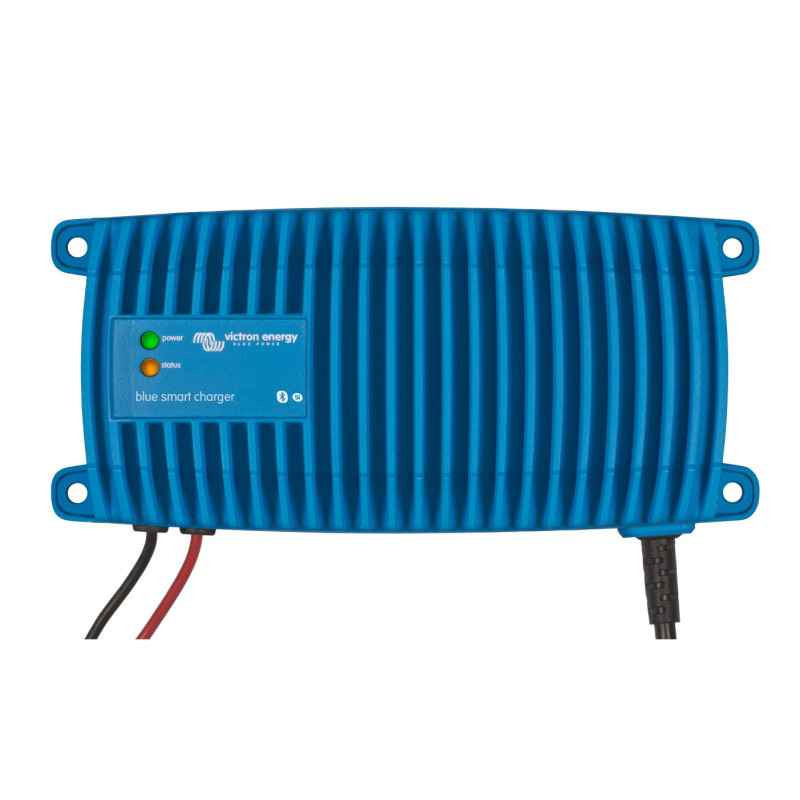

Blue Smart IP67 Charger 12V Lithium LiFePO4, AGM or GEL

This robust and connected charger has been designed to efficiently charge your 12V battery, even in demanding environments. Fully encapsulated; compatible with various batteries; equipped with a Bluetooth system for remote control; it promises optimal performance and a long life for your auxiliary battery.

The Blue Smart IP67 Victron Energy is more than a charger, it's an advanced maintenance and protection device for your battery, resistant to the most extreme conditions. Thanks to its IP67 protection rating, it provides total protection against dust, oil and withstands temporary immersion in water (on a boat for example). It also resists shocks and fire. Its casing is made of cast aluminium and the electronic components are moulded with resin.

The integrated charging modes (which can be selected directly in the Victron Connect app) and the adaptive charging logic are suitable for most battery types: flooded lead-acid, AGM, gel electrolyte (GEL) and Lithium.

Four charging modes available: NORMAL (14.4V); HIGH (14.7V); RECONDITION; LI-ION (this one is intended only for a Lithium-ion battery).

As mentioned previously, this charger features a 5-stage adaptive charging algorithm: bulk, absorption, recondition, float, storage. It is controlled by a microprocessor to automatically optimise each recharge cycle (according to how the 12V battery is used) and maintain the charge over long periods.

Please note, if you have a Lithium-ion battery (and not Lithium LiFePO4), the Blue Smart IP67 charger has a simple algorithm: Bulk, Absorption, Float.

A Blue Smart IP67 is equipped with overheating protection; indeed, the output current will reduce if the temperature increases up to 60°C, but the charger will not fail.

Blue Smart IP67 charger and 12V auxiliary battery compatibility

IP67 Bluetooth battery charger for remote control

First, on your smartphone or tablet, you will need to download the VICTRON CONNECT app:

For Android: https://play.google.com/store/apps/details?id=com.victronenergy.victronconnect&hl=fr&pli=1

For iOS (iPhone or iPad): https://apps.apple.com/fr/app/victronconnect/id943840744

Once the app is installed, you will be able to monitor voltage and current; modify settings and update the charger when new features are available.

What does the Blue Smart IP67 charger do when the battery is not in use?

Simply put, storage mode is activated when your battery has not been used for 24 hours. In storage mode, the float voltage is reduced to 2.2 V / cell (13.2V for a 12V auxiliary battery) to minimise gassing and corrosion of the positive plates. Once a week, the voltage is raised to absorption level to equalise the battery. This prevents electrolyte stratification and sulphation, which are major causes of premature battery ageing.

Advantages of the Blue Smart IP67 charger for 12V battery

• 5-stage adaptive charging technology for efficient and safe charging.
• Bluetooth connectivity: Remote control only via the Victron Connect app allowing you to monitor battery status and modify settings.
• Recovery of deeply discharged battery to zero volts to be able to reuse it
• Robustness and Durability: Encapsulated to resist water (IP67 certified), oil, dust as well as shocks and high temperatures. Can be used outdoors or on a boat.
• Automatic charge adjustment according to temperature to protect your battery
• Automatic storage mode when you don't use your battery for 24 hours to prevent premature ageing of your battery

Technical specifications

• Input frequency and voltage range: 180 - 265 VAC | 45 - 65 Hz
• Max output current - Normal mode: 7A; 17A or 25A (depending on the charger you need and choose)

• 5-stage adaptive charging algorithm: bulk, absorption, recondition, float, storage.
• AC connection: 1.5 m cable with CEE 7/7 plug, BS 1363 plug or AS/NZS 3112 plug
• Battery connection: 1.5 m black and red cable with M8 circular terminals
• Protection rating: IP67 (resistant to temporary immersion in water)
• Operating temperature range: Between -20 and +60°C (maximum rated power up to 40°C)
• Bluetooth frequency: 2402 - 2480 MHz
• Bluetooth power: -4 dBm

Blue Smart IP67 Charger 12V / 7A

• Dimensions: 211 x 85 x 60 mm
• Weight: 1.8 kg

Blue Smart IP67 Charger 12V / 17A

• Dimensions: 219 x 99 x 65 mm
• Weight: 2.4 kg

Blue Smart IP67 Charger 12V / 25A

• Dimensions: 219 x 99 x 65 mm
• Weight: 2.4 kg
