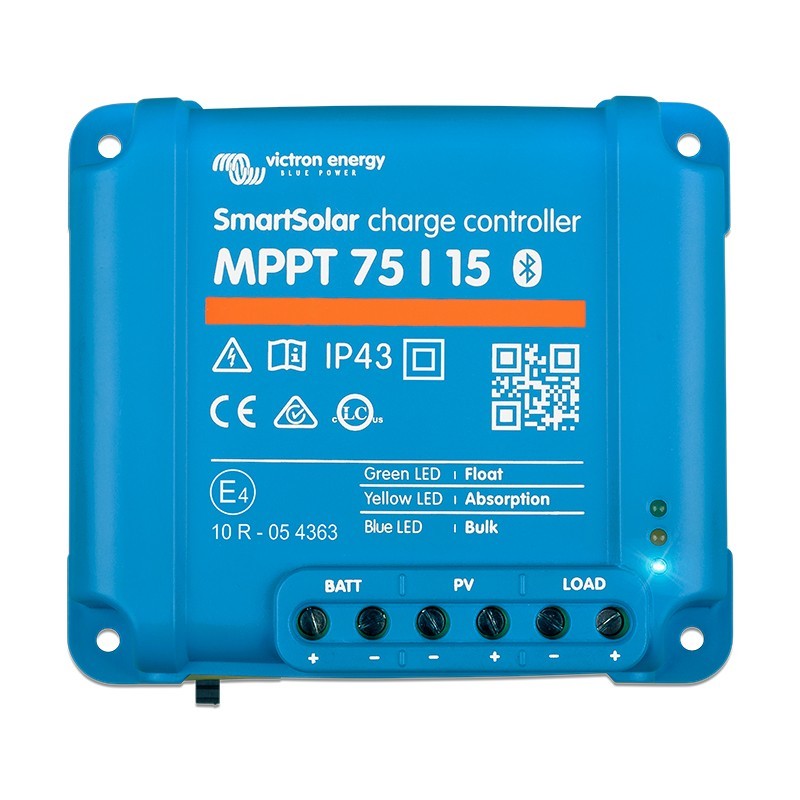

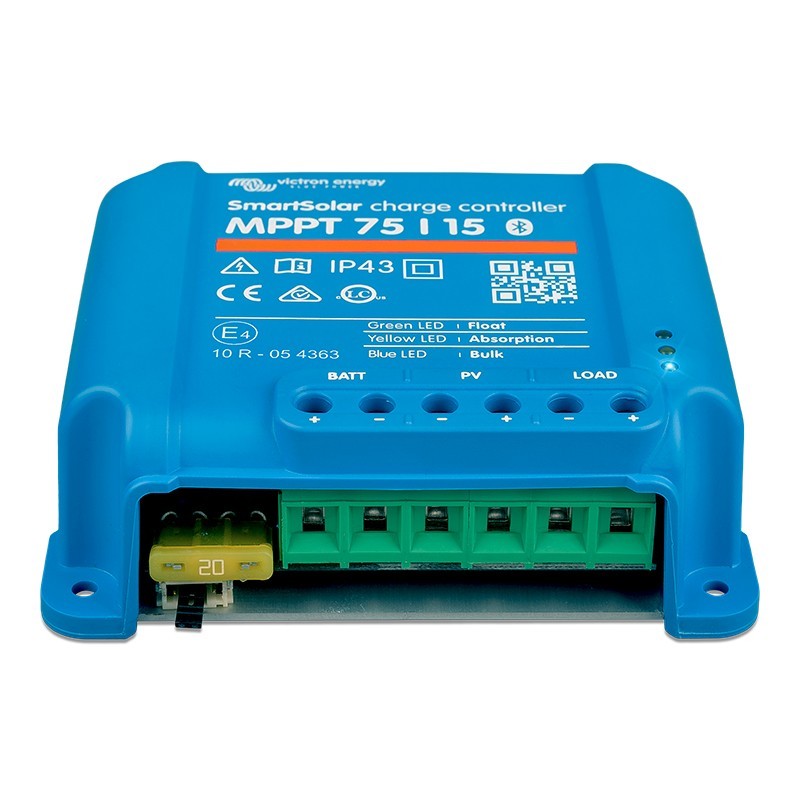

Bluetooth® MPPT 75/15 VICTRON ENERGY SmartSolar charge controller

Opt for robustness and reliability with this top-of-the-range MPPT regulator!

Essential for transforming the solar energy from your photovoltaic panels into energy that can be used by your batteries, the Smart Solar charge controller is responsible for storing the electricity produced by your solar panels and redistributing it to your batteries at the right moment.

But that's not all! MPPT (Maximum Power Point Tracking) technology has been developed to get the best possible yield from your solar panels, whether the weather is sunny or cloudy. To do this, the regulator locates the best voltage points on the panel for optimum recovery of solar energy (+15 to 40% compared with previous innovations!).

Equipped with the BatteryLife function, the SmartSolar regulator will also help to preserve your battery. On the one hand, by trying to keep it constantly 100% charged, and on the other hand by increasing the disconnection voltage if the electricity production is not sufficient.

This 15A version can handle up to 220W at 12V and 440W at 24V.

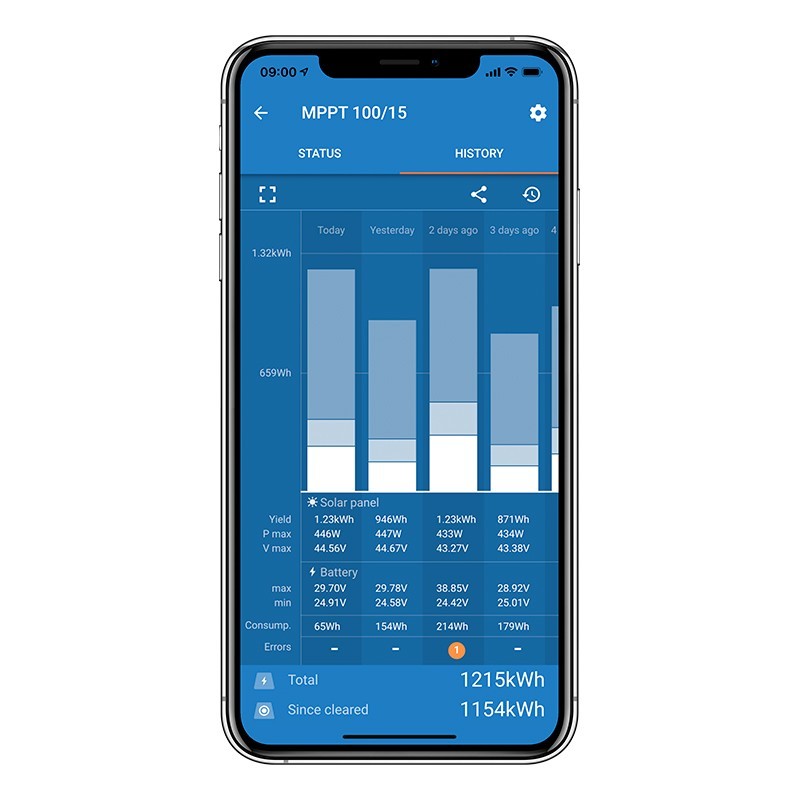

With this model, you can even view your battery charge data on your smartphone or tablet, thanks to the Bluetooth® technology built into the box!

Technical specifications

• Battery voltage: 12V / 24V
• Nominal charging current: 15A
• Continuous charging current: 15A
• Nominal PV power 12V: 220W
• Nominal PV power 24V: 440W
• Automatic load disconnection: Yes
• Maximum PV open circuit voltage: 75V
• Absorption charging voltage: 14.4V / 28.8V
• Float charge voltage: 13.8V / 27.6V
• Operating temperature: -30°C to +60°C
• Power terminals: 6mm² / AWG10
• IP43 standard (electronic components)
• IP22 standard (connection area)
• Integrated Bluetooth technology
• Dimensions: 100 x 113 x 40 mm
• Weight: 500g
• 5-year warranty
