Kit complet combiné 2 plaques de cuisson et évier CAN FL1766-P

2.332
€467.56 Inc. VAT

Kit complet CAN : comprend un combiné 2 feux + 1 évier avec couvercle en verre trempé résistant à la chaleur. Optez pour ce pack complet et soyez certains de disposer de tout le nécessaire pour équiper la cuisine de votre van aménagé : robinet, pompe, bonde, tuyauterie, jerricans, ... Tout y est !

Pack products My pack description
Dispatched within 24 hours
Pack products
Hose diameter : 20 mm
Hose clamp diameter : 10-16mm
Hose clamp diameter : 14-27mm
Capacity : 9 Litres

Quantity: 2
€7.96
Colour : Black
Cross-section : 1.5 mm²
Colour : Red
Cross-section : 1.5 mm²
Number of inputs : 2 inputs for SC 0.2 - 4 mm²
Pack contents

All-in-one kits, a philosophy at Heode

Because simplifying your life is fundamental to our philosophy, we have gathered in this kit everything you need to install water in your van and equip it with a real kitchen!

Specially designed to be installed in vans converted into campervans, this CAN combination unit can easily be installed on our kitchen module and connected to a gas bottle. All without taking up the entire worktop space: equipped with two scratch-resistant black tempered glass lids, you will have the possibility of using only the functionality you need. And thus maximise the surface of your kitchen. Also use it as a worktop without risk thanks to the heat-resistant lids.

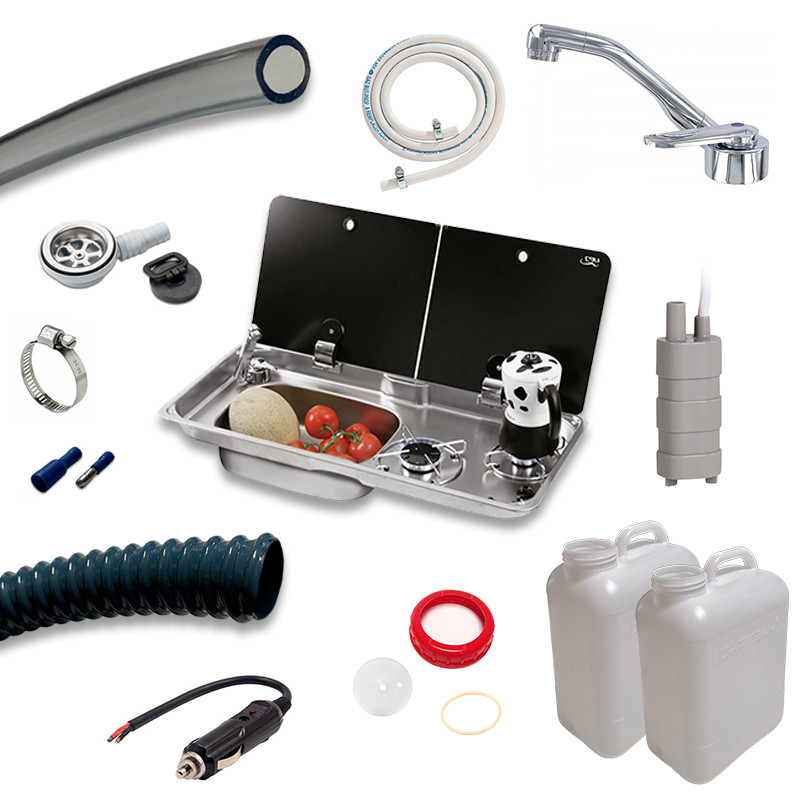

Elegant, robust and functional, the combination unit with left-hand sink is supplied in this pack with:

  • 1 Florenz folding mixer tap hot water / cold water
  • 1 side drain at 90°C
  • 1 submersible pump 10L/min
  • 2 m of 10mm clear hose for clean water
  • 1 m of 20mm corrugated hose for greywater
  • 3 hose clamps 14/27mm
  • 3 hose clamps 10/16mm
  • 2 food-grade jerry cans (select the capacity in litres you want for your 2 DIN96 jerry cans just above)
  • 2 DIN96 caps
  • 2 sealing plates
  • 2 sealing gaskets
  • Electrical terminals
  • 1 flexible gas hose + clamps
  • 1 cigarette lighter power supply
  • 3 metres of black H07-VK electrical cable with 1.5mm_ cross-section
  • 3 metres of red H07-VK electrical cable with 1.5mm_ cross-section
  • 1 electrical wiring diagram

Technical specifications

  • Dimensions (LxWxH): 765 x 355 x 150 mm
  • Built-in dimensions (WxH): 730 x 320 mm
  • Burner power: 1 kW / 1.9 kW
  • Heat-resistant tempered glass lid
  • Tap bore: Ø 33.5 mm
  • Thermocouple safety device
