Enjoy optimal thermal comfort, even at altitude

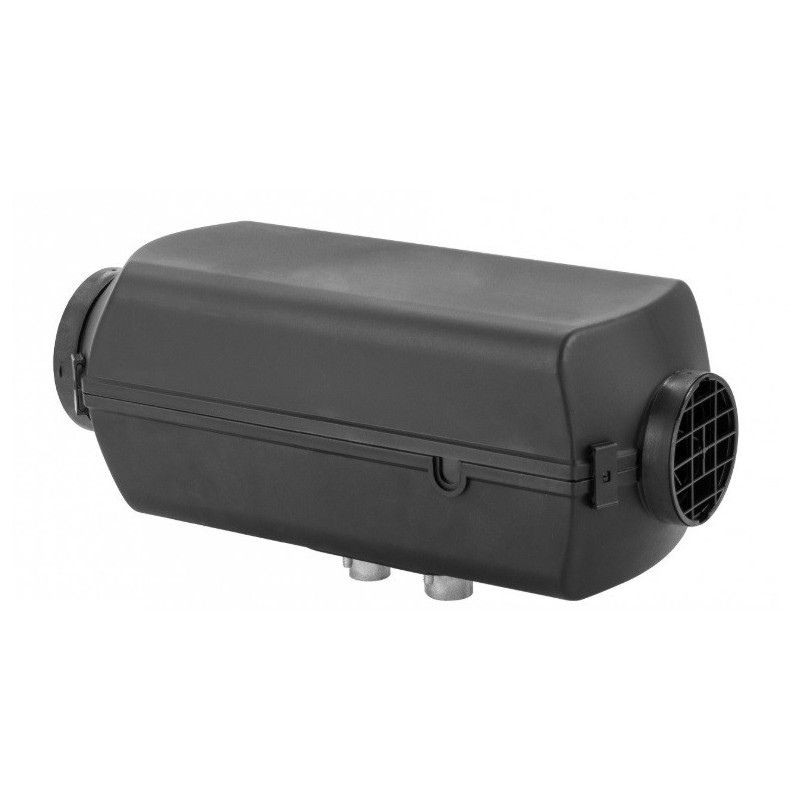

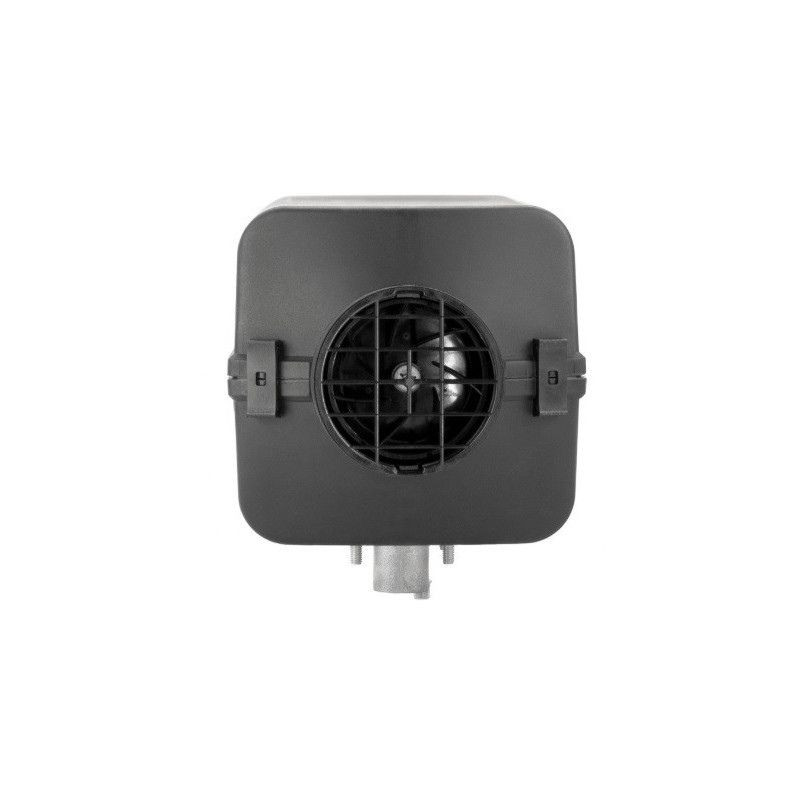

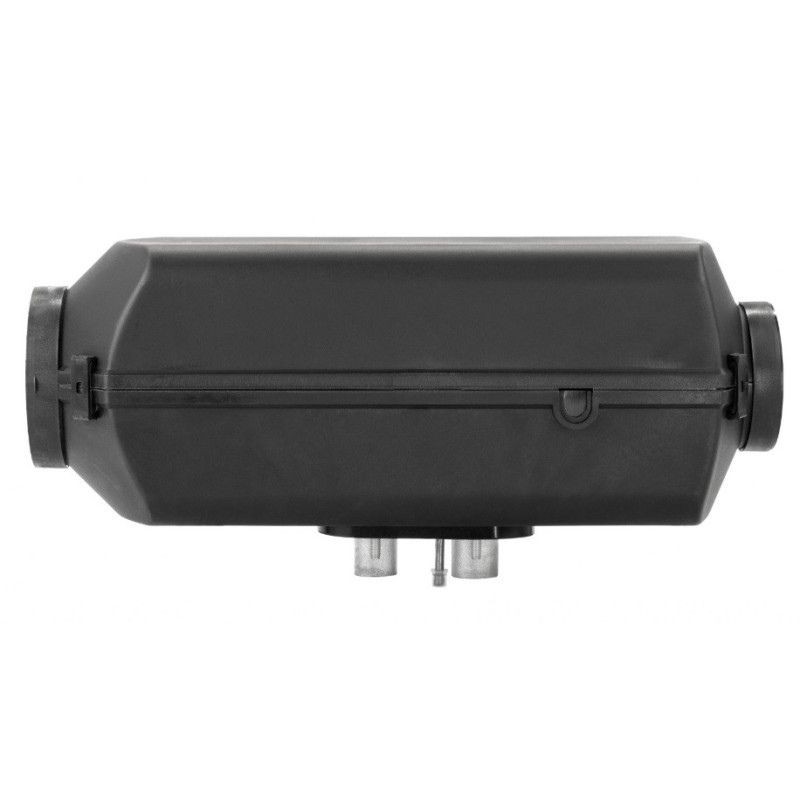

Don't let the cold hold back your sense of adventure with the Autoterm Air 4D – 12V autonomous heater. Designed for converted vans and campervans, this system delivers constant warmth, even in extreme cold or at high altitude. Running on diesel, it provides remarkable autonomy without relying on an external power supply.

With an adjustable output of 1 to 4 kW, the Air 4D adapts to your needs, whether you are on a winter bivouac or a spring road trip. Its quiet operation and low consumption make it a discreet and economical companion. In addition, its integrated oxygen sensor ensures optimal performance up to 4,200 m. Ideal for adventurers who love exploring the peaks!

Its brushless motor, without brushes, significantly reduces mechanical wear. And this offers more than one advantage:

• Increased longevity
• Quieter operation
• Better energy efficiency
• More resistant to voltage variations
• Less maintenance, as there are no brushes to service

The complete kit includes a digital control panel, a silent fuel pump, air ducts, an exhaust silencer and all the accessories needed for quick and safe installation. CE certified, this heater meets current European standards.

Technical specifications of the Autoterm Air 4D heater

• Compatible vehicles : Medium to large sizes (trucks, minibuses, campervans up to 15 m)
• Heating output : 1 to 4 kW
• Voltage : 12 V
• Energy type : Diesel
• Operating type : Forced air
• Heated air volume : 70 to 168 m³/h
• Fuel consumption : 0.12 to 0.51 l/h
• Power consumption : 10 to 57 W
• Air inlet : Ø 80 mm
• Air outlet : Ø 96 mm
• Exhaust outlet : Ø 24 mm
• Maximum operating altitude : 4200 m
• Heating unit weight : 5.9 kg
• Complete kit weight : 12 kg
• Heating unit dimensions : 402 x 157 x 188 mm
• Certifications : CE compliance

Tips from the Heode team

The Autoterm Air 4D – 12V heater is easy to install in various types of vehicles such as buses, trucks, campervans or even boats and yachts. It can be mounted in a storage compartment, under a seat or in a dedicated bay, provided the recommended orientation and ventilation clearances specified in the Autoterm manual are observed.

To connect Ø 90 mm ducts, the following adapters are required:

• Air outlet : Ø 96-90 mm adapter (ref. 2.823)

• Air inlet : Ø 80-90 mm adapter (ref. ATR2-A8090-BK)

These accessories ensure a secure connection and optimal airflow. A careful installation guarantees quiet, efficient and long-lasting operation.

Additional accessories

To operate the Autoterm Air 4D, you will need a control panel (not included in the kit). For an easy and high-performing installation, we recommend the Comfort Control from Autoterm!

To make the most of the heat produced by your Autoterm heater, pair it with the Pundmann Therm Air electric water heater, designed to recover the hot air from your heater and heat your water in just 50 minutes.

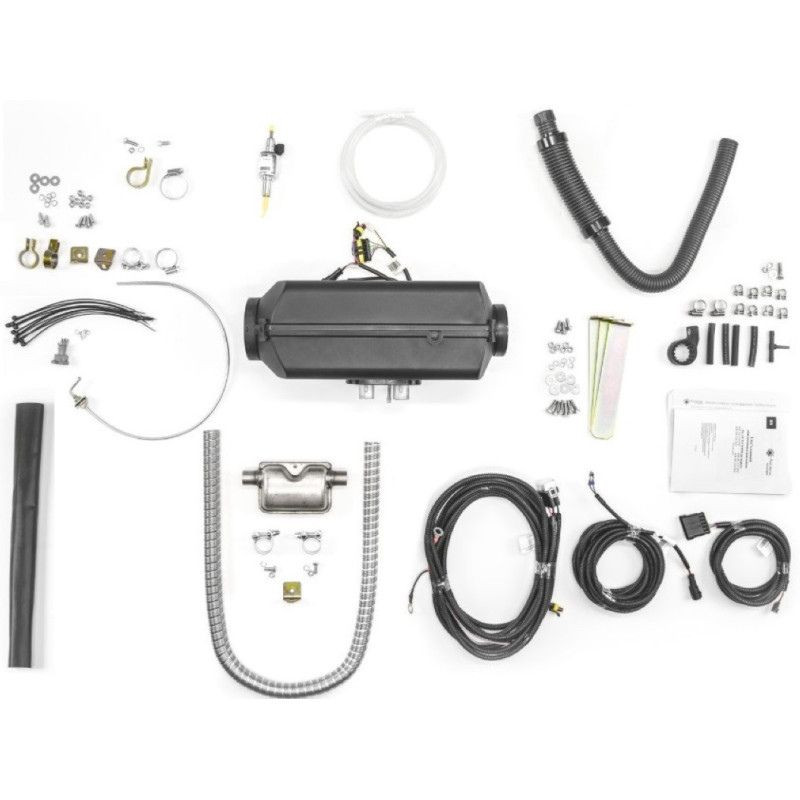

Kit contents:

• Autoterm Air 4D diesel heater
• Control panel cable 1.80 m
• Fuel pump cable 6 m
• Power cable 6.50 m 12 V
• Nylon fuel line 5.5 m
• Silent 12 V fuel pump
• Fuel pump clamp
• Fuel solenoid
• Silencer with mounting kit
• Exhaust pipe 1 m
• Thermal insulation 45 cm
• Air intake pipe with silencer
• Screw, fittings and clamp kit
