Diesel heating kit for Volkswagen T5/T6: warm on board all winter, without sacrificing a centimetre of space

Living in a converted Volkswagen T5 or T6 in the middle of January is perfectly possible — provided you have a heating system that can keep up. The Autoterm Heating Kit for Volkswagen T5 / T6 is designed for exactly that: delivering fast, even heat from start-up, without encroaching on your living space. The unit is fitted under the chassis, outside the living area, so you can make the most of every centimetre of interior space in your converted van.

At the heart of the kit is the Autoterm Air 2D warm air heater, available in 12V or 24V, a benchmark in the converted van world for its reliability, compactness and low fuel consumption. In operation, it uses just 0.10 to 0.24 L of diesel per hour. Its adjustable heating output, from 0.8 to 2 kW, maintains a comfortable temperature whatever the weather, and even at altitude thanks to the integrated oxygen sensor that adapts combustion up to 4,200 metres.

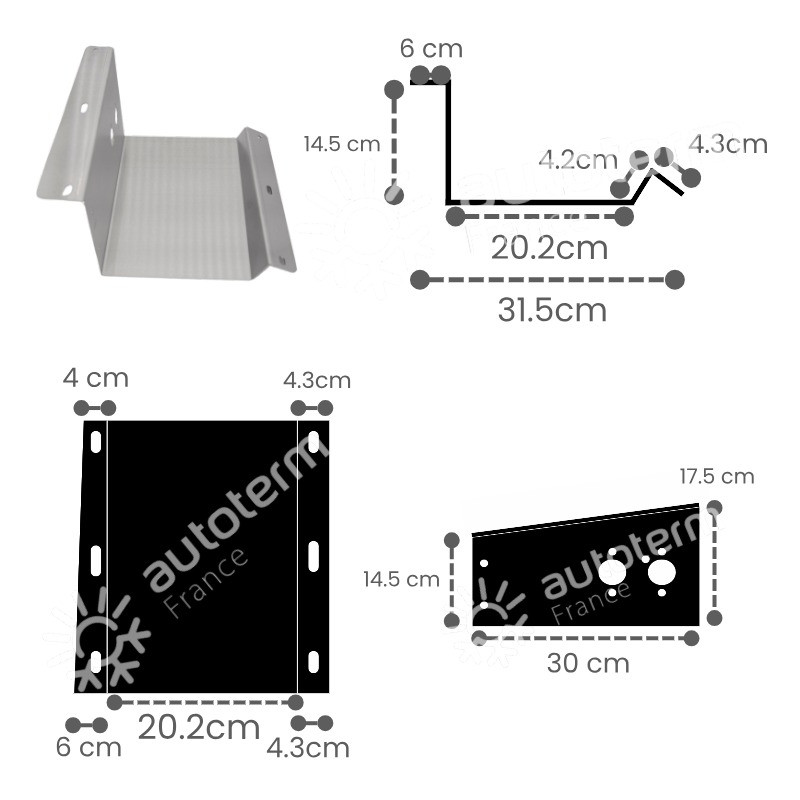

This kit is specially designed for Volkswagen T5 and T6 without original partition (Transporter version). In addition to the heating unit, it includes vehicle-specific accessories: under-chassis mounting bracket, air deflectors for optimal heat distribution throughout the cab, connection cables, exhaust and intake pipes, silent fuel pump, diesel dip tube or T-connector (depending on the vehicle's original equipment). If your T5 / T6 is fitted with a factory Webasto heater, you can use a T-connector to draw directly from the existing fuel line — no tank drilling required in this case.

The control panel included in the kit lets you operate the system and set your desired temperature up to 30°C. For even more precise control, the Autoterm Comfort Control control panel is available separately on heode.fr: it regulates output to the nearest degree, without cutting combustion, and offers 4 operating modes including a thermostat mode and a timer mode. To protect your installation over the long term, consider also the Autoterm fuel filter, recommended on the diesel supply line.

• T5-KT12 — 12V Kit: for Volkswagen T5 and T6 without original partition, exterior under-chassis mounting, 12V power supply. Ideal for fit-outs with a standard 12V leisure battery.

How to install the Autoterm Heating Kit VW T5 / T6 - exterior mounting?

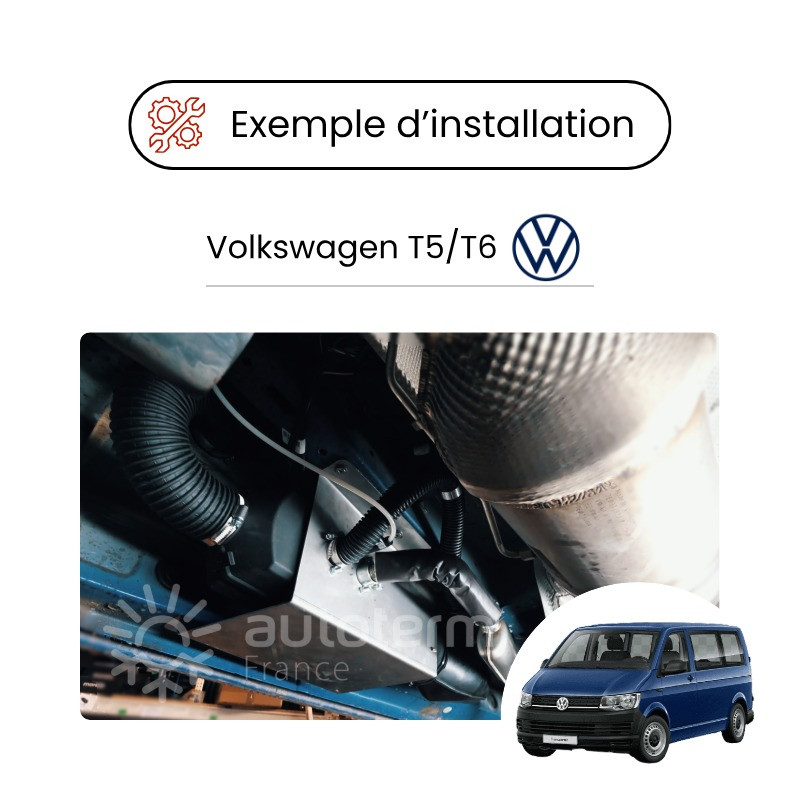

Installation takes place under the vehicle chassis, in the technical space. It involves securing the unit to the supplied bracket, routing the air intake and exhaust pipes (Ø 60 mm / Ø 24 mm), connecting to the fuel circuit via the tank dip tube or the Webasto T-connector, and wiring to the battery. The control panel is mounted in the cab using the supplied cable (up to 10 m depending on the model). To distribute warm air throughout your fit-out, Autoterm Ø 60 mm air deflectors and connection clamps are available separately. If you are not comfortable with this type of installation, Autoterm has a network of authorised professionals in France — with workshop fitting, the warranty is extended to 3 years.

An approved VW T5 / T6 heating kit for VASP certification

VASP certification (Véhicule Automoteur Spécialisé ou de Préparation) requires, among other things, that the cab heating be approved. The Autoterm Air 2D heater, at the heart of this kit, is VASP approved: it can therefore be declared at the time of the converted vehicle's type approval without any specific exemption. This is a concrete advantage for all T5 / T6 owners wishing to drive their converted van in compliance with French law.

Technical specifications of the Autoterm Heating Kit VW T5 / T6 - exterior mounting

• Vehicle compatibility: Volkswagen T5 and T6, original panel van version (Transporter)
• Supply voltage: 12V DC (T5-KT12)
• Heating type: Stationary diesel warm air — Autoterm Air 2D
• Fuel: Diesel
• Heating output: 0.8 kW (min.) to 2 kW (max.)
• Hot air flow: 34 m³/h (min.) to 86 m³/h (max.)
• Fuel consumption: 0.10 L/h (min.) to 0.24 L/h (max.)
• Power consumption: 10 W (min.) to 29 W (max.)
• Unit dimensions: 310 × 119 × 145 mm
• Heater weight: 2.9 kg
• Air intake / outlet diameter: Ø 60 mm
• Exhaust outlet diameter: Ø 24 mm
• Maximum operating altitude: 4,200 m (integrated O₂ sensor)
• Mounting type: Exterior, under chassis
• Approval: VASP
• Warranty: 2 years (3 years when fitted by an authorised Autoterm professional)

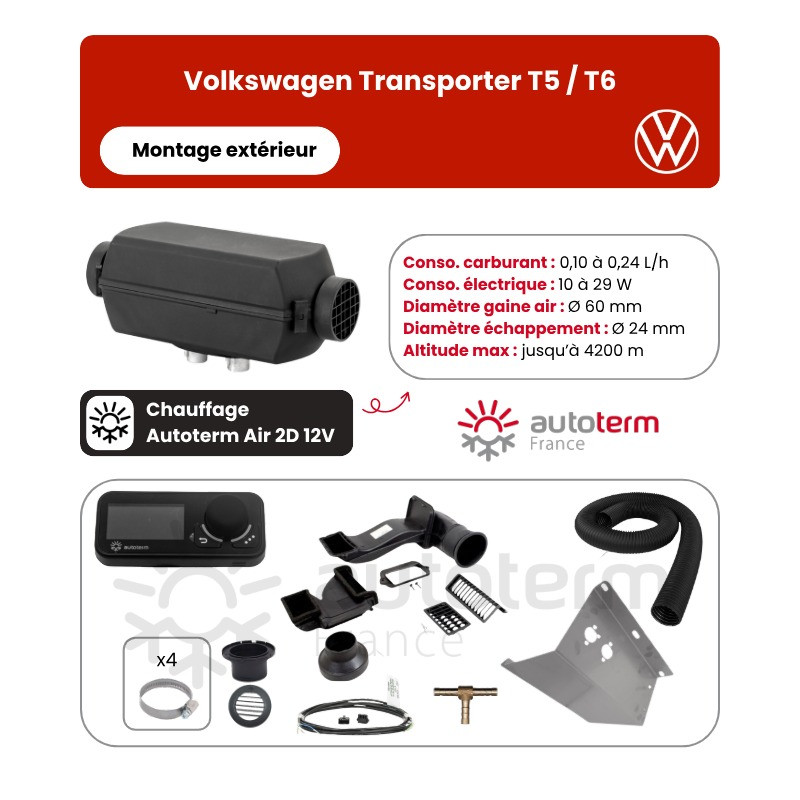

• Kit contents: Autoterm Air 2D heater, silent fuel pump, electrical cables, intake and exhaust pipes, exhaust silencer and its bracket, tank dip tube or T-connector (depending on version), air deflectors, control panel, screws and mounting accessories
