Autoterm diesel heating kit for Ford Transit Custom (before 2024): winter will no longer be a problem

Compact, manoeuvrable and generous in interior space, the Ford Transit Custom (in its versions produced before 2024) is one of the most popular van bases for DIY converters. Its only real weakness in winter conditions: the absence of an autonomous heater. This Autoterm Air 2D diesel heating kit fills exactly that gap, with a set of accessories designed specifically for the Transit Custom chassis.

The installation is carried out under the vehicle, which preserves the entire interior living space. The mounting bracket adapted to the Transit Custom ensures stable and durable positioning of the heating unit under the chassis. Warm air is routed via a 60 mm duct to the outlets inside the van. The fuel connection is made without drilling the tank. The Comfort Control panel, supplied with its extension cable, manages the temperature up to 30 °C from inside the cab.

The Autoterm Air 2D delivers up to 2 kW of output for a fuel consumption of 0.10 to 0.24 L/h of diesel. Its brushless motor and silent pump ensure quiet operation, and its oxygen sensors allow it to automatically adapt to altitude up to 4,200 m. Certified E2-10R and E2-122R, VASP compatible. 2-year warranty, extendable to 3 years with installation by an approved professional.

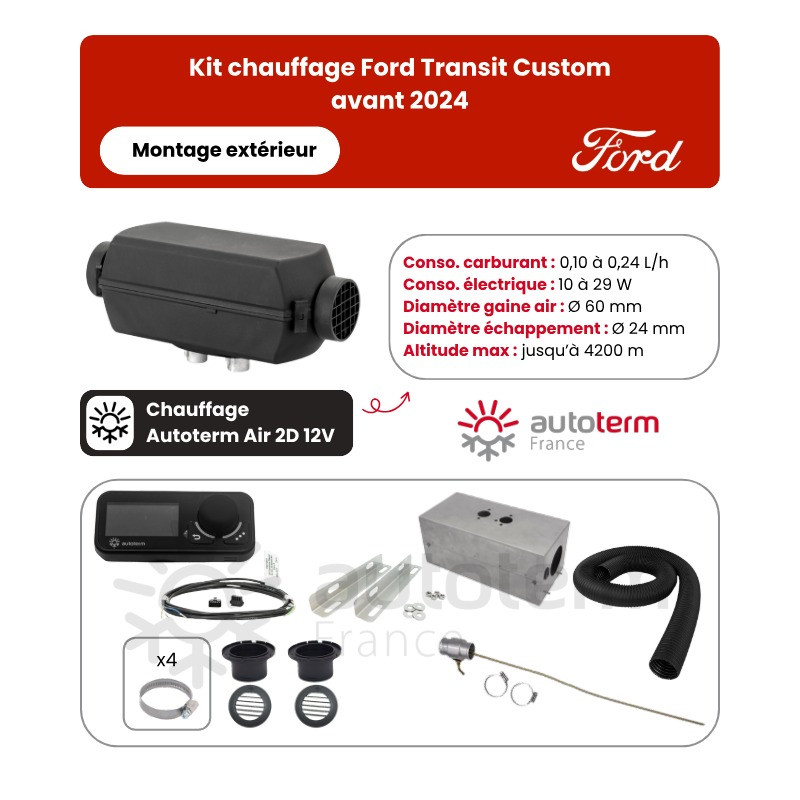

Contents of the Autoterm heating kit – Ford Transit Custom (before 2024)

• 1 Autoterm Air 2D diesel heater (2 kW) with its complete base kit
• 1 Comfort Control panel + extension cable
• 1 mounting bracket adapted to the Transit Custom chassis
• Ultra-resistant duct Ø 60 mm
• Clamps Ø 60 mm and outlet grilles
• Air deflectors
• Hose clips
• Adapted fuel connection system

Autoterm Air 2D base kit included: control panel cable 1.80 m · fuel pump cable 6 m · 12 V power supply cable 6.50 m · nylon fuel line 5.5 m · silent fuel pump · diesel plunger · silencer with mounting kit · stainless steel exhaust pipe 1 m (Ø 24 mm) · thermal insulation 45 cm · air intake pipe with silencer · screws, fittings and hose clips.

How do I install the heating kit on a Ford Transit Custom?

The installation is carried out under the chassis. The mounting bracket bolts onto the frame rail and the heater is secured to it. The fuel tap connects without drilling the tank. The electrical cables connect to the battery or the fit-out battery bank, and the 60 mm duct passes through the floor to distribute warm air inside the cab.

The installation manuals and certificates of conformity are available on the Autoterm website — useful to keep for the VASP file and during technical servicing.

Useful complementary products:

• Heating duct Ø 60 mm – to distribute air across multiple outlets
• 7 L or 13 L auxiliary fuel tank
• Autoterm heating accessories

A heating kit compatible with VASP certification

The Autoterm Air 2D is certified E2-10R and E2-122R, two mandatory European standards for VASP approval of an autonomous heater in a converted vehicle. The certificates are provided by Autoterm and must be handed to the inspector at the time of the approval inspection.

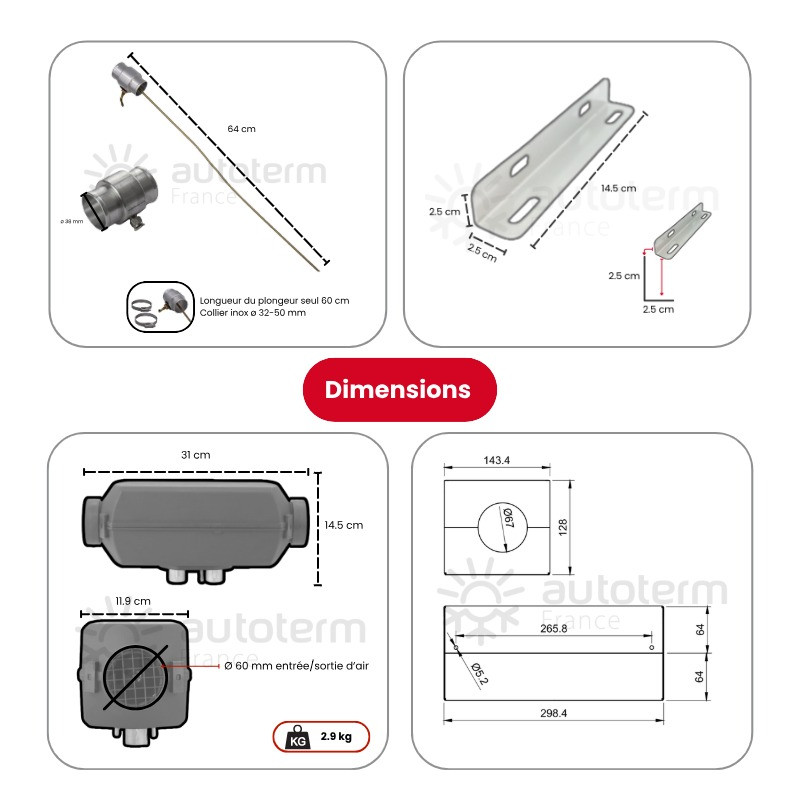

Technical specifications of the Autoterm Air 2D heating kit – Ford Transit Custom (before 2024)

• Heater included: Autoterm Air 2D
• Heating output: 0.8 kW (min.) to 2 kW (max.)
• Heated air volume: 34 to 86 m³/h
• Fuel: Diesel
• Fuel consumption: 0.10 to 0.24 L/h
• Power consumption: 10 to 29 W
• Voltage: 12 V
• Air duct diameter: Ø 60 mm
• Exhaust diameter: Ø 24 mm
• Maximum operating altitude: up to 4,200 m
• Control panel: Comfort Control (included)
• Mounting: External under chassis
• Compatible vehicles: Ford Transit Custom before 2024
• Certification: E2-10R / E2-122R (VASP compatible)
• Warranty: 2 years (3 years with installation by an approved installer)
