Autoterm diesel heating kit for VW Crafter (2006–2016): thermal independence on the first generation

The Volkswagen Crafter first generation (2006–2016), built on the same platform as the Mercedes Sprinter W906, is a popular van conversion base prized for its robustness and generous interior space. Its under-body architecture, shared with the Sprinter of that era, requires a heating kit specifically adapted to this chassis — which is precisely what this Autoterm Air 2D kit dedicated to the Crafter 2006–2016 offers.

The heater is installed under the chassis as an external mount, in a mounting bracket or housing adapted to this generation. No interior space is used, and there is no visible floor modification from inside the cabin. The warm air travels through a 60 mm duct to the interior outlets. The Comfort Control panel, with its cable extension, controls the temperature from inside the cabin up to 30 °C. The controlled fuel consumption of the Autoterm Air 2D (0.10 to 0.24 L/h of diesel) and its quiet operation make it perfectly suited to long nights in a van.

E2-10R and E2-122R, VASP compatible. 2-year warranty, extendable to 3 years with installation by an approved Autoterm professional.

⚠️ Important: This kit is designed for the Crafter 2006–2016 (Mercedes W906 platform). The Crafter from 2017 onwards is based on a new MAN platform — it has its own dedicated kit (SKU 9.396), which is not interchangeable with this one.

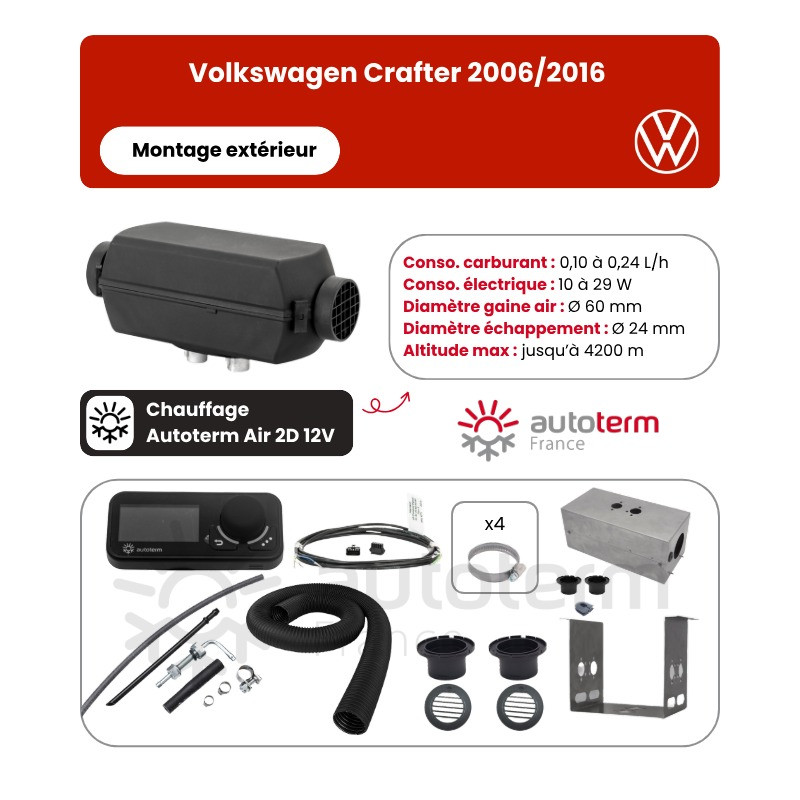

Autoterm heating kit contents – VW Crafter (2006–2016)

• 1 Autoterm Air 2D diesel heater (2 kW) with its complete basic kit
• 1 Comfort Control panel + extension cable
• 1 mounting bracket / housing adapted to the Crafter 2006–2016 chassis
• Ultra-resistant ducting Ø 60 mm
• Ø 60 mm clamps and outlet grilles
• Hose clamps
• Adapted fuel connection system

Autoterm Air 2D basic kit included: control panel cable 1.80 m · fuel pump cable 6 m · power supply cable 6.50 m 12 V · nylon fuel line 5.5 m · silent fuel pump · diesel immersion probe · silencer with mounting kit · stainless steel exhaust pipe 1 m (Ø 24 mm) · thermal insulation 45 cm · air intake pipe with silencer · screws, fittings and clamps.

How to install the heating kit on a VW Crafter (2006–2016)?

The mounting bracket bolts onto the W906 chassis frame rail. The fuel connection is made without drilling the tank. The electrical cables run to the battery or the conversion's battery bank, and the duct passes through the floor to distribute warm air into the cabin.

The installation manuals and conformity certificates are available on the Autoterm website — useful to keep for the VASP file and during technical inspections.

Useful complementary products:

• Ø 60 mm heating duct
• 7 L or 13 L auxiliary fuel tank
• Autoterm heater accessories

A heating kit compatible with VASP certification

The Autoterm Air 2D is certified E2-10R and E2-122R, the two European standards required to certify an independent heater as part of a VASP certification. The certificates are supplied by Autoterm and must be presented to the inspector during the type approval inspection.

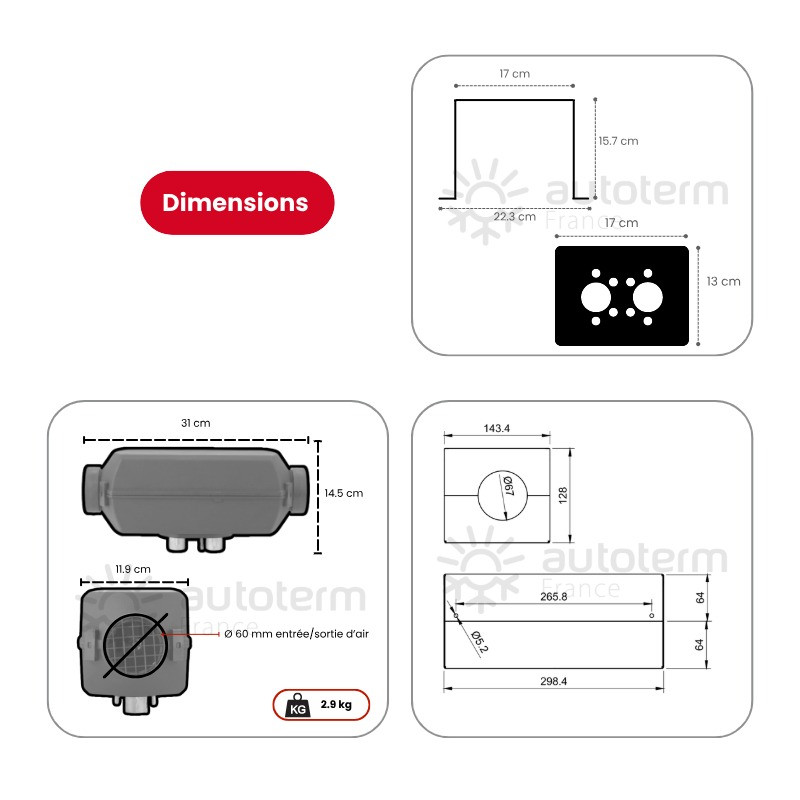

Technical specifications of the Autoterm Air 2D heating kit – VW Crafter (2006–2016)

• Heater included: Autoterm Air 2D
• Heating output: 0.8 kW (min.) to 2 kW (max.)
• Heated air volume: 34 to 86 m³/h
• Fuel: Diesel (gas oil)
• Fuel consumption: 0.10 to 0.24 L/h
• Power consumption: 10 to 29 W
• Voltage: 12 V
• Air duct diameter: Ø 60 mm
• Exhaust diameter: Ø 24 mm
• Maximum operating altitude: up to 4,200 m
• Control panel: Comfort Control (included)
• Installation: External under-chassis
• Compatible vehicles: Volkswagen Crafter 1st generation, 2006–2016 (Mercedes W906 platform)
• Certification: E2-10R / E2-122R (VASP compatible)
• Warranty: 2 years (3 years with installation by an approved installer)
