Autoterm diesel heating kit for VW Crafter (from 2017): keeping the new generation warm too

This Autoterm Air 2D kit has been specifically developed for the Crafter from 2017, with a dedicated fuel tap and a mounting bracket adapted to this new generation.

The external under-chassis mounting is the chosen solution: the stainless steel mounting box protects the heating unit from road spray, and no interior space is used. Warm air rises via a 60 mm duct to the outlet grilles inside the van. The Autoterm Air 2D delivers up to 2 kW for a volume of up to 20 m³, with a fuel consumption of 0.10 to 0.24 L/h of diesel. Its brushless motor and silent pump ensure quiet operation, and its oxygen sensors allow it to automatically adapt to altitude up to 4,200 m. The Comfort Control panel, supplied with its extension cable, allows the temperature to be adjusted from inside the cab.

This kit is designed for the L1H1 and L2H2 versions of the Crafter after 2017 12 V. Certified E2-10R and E2-122R, VASP compatible. 2-year warranty, extendable to 3 years with installation by an Autoterm-approved professional.

⚠️ Important: This kit is incompatible with the Crafter 2006–2016 (old Mercedes platform). If your Crafter was produced before 2017, please refer to the dedicated kit SKU 9.395.

How do I identify a Crafter 2017+?

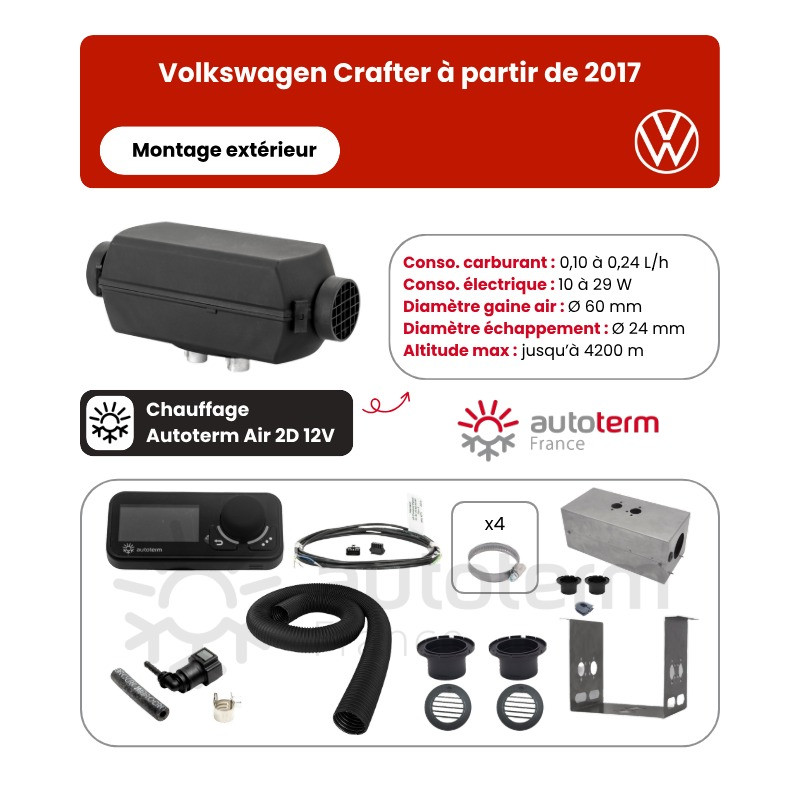

Contents of the Autoterm heating kit – VW Crafter (from 2017)

• 1 Autoterm Air 2D diesel heater (2 kW) with its complete base kit
• 1 Comfort Control panel + extension cable
• 1 stainless steel mounting box + suspended mounting bracket adapted to the Crafter 2017+
• 1.5 m of ultra-resistant duct Ø 60 mm
• 2 clamps Ø 60 mm
• 2 grilles Ø 60 mm
• 4 stainless steel clips Ø 60 mm
• 1 dedicated fuel tap kit for Volkswagen Crafter (post-2017)

Autoterm Air 2D base kit included: control panel cable 1.80 m · fuel pump cable 6 m · 12 V power supply cable 6.50 m · nylon fuel line 5.5 m · silent fuel pump · diesel plunger · silencer with mounting kit · stainless steel exhaust pipe 1 m (Ø 24 mm) · thermal insulation 45 cm · air intake pipe with silencer · screws, fittings and hose clips.

How do I install the heating kit on a VW Crafter 2017+?

The stainless steel mounting box bolts under the Crafter chassis. The dedicated fuel tap kit connects directly to the original tank without drilling. The electrical cables connect to the battery or the fit-out battery bank, and the duct passes through the floor to distribute warm air inside the cab. The kit is designed for L1H1 and L2H2 versions; for 4Motion versions, an adjustment to the bracket may be required.

The installation manuals and certificates of conformity are available on the Autoterm website — useful to keep for the VASP file and during technical servicing.

Useful complementary products:

• Additional heating duct Ø 60 mm
• 7 L or 13 L auxiliary fuel tank
• Autoterm heating accessories

A heating kit compatible with VASP certification

The Autoterm Air 2D is certified E2-10R and E2-122R, in compliance with the VASP certification requirements for autonomous heaters fitted in a converted vehicle. The certificates are provided by Autoterm and must be handed to the inspector at the time of the approval inspection.

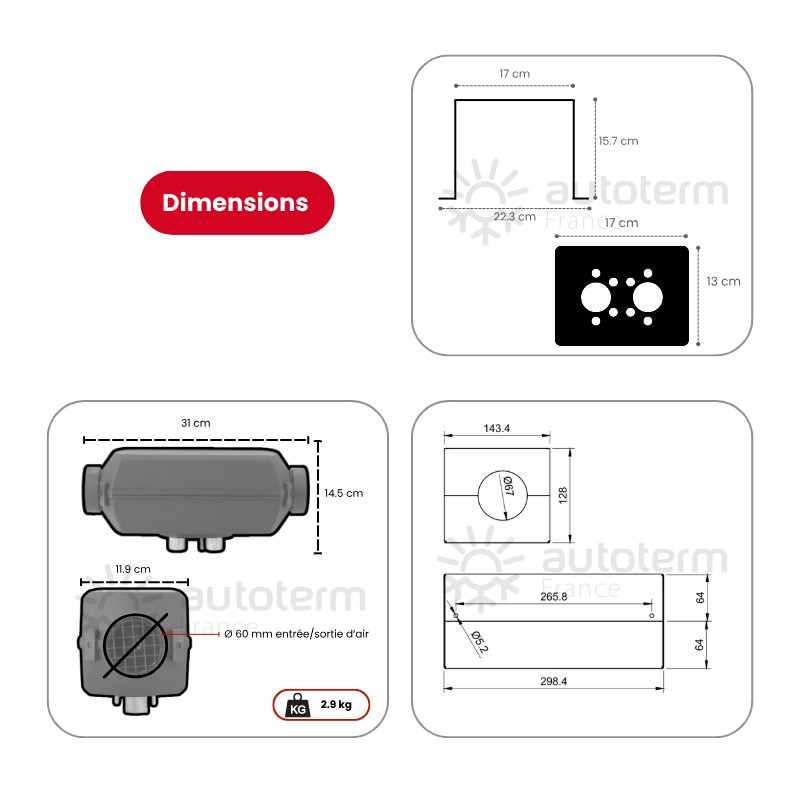

Technical specifications of the Autoterm Air 2D heating kit – VW Crafter (from 2017)

• Heater included: Autoterm Air 2D
• Heating output: 0.8 kW (min.) to 2 kW (max.)
• Heated air volume: 34 to 86 m³/h (up to 20 m³)
• Fuel: Diesel
• Fuel consumption: 0.10 to 0.24 L/h
• Power consumption: 10 to 29 W
• Voltage: 12 V
• Air duct diameter: Ø 60 mm
• Exhaust diameter: Ø 24 mm
• Maximum operating altitude: up to 4,200 m
• Control panel: Comfort Control (included)
• Mounting: External under chassis (stainless steel box included), L1H1 and L2H2
• Compatible vehicles: Volkswagen Crafter 2nd generation, from 2017 (MAN platform)
• Certification: E2-10R / E2-122R (VASP compatible)
• Warranty: 2 years (3 years with installation by an approved installer)
