Autoterm diesel heating kit for Man TGE L1H1/L2H2 (2006–2016): under-chassis thermal independence

The Man TGE (body codes 2E / 2F) is the big brother of the MAN family in the light van segment. Produced between 2006 and 2016 in its L1H1 and L2H2 versions, it offers generous living space once converted into a campervan, but requires a heating kit specific to its chassis architecture. This Autoterm Air 2D kit is purpose-built for these versions: a stainless steel mounting box with an anti-vibration bracket adapted to the TGE's geometry, a compatible fuel tapping system, and a 60 mm duct to channel warm air into the cabin.

The mounting is external, under the chassis — the interior space of the van is fully preserved. The Autoterm Air 2D delivers up to 2 kW of thermal output for a fuel consumption of 0.10 to 0.24 L/h of diesel. Its brushless motor and variable-flow pump ensure quiet operation, particularly appreciated for overnight stays in a van. Its integrated oxygen sensors automatically adjust combustion at altitudes of up to 4,200 m. The Comfort Control panel, included with its extension cable, allows temperature adjustment from inside the van.

ECE 10R / 122R (E2-10R / E2-122R), VASP compatible. 2-year warranty, extendable to 3 years with installation by an Autoterm-approved professional.

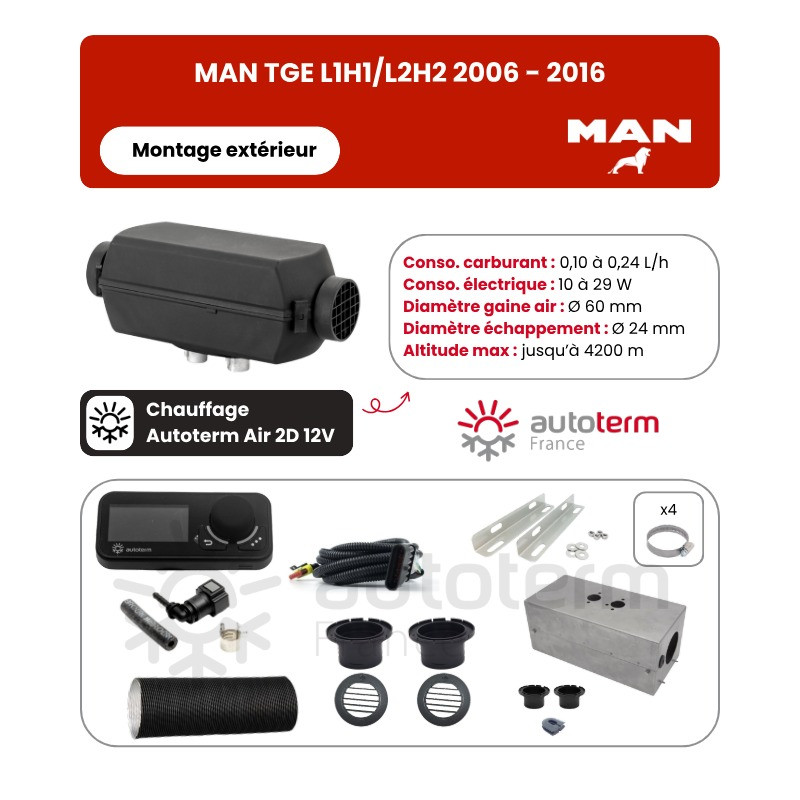

Contents of the Autoterm heating kit – Man TGE L1H1/L2H2 (2006–2016)

• 1 Autoterm Air 2D diesel heater (2 kW) with its complete base kit
• 1 Comfort Control panel + extension cable
• 1 stainless steel mounting box + TGE-specific anti-vibration bracket
• Ultra-resistant Ø 60 mm duct
• Ø 60 mm clamps and outlet grilles
• Stainless steel hose clamps
• Fuel connection system adapted to the TGE

Autoterm Air 2D base kit included: control panel cable 1.80 m · fuel pump cable 6 m · power cable 6.50 m (12) · nylon fuel line 5.5 m · silent fuel pump · diesel pick-up · silencer with mounting kit · stainless steel exhaust pipe 1 m (Ø 24 mm) · thermal insulation 45 cm · air intake pipe with silencer · screws, fittings and clamps.

How to install the heating kit on the Man TGE?

The stainless steel mounting box is fixed under the TGE chassis. The included anti-vibration bracket isolates the heating unit from chassis vibrations, extending the life of the appliance. The fuel tap connects to the tank without drilling. The electrical cables run to the vehicle's electrical system or the conversion's battery bank, and the 60 mm duct passes through the floor to distribute warm air into the cabin.

The installation manuals and certificates of conformity are available on the Autoterm website — useful to keep for the VASP file and during technical servicing.

Useful complementary products:

• Additional Ø 60 mm heating duct
• 7 L or 13 L auxiliary fuel tank
• Autoterm heating accessories

A heating kit compatible with VASP certification

The Autoterm Air 2D is certified ECE 10R / 122R (E2-10R / E2-122R), in accordance with VASP certification requirements for autonomous heaters in converted vehicles. Certificates are provided by Autoterm and must be handed to the inspector during the type approval inspection.

Technical specifications of the Autoterm Air 2D heating kit – Man TGE L1H1/L2H2 (2006–2016)

• Heating included: Autoterm Air 2D
• Heating output: 0.8 kW (min.) to 2 kW (max.)
• Heated air volume: 34 to 86 m³/h (up to 20 m³)
• Fuel: Diesel
• Fuel consumption: 0.10 to 0.24 L/h
• Power consumption: 10 to 29 W
• Voltage: 12 V
• Air duct diameter: Ø 60 mm
• Exhaust diameter: Ø 24 mm
• Maximum operating altitude: up to 4,200 m
• Control panel: Comfort Control (included)
• Mounting: External under chassis (stainless steel box + anti-vibration bracket included)
• Compatible vehicles: Man TGE L1H1 and L2H2, codes 2E / 2F, produced between 2006 and 2016
• Certification: ECE 10R / 122R – E2-10R / E2-122R (VASP compatible)
• Warranty: 2 years (3 years with installation by an approved installer)
