Autoterm diesel heating kit for Fiat Talento: the thermal companion for the compact van

The Fiat Talento, produced between 2016 and 2021 on the shared platform with the Renault Trafic, is a compact van appreciated for its urban dimensions and the quality of its interior. This Autoterm Air 2D kit is specifically designed to equip it with an autonomous heater, with a mounting bracket and fuel connection system specifically adapted to the Talento's architecture.

The external under-chassis mounting is the neatest solution on this type of compact van: the heater is concealed under the vehicle, leaving the interior entirely intact. No bulky unit on the floor, no visible floor cut-out. The warm air rises through a 60 mm duct and is distributed through the grilles and deflectors included in the kit. The fuel connection is made without drilling the main tank, thanks to the quick-connect fitting supplied.

The Autoterm Air 2D delivers up to 2 kW with a consumption of 0.10 to 0.24 L/h of diesel, with quiet operation and automatic altitude regulation up to 4,200 m. The Comfort Control panel, supplied with an extension cable, controls the temperature up to 30 °C from inside the van. Certified E2-10R and E2-122R, VASP compatible. 2-year warranty, extendable to 3 years with installation by an Autoterm-approved professional.

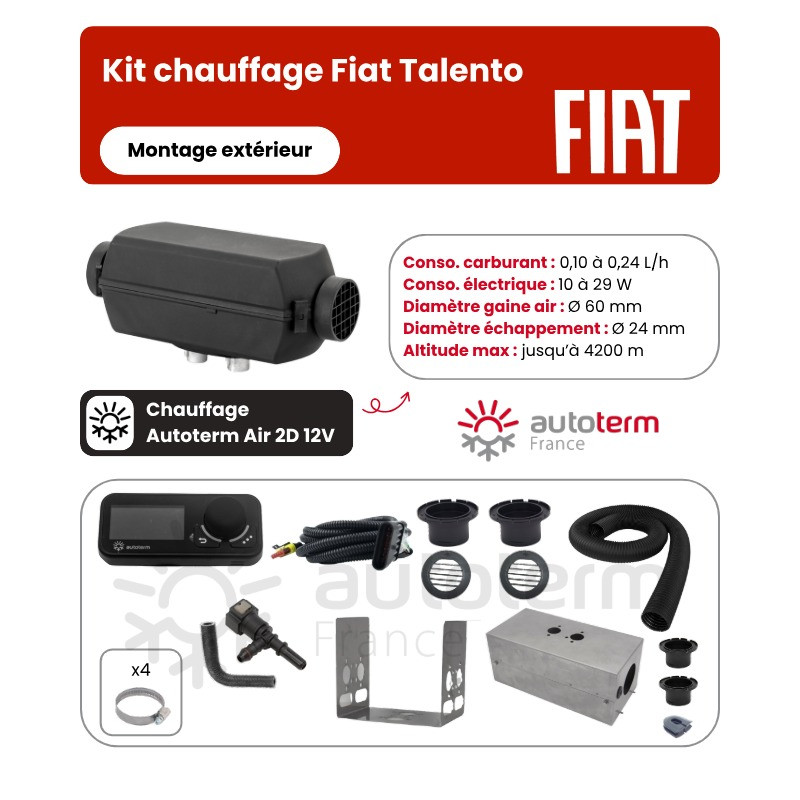

Autoterm heating kit contents – Fiat Talento

• 1 Autoterm Air 2D diesel heater (2 kW) with its complete base kit
• 1 Comfort Control panel + extension cable
• 1 external mounting bracket adapted to the Talento chassis
• Heavy-duty duct Ø 60 mm
• Air deflectors
• Ø 60 mm clamps and outlet grilles
• Hose clamps
• Fuel tap system adapted to the Talento tank

How to install the heating kit on a Fiat Talento?

Installation is carried out under the Talento's chassis. The mounting bracket is fixed to the longitudinal member and the heater is bolted to it. The fuel tap connects to the tank without drilling. The electrical cables run to the battery or the battery bank of the conversion, and the 60 mm duct passes through the floor to blow warm air into the cabin.

The installation manuals and conformity certificates are available on the Autoterm website — useful to keep for the VASP file and during technical work.

Useful complementary products:

• Heating duct Ø 60 mm – to distribute air over multiple outlets
• 7 L or 13 L auxiliary fuel tank
• Autoterm heater accessories – clamps, grilles, deflectors

A heating kit compatible with VASP certification

The Autoterm Air 2D is certified E2-10R and E2-122R, the two mandatory European standards for VASP approval of an autonomous heater in a converted vehicle. Conformity certificates are provided by Autoterm and must be handed to the inspector during the inspection.

Technical specifications of the Autoterm Air 2D heating kit – Fiat Talento

• Heater included: Autoterm Air 2D
• Heating output: 0.8 kW (min.) to 2 kW (max.)
• Heated air volume: 34 to 86 m³/h
• Fuel: Diesel
• Fuel consumption: 0.10 to 0.24 L/h
• Power consumption: 10 to 29 W
• Voltage: 12 V

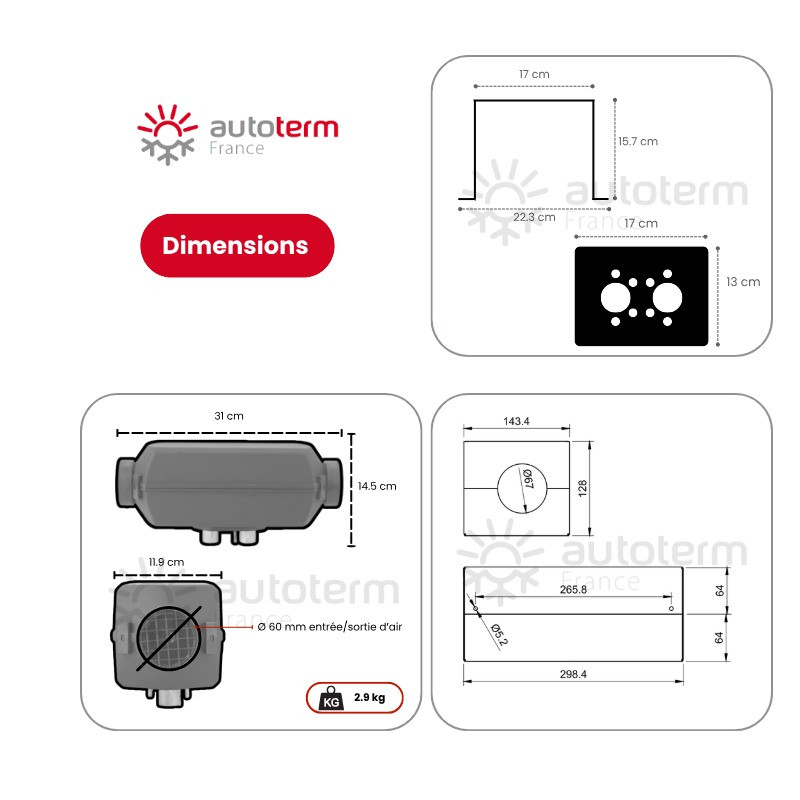

• Duct diameter: Ø 60 mm
• Exhaust diameter: Ø 24 mm
• Maximum operating altitude: up to 4,200 m
• Control panel: Comfort Control (included)
• Mounting: External under chassis
• Compatible vehicles: Fiat Talento, 2016–2021
• Certification: E2-10R / E2-122R (VASP compatible)
• Warranty: 2 years (3 years with installation by an approved installer)
