Soliege sprayable cork | Enduit Naturel Professionnel

Natural, effective and easy insulation for your van

Are you looking for an ecological insulation solution that's effective and easy to apply? Then Soliege sprayed cork is for you. Ready to use and made in France from natural cork sourced from local forests, it combines thermal, sound and moisture insulation, while being rot-proof, light and healthy.

Recommended by our experts Heode, it's ideal for insulating your van quickly and durably, even in the smallest corners. It's the easiest solution on the market to apply, ideal even for beginners.

Why insulate a van with sprayed cork ?

Suitable for insulating converted vans, Soliege sprayed cork coating ensures that thermal bridges are broken thanks to a thin layer of insulation in the smallest nooks and crannies.

As well as being a thermal insulator, Soliege natural sprayed cork acts as a vapour barrier. The sheet metal on your van is a very good conductor of heat, encouraging the formation of water vapour, which over time can lead to rust spots on the body. Spray cork protects the sheet metal by preventing vapour from settling on it.

Soliege product benefits :

• Natural and healthy: biocide-free, fungicide-free, VOC-free
• Zero condensation: eliminates thermal bridges
• Acoustic comfort: reduction of up to 19 dB
• High-performance thermal insulation (lambda 0.039 W/m.K)
• Moisture regulator: natural vapour barrier effect
• Easy to apply with a plastering gun
• Zone Verte EXCELL+ certified product

Spray cork protects the sheet metal from condensation, considerably reducing the risk of rust. It also absorbs vibrations and minimises resonance in the passenger compartment.

Tip Heode once the interior of your vehicle is completely clean (Using the armaflex cleaner), place Armacomfort Barrier B 2mm soundproofing in first position, followed by Liège Projeté natural plaster thermal insulation, and finally aF Armaflex 19mm insulation or biofib Trio, Isovégétal Flex or even MÉTISSE RT insulation panels.

How do you apply spray cork in a van ?

The application of top-of-the-range professional sprayed cork perfectly suited to private use. Spray cork is a thin-layer insulation solution that provides top-of-the-range thermal insulation for commercial vehicles.

Before anything else, prepare with Heode all the materials you need to lay sprayed cork. And take a look at the complete installation process.

Protection and preparation equipment :

• Protective plastic film
• Painter's tape
• Clean rags or professional paper towels
• Cleaner Armaflex 1L (sheet metal cleaner)
• Bucket or clear water tank with scale
• Coveralls, gloves, goggles, shoe covers (optional but recommended)

Mixing materials :

• Large mixing bucket
• Transfer shovel or dish
• Professional mixer or drill attachment

Screening equipment :

• Compressor 90L minimum (ideally 100L), 3 HP, flow rate ≥ 250L/min
• Professional plastering gun with 5-litre cup (6 mm nozzle)

Finishing equipment (optional) :

• Natural pigment (anthracite or white)
• Oil-repellent treatment product
• 240 grain sandpaper

At what temperature should spray cork be applied in a van ?

You can't spray cork onto the sheet metal parts of your van at any temperature. That's why it's essential to have all the equipment you need to apply it. And it's advisable to follow a strict procedure to ensure the success of your sprayed cork insulation.

To apply your thermal insulating cork coating, the team Heode recommends that you place your vehicle in a sheltered area. This will allow you to leave the doors open for optimum drying !

If you have to spray your cork coating outside, prefer dry weather with a temperature of over 15° to a maximum of 35°.

How do I apply spray cork ?

Preparing your vehicle

1. Remove the plastic trim to expose all the inner sheet metal
2. Carefully protect areas that should not be covered (painter's tape, plastic film)
3. Clean the sheet thoroughly with Armaflex cleaner

Preparing the mixture

1. Pour 6 litres of clean water into a clean bucket
2. Gradually add 6 kg of Soliege cork while mixing
3. Mix until you obtain a smooth, supple paste

Application

1. Spray the cork with a suitable spray gun connected to a compressor (4 bar min.)
2. Apply the material in thin layers
3. Clean all equipment immediately after each coat

Drying & next coats

1. Leave to dry for 24 to 48 hours in a sheltered area with the doors open
2. Repeat the operation for a second or third coat

Finishing (optional)

1. Pigment to be added in the final coat only
2. Can be sanded once completely dry for a smooth or visible finish

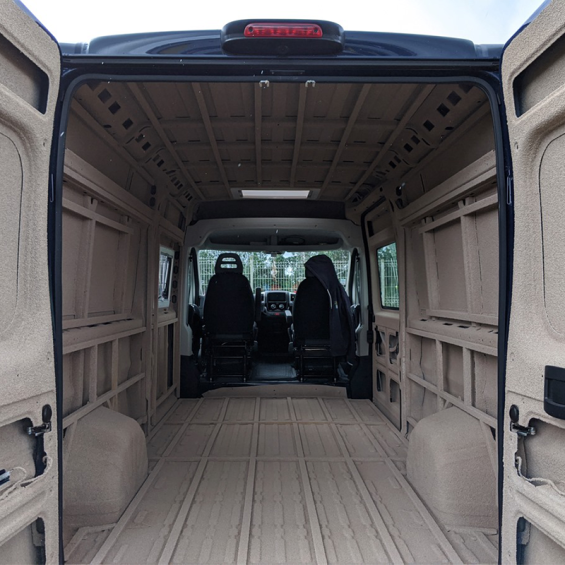

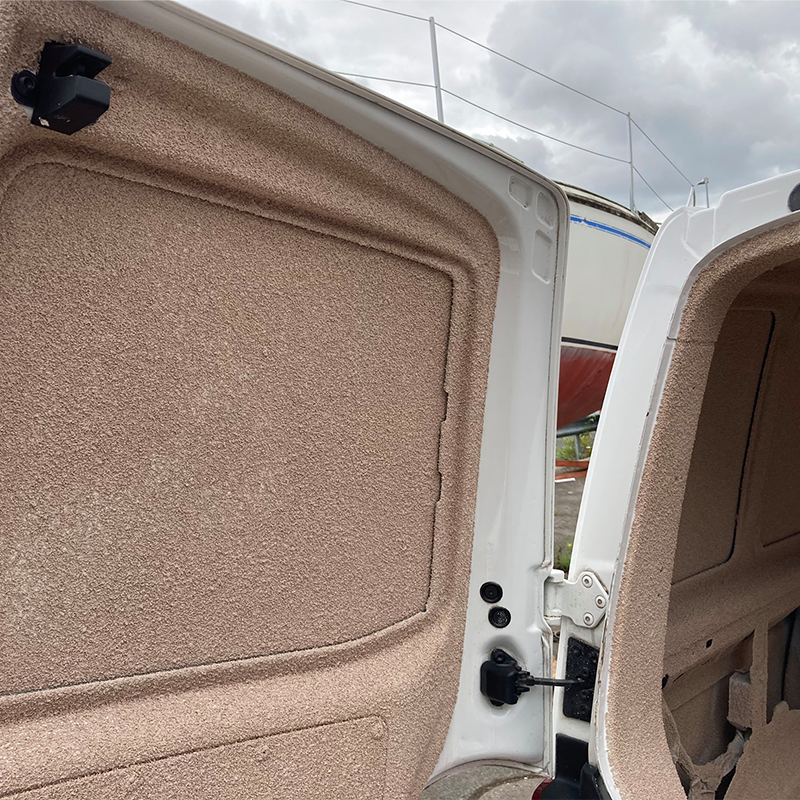

Whether untreated or pigmented, sprayed cork gives a beautiful finish to the interior of a converted van. Some vanlifers have chosen to leave the cork covering their hinged doors visible, for example.

Now it's up to you to take advantage of the quality benefits of sprayed cork insulation in your converted van! Buying SOLIEGE sprayed cork ready to use means you're getting the right material for successful insulation and eliminating all thermal bridges !

Heode responds to the needs of travellers looking for quality materials and provides the best possible support for their van refurbishment project !

What is spray cork made of ?

Find out more about the technical characteristics of sprayed cork insulation in this section.

The Soliege solution is a dry, single-component formulation of natural cork granules, to be reconstituted with water, which dries after application to all types of surfaces.

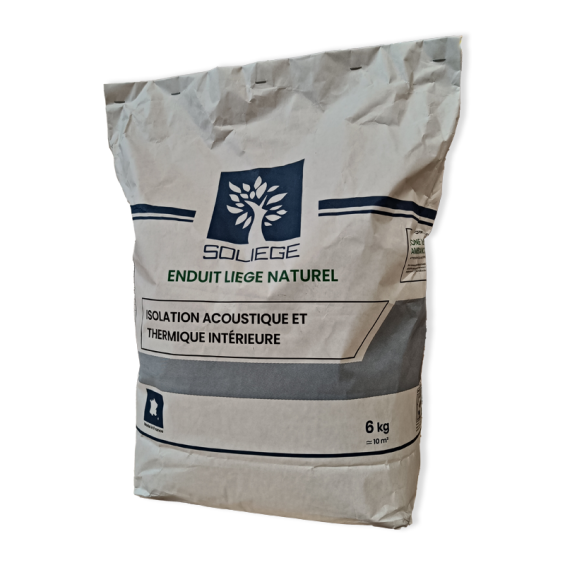

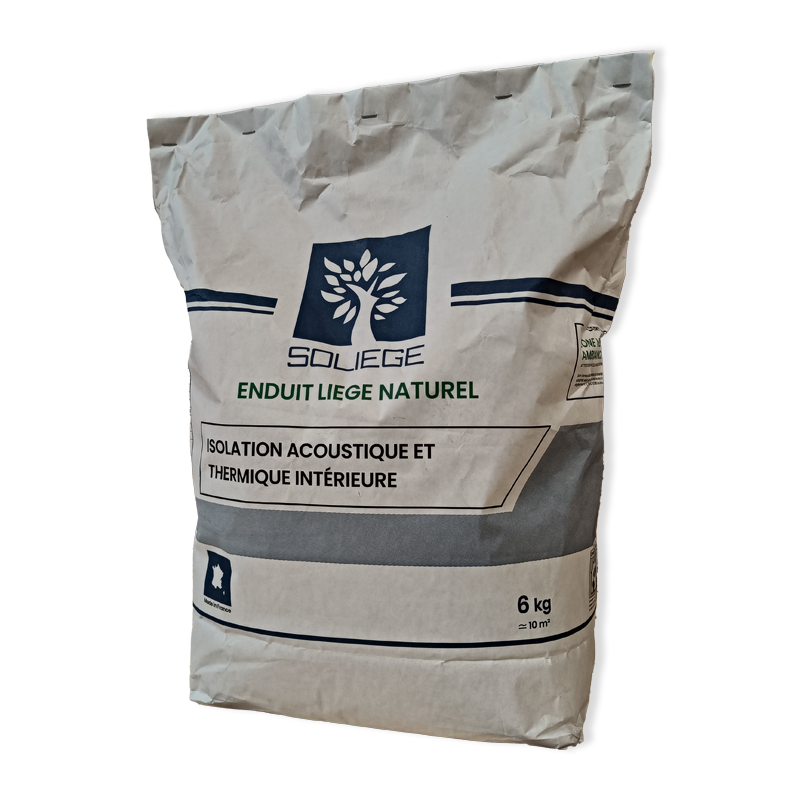

• 6Kg bag of natural cork granules ready for use
• Bag dimensions (L x W x H): 30 x 17 x 60 cm
• Ingredients: cork, natural fibres, mineral fillers, thickeners, binder
• Cork from forests in France (no biocides, fungicides or volatile organic compounds)
• Lightweight insulation
• 92% natural origin
• Green Zone certification issued by Laboratoire Excell
• Easy to install
• Breaking thermal bridges
• Noise reduction of up to 19 dB
• Resistance to the propagation of water vapour (reduces the risk of corrosion), rot-proof insulation

How many bags of spray cork do you need to insulate your van ?

Heode gives you a few tips to help you order the right number of 6Kg bags of SOLIEGE natural cork coating to insulate your van !

6 kg of sprayed cork + 6 L of water = 12 kg of homogeneous paste to cover approximately 10m²

• Know the size of your vehicle.
• Know the dimensions (L x W x H) of the rear area (side walls, ceiling, floor, hinged doors or tailgate) of your vehicle.
• Have an idea of the number of layers and therefore thicknesses of sprayed cork you want (a layer of sprayed cork is equivalent to an average thickness of 1mm).

The data presented in the tables below includes bag estimates in relation to the average surface area in m² present in the body of a Renault Trafic 3 since 2015 depending on its size.

For a vehicle of size L1H1 Renault Trafic 3 approximately 20m² :

For a vehicle of size L2H1 Renault Trafic 3 approximately 23m² :

Our expert advice Heode for sprayed cork

• Apply in a sheltered area with the doors open
• Prepare all materials in advance to ensure smooth operation
• Work in pairs if possible: one mixes, one projects
• The product can be stored for a few days in a sealed bucket with plastic film
• Compatible with : Armacomfort Barrier B 2mm, , Armaflex AF, , Biofib Trio 45mm, , Isovégétal Flex 45mm, , MÉTISSE RT 20kg/m3 insulation - 45mm recycled cotton insulation panel

An example of a high-performance combination, particularly on the sides of your van:

1. Armacomfort 2 mm for thermal and acoustic insulation

2. Soliege projected cork (1 to 3 coats) for thermal insulation and breaking thermal bridges

3. Armaflex AF 19mm self-adhesive or Biofib Trio / Isovégétal Flex / MÉTISSE RT insulation

If you are installing Biofib Trio, Isovégétal Flex or Isolant MÉTISSE RT panels, it is essential that you apply vapour brake for optimum, all-round protection. The vapour barrier must be held in place by double-sided adhesive to be fixed directly to the sheet metal.

FAQ about Soliege spray cork

Can sprayed cork be coloured ?

Yes, you can personalise the final appearance of the sprayed cork by adding a pigment to the mixture (cork + water). Heode offers natural pigments (white, anthracite) in pots or sachets. We recommend adding the pigment only to the last coat. Use only one pigment at a time for an even finish. The lighter the pigment, the larger the dose to be added.

Is spray cork certified ?

Yes, Soliege cork is certified by the Zone Verte EXCELL® / EXCELL+® label, guaranteeing a very high level of quality. This certification guarantees that the product does not emit harmful chemical compounds and respects the living comfort of users.

Can I combine spray cork with other insulation materials ?

Absolutely. Spray cork can be used in conjunction with other thermal or acoustic insulation materials. At Heode, we often recommend combining it with :

• armacomfort Barrier B 2mm (must be laid before applying sprayed cork),
• self-adhesive Armaflex AF 19mm (must be laid over the completely dry sprayed cork) or panels of Biofib Trio; Isovégétal Flex; Isolant MÉTISSE RT (must be laid on top of completely dry sprayed cork).

How long does it take to apply spray cork in a van ?

Spray cork can be applied in half a day if the equipment is ready. Allow between 24 and 48 hours for each coat to dry. For insulation in 2 or 3 layers, allow between 2 and 4 days depending on weather conditions.

Is spray cork suitable for all van surfaces ?

Yes, it can be applied to the sides, ceiling, floor, hinged doors or tailgate. Thanks to its paste-like texture, it adheres to complex shapes and hard-to-reach nooks and crannies. It is particularly recommended for metal areas prone to condensation.

Can sprayed cork be left exposed ?

Yes! Once dry, it gives a natural, textured finish that is much appreciated. You can choose to sand it for a smoother finish, or add a pigment to colour it. Some travellers leave it visible on the side walls or rear hinged doors.

Is spray cork environmentally friendly ?

Absolutely. It's a natural product, with no solvents, VOCs or chemical additives. It comes from French forests and is manufactured locally. It is EXCELL+ certified for its purity and safety.
