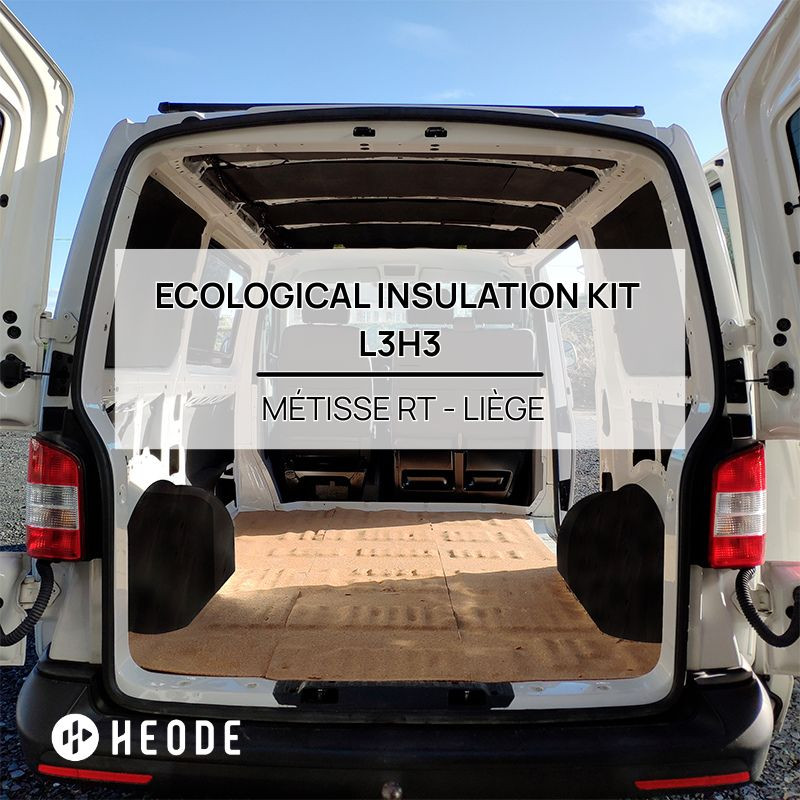

The eco-friendly insulation kit for large vans (L3H3)

Insulating a large volume like your L3H3 van is a major project. There's no time to get bogged down comparing the environmental impact, thermal-acoustic efficiency and price of all the insulation materials available on the market! To make your life easier, the fitters at Heode have put their expertise at your service to design an all-in-one solution that not only performs well, but also respects the planet and your wallet.

What's more, our van-fitting pros are no novices: the proof is in the success of our L3H3 Vehicle Insulation Kit with Armaflex and cork.

In this new kit, we've focused on products that offer optimum thermo-acoustic performance without compromising on environmental impact. Each component has been rigorously selected for its effectiveness in meeting the challenges of large buildings: humidity, thermal bridges, complex areas to insulate, etc.

This kit is therefore the ideal solution for Fiat Ducato, Citroën Jumper, Peugeot Boxer, Renault Master, Ford Transit, Mercedes-Benz Sprinter and Volkswagen Crafter in their L3H3 versions.

4 mm cork: the healthy, durable base for your floor

Cork is an essential foundation for the floor of your L3H3. This bio-sourced material is a real champion of insulation.

• Rot-proof: it provides a reliable barrier against damp and prevents the growth of mould.
• Incompressible: it withstands the weight of your furnishings without flinching, and is highly resistant to frequent use.
• A natural insulator: it provides first-rate thermal and acoustic comfort, for a serene indoor environment.

Supplied in rolls, it's incredibly easy to install. Take your floor covering as a model, cut the cork with a cutter, and voilà! It's so simple that there's virtually no margin for error.

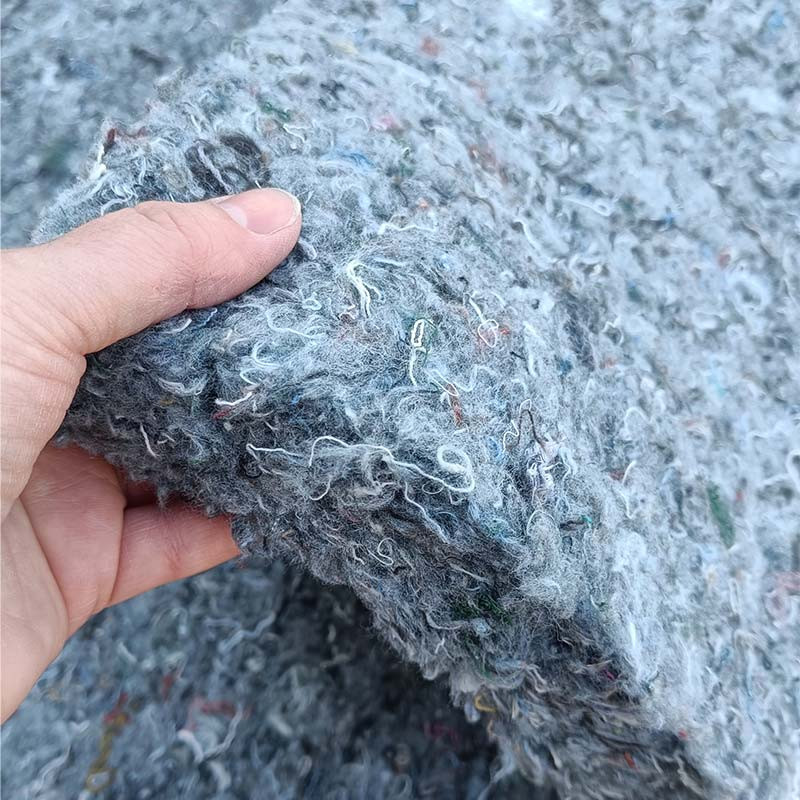

Métisse RT: high-performance insulation for everything else in your van

French-made, socially responsible, recycled and ultra-high-performance... Métisse RT is a concentrate of qualities.

Métisse RT 20kg/m3: absolute comfort, summer and winter alike

Do you want to turn your L3H3 into a real cocoon? Métisse RT is the insulation you need for your entire vehicle: ceilings, walls, doors and even the hardest-to-reach reinforcements.

Its thermal performance is exceptional (lambda of 0.039 W/m-K). Thanks to its excellent phase shift, it maintains a pleasant temperature inside, whether the outside thermometer is at its highest or lowest. In terms of acoustics, it is capable of reducing noise by up to 68 dB, guaranteeing you a peaceful night's sleep.

For your safety and well-being, it is treated with fire retardant, antifungal and antibacterial properties at the heart of the fibre.

Métisse RT: a sensible choice

By choosing Métisse RT, you're not just insulating your van; you're making a commitment. It's a flagship product that we offer in a wide range of solutions, such as our L3H3 Armaflex and Métisse RT mixed kit, which competes with another well-known ecological insulation, the Armaflex and Biofib mixed kit, an insulation made from plant fibres.

M2tisse RT is made from recycled cotton fibres (70% minimum), giving a second life to textiles. This virtuous chain is run by Le Relais (Emmaüs network), a major player in the field of professional integration in France. So it's a local, socially responsible and environmentally friendly choice. And to make matters worse, it can be fully recycled at the end of its life.

Premium insulation that respects your budget

The equation "quality + ecology = exorbitant price" is a common misconception. Métisse RT is the best proof of this, with a price-quality ratio that is simply unrivalled on the market.

Team Heode 's advice on installing the kit for L3H3: child's play, even for beginners!

Not much of a DIY enthusiast? Don't panic! This kit has been specifically designed so that anyone can insulate successfully. We've simplified everything: the quantities are already calculated for your L3H3 (with a small safety margin for your peace of mind), and the products are disconcertingly easy to use.

Métisse RT is supplied in panels, which are much easier to handle than rolls, which also reduces the time spent cutting. Flexible and lightweight, it can be cut effortlessly with a simple knife. What's in it for you? Zero toxic emissions (A+ rating) and, above all, zero itching! Incomparable laying comfort.

Before you start, you'll need to clean all the nooks and crannies of your vehicle scrupulously to remove any grease, dirt or rust that could prevent the adhesive from adhering properly. To do this, we've included Armacell solvent-free cleaner in this kit, which is kinder to the environment.

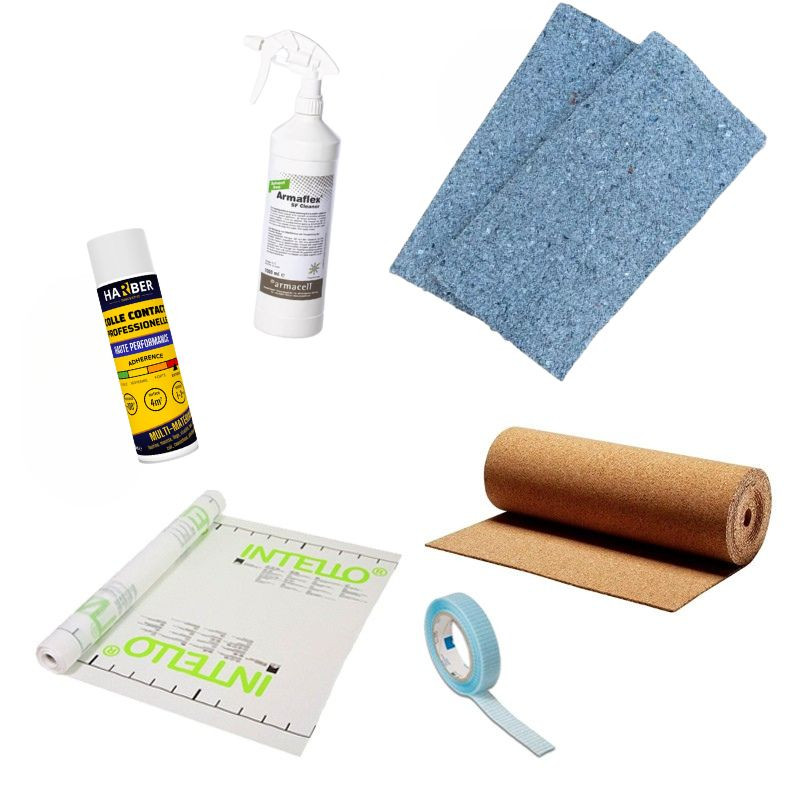

Everything you need to ensure the durability of your insulation is included: a contact adhesive spray for effective fixing, and a vapour barrier to protect your installation from damp and guarantee maximum durability.

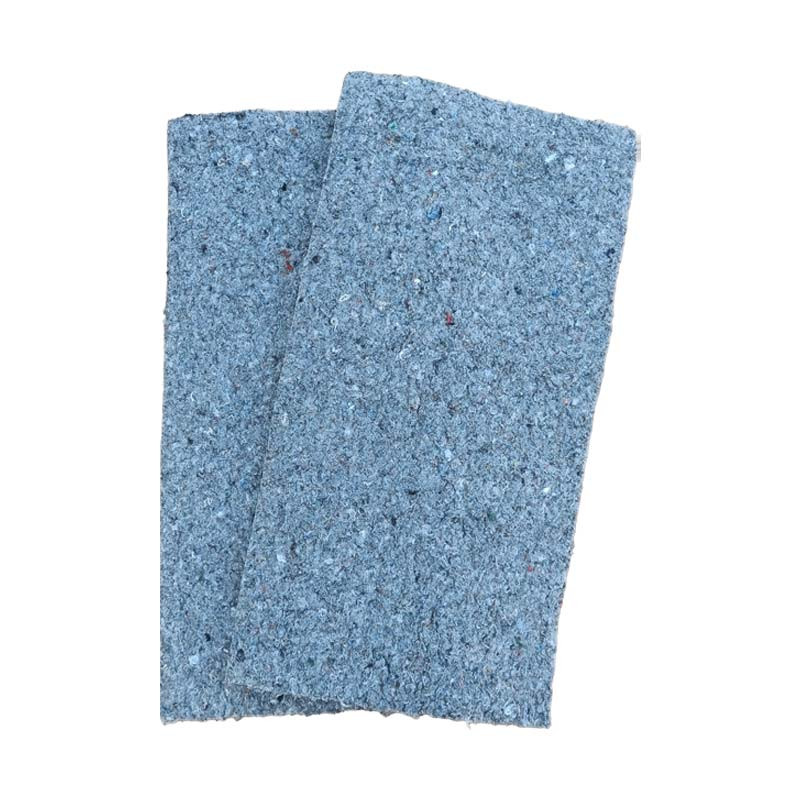

Technical characteristics of MÉTISSE RT 45 mm

• Thickness: 45 mm.
• Density: 20 kg/m³.
• Thermal resistance (R): 1.15 m²-K/W. Excellent protection against heat and cold.
• Thermal conductivity (λ): 0.039 W/(m-K). The hallmark of high-performance insulation.
• Reaction to fire: Euroclass D-s2,d0 (bare product). For your safety.
• Thickness recovery after compression: 100%. Does not settle over time.
• VOC emissions: A+. Guarantees healthy indoor air.
• Panel dimensions: 1200 mm x 600 mm.
• Weight per panel: 0.65 kg. Lightweight for easy handling.

These values are certified by ACERMI (n°14/179/918) and issued by independent laboratories.

FAQ: answers to your questions

Can I lay this insulation over sprayed cork?

Yes, and it's an excellent strategy! The sprayed cork will act as an anti-condensation barrier, while the Métisse RT will provide the bulk of the thermal-acoustic insulation. Just make sure that the surface is dry (wait 24 to 48 hours minimum) and smooth before laying.

Why is the vapour barrier so important?

It is essential for natural fibre insulation. As Métisse RT "breathes", the vapour brake will manage the migration of water vapour to prevent it condensing on the cold sheet of your bodywork. It therefore protects your insulation and your vehicle from rust and mould.

What's the difference with a vapour barrier?

A vapour barrier is 100% waterproof. In a van, it could trap moisture inside the insulation. A vapour brake, on the other hand, is "intelligent": it blocks moisture coming from the inside but can let it escape to the outside if necessary. It's the healthiest solution for your van.

Are the quantities right for my L3H3 van?

Yes, absolutely. This kit is specifically sized for the large volumes of the Fiat Ducato, Citroën Jumper, Peugeot Boxer, Renault Master, Ford Transit, Mercedes-Benz Sprinter and Volkswagen Crafter in L3H3 version.
