Fibreglass panel for Mercedes Sprinter right-hand rear swing door since 2018

Fibreglass panel for Mercedes Sprinter right-hand rear hinged door

It's possible to fit your van with an opaque fibreglass panel!

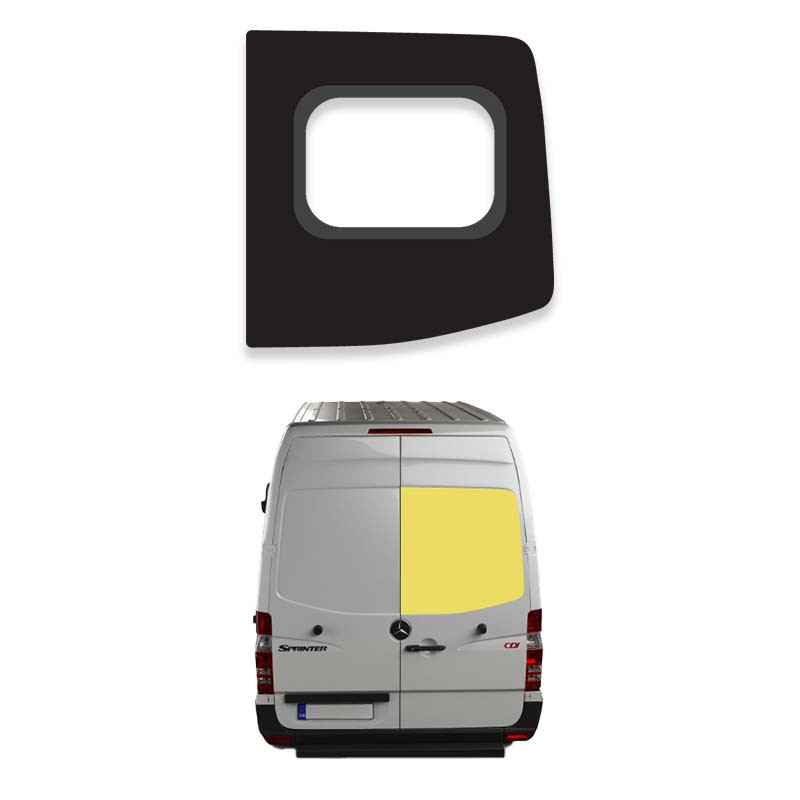

This black fibreglass panel is specifically designed to be fitted to the right-hand rear swing door of your Mercedes Sprinter. Completely opaque, it includes an opening for fitting a 457 x 382 mm right-hand sliding window with flyscreen(product sold separately on our site).

How do I fit a fibreglass panel to my van?

Step 1: Cut the sheet metal of your van to allow for the installation of your fibreglass panel on the right-hand hinged door.

Step 2: ApplyFrameto Anti-Rust to the perimeter of the opening to prevent rust. Allow to dry, then install a 6 to 8 mm reinforced gasket for double sheet metal, essential for protecting the edge of the sheet, which can be sharp, and obtaining a professional finish.

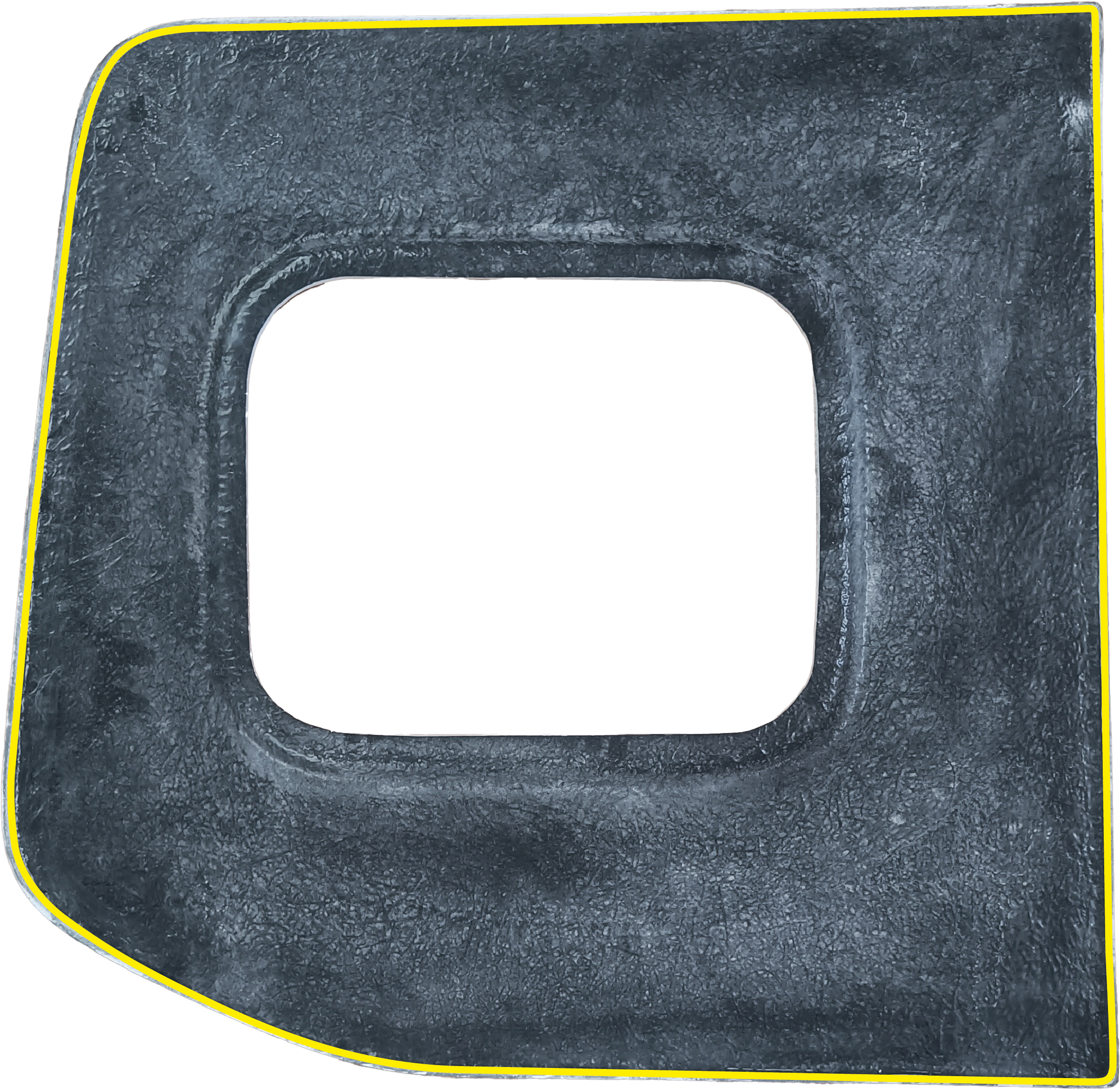

Step 3: Cleanly apply a bead of mastic adhesive (shown as a solid yellow line in the image below) around the inside of the fibreglass panel.

Step 4: Place the fibreglass panel directly on the sheet metal of your van in the space provided. Leave to dry for 24 hours in a dry, sheltered place.

Step 5: Using the professional mastic adhesive kit, install the 457 x 382 mm right-hand sliding window with flyscreen in the opening in the centre of the fibreglass panel. Be careful not to apply sealant to the window's rainwater drains. Leave to dry for 24 hours in a sheltered, dry place.

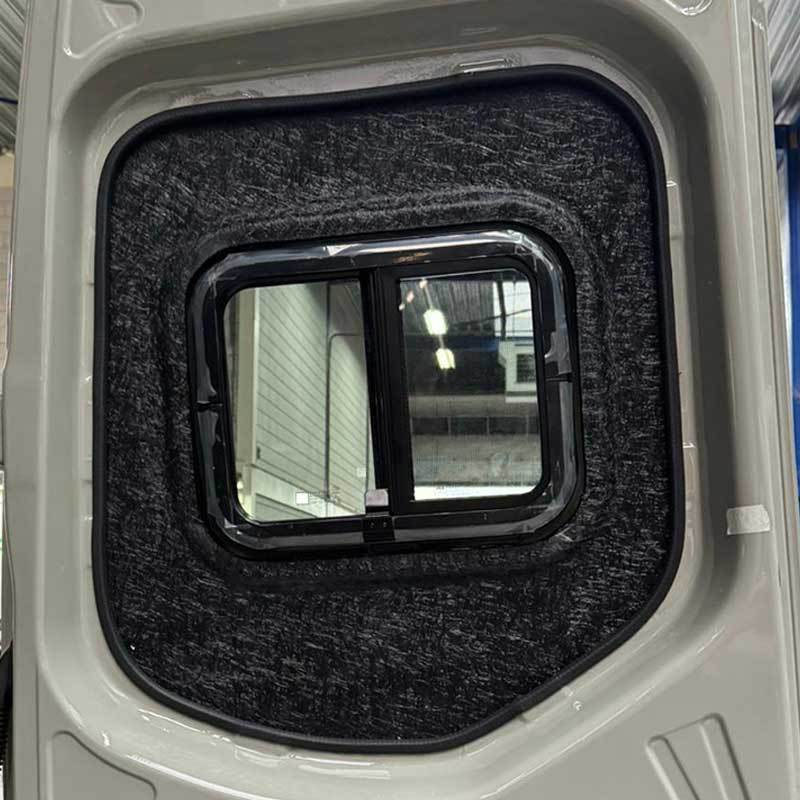

Step 6 (optional): Once everything is in place, create a wooden casing over which felt covering can be laid for an optimum interior finish!

Technical characteristics of the Sprinter right hinged door fibreglass panel

Dimensions (hxw): 77.7 cm(highest) x 78.5 cm(widest).
Thickness: approx. 0.5 cm.
Weight: 2.8 kg.
Material: Fibreglass.
Colour: Black.
Inside of panel: Fibreglass aspect(does not hurt or irritate).
Outside of panel: Gloss finish.
Vehicle compatibility: Mercedes Sprinter since 2018.
Only compatible with the 457 x 382 mm right-hand sliding window with flyscreen.
Please note that the shape of this panel for the right-hand rear swing door is not suitable for all Mercedes Sprinter models since 2018.
Please note that it is not compatible with a vehicle fitted with windscreen wipers.
