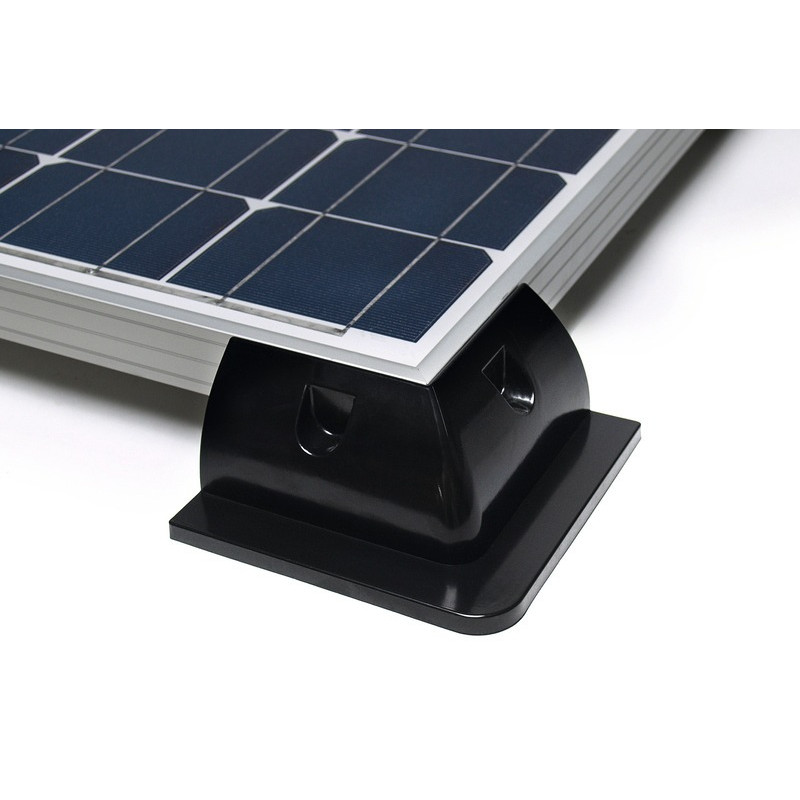

CARBEST solar panel corner bracket kit: secure your panel without drilling into your van roof

Drilling into a van roof to install a solar panel risks leaks or an insecure mount that may not withstand life on the road. The CARBEST solar panel corner bracket kit addresses this concern with an adhesive-mounted solution that requires no screws or drilling into the bodywork. Made up of 4 UV-resistant ABS brackets, it fits at the four corners of a rigid panel and holds it securely, whatever the panel brand, including those in our solar panel range.

Beyond simply holding the panel securely, the brackets leave an air gap between the panel and the roof. This improves ventilation and helps maintain the panel’s output even in high temperatures. Installation is straightforward and requires no specialist tools: clean the surface thoroughly, apply a suitable adhesive sealant and the brackets can be fitted in minutes, without compromising the watertightness of your conversion.

Sturdy and unobtrusive once fitted, this CARBEST kit is suitable for both a first solar installation and replacing ageing mounts. For panels particularly exposed to wind or installed in a multi-panel configuration, it can be paired with a side reinforcement to help stabilise the panel in the direction of travel.

How do you install the CARBEST solar panel corner bracket kit?

Installation is done entirely with adhesive, in a few simple steps:

• Thoroughly clean the mounting areas on the roof and brackets
• Position the 4 brackets at the corners of the solar panel
• Apply a suitable polyurethane adhesive sealant, such as Sikaflex 552 AT, recommended for mounting solar panels
• Press each bracket firmly into place and allow the adhesive to cure before driving
• Check that the assembly is stable before putting the panel into service

Remember to route the cable between the panel and your electrical system: a CARBEST roof cable entry provides a watertight connection into the vehicle.

Technical specifications of the CARBEST solar panel corner bracket kit

• Brand: CARBEST
• Material: UV-resistant ABS
• Number of pieces: 4 corner brackets
• Mounting: adhesive bonding (Sikaflex-type polyurethane sealant)
• Overall length: 15 cm
• Overall width: 9 cm
• Extension beyond the panel: 5 cm
• Panel support depth: 3 cm
• Compatibility: rigid solar panels, all brands
