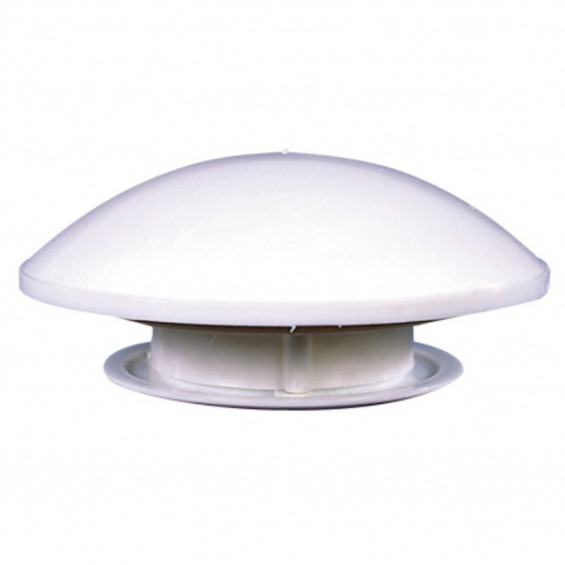

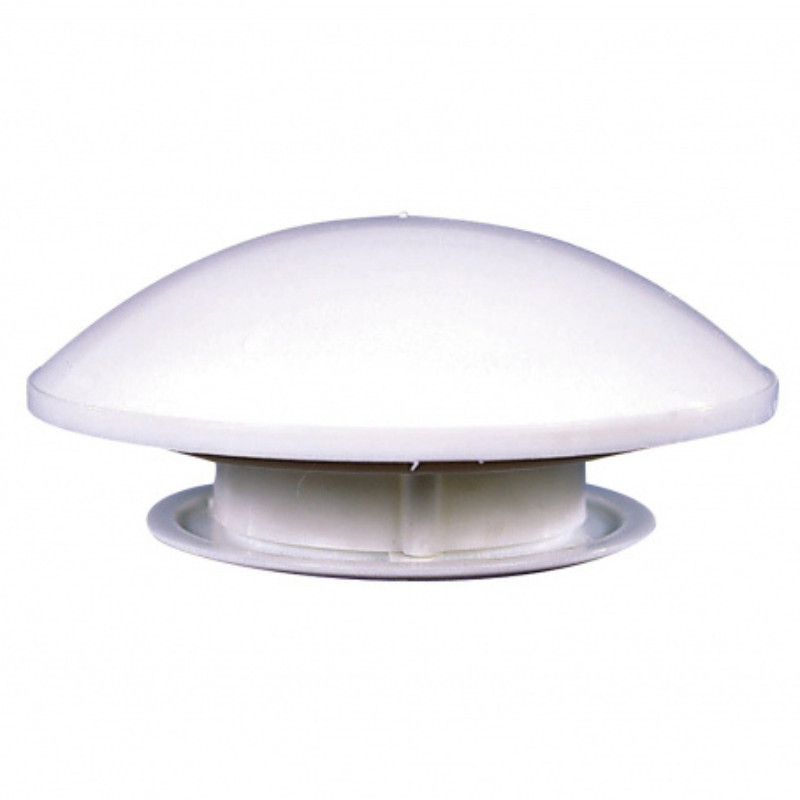

Mushroom roof vent with permanent ventilation for van

Chantal Permanent Ventilation Mushroom Roof Vent 25 cm²

Name: Chantal Permanent Ventilation Mushroom Roof Vent 25 cm²
Brand: $shop.name
SKU: 1.372
Price: 8.69 EUR
Availability: InStock

Reference : 1.372

€8.69 Inc. VAT

Optimise the comfort of your van with the Chantal permanent mushroom roof vent. This permanent ventilation solution eliminates moisture and unpleasant odours without any electrical consumption. Robust, UV-treated and easy to install, it protects your materials from mould and guarantees fresh air on board.

Description

Product in stock

Dispatched within 24 hours

Order today for delivery from %MINIMAL_DATE%

Description

Breathe easy and eliminate moisture in your van with the Chantal permanent ventilation mushroom vent

Say goodbye to morning condensation and lingering odours in your living space with this Chantal passive ventilation solution. Specifically designed to meet the requirements of van and campervan conversions, this accessory ensures constant air renewal without consuming a single watt of your auxiliary battery. Its installation is disarmingly simple, adapting to almost any body panel thickness to guarantee a healthy interior, even when your vehicle remains closed for long periods.

Its UV-treated plastic structure offers optimal resistance against the elements, providing lasting peace of mind during your stopovers.

Essential for obtaining your VASP certificate, this mushroom vent guarantees the permanent high-level ventilation required by current safety standards.

Whether you need to ventilate your kitchen area or your bathroom, this mushroom vent is the essential ally for durably preventing mould and maintaining optimal interior comfort in all seasons. For an even more efficient airflow, feel free to install a double ventilation grille with mosquito net to create a perfect natural draught.

Technical specifications of the CHANTAL MUSHROOM VENT

Device type: Static roof vent (mushroom-style) with permanent ventilation
Ventilation area: 16 cm²
Cut-out diameter: Ø 90 mm (standard)
Overall dimensions: Ø 180 mm
Compatible roof thickness: 22 to 50 mm
Material: High-resistance white technical plastic with UV treatment
Safety: Interior grille with integrated mosquito net to keep insects out

The perfect roof vent to meet VASP requirements

Converting a van for VASP (Véhicule Automoteur Spécialisé) approval requires strict rules regarding air circulation. The NF EN 1949 standard and the requirements of the DREAL/DRIRE aim to guarantee the safety of occupants, particularly for the extraction of combustion gases, prevention of asphyxiation and elimination of moisture. Ventilation must be permanent, meaning it must not be manually obstructable. It is based on a natural draught principle: low-level ventilation for fresh air intake (often located at the bottom of a door or on the floor) and high-level ventilation for stale air extraction (skylight or mushroom vent on the roof).

Reminder of mandatory ventilation areas (VASP Standard):

Vehicle floor area (m2)	High ventilation (cm2)	Low ventilation (cm2)
Less than 5 $m^2$	75 c $m^2$	10 c $m^2$
Between 5 and 10 $m^2$	100 c $m^2$	15 c $m^2$ $m^2$
Between 10 and 15 $m^2$	125 c $m^2$	20 c $m^2$
Between 15 and 20 $m^2$	150 c $m^2$ $m^2$	30 c $m^2$ $m^2$
More than 20 $m^2$	200 c $m^2$	50 c $m^2$

Warning: These surfaces correspond to the "free airflow passage". If you install a grille or a vent with a mosquito net or fins, the actual opening area must be larger to compensate for the physical obstruction of the material.
