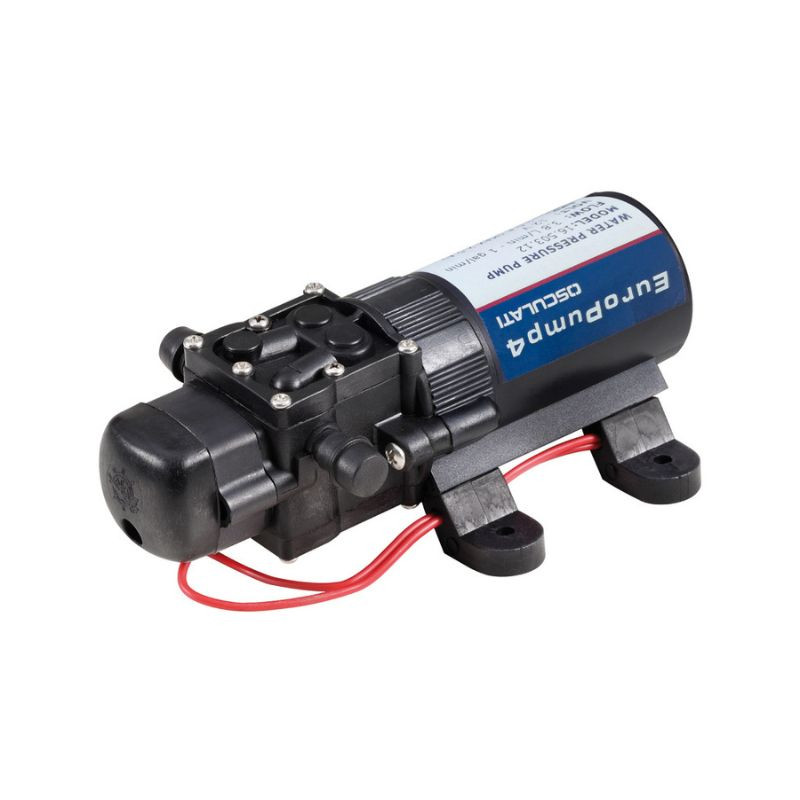

EUROPUMP 4 12V water pump Osculati - Ideal for vans and converted vans

The most compact pump in the Europump range

Do you dream of having running water in your van or camper van? Are you fed up with water distribution systems that consume a lot of energy or are a bit cumbersome?

The EUROPUMP 4 water pump fromOsculati offers an effective solution to these problems. Designed for use in confined spaces, it ensures smooth water distribution, ideal for supplying a sink or showerhead.

Its automatic operation is based on a built-in pressure switch: this pressure sensor triggers the pump when a tap is opened and automatically stops it when it is closed. This guarantees constant pressure without manual intervention, while optimising energy consumption.

Product benefits

• Low energy consumption: with just 2 A, it preserves your battery life
• Damage-free dry running: no risk of an empty tank
• Built-in thermal protection: prevents overloads and extends pump life
• Versatile installation: can be mounted horizontally or vertically (nose down)
• Pressure switch calibrated for a pressure of 2.8 bar: provides independent on/off control

With a flow rate of 3.8 L/min and a pressure of 2.8 bars, it's perfect for small water systems in converted vehicles.

Installing Europump 4

1. Preparation: make sure the system is switched off and the water tank is clean
2. Assembly: mount the pump on a flat surface, in a horizontal or vertical position (nose down only)
3. Connection: connect the inlet and outlet pipes to the 10 mm hose barbs
4. Electrical connection: connect the pump to a 12 V DC supply, inserting a 5 A fuse for protection
5. Test: fill the tank, switch on the system and open a tap to automatically activate the pump via the pressure switch

Technical specifications

• Voltage: 12 V DC
• Current consumption: 2 A
• Flow rate: 3.8 l/min
• Pressure: 2.8 bar (40 PSI)
• Dimensions: 170 x 100 x 60 mm
• Weight: 0.7 kg
• Nozzles: grooved for 10 mm hoses
• Operation: automatic via built-in pressure switch
• Protection: thermal and against polarity reversal
• Pressure switch spare part : 16.540.01

Complementary products

For a quality water system from inlet to outlet, we recommend that you use this pump in conjunction with a clean water tank from Osculati.

Tired of running out of drinking water? Fit your systemwith a probe and water level indicator!
