Your water system deserves reliability, give it a connection that will never let you down

Converting a van is an adventure where every detail counts, especially when it comes to the water system. A single faulty fitting can turn the dream of escape into a real nightmare! It is to meet this requirement for peace of mind and performance that we have selected the Osculati female barbed brass tail, the cornerstone for a serene and durable plumbing installation.

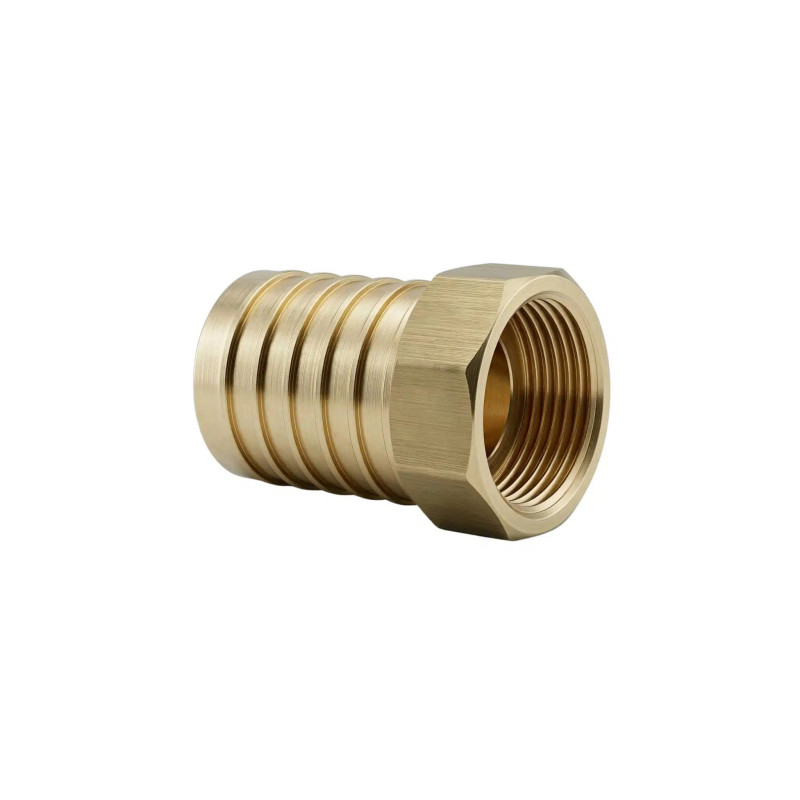

Crafted from cast brass, this robust connector is the ultimate solution for those who refuse to compromise on quality. Forget the fragility of plastic fittings; brass offers unmatched mechanical strength and longevity, guaranteeing a leak-proof seal year after year. Its design combines a precise female thread, which screws perfectly onto the male outlets of your equipment, with a barbed tail specifically designed for maximum hose grip. Once the hose clamp is in place, the connection is solid, secure and ready to take on the miles.

Whether you use it for a pump outlet, to connect a water heater, or directly onto a rigid fresh water tank, this female fitting adapts to all configurations. Its versatility makes it an essential tool in your toolkit, ensuring you can make reliable and professional connections wherever you need them. Simplify your life and choose the security of a flawless installation.

Diameters available at Heode:

• Ref. 17.199.02: 1/4” thread - For Ø 10 mm hose
• Ref. 17.199.03: 1/4” thread - For Ø 13 mm hose
• Ref. 17.199.29: 3/8” thread - For Ø 12 mm hose
• Ref. 17.199.04: 3/8” thread - For Ø 10 mm hose
• Ref. 17.199.06: 3/8” thread - For Ø 15 mm hose
• Ref. 17.199.07: 1/2” thread - For Ø 13 mm hose
• Ref. 17.199.08: 1/2” thread - For Ø 15 mm hose
• Ref. 17.199.09: 1/2” thread - For Ø 20 mm hose
• Ref. 17.199.10: 3/4” thread - For Ø 20 mm hose
• Ref. 17.199.12: 1” thread - For Ø 25 mm hose
• Ref. 17.199.22: 1”1/4 thread - For Ø 38 mm hose
• Ref. 17.199.16: 1”1/2 thread - For Ø 40 mm hose
• Ref. 17.199.18: 2” thread - For Ø 50 mm hose

Technical specifications of the female barbed brass tail for tanks

• Fitting type: Male barbed tail with female thread
• Material: Cast brass
• Use: Connection of flexible hoses to male threaded outlets for fresh water, grey water or black water circuits in vans and converted vehicles.
• Installation: Screw onto a male thread, insert the hose onto the barbed section and secure with a hose clamp (not supplied).
• Compatible surfaces: Compatible with flexible hoses (PVC, rubber, etc.).
