More power to run all your equipment with the EZA 500W pure sine wave inverter

>You need headroom to power your television, computer and LED lighting simultaneously without overloading your installation? The EZA 500W Pure Sine Wave Inverter gives you an extra power reserve while maintaining a pure sine wave signal, the only guarantee of a healthy power supply for your most sensitive electronic devices.

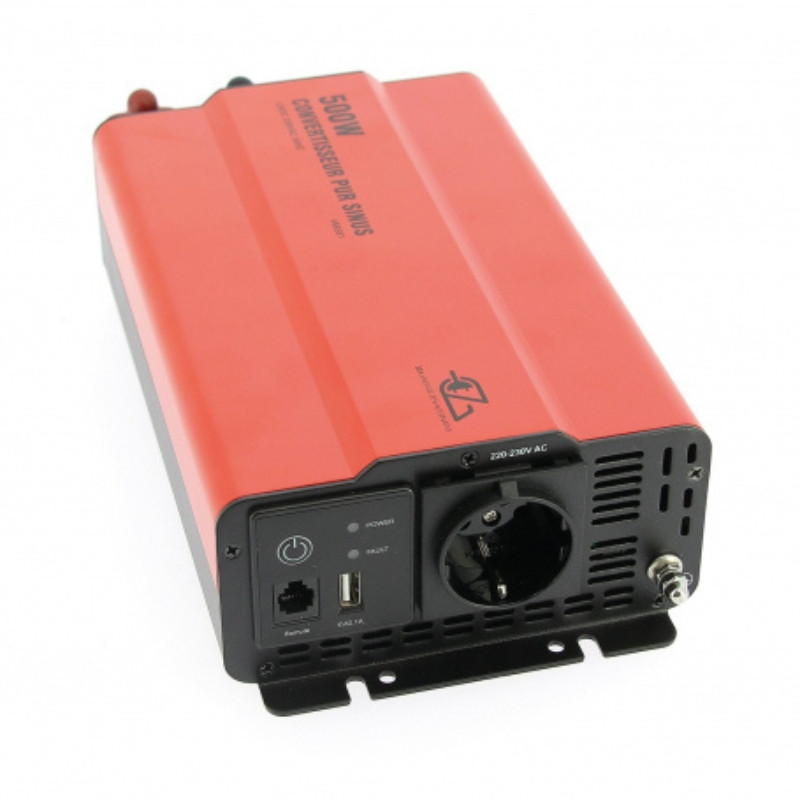

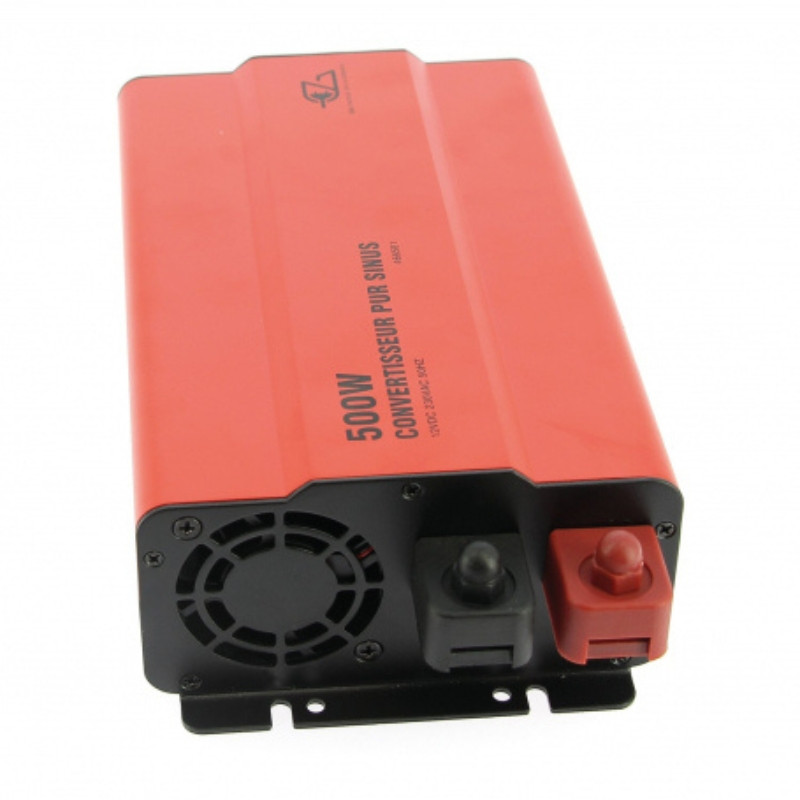

Compact, reliable and secure, it is ideal for powering sensitive electronic devices during your van or campervan travels. Thanks to its pure sine wave technology, it guarantees interference-free power, perfectly suited to televisions, computers, chargers and small electronic devices. The 500W model delivers a peak power of 1,000W and weighs 2 kg, with dimensions of 260 × 150 × 70 mm.

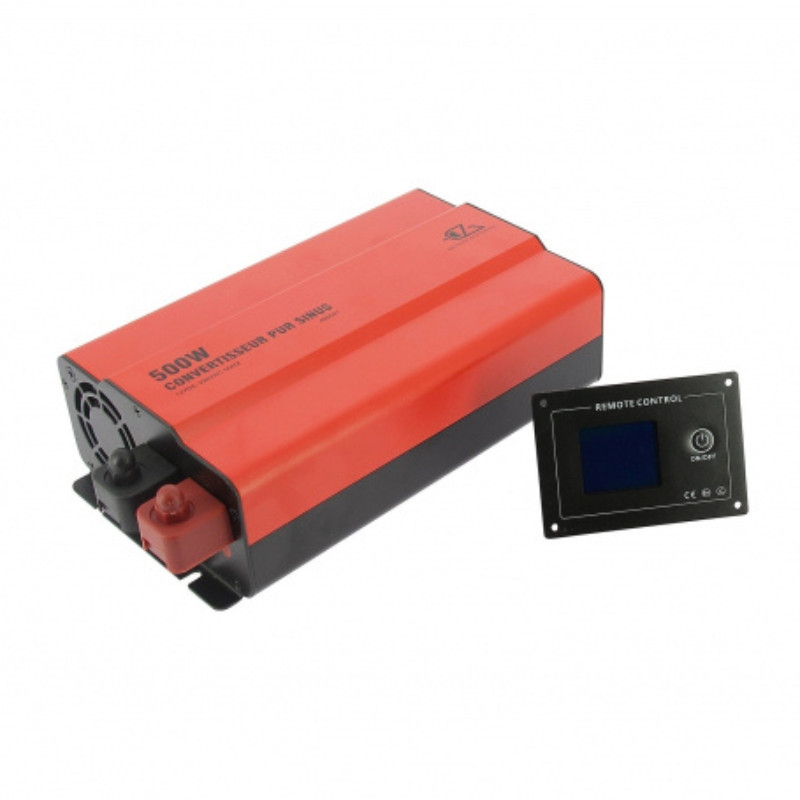

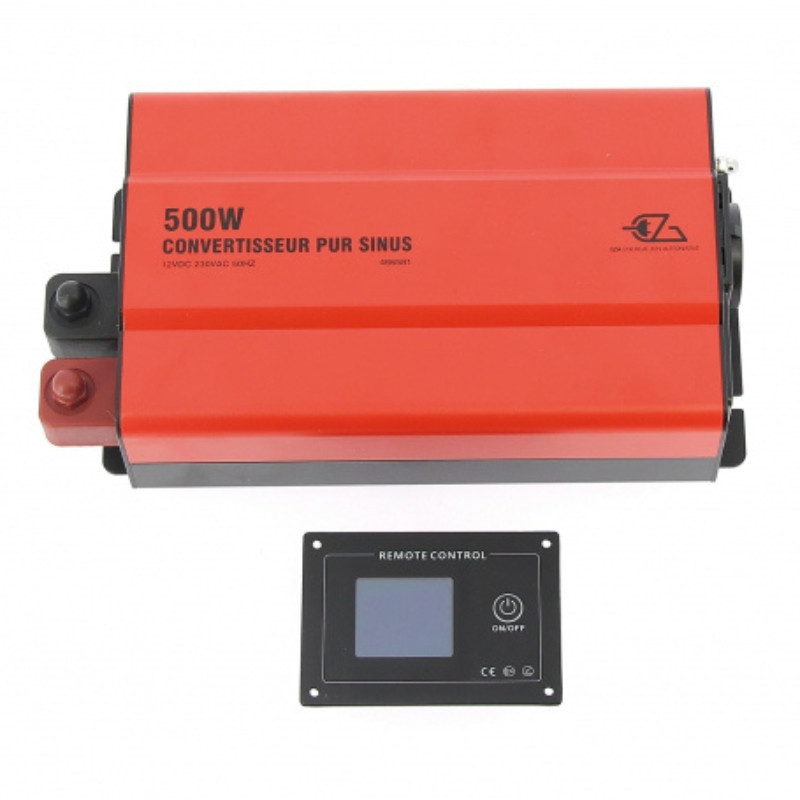

The 500W model comes with a remote control allowing you to operate the inverter from a distance — handy when the unit is installed in a technical compartment far from your living area. An automatic shutdown kicks in if the voltage drops below 11V, to prevent deep discharge of the battery. All essential protections are included: overload, overheating, reverse polarity and short circuit. The unit is R10 approved and compatible with all battery technologies, including Lithium LiFePO4 cells.

For an optimal installation, pair this inverter with an EZA 100Ah deep-cycle battery, ideal for handling the current demands associated with 12V/230V conversion in your van.

How to install the EZA 12V 500W Pure Sine Wave Inverter?

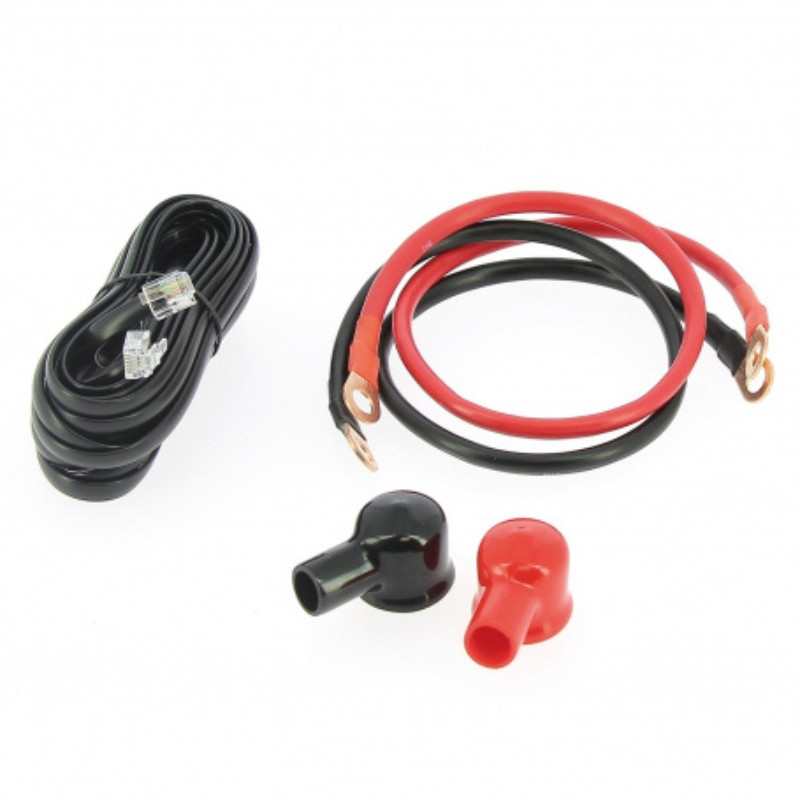

Installation is carried out by securing the unit to the floor or in a wall-mounted position using the reinforced mounting brackets. Connect the supplied cables to your 12V auxiliary battery observing correct polarity, and protect the circuit with a rated fuse. The included wired remote control can be extended up to several metres for easy access from your living area.

Which pure sine wave inverter power should you choose for your van?

The EZA range offers 5 power levels from 300W to 3000W. Green = perfect autonomy; Red = does not work or strongly not recommended.
