Master your water reserves in your van: no more uncertainty about your tank levels!

When on a road trip, the question of tank levels (fresh water, grey water, black water) is constant. Running out of fresh water at a crucial moment or seeing a waste water tank overflow are inconveniences that every vanlifer wants to avoid.

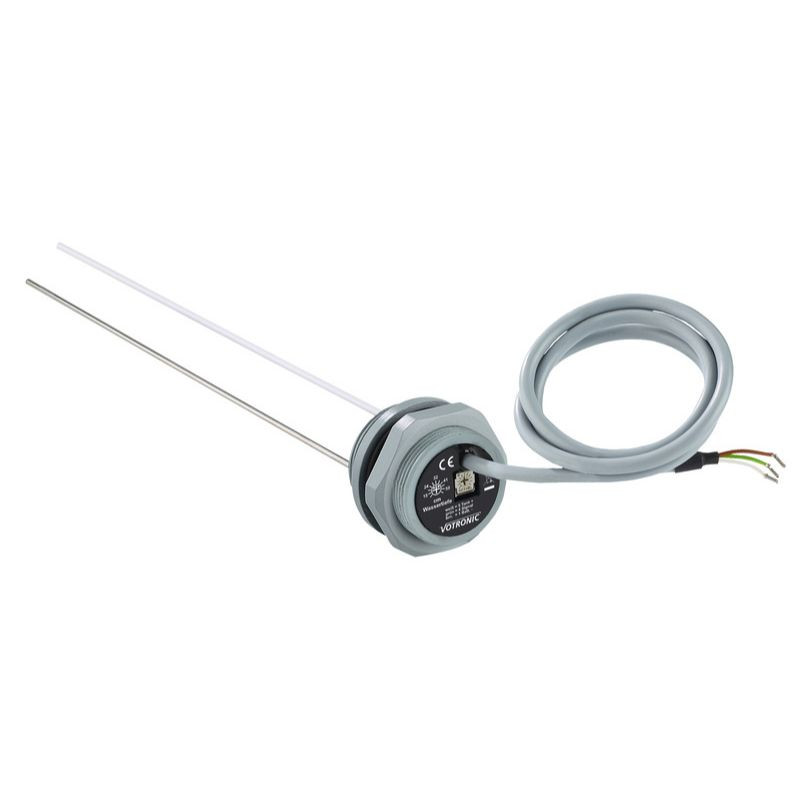

The level gauge for van tanks is precisely designed to facilitate the management of this travel reality by providing a precise and continuous estimate of the filling of your tanks.

Thanks to its fully electronic capacitive measuring method, it is insensitive to impurities, deposits, and even pressure variations. No more stuck floats or incorrect readings: you benefit from a linear and reliable signal, whether your tank is plastic or metal! This probe is versatile, adapting to your fresh water tank as well as those for grey water or those containing faecal matter, guaranteeing complete monitoring of your essential fluids.

Its intelligent design allows easy adaptation to your tank height, from 15 to 50 cm, simply by shortening it. Installation is facilitated by its standard mounting diameter (38 mm) and screw terminals, requiring only a 3-wire cable to connect it to a level indicator for faecal matter tank.

You can also pair this gauge with a freshwater tank indicator, or with a grey water tank indicator.

Technical specifications of the probe for tanks from 15 to 50 cm

• Indicator type: Level probe / Level gauge / Tank electrode (capacitive)
• Compatible tank height: 15 to 50 cm (adjustable by shortening)
• fresh
• Measuring method: Capacitive (fully electronic, no moving mechanical parts)
• Resistance: Insensitive to fouling, deposits and pressure variations
• Tank compatibility: Plastic and metal
• Output signal: Linear and continuous fill level
• Power supply: 12 V / 24 V (continuous operation)

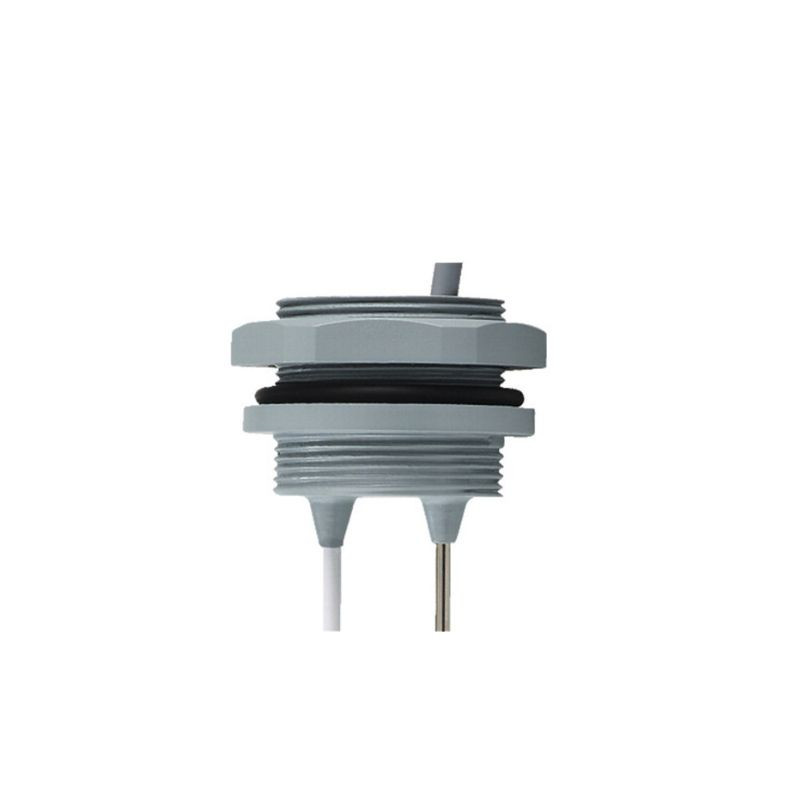

• Mounting diameter: Ø 38 mm
• Fixing: Lock nut and seal, double thread
• Wiring: 3-wire (cable length 70 cm)
• Adjustment: By potentiometer on the transmitter (for "full" and "empty" levels)
• Standards: DIN 2001-2 compliant (for drinking water)
• Waterproofing: IP 67
• Overall diameter: 63 mm
• Thread diameter: 46.5 mm
