A complete, compact and efficient water system

In a commercial vehicle or converted van, managing running water can quickly become a real headache: between limited space, complex connections, and the need to supply several water points (sink, shower, washbasin...), it's difficult to find a solution that is both reliable, compact and easy to install. The 117 L tank kit with 12 V Osculati pump responds precisely to this problem by offering a ready-to-use system, designed to integrate perfectly into restricted spaces whilst guaranteeing smooth use.

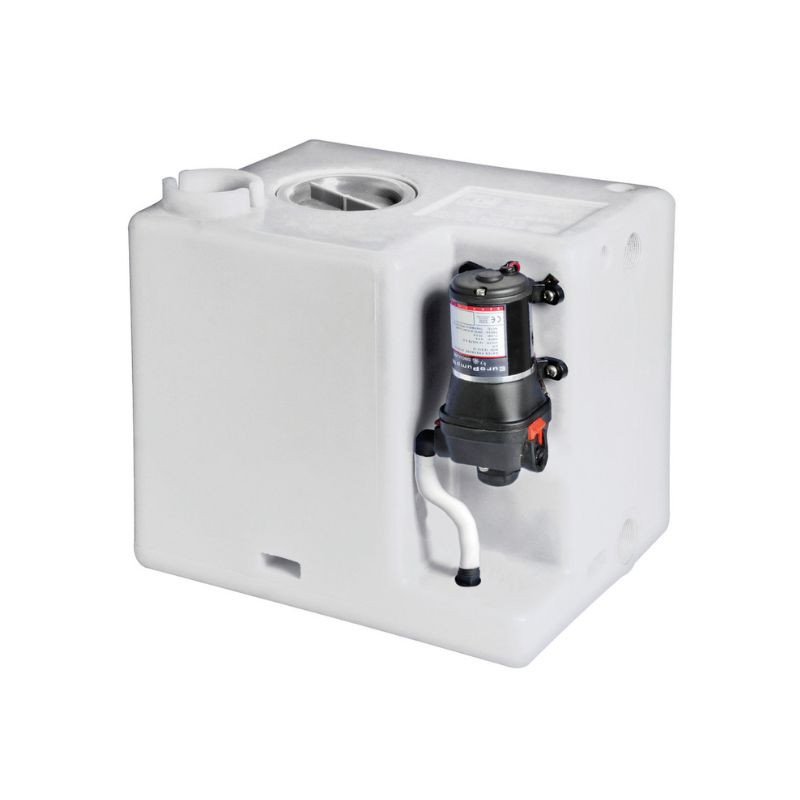

This all-in-one kit combines a food-grade polyethylene tank with a large capacity and a high-performance 12 V autoclave pump, capable of delivering up to 12.8 L/min with a constant pressure of 2.45 bar. Whether for a fixed or modular installation, it ensures efficient water distribution throughout the vehicle, without jolts or overpressure.

This complete kit installs easily in horizontal or vertical position thanks to:

• Its compact shape (650 x 490 x 400)
• Its standard fittings
• Fixing by support straps or brackets, it installs easily in horizontal or vertical position
• Once in place, the tank is easy to maintain thanks to a large inspection hatch.

Adapted to meet the needs of 1 to 3 people, this system offers compatibility with different sanitary equipment. It constitutes an ideal solution for those who want to enjoy the comfort of running water, even in the heart of nature, whilst avoiding the constraints of conventional installations.

Consider the universal tank fixing kit to ensure a reliable and lasting installation of your tank!

Technical Specifications

• Capacity: 117 litres

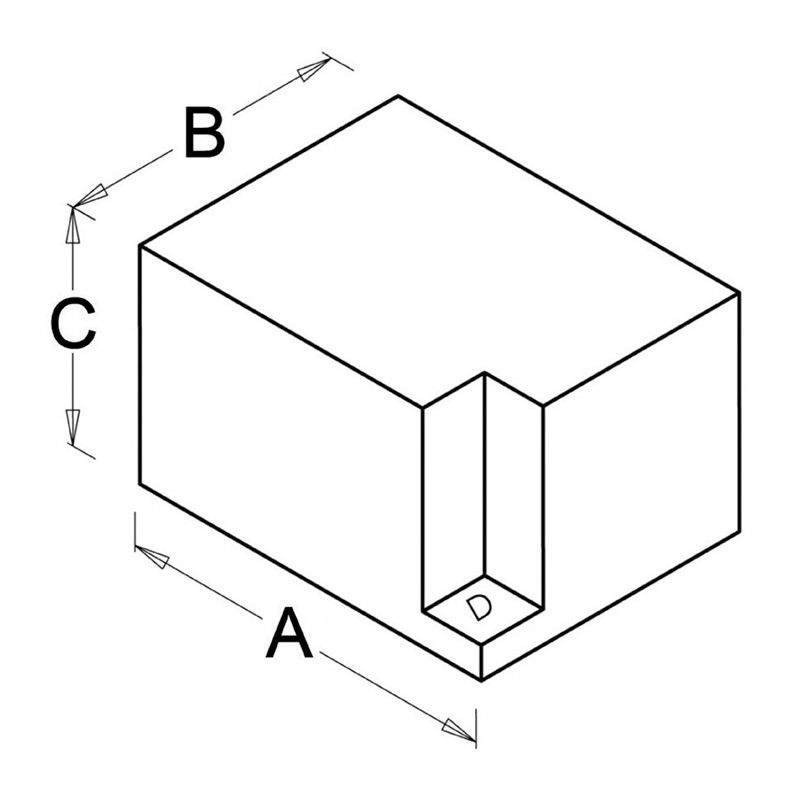

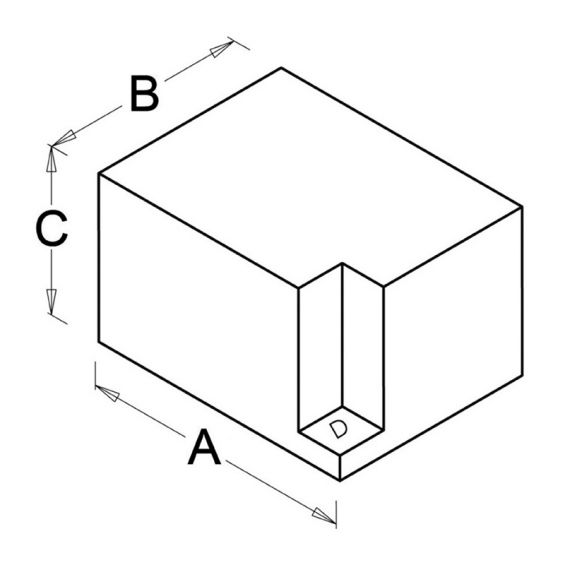

• Dimensions: A 650 mm (length) x B 490 mm (width) x C 400 mm (height)
• Weight: 8.2 kg
• Material: food-grade polyethylene
• Pump: 12V autoclave, flow rate of 12.8 L/min, pressure of 2.45 bar
• Inlet: 1"½ female thread
• Vent: 3/4" female thread
• Pump outlet: 13 mm diameter
• Installation: vertical or horizontal position

Complementary accessories

Please note, fittings are not included and must be selected separately according to your specific configuration.

To connect this kit to your van's water system, you will need:

• Male threaded fittings: 1"1/2 inlets, 3/4' vent
• Inlet and outlet hose
