Double glazed rooflight with integrated lighting 450x400mm - CARBEST

A bath of light and fresh air for your converted van

Designed for leisure vehicles and converted vans, the Carbest Panorama rooflight is the ultimate way to give your van an extra source of natural light!

As well as its discreet design, it offers a host of features that make it as effective as it is pleasant to use:

• UV-resistant acrylic double glazing
• An integrated blackout blind to dim the light
• A mosquito net for continuous ventilation without insect intrusion

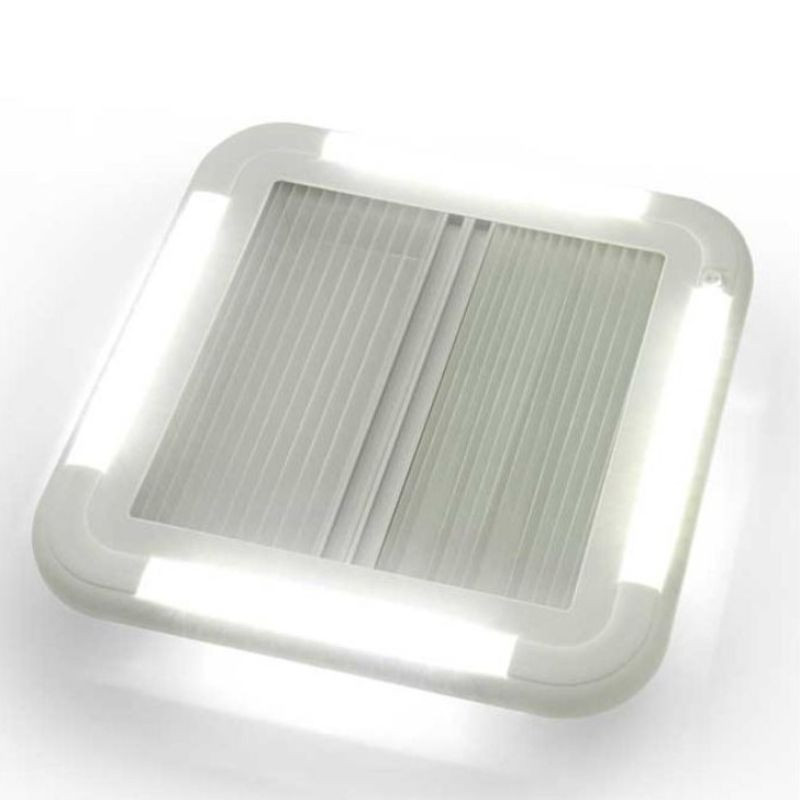

• 4 strips of 12 V LED lighting, so you can see at night as well as during the day
• Continuous ventilation, ensuring constant air exchange even when closed

Ideal for preventing condensation or keeping the air in your van healthy!

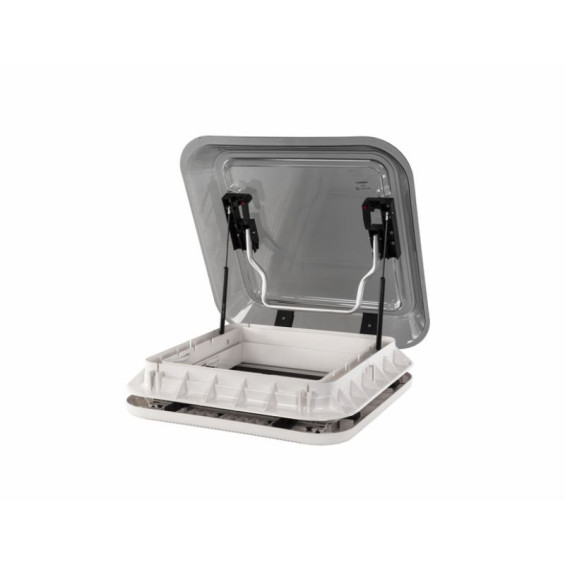

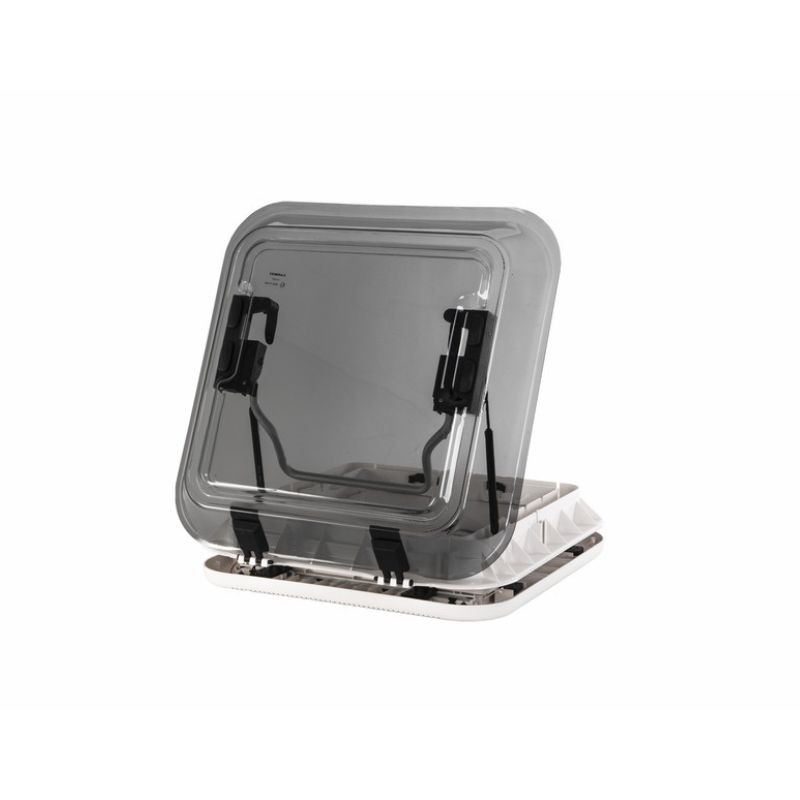

Its 60° opening with gas strut means you can regulate the air flow to suit your needs. It is suitable for vehicles travelling at speeds of up to 130 km/h and complies with ECE R43 standards, ensuring safety and approval.

Tips for successful installation

• Check the thickness of the roof ( 25 to 60 mm) and the cut-out dimensions (452 x 402 mm)
• Leave a clean, perfectly flat space on the roof
• Apply a suitable sealant/glue around the base of the skylight
• Mount the hinges facing the front of the vehicle
• Connect the 12V wiring if you wish to activate the LED lighting
• Do not overtighten the screws to avoid distorting the frame

Technical specifications

• Type: Rooflight with manual opening
• Material: Double-glazed acrylic, plastic frame
• Dimensions of opening hole : 450 x 400 mm
• Overall dimensions: 577 x 577 mm
• Cut-out dimensions: 452 x 402 mm
• Height above roof: 98 mm
• Opening: up to 60
• Compatible roof thickness: 25 to 60 mm
• Ventilation: Permanent ventilation
• Integrated accessories: Blackout blind + insect screen + LED (x4)
• Standard: ECE R43 approved
• Maximum authorised speed: 130 km/h
• Lighting: Compatible with 12V LEDs (depending on model)
